Electromagnetic Lock

/

350KG-800LBS

/Embedded Magnetic Door Lock Kit 350kg

New Products

Embedded Magnetic Door Lock Kit 350kg

> With Signal Output

> Current Draw: 12V/480mA 24V/240mA

> Voltage: DC12V or DC24V

> Holding Force: 350KG (800Lbs)

> Lock Size: 273Lx44Wx27.5H(mm)

> Armature plate: 180x45x11(mm)

  • Brand:

    S4A
  • Item NO.:

    EM-800TS
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Mortise Mount Lock 350KG (800Lbs)

Model No.: EM-800TS


What is Electromagnetic Lock?


Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


EL-800T

Without Signal Output

EL-800TS

With Signal Output

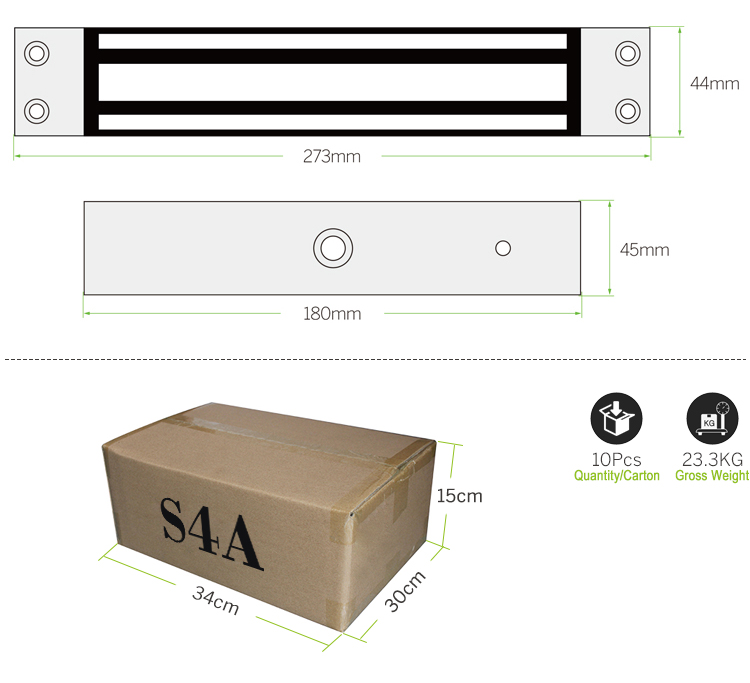

Lock size

273Lx44Wx27.5H(mm)

Armature Plate

180Lx45Wx11H(mm)

Working voltage

DC12V or DC24V

Current Draw

12V/480mA  24V/240mA

Surface Temp

≤20℃

Operating Temp

-10℃ ~ 55℃(14°F-131°F)

Finishes for shell

Anodized Aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2.7KG

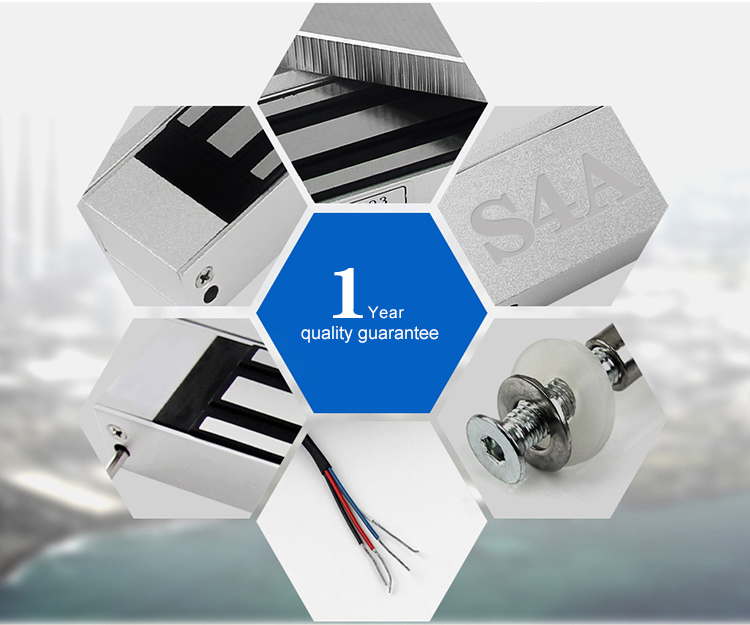

embedded magnetic door lock kitembedded magnetic door lock kit

embedded magnetic door lock kit 350kg

Embedded Magnetic Door Lock Kit 350kg

Model No.

Quantity/Carton

Gross Weight

Carton Size

EM-800TS

10pcs

23.3KG

34x30x15cm

embedded magnetic door lock kit

S4A Instruction_EM-800TS_Embedded Magnetic Door Lock Kit 350kg
