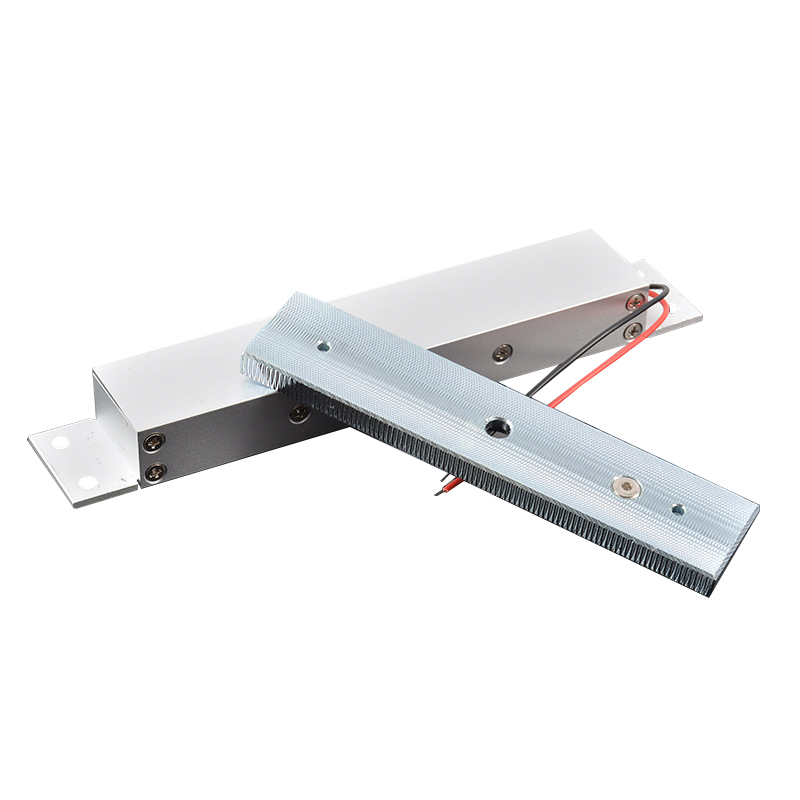

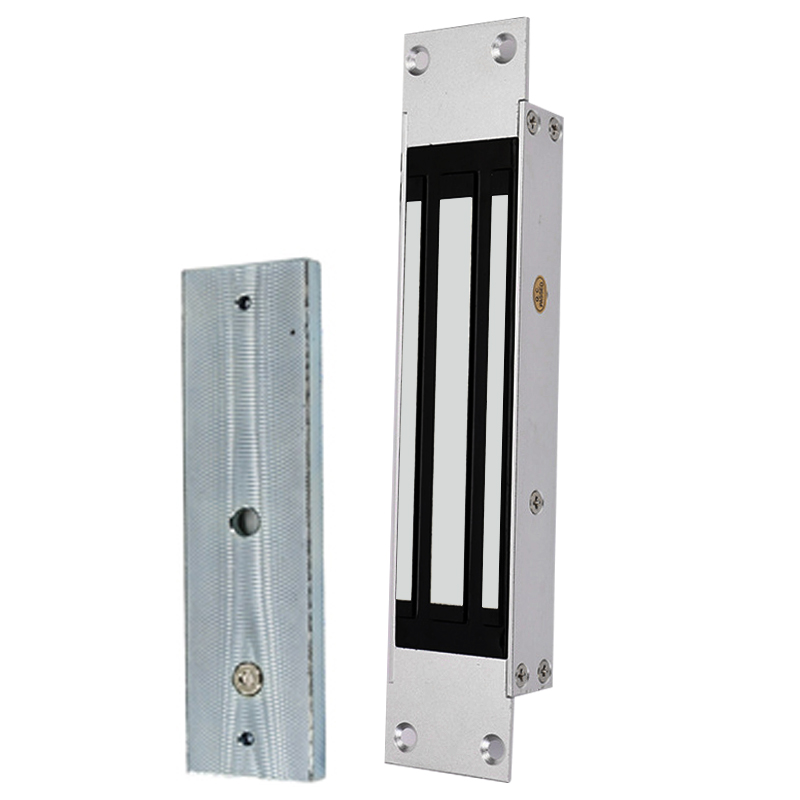

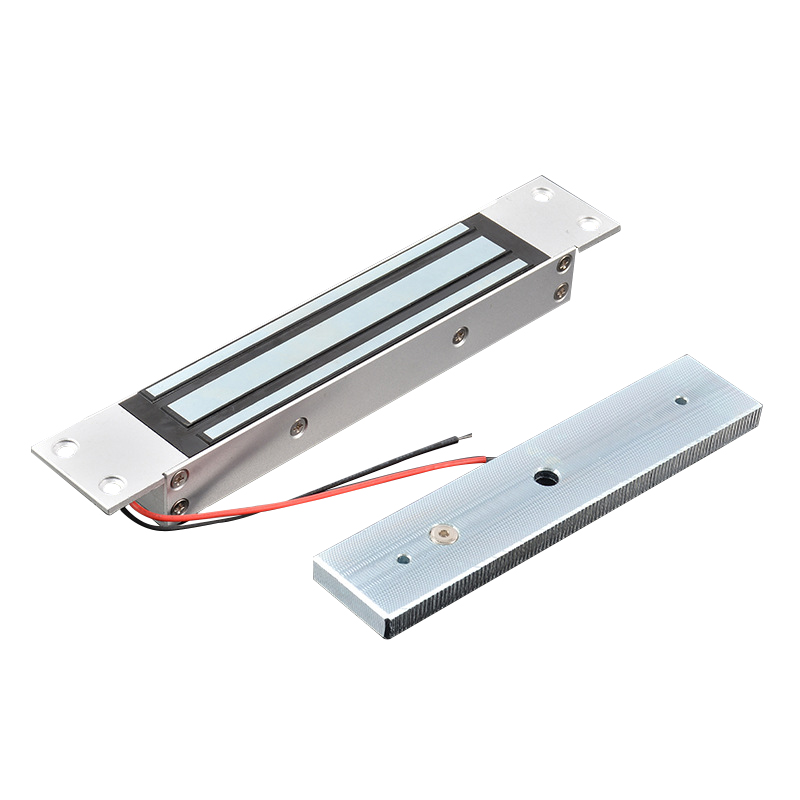

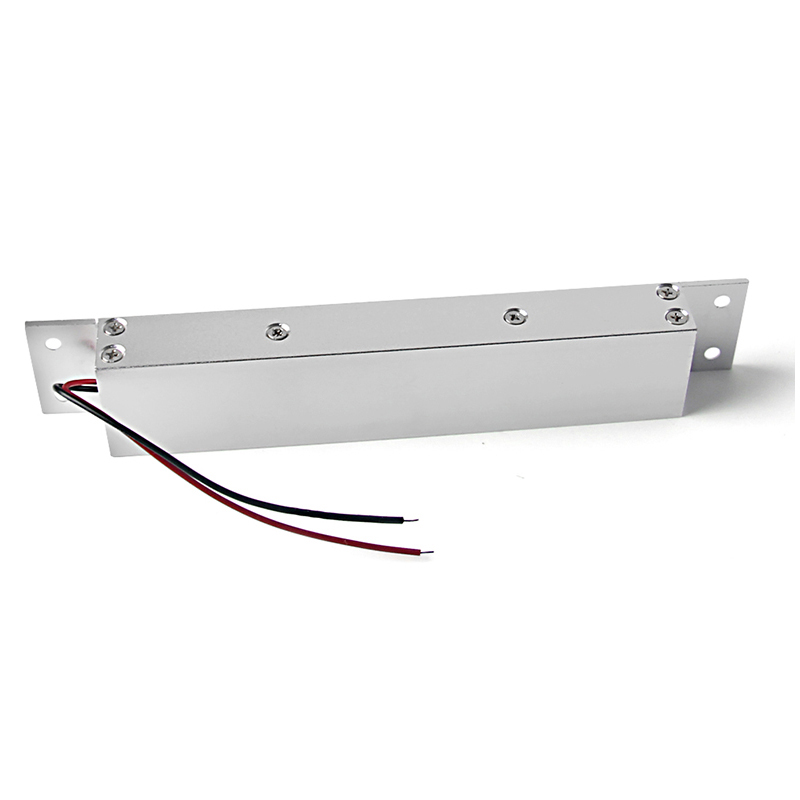

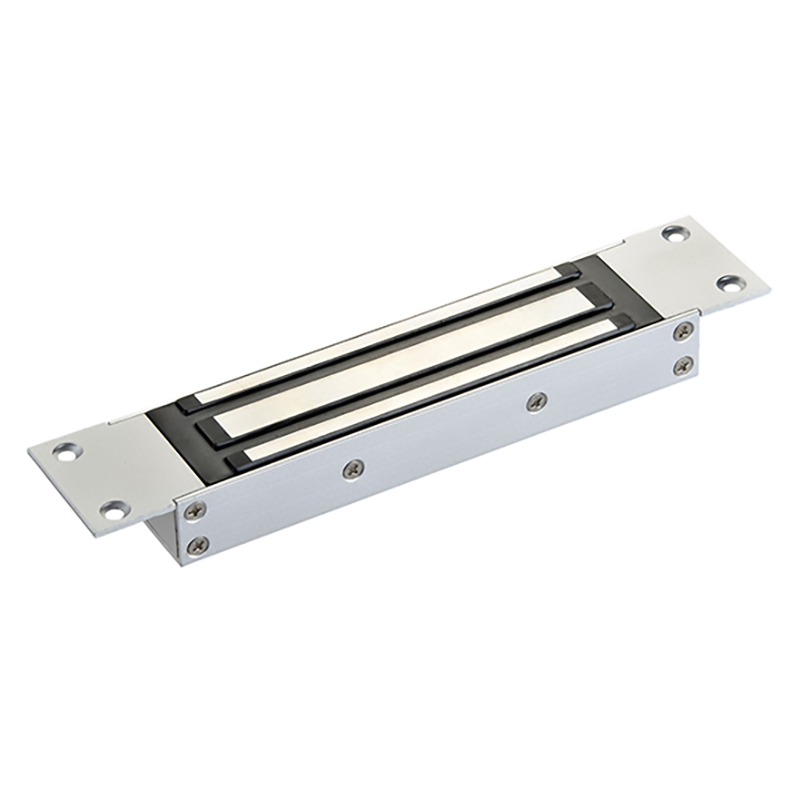

Mortise mount magnetic lock 350KG (800Lbs)

> Without Signal Output

> Current Draw: 12V/480mA 24V/240mA

> Voltage: DC12V or DC24V

> Holding Force: 350KG (800Lbs)

> Lock Size: 273Lx44Wx27.5H(mm)

> Armature plate: 180x45x11(mm)

  • Brand:

    S4A
  • Item NO.:

    EM-800T
  • Specifications
  • Wiring Diagram
  • Package

Mortise mount lock 350KG (800Lbs)

Model No.: EM-800T


EL-800T

Without Signal Output

EL-800TS

With Signal Output

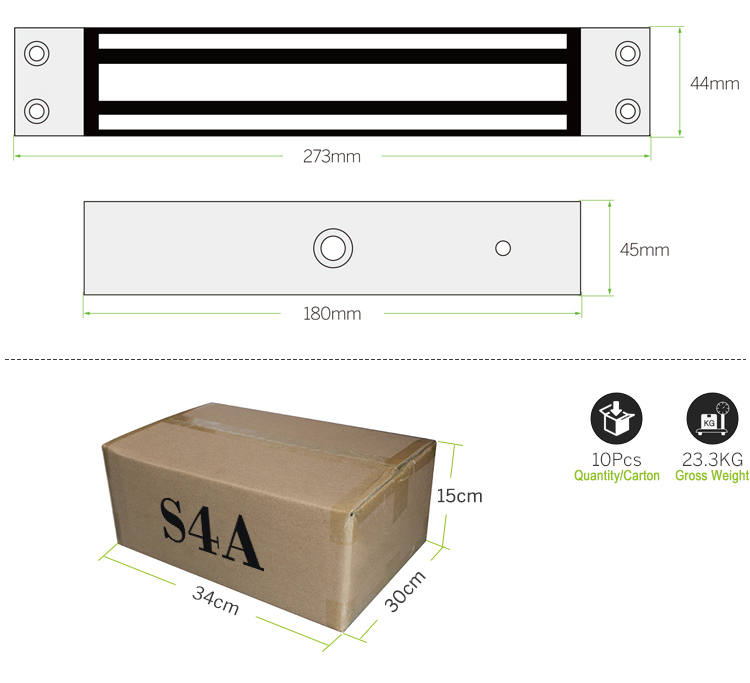

Lock size

273Lx44Wx27.5H(mm)

Armature Plate

180Lx45Wx11H(mm)

Working voltage

DC12V or DC24V

Current Draw

12V/480mA  24V/240mA

Surface Temp

≤20℃

Operating Temp

-10℃ ~ 55℃(14°F-131°F)

Finishes for shell

Anodized Aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2.7KG


Mortise mount magnetic lock 350KGMortise mount magnetic lock 350KG

Mortise mount lock 350KG (800Lbs)

Mortise mount Electromagnetic Lock Series (800Lbs)

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

8pcs

273Lx44Wx27.5H(mm)

2.7kg

22.1KG

Mortise mount magnetic lock 350KG (800Lbs)
