DC12V Electric Mortise Lock, Fail Safe Mode with Adjustment Time Delay

> Voltage: DC 12V or 24V

> Start Current: 580mA

> Standby Current: 200mA

> Power on to lock

> Lock body: 150X34X27mm

> Weight: 0.6KG


  • Brand:

    S4A

  • Item NO.:

    BL-3000
Inquire Now
  • Specifications

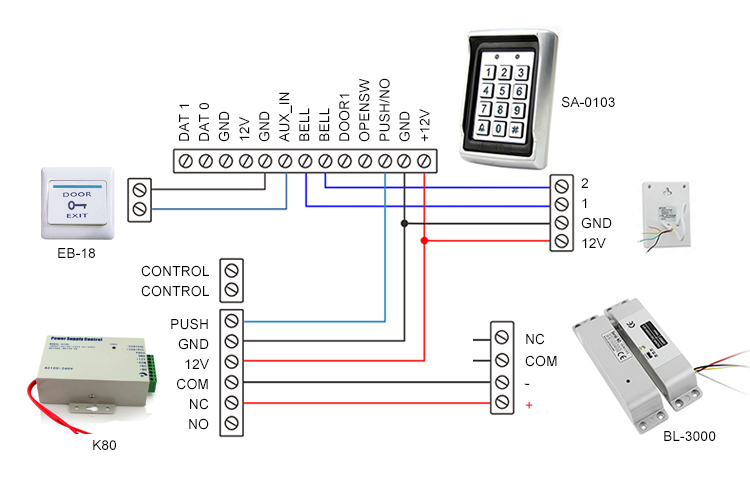

  • Wiring Diagram
  • Package
  • Download

Electric Bolt Lock Hanging with Timer

Model No.: BL-3000


BL-3000 Electric hanging bolt lock-Power on to lock, with 4wires and a time delay, of 0.3.6seconds

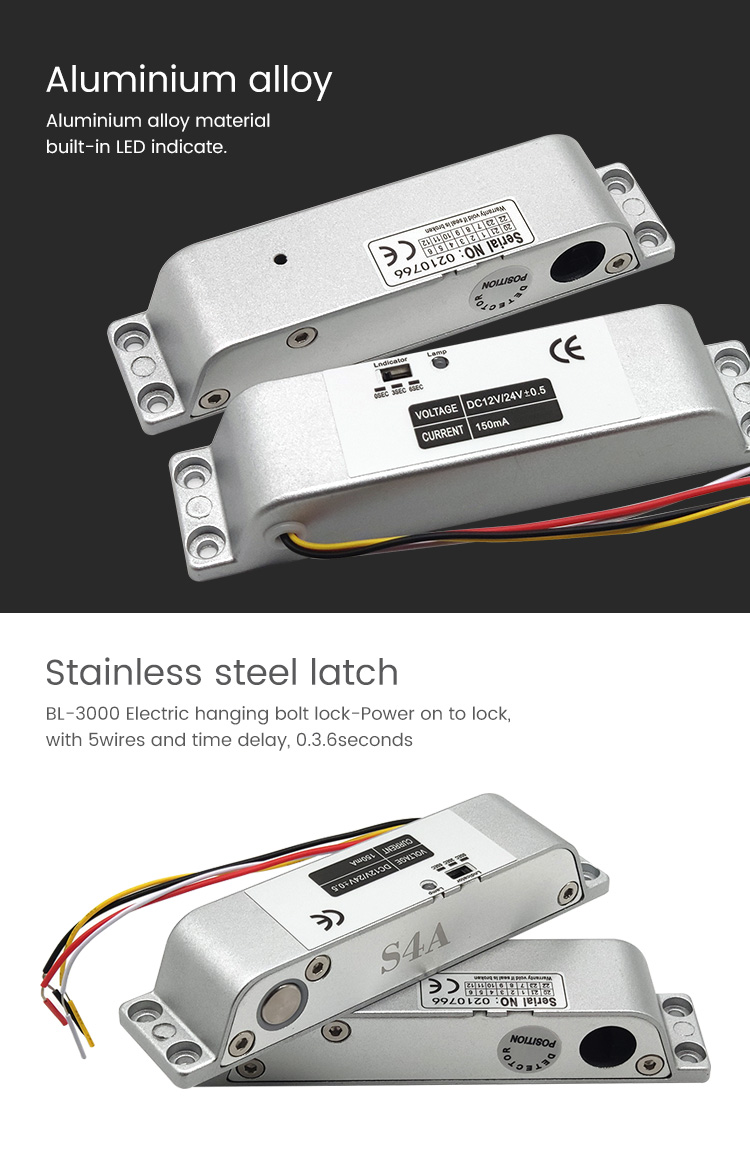

Aluminum alloy material built-in LED indicate.

Voltage

12V/24V DC

Working current

0.25A

Start current

1.2A

Holding force

800kg

Unlock way

Power off to open

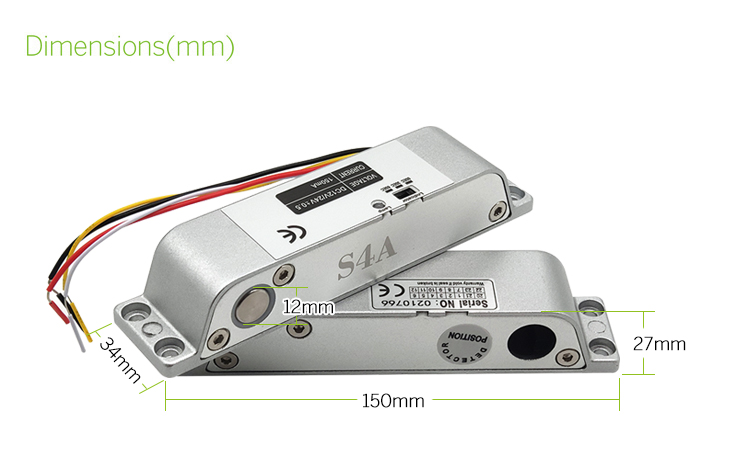

Lock dimension

150x34x27mm

Electric Dropbolt Lock

Electric Dropbolt Lock

DC12V Electric Mortise Lock, Fail Safe Mode with Adjustment Time Delay

Model No.

Quantity/Carton

Gross Weight

Carton Size

BL-3000

40PCS

22KGS

47x26x40cm

Electric Dropbolt Lock
