> With LED (Red only)
> Voltage: DC12V or DC24V
> Current Draw: 12V/500mAx2 24V/250mAx2
Brand:
S4AItem NO.:

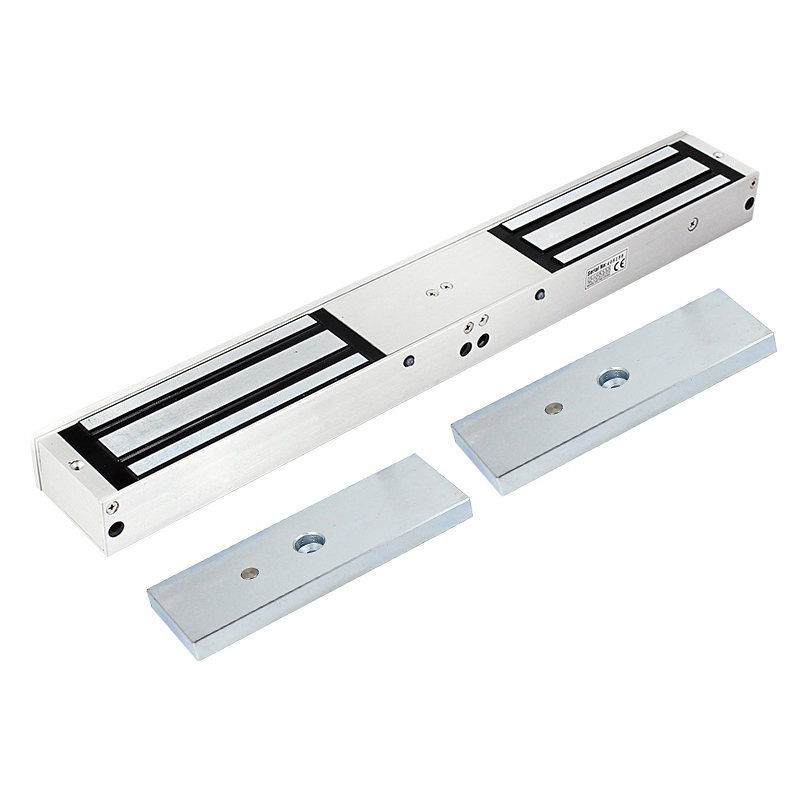

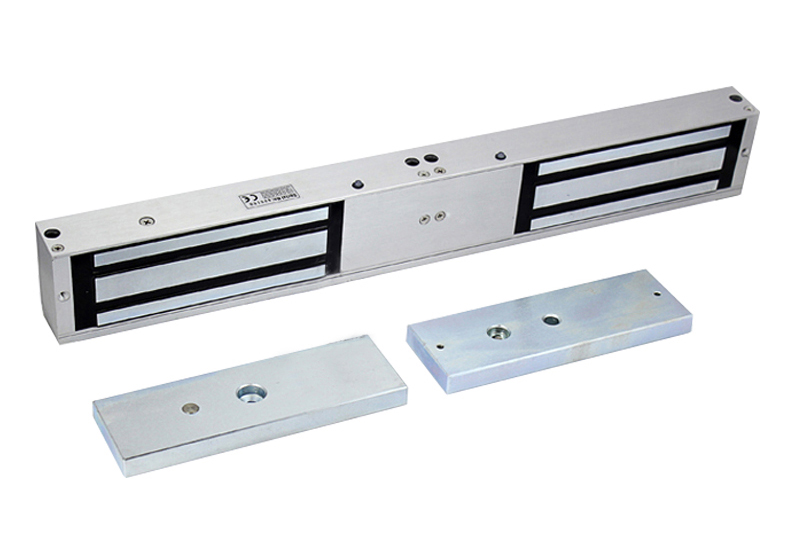

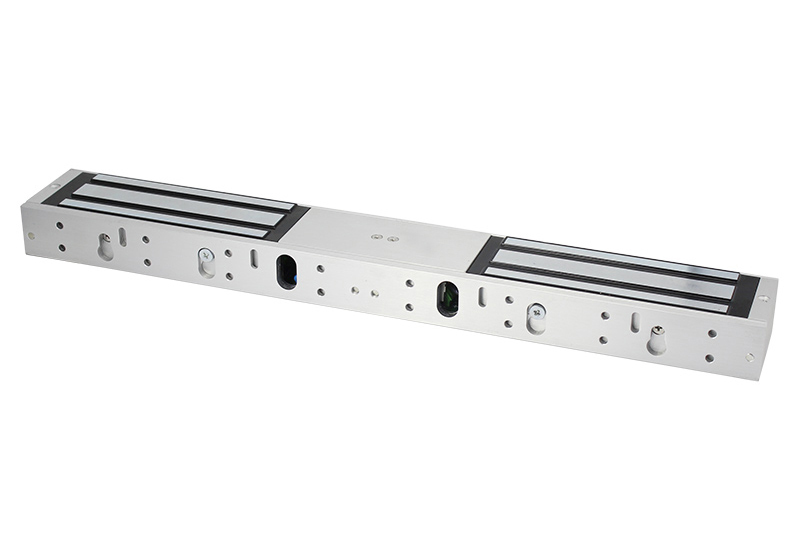

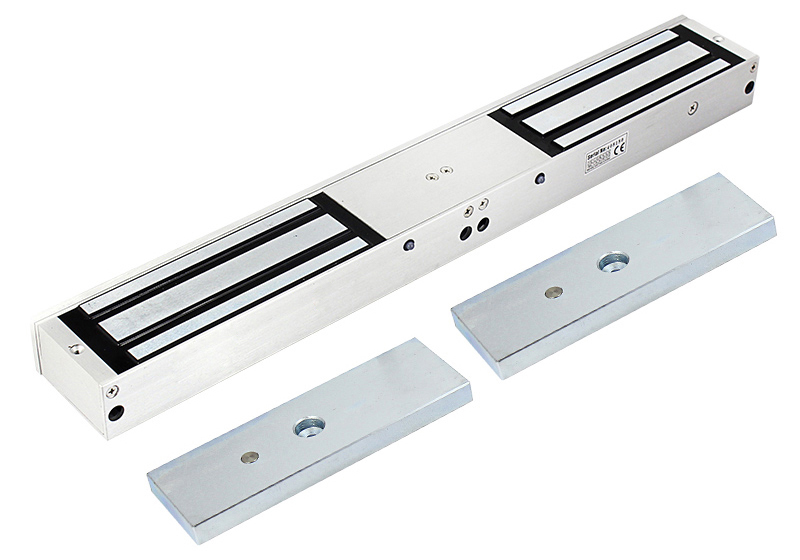

EL-1200Double Door 500KG Magnetic Lock
Model No.: EL-1200
What is a magnetic lock (maglock)?
A magnetic lock is a magnet that is created when an electrical current is passed through a wire with multiple coils around an iron core, or a solenoid (single coiled wire wrapped around a metal core). When the electrical current is disrupted the metal wire is no longer magnetized. Because of the very nature of an electromagnet, it can not be fail-secure, which means that in the result of an emergency or power outage, the doors will unlock. The built-in feature of unlocking in the result of a power outage (referred to as fail-safe) is the basic operating premise of the electromagnet or maglock.
Product Parameter | Parameter Description |
EL-1200D | Without indicator lights |
EL-1200DS | With LED (Red only) |
EL-1200DST | Built-in LED, door sensor, and time delay |

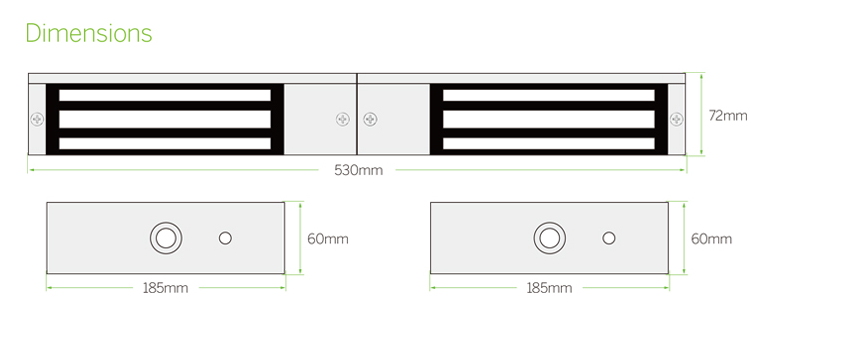

Lock Dimension | 530Lx72Wx40H(mm) |
Armature Plate Dimension | 185Lx60Wx13H(mm) |
Holding Force | 500kgx2(1200Lbsx2) |
Input Voltage | DC12V or DC24V |
Current Draw | 12V/500mAx2 24V/250mAx2 |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Signal Output | Need to order EL-D1200S |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 9KG |
Standard Packing | 4pcs |
Double Electromagnetic Lock Series (1200Lbs) | |||
Standard Carton box | Unit Size | Gross Weight /pcs | Gross Weight /Carton |
4pcs | 530Lx72Wx40H(mm | 9kg | 36.5KG |
