>Operating frequency: 13. 56MHZ
>Communication speed: 106Kbit/s
>Program memory: 32K/8bit tRON
Brand:
S4AItem NO.:

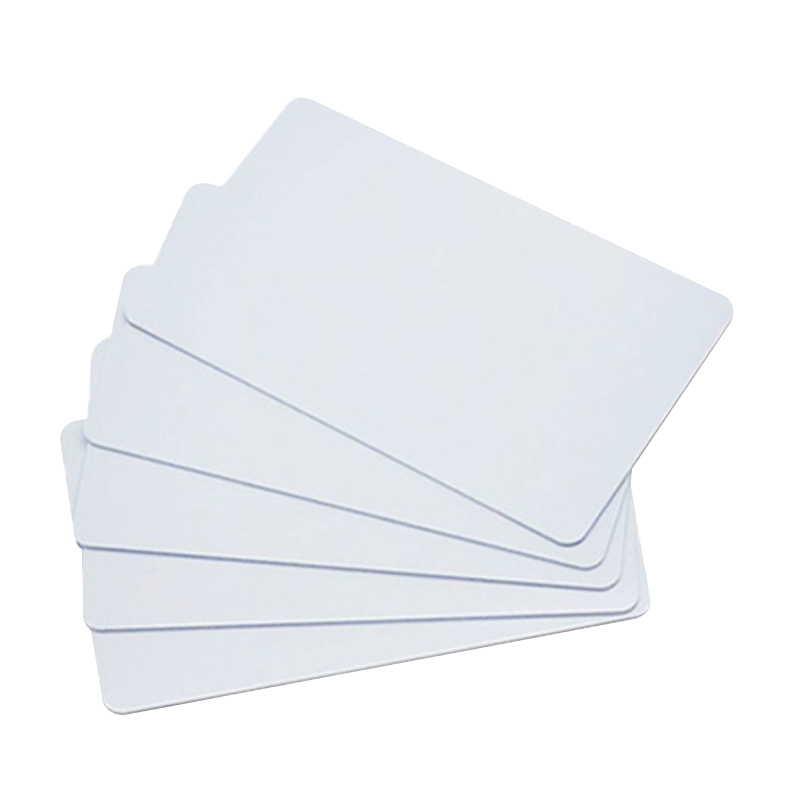

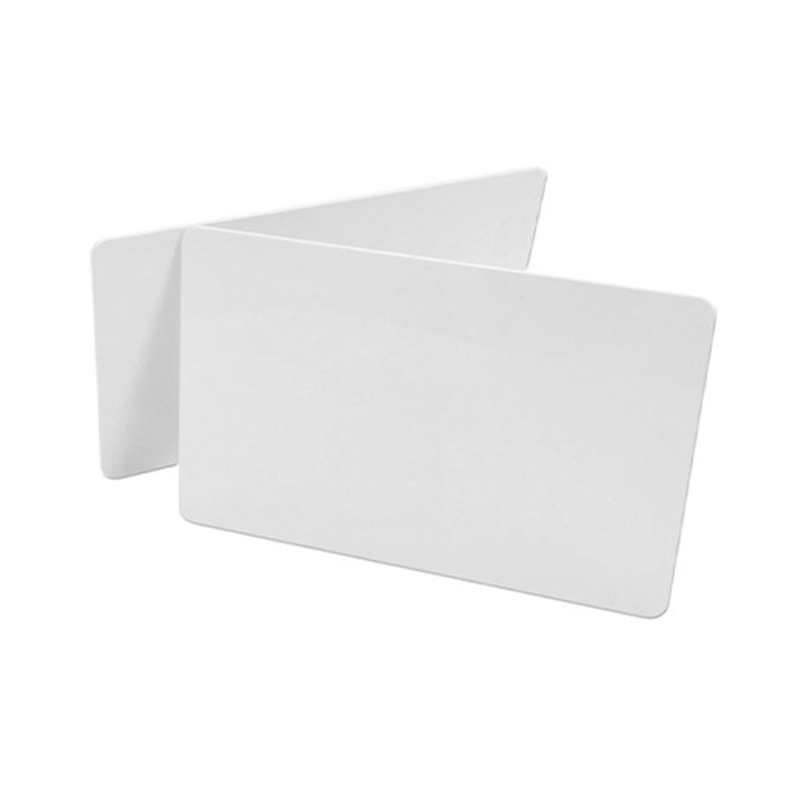

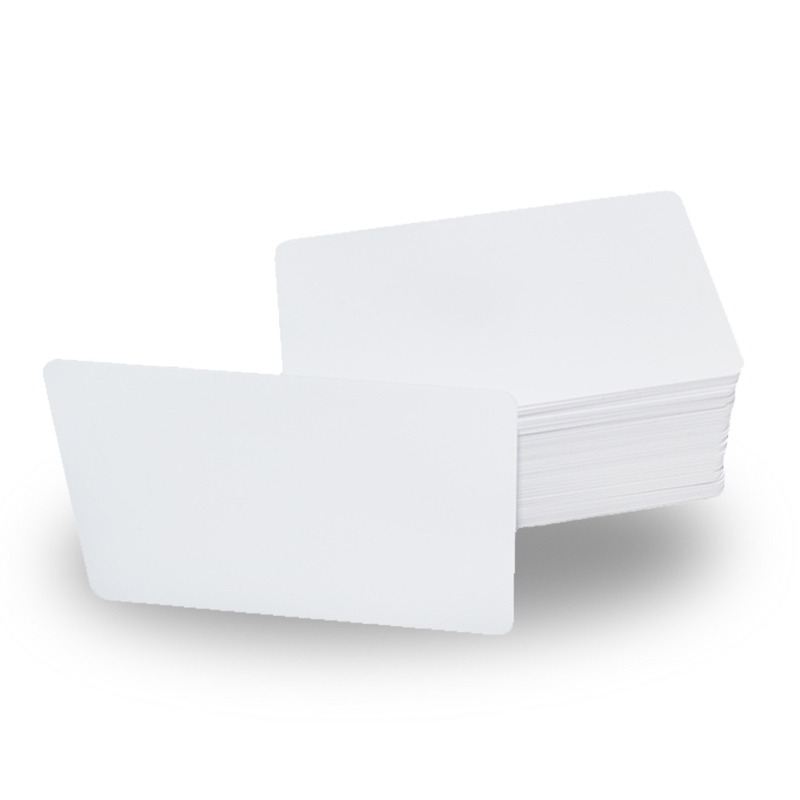

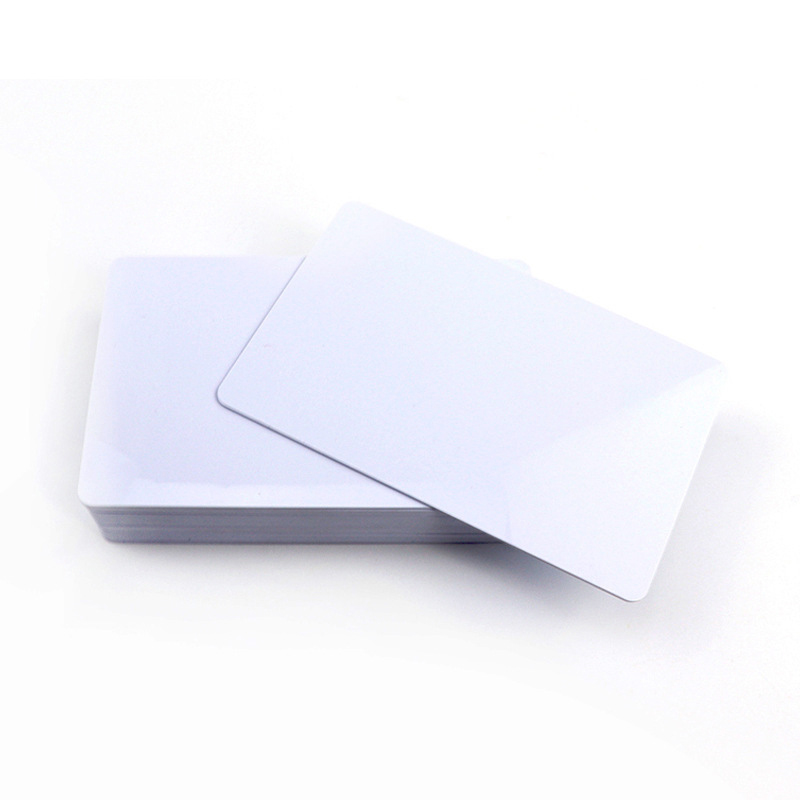

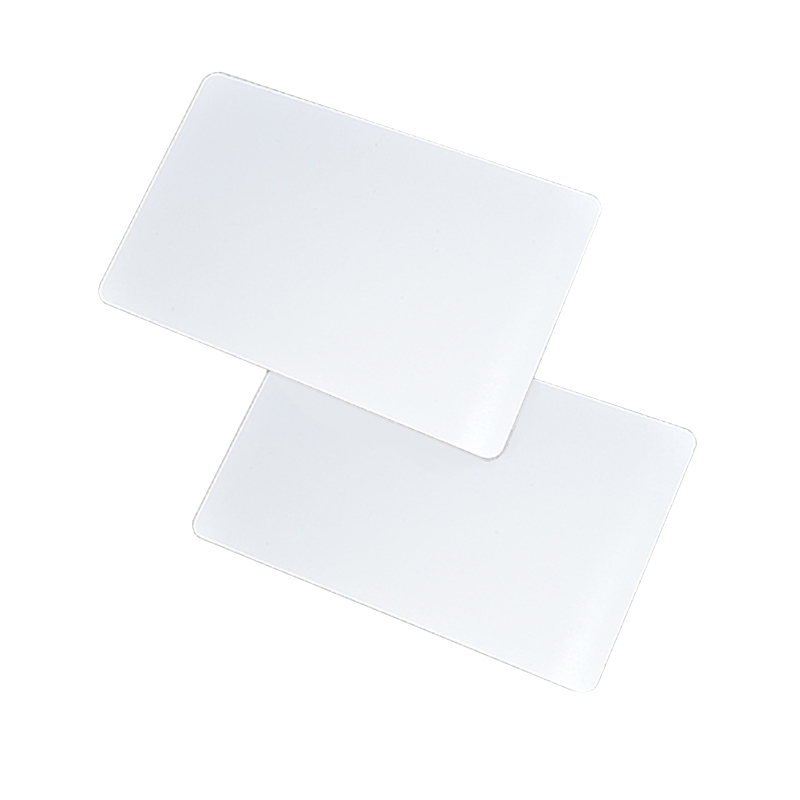

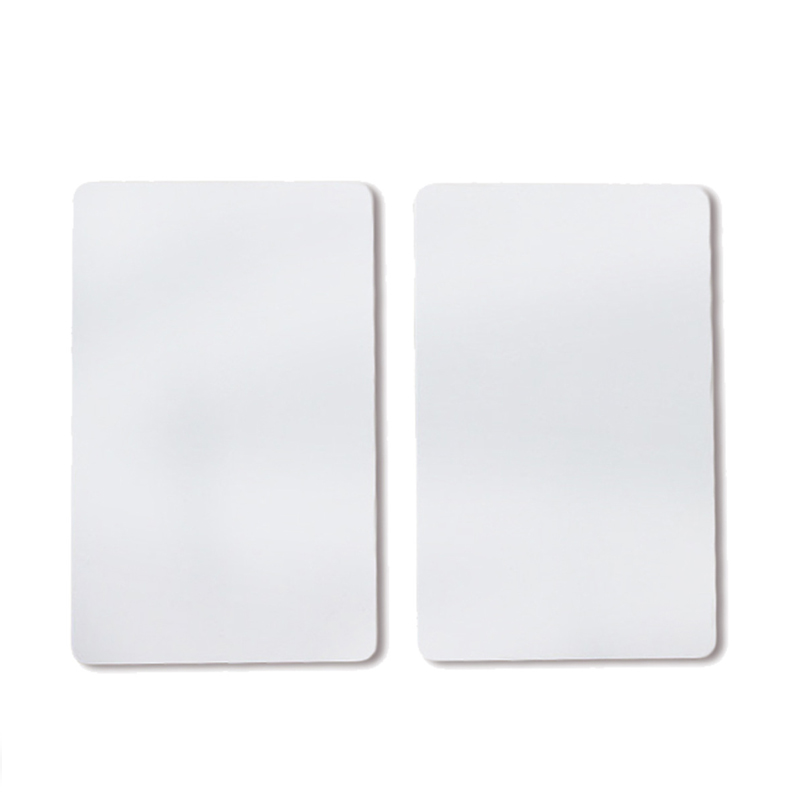

CPU 1208CPU card FM1208
Model No.:CPU 1208
Main features:
Communication protocol: ISO 14443-A. Compatible with FM11RF08 (Miare S50) non-contact card chip. MCU instructions are compatible with 8051. Support 106Kbps data transmission rate. Triple-DES coprocessor. Program memory 32K x 8bit ROM. Data memory 8K x 8bit EEPROM. 256x8bit iRAM。
384x8bit xRAM。
Low voltage detection reset. High and low frequency detection reset. EEPROM meets 100000 erasures. EEPROM meets the 10-year data storage index. Typical processing time:
Identify a card for 3ms (including reset response and anti-collision). EEPROM erase time is 2.4ms. Typical transaction process<350ms.
Security:
The safety mechanism of FM1208M01 is:
1. There is an anti-power analysis module.
2. There is a high and low frequency detection and reset module, which can automatically reset the
chip when its working frequency exceeds the detection range.
3. ROM reverse extraction and memory data encryption.
Chip | FM1208-09/10 etc. |

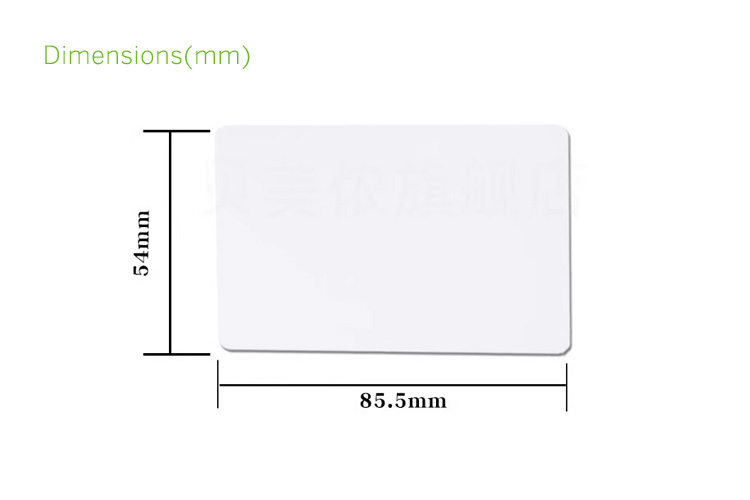

Specifications | 85.5x54x0.8mm |
Operating frequency | 13.56MHZ |
Communication speed | 106Kbit/s |
Program memory | 32K/8bit tRON |
Reading distance | 0-10CM (specifically determined by the card reader) |
Operating temperature | -20° -50° |
Packaging material | PVC |
Number of erases and writes | > 100,000 times |
Data retention | 10 years |
