Brand:
S4AItem NO.:
CB-185CB-185 TTLock Smart Cabinet Lock

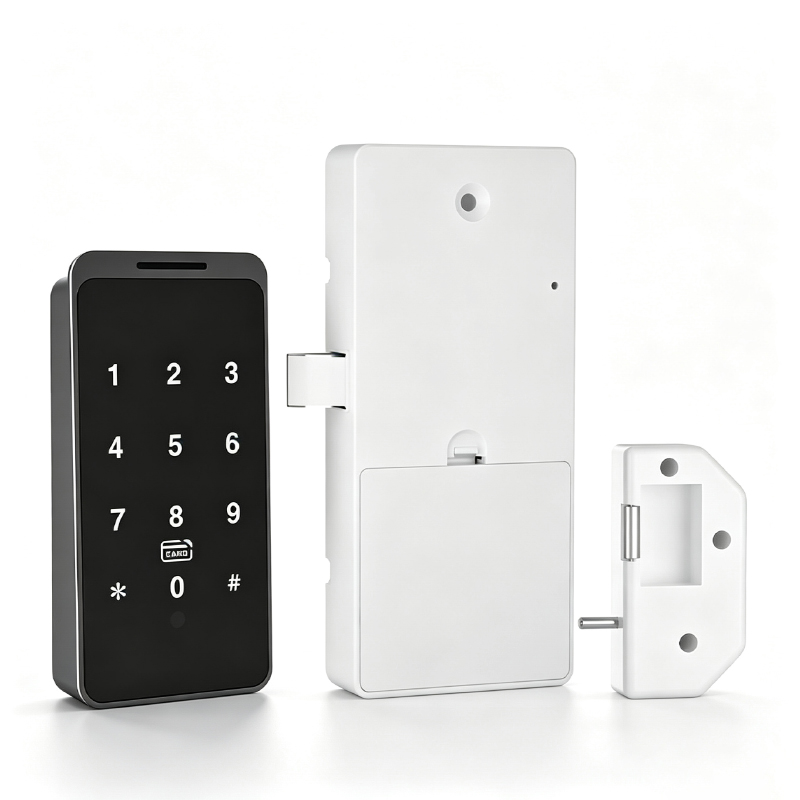

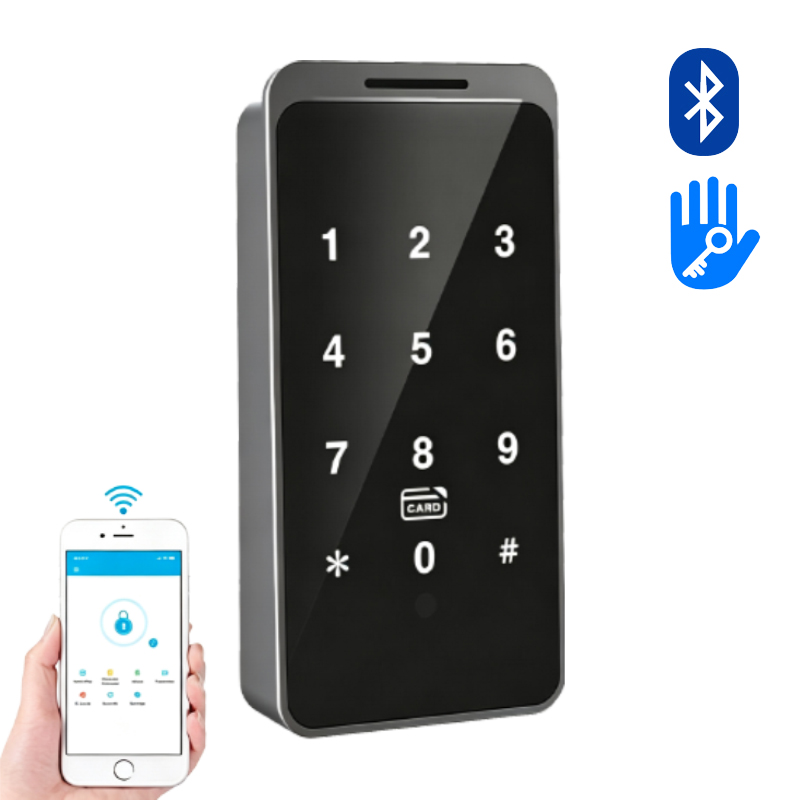

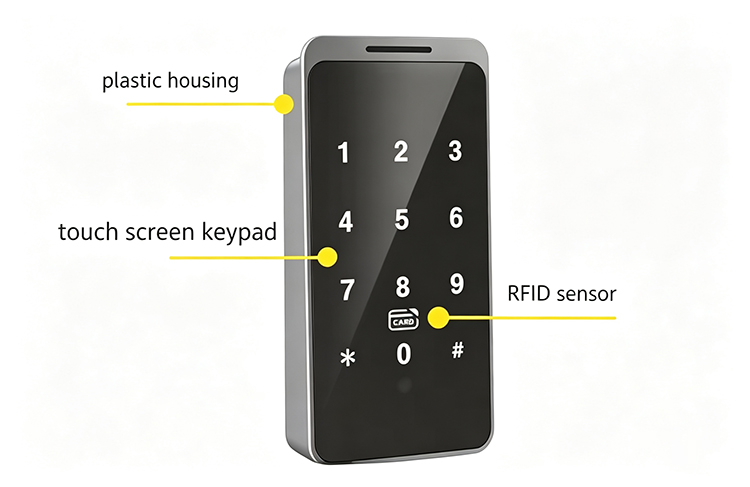

The CB-185 is a lightweight, high-performance electronic lock engineered for modern cabinets, lockers, and office storage. Integrating seamless TTLock Bluetooth app management, it offers 3-in-1 unlocking options via Mifare RFID card (13.56MHz), digital PIN code, and mobile app control. Built with durable ABS material in a sleek black finish, the CB-185 provides a cost-effective, secure access control solution for corporate offices, schools, and personal lockers.
Parameter
Specification
Model Number
CB-185
Unlocking Methods
TTLock App, Mifare IC Card, PIN Code / Password
App / Network Support
TTLock App, Bluetooth (BLE)
RFID Frequency
13.56 MHz (Mifare Card)
Main Material
ABS Material / Plastic
Color
Black

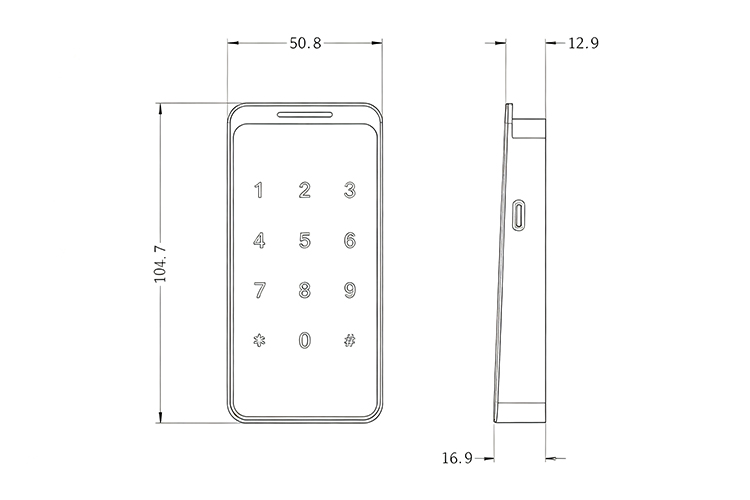

Panel Dimensions
104 * 50 * 17 mm
Power Supply
4 x AA Alkaline Batteries
Application Scope
Smart Lockers, Storage Cabinets, Office Furniture
Single Set Weight
316 g
Application Scope
Sauna, Gym, Hotel, School, Supermarket, Apartment, Swimming Pool, Factory
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm
>Unlock Way:Password/card/Fingerprint/Key/APP>Installation:Wall mount/Shackle>Bluetooth Distance:Within 10m
>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
