Power Supply Controller

/Access Power Supply AC110V-240V with DC12V / 5A

New Products

Access Power Supply AC110V-240V with DC12V / 5A

Wide Voltage Power Supply Controller

Input: AC110V-240V / 50Hz-60Hz

Output: DC12V / 5A



  • Brand:

    S4A
  • Item NO.:

    PS-200W
  • Specifications
  • Package
  • Download

Access Power Supply AC110V-240V with  DC12V / 5A

Model No:PS-200W


What is Access Power Supply AC110V-240V with  DC12V / 5A?

Access Power Supply AC110V-240V with DC12V/5A is a power adapter that lets you use electronic devices anywhere in the world.


Works Globally:

Plugs into any wall outlet that provides 110V to 240V (common in most countries), so no need to worry about voltage differences when traveling or using international devices.


Converts Power:

Turns the electricity from the wall (AC power) into a safe, steady 12 volts (DC power) that devices like security cameras, routers, or LED lights need to work.


Enough Power:

Can supply up to 5 amps of current, which means it can power multiple devices at once (as long as their total power use doesn’t exceed 60 watts, since 12V × 5A = 60W).


Why use of  Access Power Supply AC110V-240V with  DC12V / 5A?


Universal Voltage Compatibility: Works with 110V-240V AC inputs, suitable for use in most countries without a voltage converter.


Stable DC Power Supply: Provides a safe and consistent 12V DC output, ideal for devices like security cameras, routers, or LED lights.


Multi-Device Support: Delivers up to 5A current, allowing it to power multiple low-power devices simultaneously (total power ≤60W).


Overload Protection: Safeguards devices from damage caused by excessive current.


Specifications


Product Parameter

Parameter Descr1ption

S4A Model

PS-200W

Product Name

Access Control Power Supply

Dimensions

183 x 87 x 60mm

Input Voltage

AC110-240V / 50Hz

Output Voltage

DC12V; NO/NC / 5A

Output Contact

 Access control, Electric Lock, Release Button

Time Relay

 0~15sec

Standard Design

Steel Material, Painted

Protect Safely

 Short Circuit protection

Suitable For

 Access control, Electric lock

Unit Weight

1.35KG

Standard Package

30PCS

Carton Weight

40KG

Carton Size

50*40*26 (cm)

Access Power Supply AC110V-240V with  DC12V / 5A

Access Power Supply

Access Power Supply


Unit Weight

1.35KG

Standard Package

30PCS

Carton Weight

40KG

Carton Size

50*40*26 (cm)



Dimensions(mm)

Access Power Supply

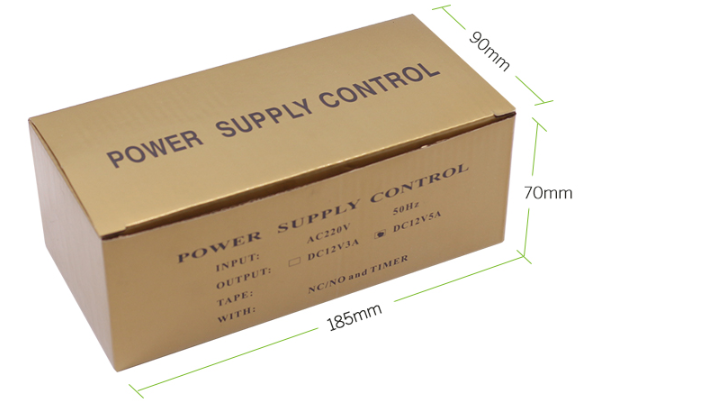

Packing Box(mm)

Access Power Supply


S4A User Manual_Access Power Supply AC110V-240V with  DC12V / 5A
