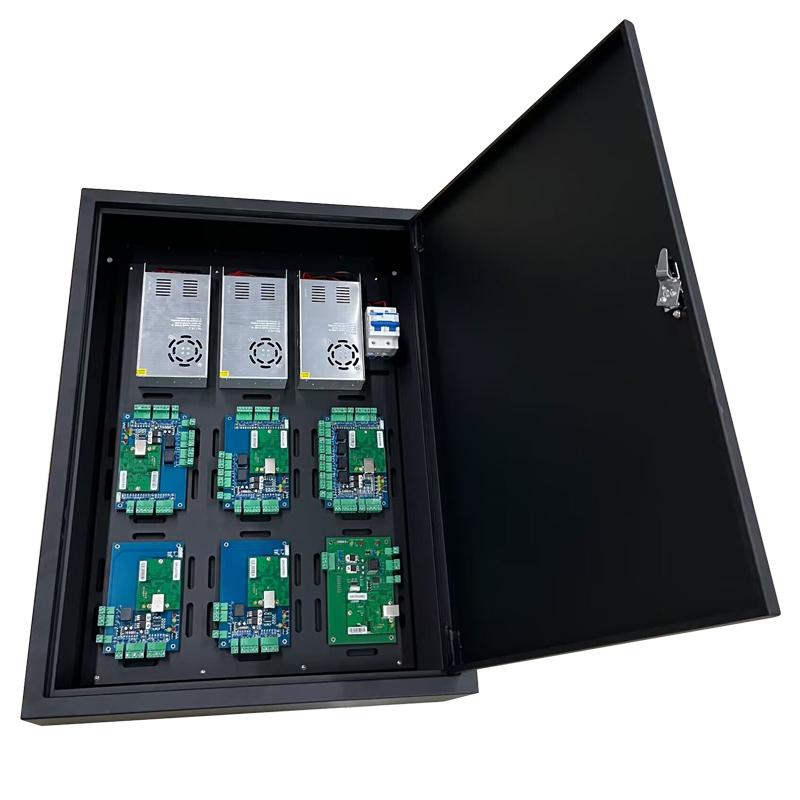

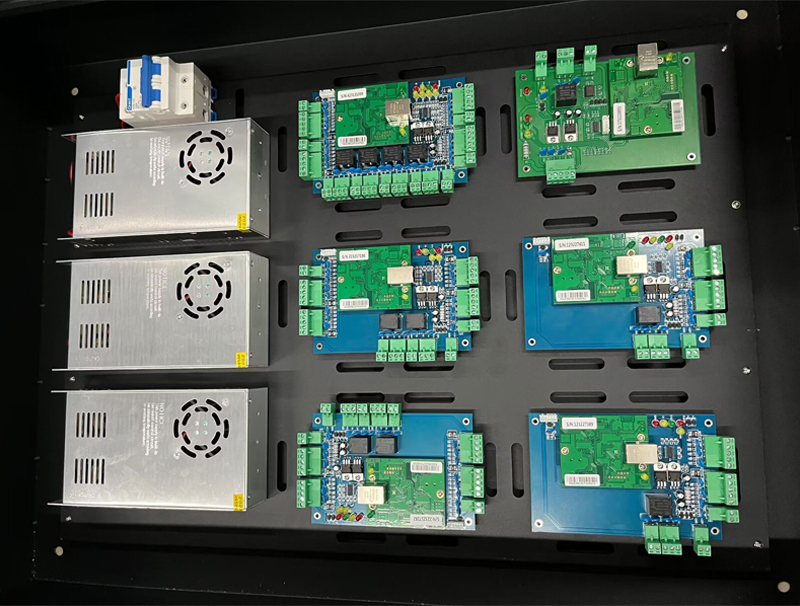

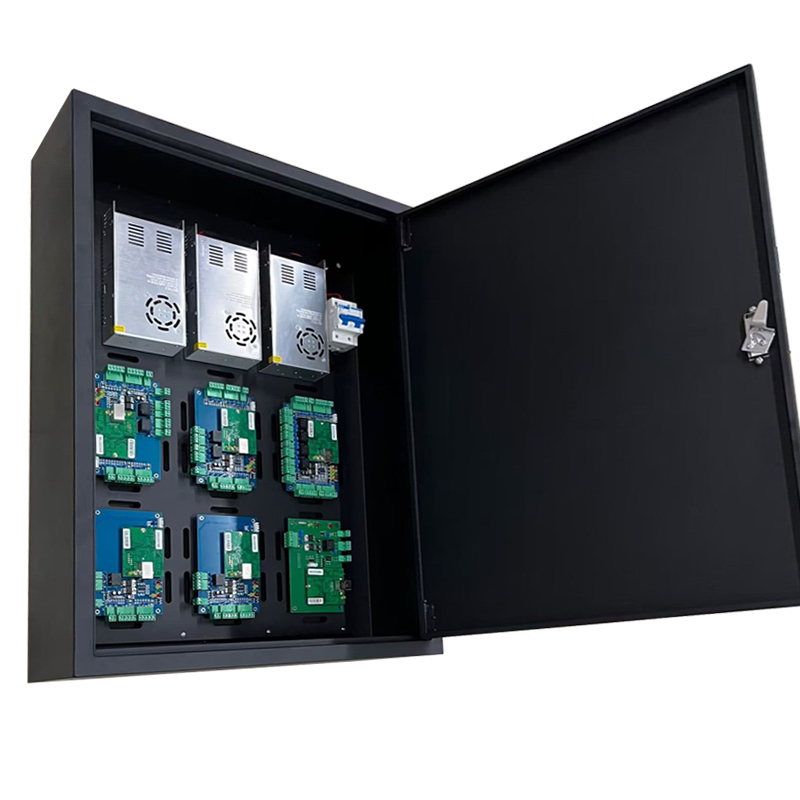

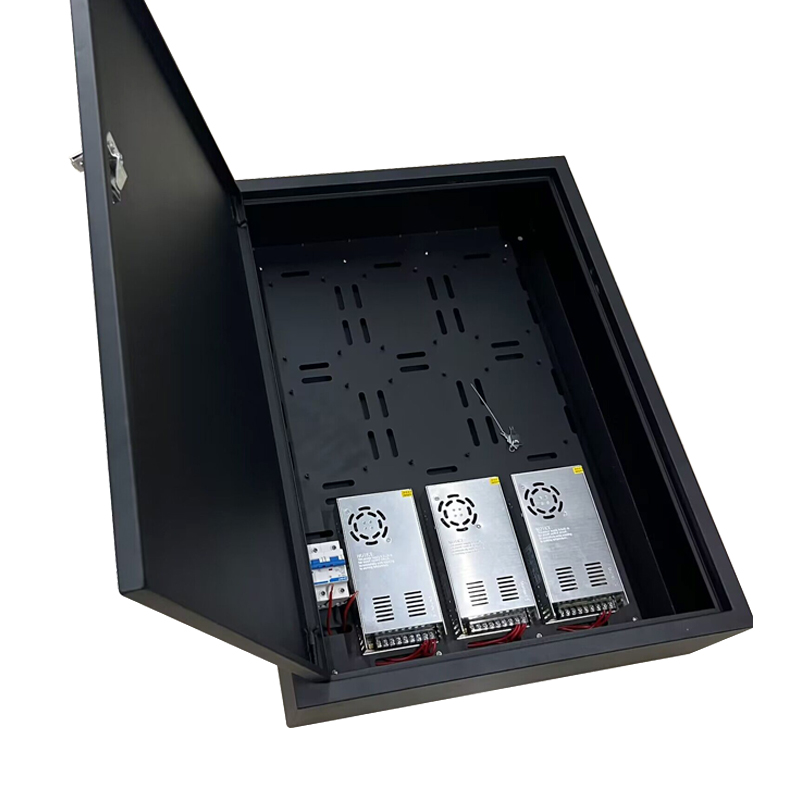

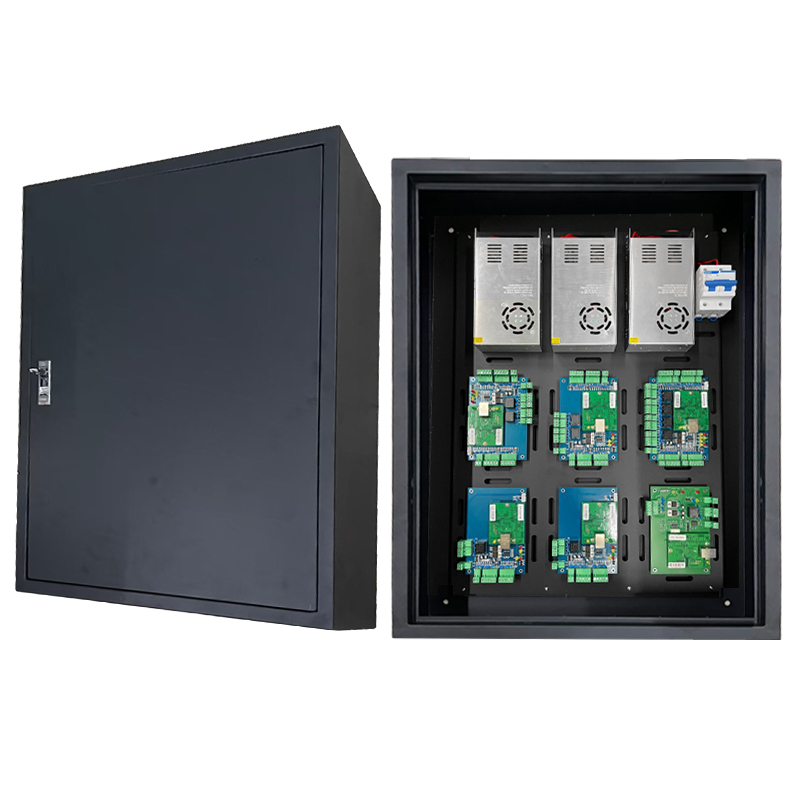

12V 1600W Access Power Supply, Maximum support 24pcs ACB board
> Input Voltage: 85V-265V
> Frequency Range: 47-65Hz
> Rated power: 1600W
> Dimension: 770 x 920 x 170mm
Brand:
S4AItem NO.:
12V 1600WLarge Access Power supply 85V-265V with 1600W
Model No.: 12V 1600W
12V 1600W Access Power Supply, Maximum support 24pcs ACB board
Input | Input Voltage | 85V-265V |
Frequency Range | 47-65Hz | |
Efficiency | 85% (VIN=220V AC) | |
Alternating current | 1.15A-1.4A (180V-240V) | |
Output | Output voltage | DC12V(Factory default) |
Optional with AC24V DC24V | ||
Output Channel | 24 | |
Rated power | 1600W | |
Feature | Function | Manage all ACB board |
Installation | Hanging mode | |

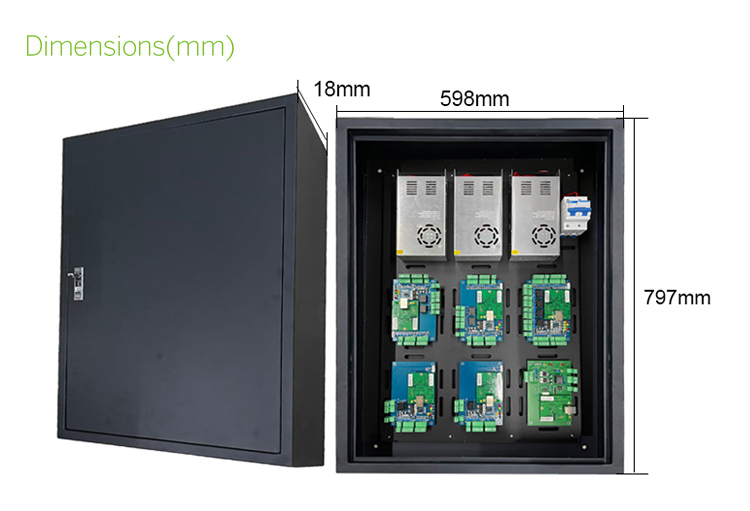

Dimension | 770 x 920 x 170mm | |
Weight | 33.7KG | |
Protection | Over Load, Short Circuit, Over Voltage, Overheat Protection | |
Guarantee | 2years quality | |
S4A Datesheet_Large Access Power Supply 85V-265V With 1600W
> AC Input Voltage: AC90-250V 50/60Hz> Rated Output Power: 75W>. Output Current Range: 12V 5A> Waterproof IP67
>Output Voltage:12V DC>Rated power:60W/42W>Set up rise hold time:800ms, 30ms,16ms/115VAC 300ms,30ms,50ms/230VAC>Input voltage:100V-240V AC>Frequency Range:50Hz~60Hz
> Input Voltage: AC110-240V> Output Voltage: 12VDC/3A> Time Delay: 0-15S
> Input Voltage: AC100-260V> Output Voltage: DC12V 5A
> Input Voltage: AC110-240V> Output Voltage: DC12V 5A
> Input Voltage: AC220V> Input Frequency: 50Hz> Output Voltage: DC9V~16V> Output Current: 5A
> Input Voltage: AC180~235V or 110V> Input Frequency: 50Hz> Output Voltage: DC9V~14V> Output Current: 5A
> Input Voltage: AC110~240V> Input Frequency: 50Hz~60Hz> Output Voltage: DC9V~16V> Output Current: 5A
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
