12V 5A Power Supply Access Control System

> Input Voltage: AC100-260V

> Output Voltage: DC12V 5A

  • Brand:

    S4A
  • Item NO.:

    K90
  • Specifications

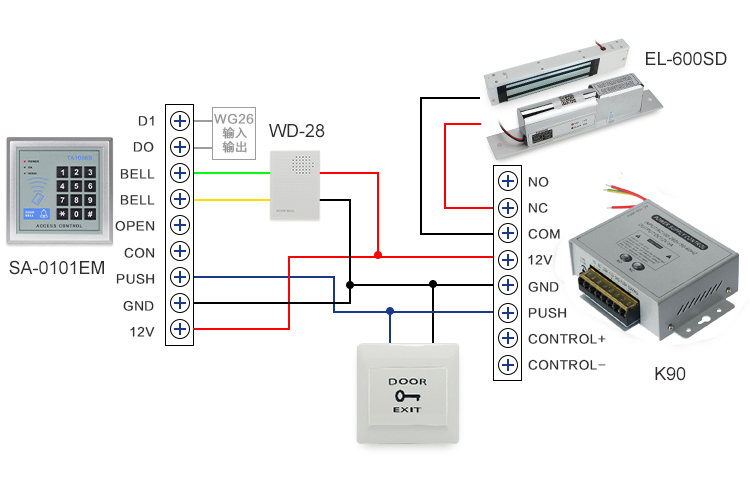

  • Wiring Diagram
  • Package

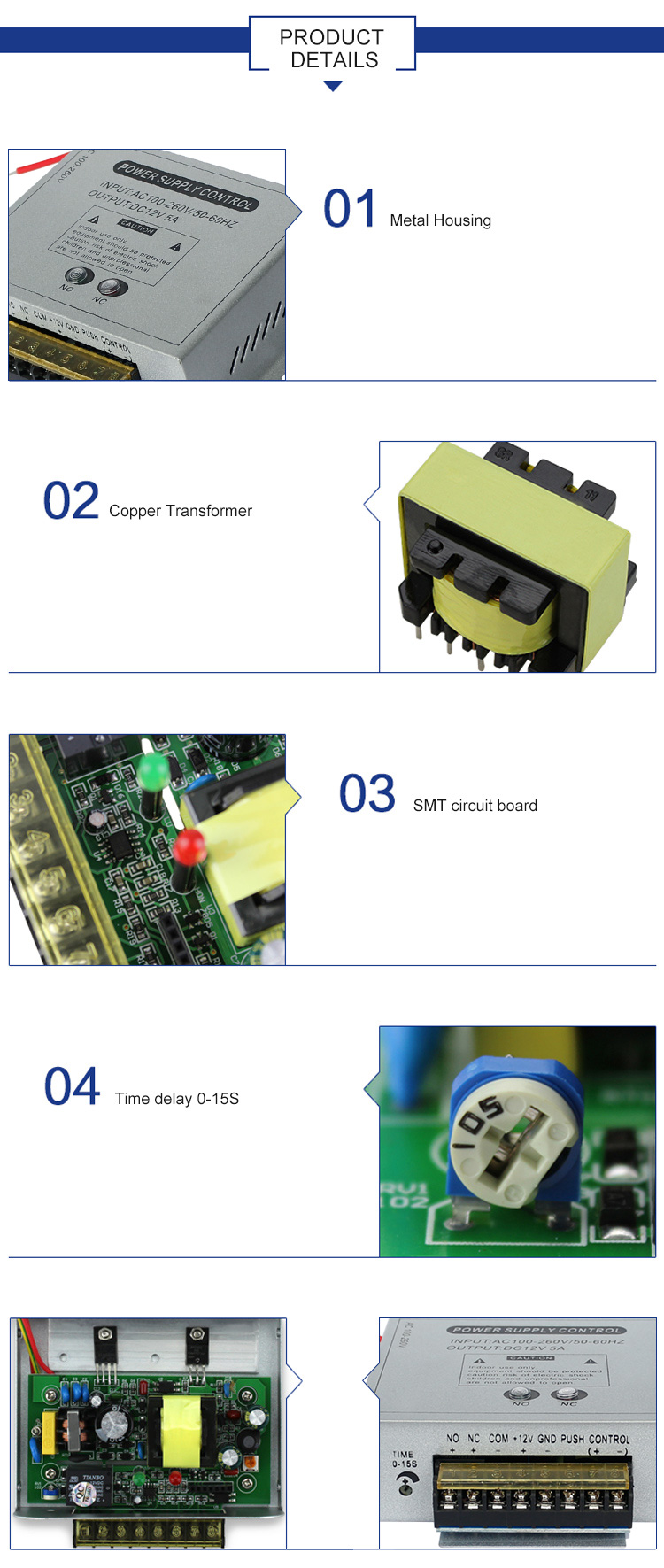

5A Switching Access Power supply

Model No.: K90


Model

K90

Input Voltage

AC100-260V

Output Voltage

DC12V

Output Current

5A

Power

50W

Lock Voltage

DC12V. NO or NC

Time delay

0-15S

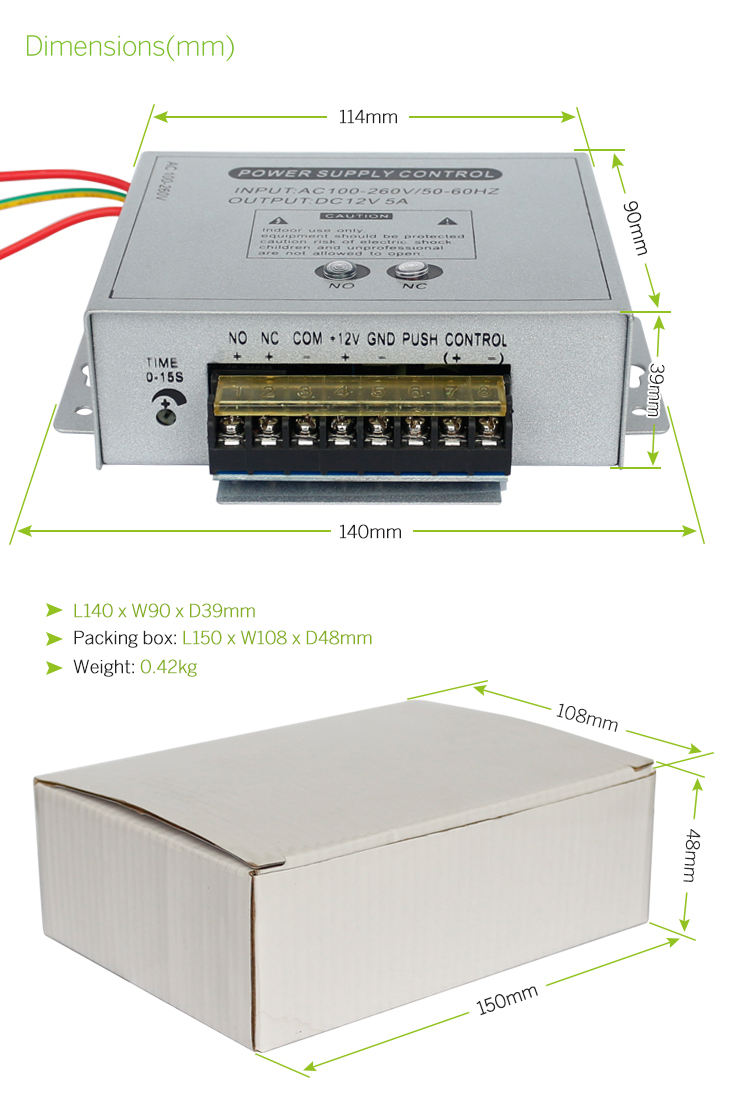

Dimension

140 x 100 x 39mm

Packing box

150 x 108 x 48mm

Weight

0.42KG

5A Switching Access Power supply

5A Switching Access Power supply

5A Switching Access Power supply
