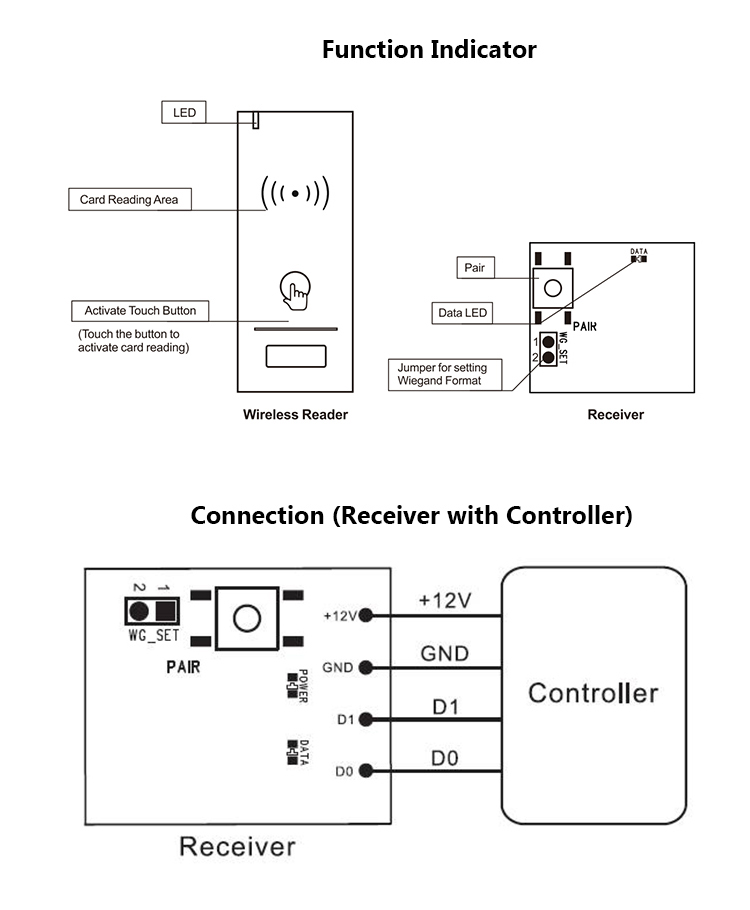

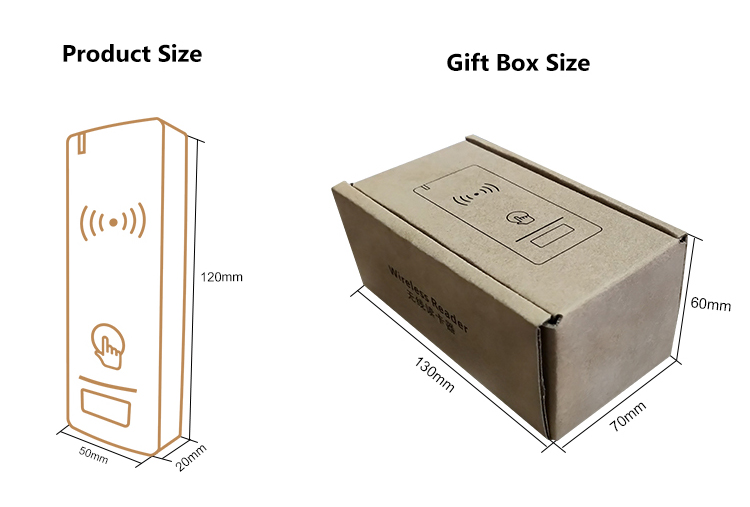

433MHz Wireless RFID Access Control Reader

> 433MHz Rolling Code technology> PIN Length: 1-6 digits> Card Type: 125KHz EM card> Wiegand output: 26 bits or 34 bits> Communication distance: 30m maximum> Ultra low power consumption

> 433MHz Rolling Code technology> PIN Length: 1-6 digits> Card Type: 13.56MHz Mifare card> Wiegand output: 26 bits or 34 bits  > Communication distance: 30m maximum> Ultra low power consumption

>Dimension: 86x86x50mm>Output Contact: NO NC COM>Current Rating: 3A 36VDC Max

>Protection level: sealed, waterproof, dustproof>Size:2400x1400x2200mm

Dimension: 86x86x38mm

Access Controller for Enhanced Alarm OutputModel No.: ACB-EA05ACB-EA05 Enhanced Alarm Output and Integrated Fire Control Expansion ControllerFire alarm output and the expansion of the joint boardI. OverviewACB-EA05 Fire alarm output and the expansion of the joint board，it is one of the access controller add-on modules，with the software settings, mainly used to provide fire and alarm signal output of the joint. The module has a practical, simple interface, the design performance characteristics of stability. With its power and relay instructions, may direct communication failures, is a good cost performance of the joint extension.II. The characteristics of modulei. Four-alarm output, free to the host controller to the definition of a door and the door to a number of features.ii. Can connect the output signal fire, the Fire received the signal controller automatically open their doors to all and have a fire alarm records available for consultation.iii. Support for the 'illegal intrusion' and 'the door is not closed for a long time' and 'coercion to enter,' and 'linkage to open the door' and 'invalid card' and 'fire' alarm linkage output, and so on.iv. Can be set for each output of the delay time 0-6000 seconds. Model No.ACB-EA05Product NameEnhanced Alarm Output and Integrated Fire Control Expansion PanelBasic InfoUnit Packing WayBrown boxAccessoriesUser Manual, warranty card, necessary parts for connecting panelFunction IntroductionApplicable to access controllerACB-R01, ACB-R02, ACB-R04, ACB-T01, ACB-T02, ACB-T04, ACB-001,ACB-002, ACB-004.Can Controlinvalid break-in alarm, long time unlocking alarm, intimidation break-in alarm, unlocking linkage output, invalid card swiping alarm, integrated fire control alarmShould pay attention toThis enhanced Alarm Output and Integrated Fire Control Expansion Panel only can compete with the ACB series controller, and the software be V6.6 or higher version.Output and input1-way input and 4-way alarm output, You can specify which function to which door of the controlled area, Can connect the fire control output, when the fire signal received, doors in the controlled area will be open automatically, and five-alarm will be recorded.OtherAllow changing anti-intimidation passwordCan set a long time unlocking alarm time: 0-6000 secondsCan set the time delay of each output from 0 to 6000

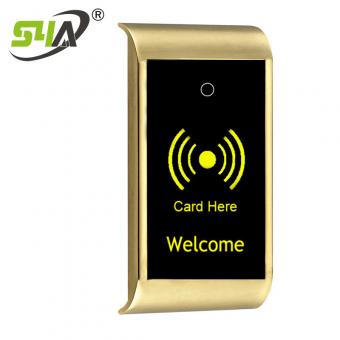

Work with 4pcs 5 alkaline batteries> Card type: EM or MF Card> Optional color: Golden, Silver, Black> Dimensions: 114x53x15.5mm> Un-Lock mode: Single card Mode, Dual card Mode.> Mechanical device to open the door, when it is out of order.

>Applicable door type: 10-19 cm glass door>Input voltage: 12V factory 24V adjustable
