>High temperature and aging resistance
>Corrosion and acid and alkali resistance

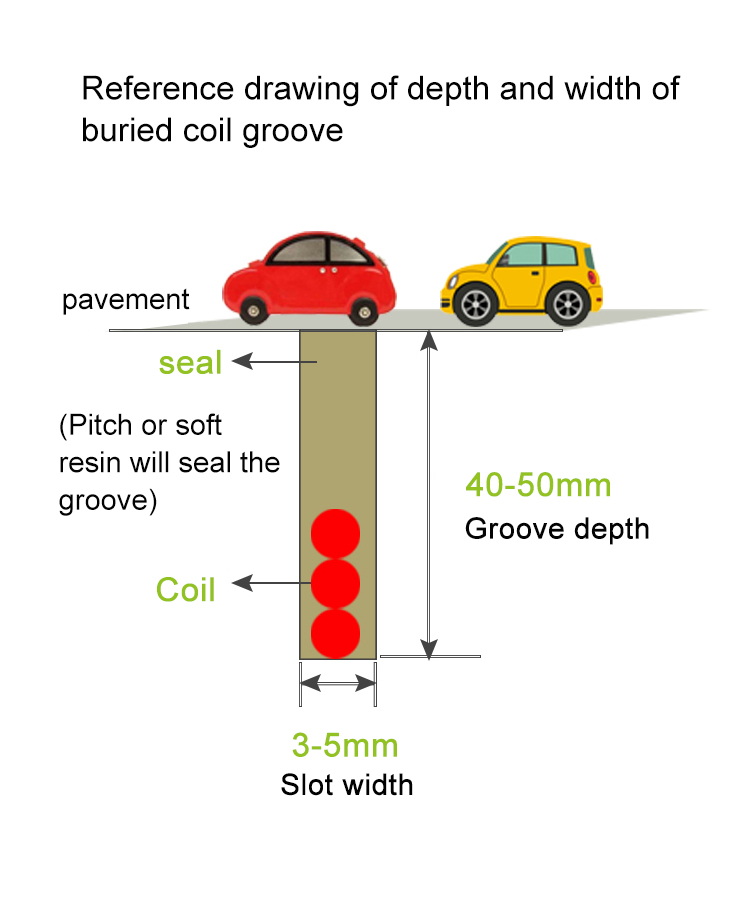

>The groove width is generally 3-5mm
>40-50mm depth
Brand:
S4AItem NO.:

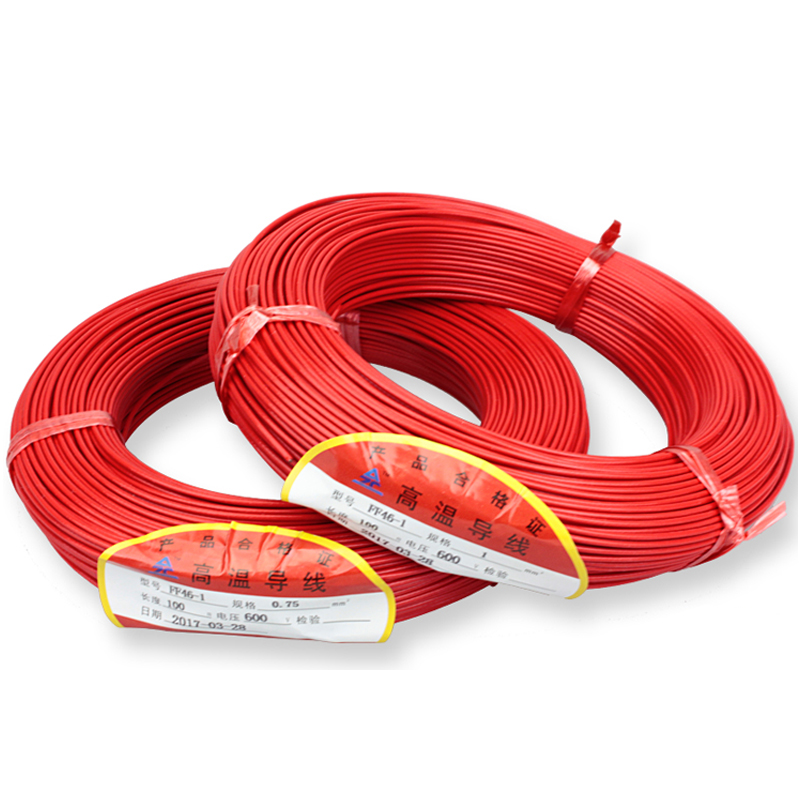

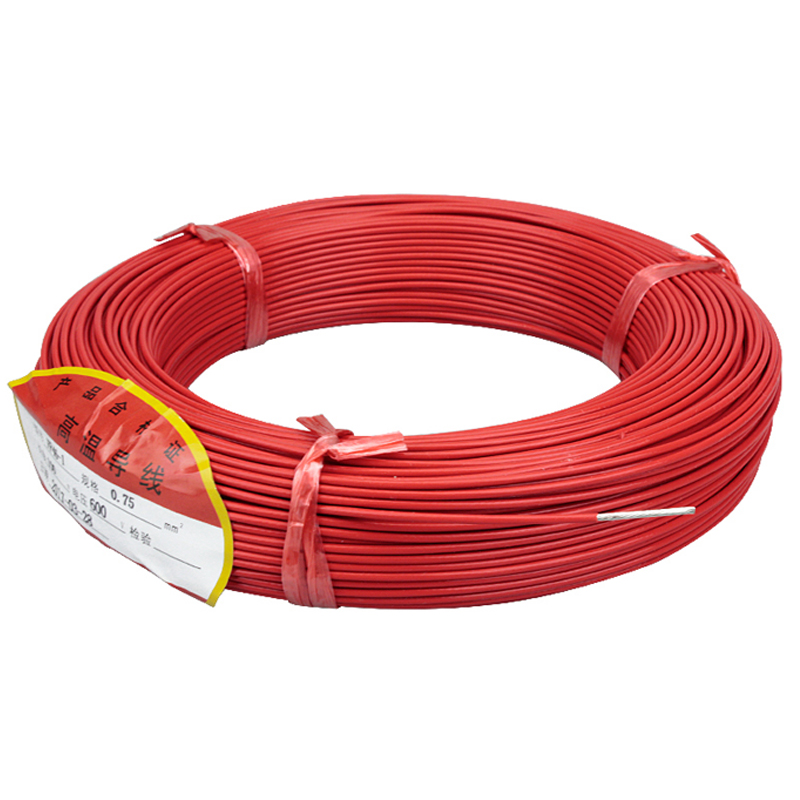

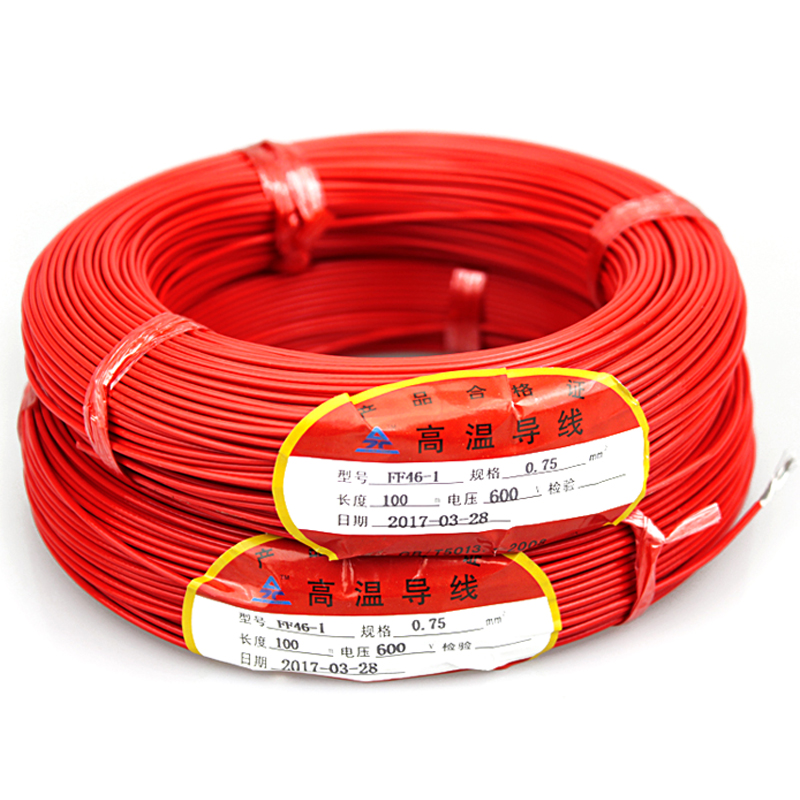

AZC-FF46Loop Cable for Vehicle Loop Detector
Model No.: AZC-FF46
What is a loop detector cable?

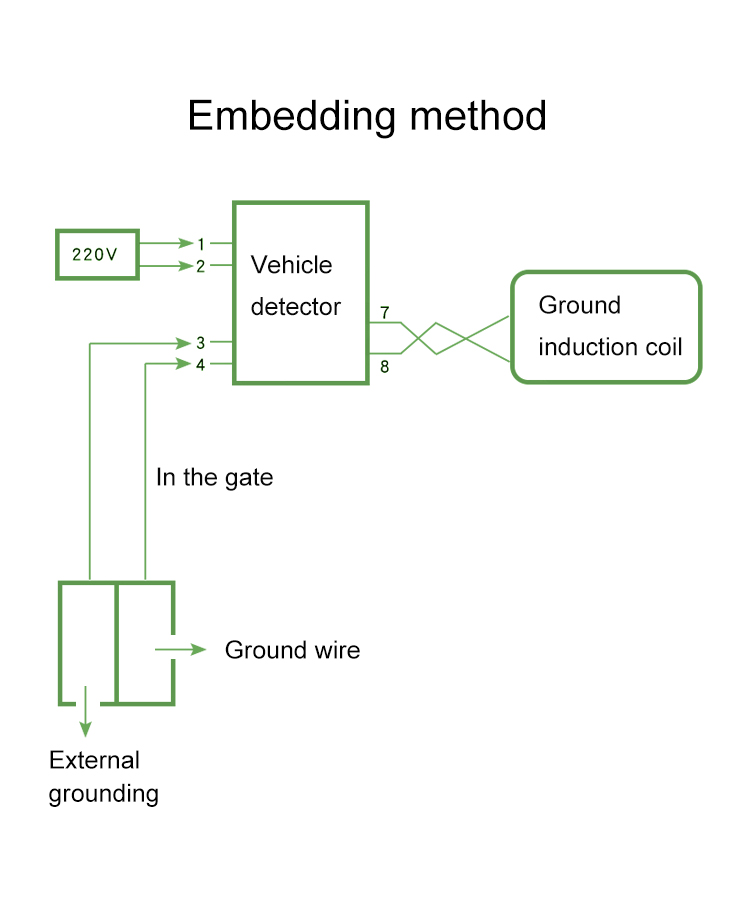

Used in vehicle monitoring equipment for detection of traffic movements
via the creation of inductive loop to frequency signal flowing in cable
and metallic parts of the vehicle. These cables are designed for installation
in a slot cut into the carriageway.
Model | AZC-FF46-1 |
color | red |
Material | tinned copper wire |
Below 3 meters | Ensure that the inductance value is between 100uH and 30OuH |
3-6 meters | 5-6 turns |
6-10 meters | 4-5 turns |
10-25 meters | 3 turns |
Below 25 meters | 2 turns |
The scope of work | Between 100uH-300uH |
Model (AZC-FF46-1) | Number/core (mm) | Outer diameter (mm) | Conductor material |
0.5 square | 19*0.18 | 1.35 | Tinned |
0.75 square | 19*0.23 | 1.58 | Tinned |
1.0 square | 19*0.26 | 1.7 | Tinned |
1.5 square | 19*0.32 | 2.1 | Tinned |
S4A User Manual FF46-1_Loop Cable for Vehicle Loop Detector
