40-Channel Elevator Controller for Lift or Locker

40-Channel Elevator Controller for Lift or Locker, built-in TCP/IP with free software to manage users.

Support RFID/Pincode/Face/Finger to access control 20-40lockers built in TCP/IP with free software

  • Brand:

    S4A
  • Item NO.:

    ACB-DT20 & ACB-DT20K
  • Specifications
  • Wiring Diagram
  • Download

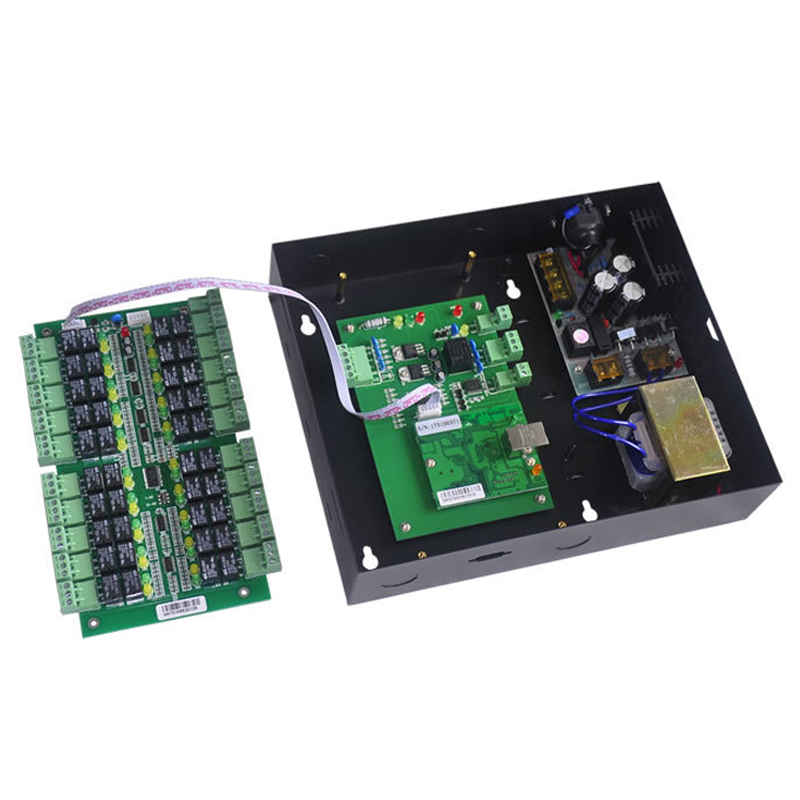

40-Channel Elevator Controller for Lift or Locker

Model No.: ACB-DT20 & ACB-DT20K (One Set)


What is Access Control?

Access control is focussed on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control, and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.


Model

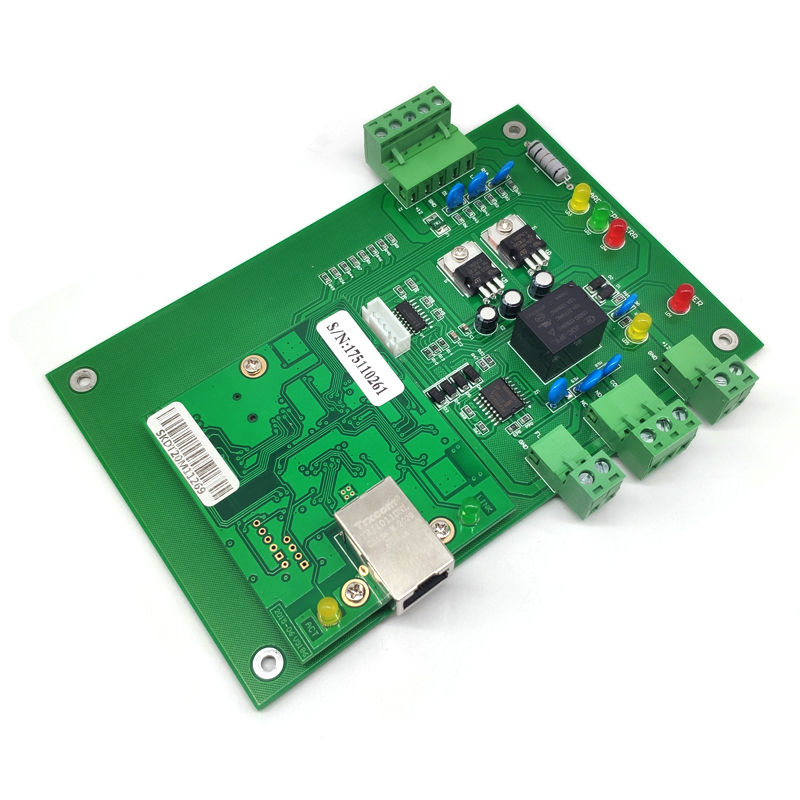

ACB-DT20   20-40Floors Elevator Access Control Unit

Input Format of Reader

Wiegand 26/34bit (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Q ' ty of users

20,000

Q ' ty of Event Buffers(offline)

100,000

Power Supply

12V DC 5A

Communication to PC

TCP/IP 10M/100M self-adaptive

Number of supported floors

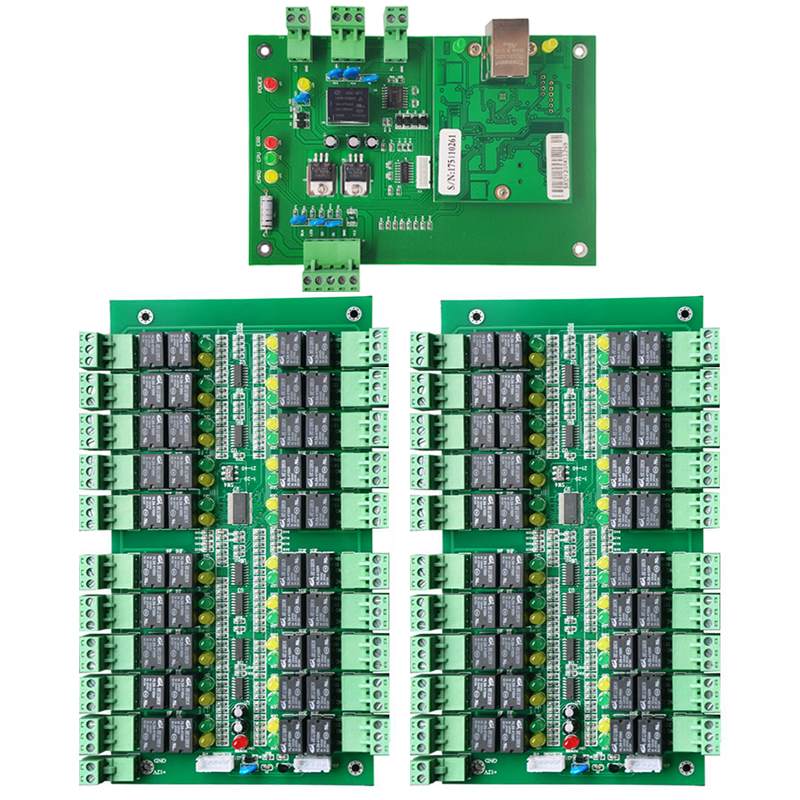

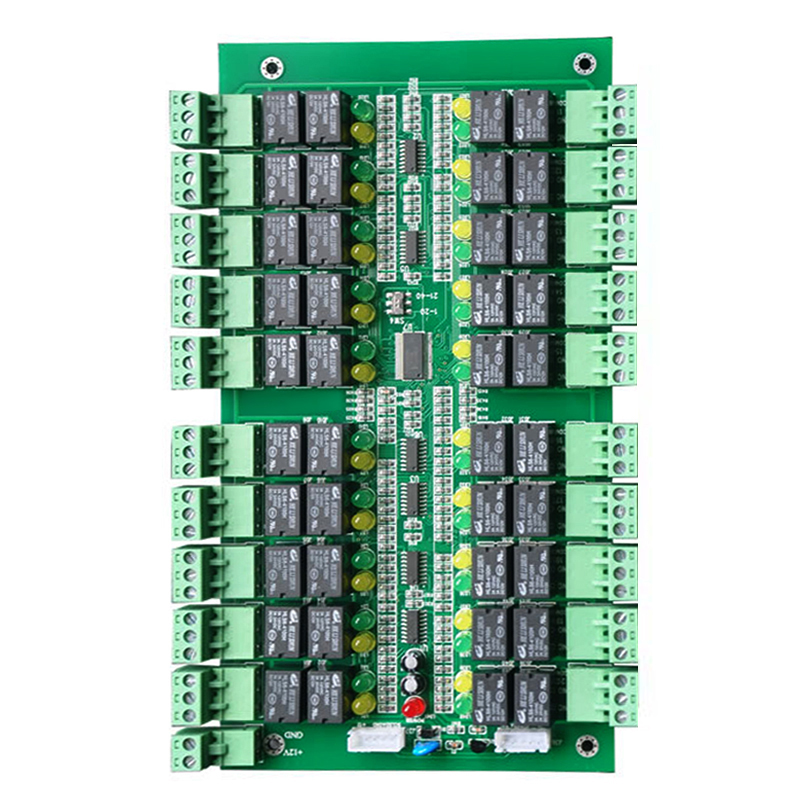

20floors, if need to control more, add 1more ACB-DT20K

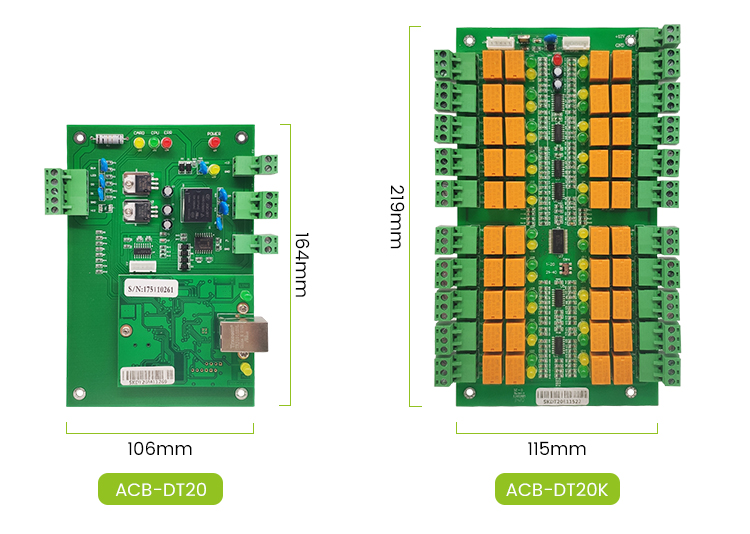

Dimension(L×D×H)

164mm*106mm

Net weight

1.0KG/set


Normal management of the Access Control is 'One for One', that means one card reader control one door.

A valid card can open the door, an invalid card can not open. But we can found that in many fields, a 'One for More Controllers' is needed.



Example 1: Lift Access Control Management


We usually have ten or more floors in one lift, but you just need one card reader. The system can distinguish the user's privilege,

then take them to the right floor.


If the user has multi-floor privilege when swiping the card, he can choose the floor he wants to go this time,

and he can not push other floor buttons.


If the users are the security and administrator, they can go to any floor they want according to the privilege settings.

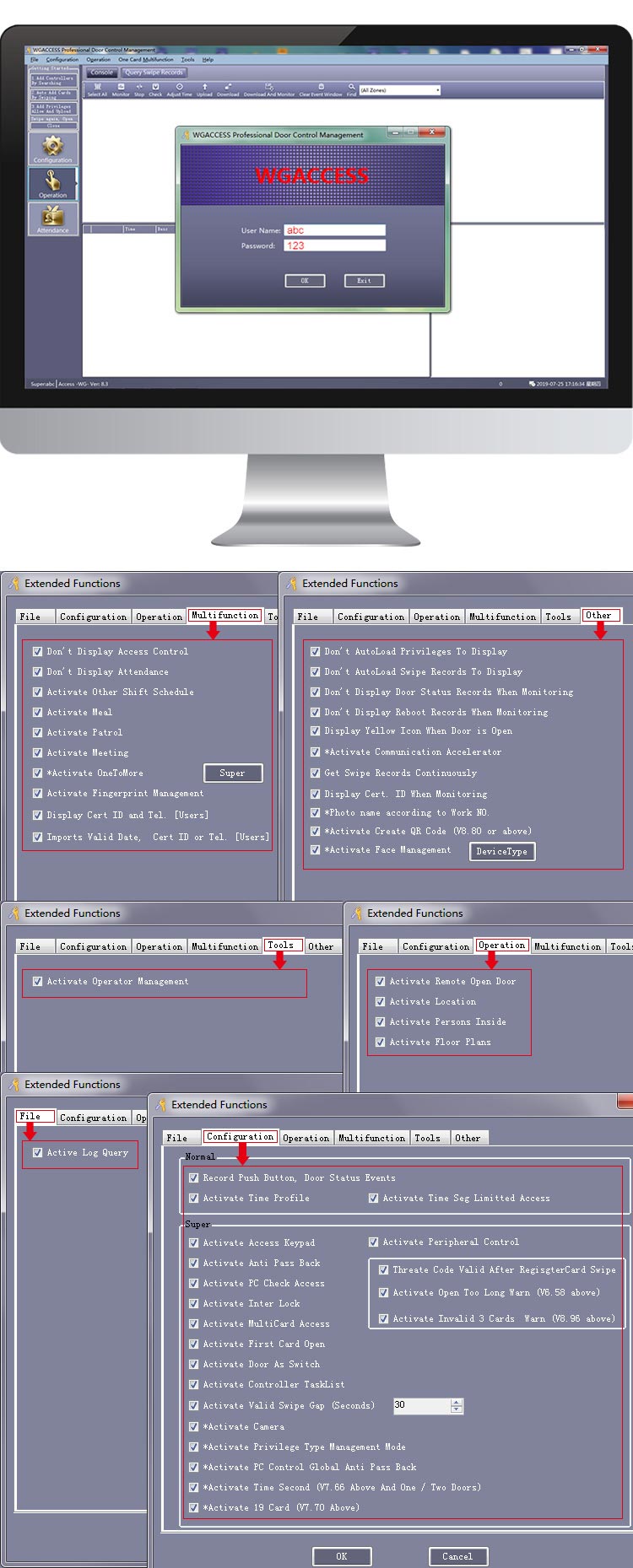

Elevator Controller


Elevator Controller

ACB-DT20, ACB-DT20K 40-Channel Elevator Controller for Lift or Locker
