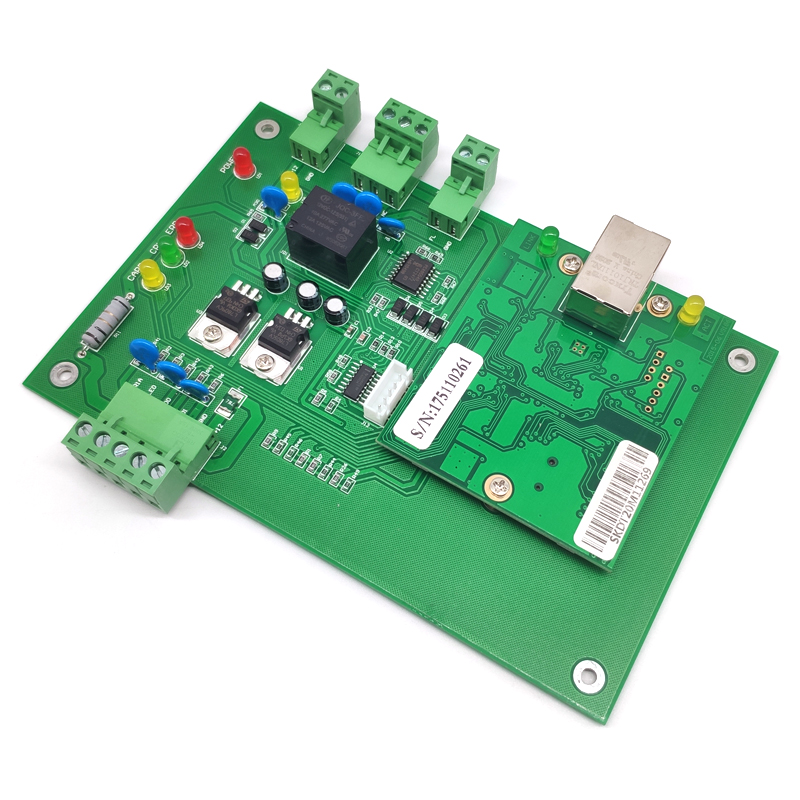

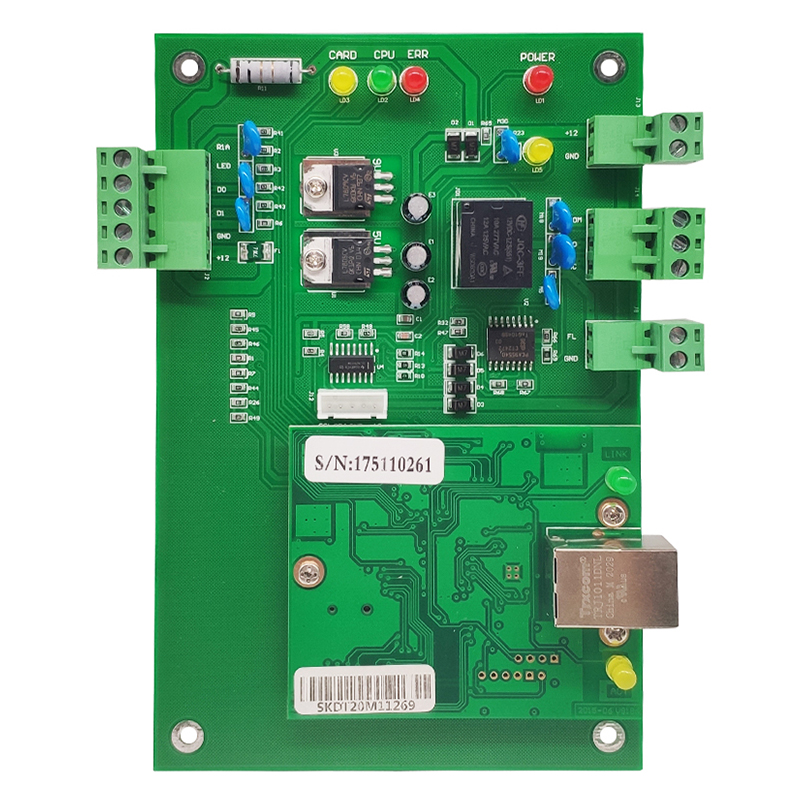

Elevator/Locker Access Controller Lift Access Control Panel for Manage 20 Floors

RFID Locker Access Control board to control 20-40pcs locks,

built-in TCP/IP with free software to manage users. Support RFID/Pincode/Face/Finger to access

  • Brand:

    S4A
  • Item NO.:

    ACB-DT20
  • Specifications
  • Wiring Diagram
  • Download

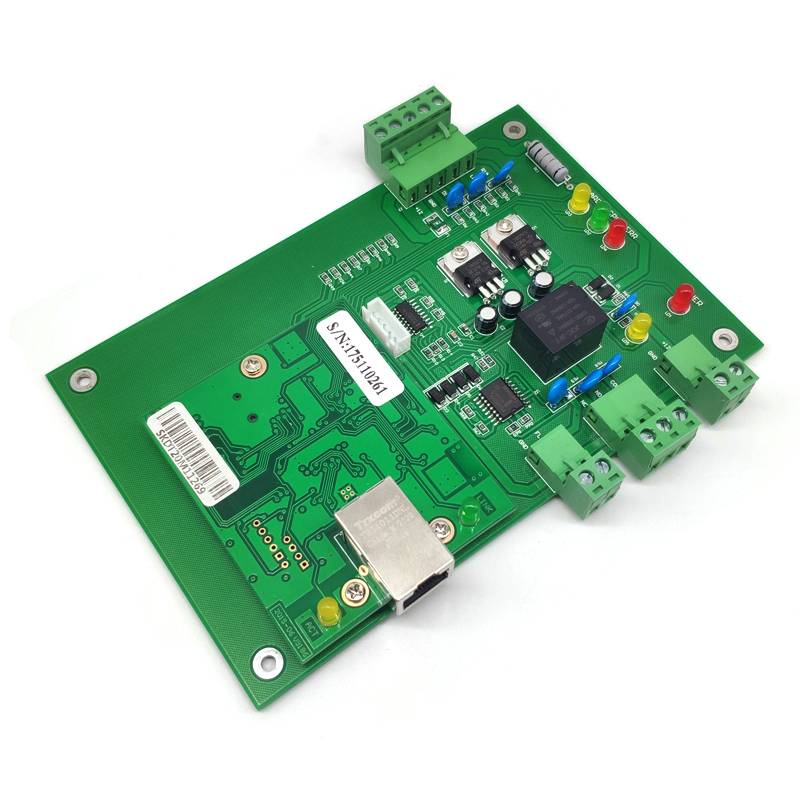

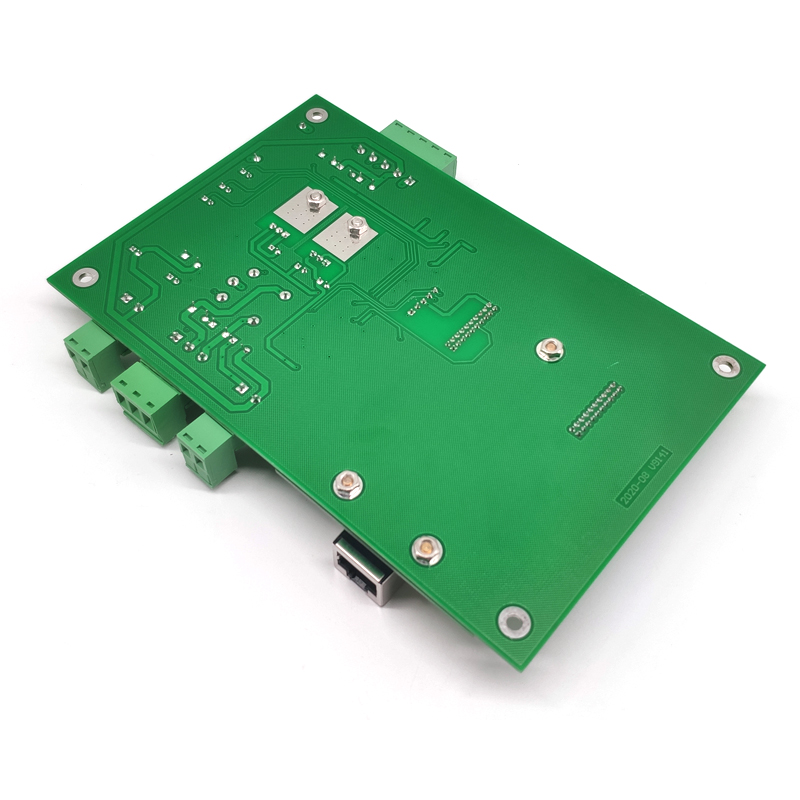

Elevator/Locker Access Controller Lift Access Control Panel for Manage 20 Floors

Model No.: ACB-DT20


What is Access Control?

Access control is focussed on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.


Model

ACB-DT20   20-40Floors Elevator Access Control Unit

Input Format of Reader

Wiegand 26/34bit (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Q ' ty of users

20,000

Q ' ty of Event Buffers(offline)

100,000

Power Supply

12V DC 5A

Communication to PC

TCP/IP 10M/100M self-adaptive

Number of supported floors

20floors, if need to control more, add 1more ACB-DT20K

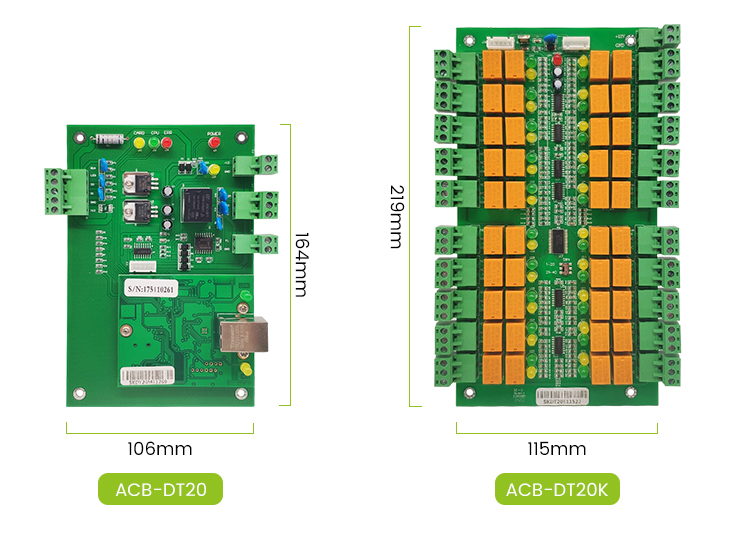

Dimension(L×D×H)

164mm*106mm

Net weight

0.30Kg



Normal management of the Access Control is 'One for One', that means one card reader control one door. A valid card can open the door,

invalid card can not open. But we can found that in many fields, a 'One for More Controllers' are needed.



Example 1: Lift Access Control Management


We usually have ten or more floors in one lift, but you just need one card reader. The system can distinguish the user's privilege,

then take them to the right floor.


If the user has multi-floor privilege, when swiping the card, he can choose the floor he want to go this time,

and he can not push other floor buttons.


If the users are the security and administrator, they can go to any floor they want according to the privilege settings.


Locker Access ControllerLocker Access Controller

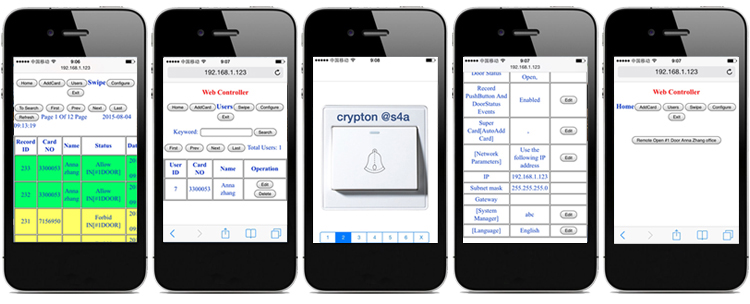

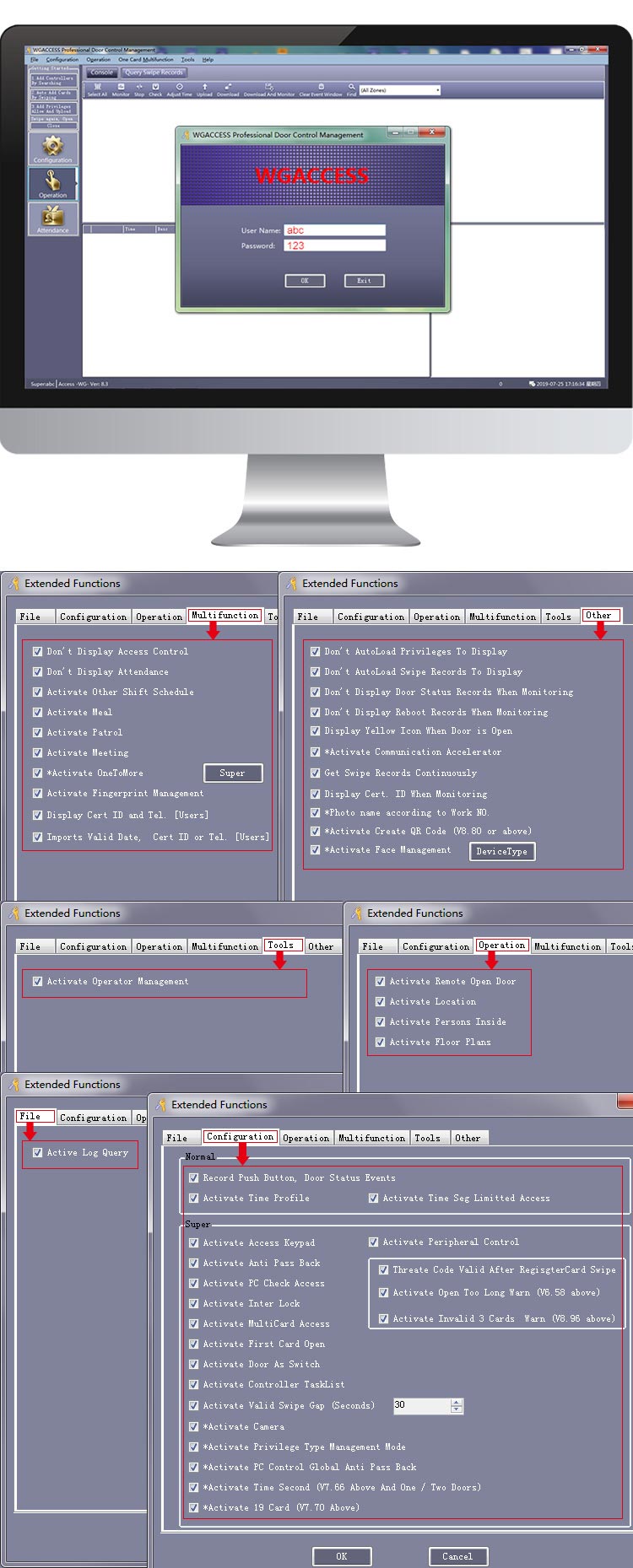

Here are all available powerful functions for our ACB-DT20 and ACB-DT20K

Locker Access Controller

Locker Access Controller

S4A User Manual_ACB-DT20 Elevator/Locker Access Controller Lift Access Control Panel for Manage 20 Floors
