> Built in LED, door sensor and time delay
> Holding force: 350KGx2 (800LBSx2)
> Voltage: DC12V or DC24V
> Current Draw: 12V/480mAx2 24V/240mAx2
> Lock Size: 500Lx55Wx28H(mm)
> Armature plate: 190x45x11(mm)
Brand:
S4AItem NO.:

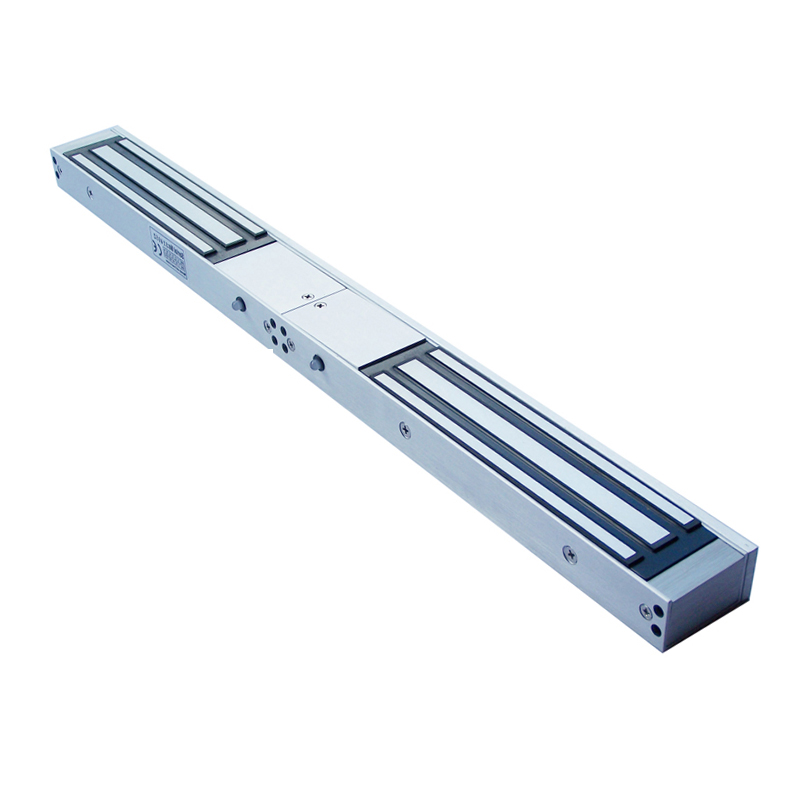

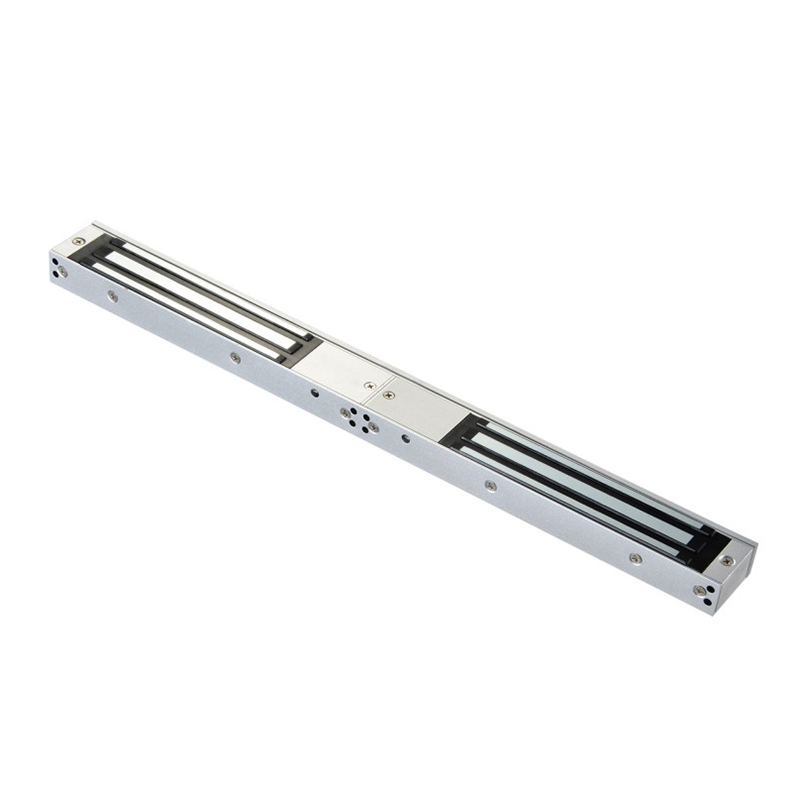

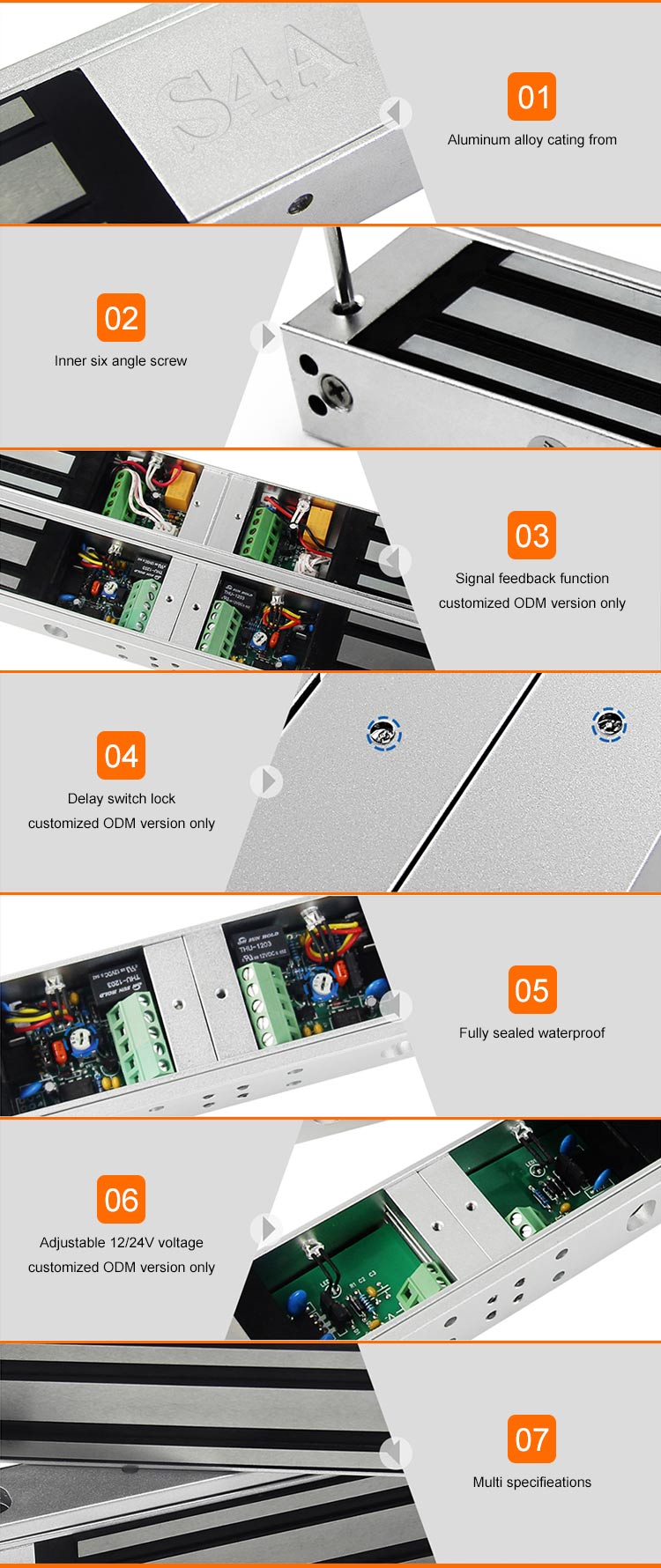

EL-800DSTDouble Door 350KG Magnetic Lock
Model No.: EL-800DST
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-800D | Without indicator lights |
EL-800DS | With LED (Red only) |
EL-800DSD | With LED, door senor |

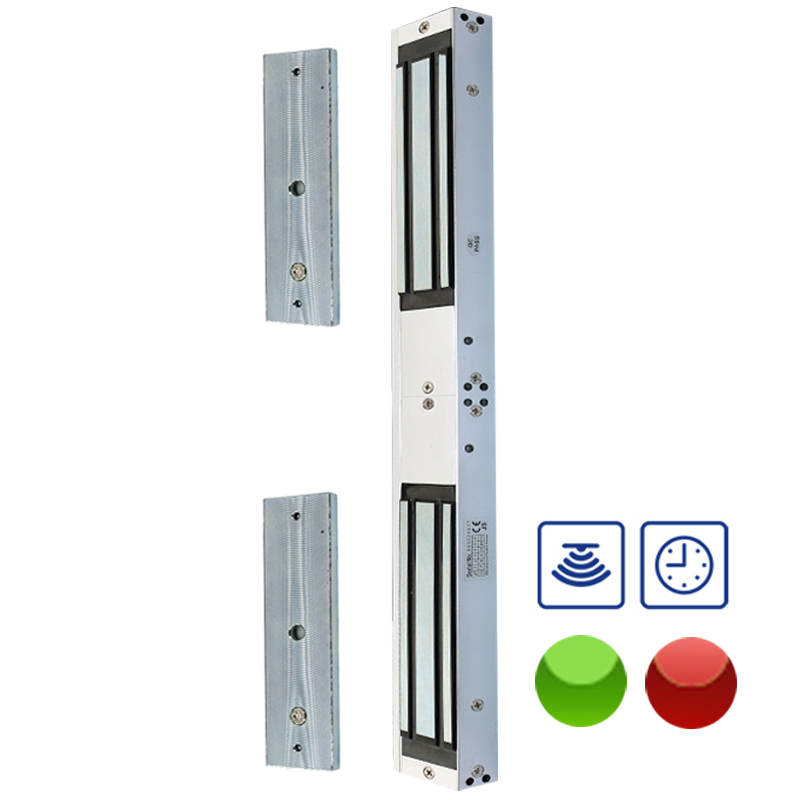

EL-800DST | Built-in LED, door sensor, and time delay |

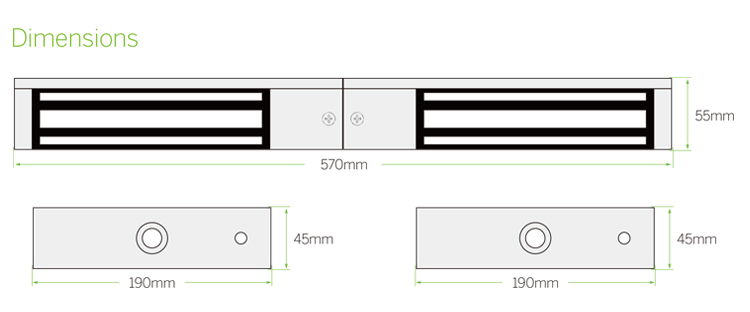

Lock Dimension | 570Lx55Wx27.5H(mm) |
Armature Plate Dimension | 190Lx45Wx11H(mm) |
Holding Force | 350kgx2(800Lbsx2) |
Input Voltage | 12/24VDC+10% |
Current Draw | 480mAx2 at 12VDC 240mAx2 at 24VDC |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Signal Output | Need to order EL-D350S |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Double Electromagnetic Lock Series (800Lbs) | |||
Standard Carton box | Unit Size | Gross Weight /pcs | Gross Weight /Carton |
4pcs | 570Lx55Wx27.5H(mm) | 5.4kg | 22.1KG |
S4A Instruction_EL-800DST_350KG Double Leaf Magnetic Lock
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> With LED (Red only)> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED and door sensor> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED, door sensor and time delay> Single door 350KG=800lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor and Buzzer> 100% Copper Single door 350KG=800lbs > Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Lock Size: 285Lx55Wx27.5H(mm)
> Without Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> With Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> Without indicator lights> Voltage: DC12V or DC24V> Current Draw: 12V/480mAx2 24V/240mAx2> Holding force: 350KGx2 (800LBSx2)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
