> Card type: EM+HID or MF+CPU Card
> Two relays support up to 2000 users in total for two zones
> Can add consecutive user cards quickly in one time
> Digital backlit keypad
> Have 7 working modes
Brand:
S4AItem NO.:

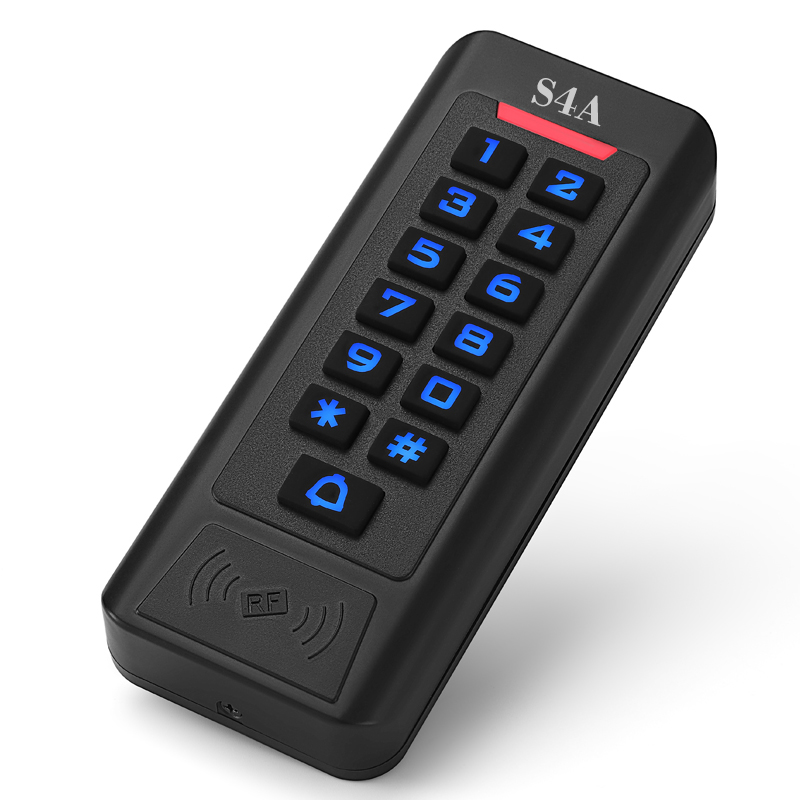

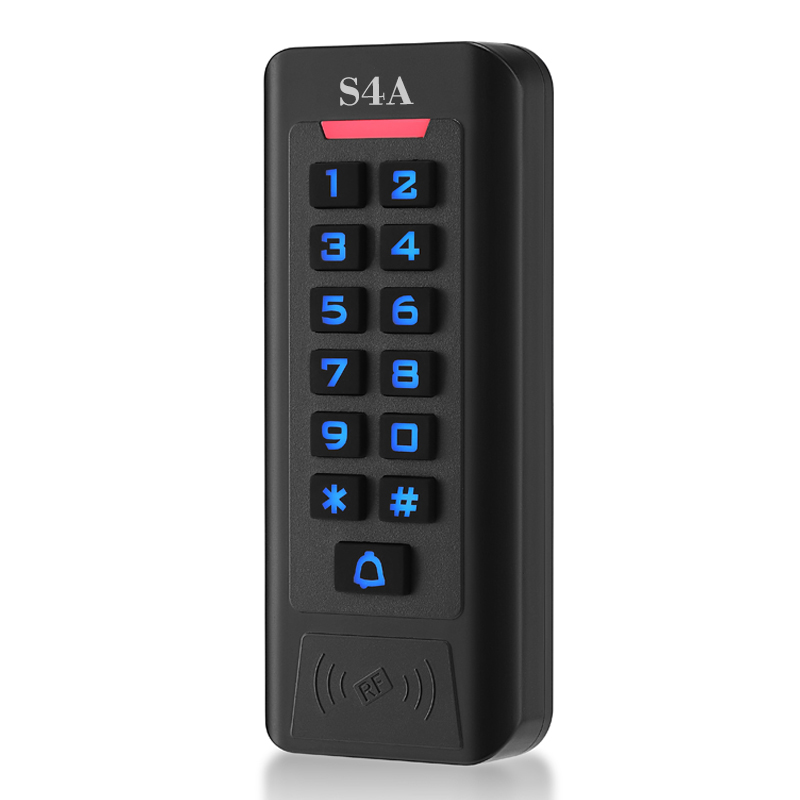

CC1-AS2-Door Dual Relay DC12V Waterproof Access Control Keypad
Model No.: CC1-AS
1. Two relays, supports up to 2000 users in total for two zones
2. Can add consecutive user cards quickly in one time
3. Digital backlit keypad
4. Have 7 working modes
> Wiegand reader
> Standalone for single door
> Standalone for two doors
> With external reader for two doors
> Two units interlocked for two doors
> Anti-passback for single door
> Anti-passback for two doors
Card type | EM&HID or MF&CPU |
Waterproof | IP68 |
Capacity | 2000 |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

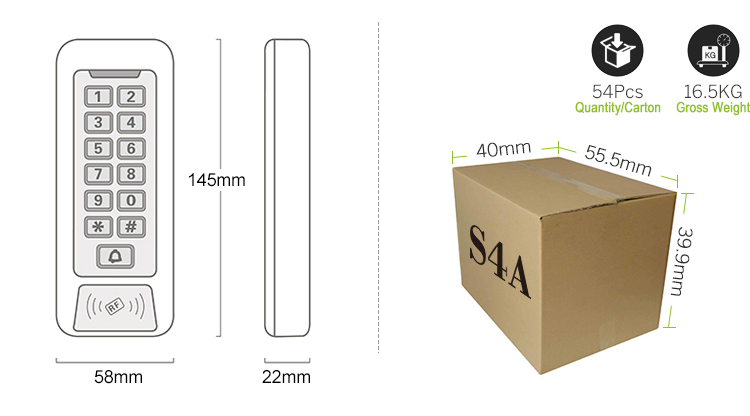

Dimension | 145*58*22mm |
While Color and Black Color Fashional Access Controller | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
CC1AS EM | 54pcs | 16.5KG | 55.5x39.9x40cm |
CC1AS EH | 54pcs | 16.5KG | |
CC1AS MC | 54pcs | 16.5KG | |
> Card type: EM, HID, MF, CPU Card> Wiegand Reader> Standalone for single door> Standalone for two doors> With external reader for two doors> Two units interlocked for two doors> Anti-passback for single door> Anti-passback for two doors
> Card type: EM, HID, MF, CPU Card> Wiegand Reader> Standalone for single door> Standalone for two doors> With external reader for two doors> Two units interlocked for two doors> Anti-passback for single door> Anti-passback for two doors
> Card type: EM, HID, MF, CPU Card> Wiegand Reader> Standalone for single door> Standalone for two doors> With external reader for two doors> Two units interlocked for two doors> Anti-passback for single door> Anti-passback for two doors
> Card type: EM+HID or MF+CPU Card > Two relays support up to 2000 users in total for two zones > Can add consecutive user cards quickly in one time > Digital backlit keypad > Have 7 working modes
>Card reading distance: 0-3M>Antenna: 2DB circular polarization>Operating Voltage: DC12V 80MA
> Wire diameter: 8mm> Door loop length: 400mm
> Card type: 125KHz or 13.56MHz Card> KR501EM: 125KHz (WG26 output)> KR501Mifare: 13.56MHz (WG34 output)
>Working power:AC 220V±10%>Sensitivity:Ten levels adjustable (0-9 levels)>Detection time:35ms>Working frequency:About 100KHz>Output method:double relay
