> Card type: EM+HID or MF+CPU Card
> Two relays support up to 2000 users in total for two zones
> Can add consecutive user cards quickly in one time
> Digital backlit keypad
> Have 7 working modes
Brand:
S4AItem NO.:

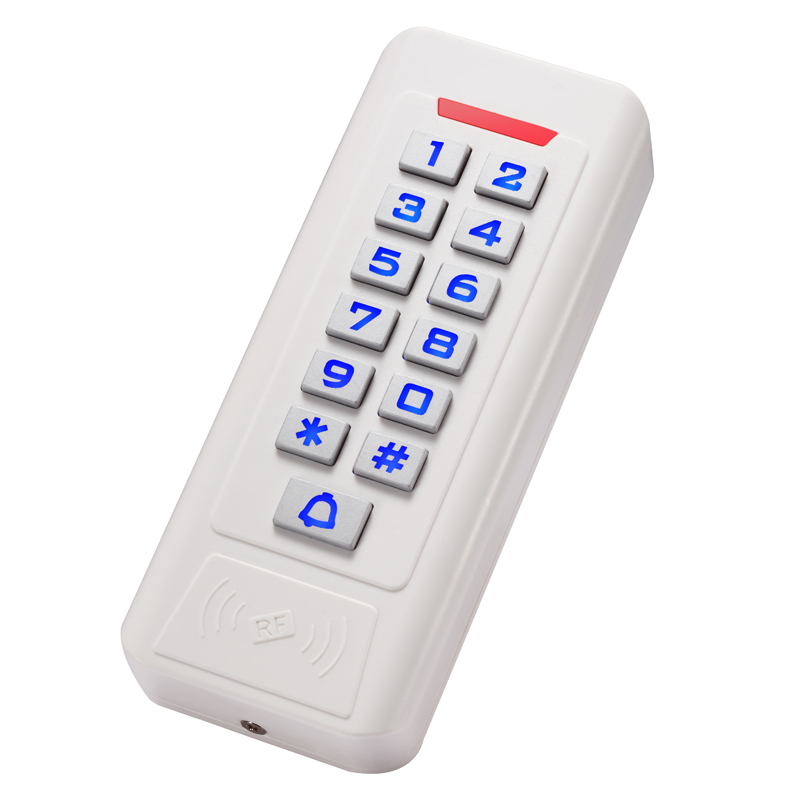

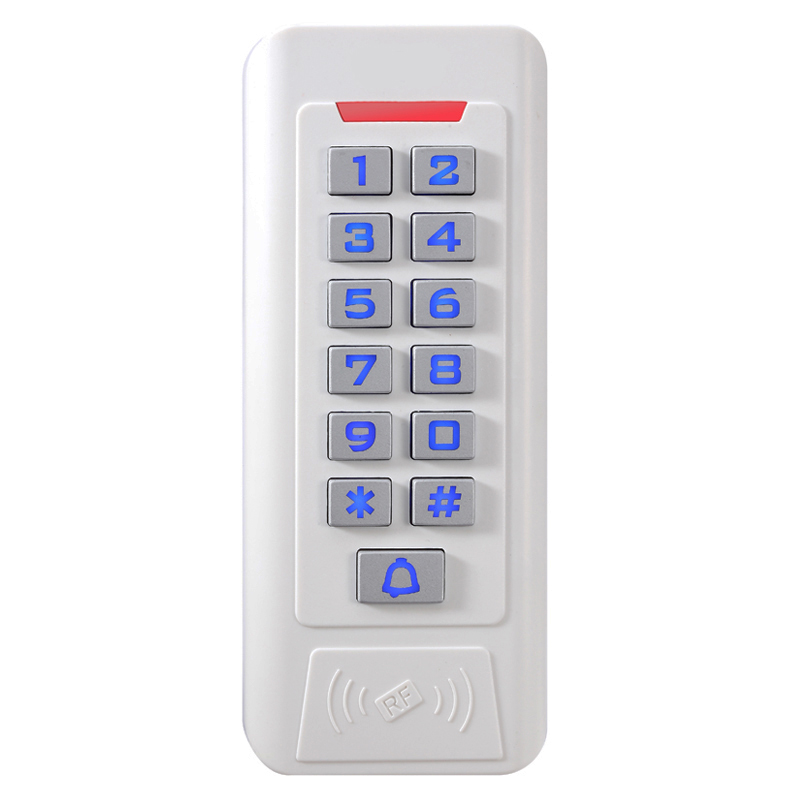

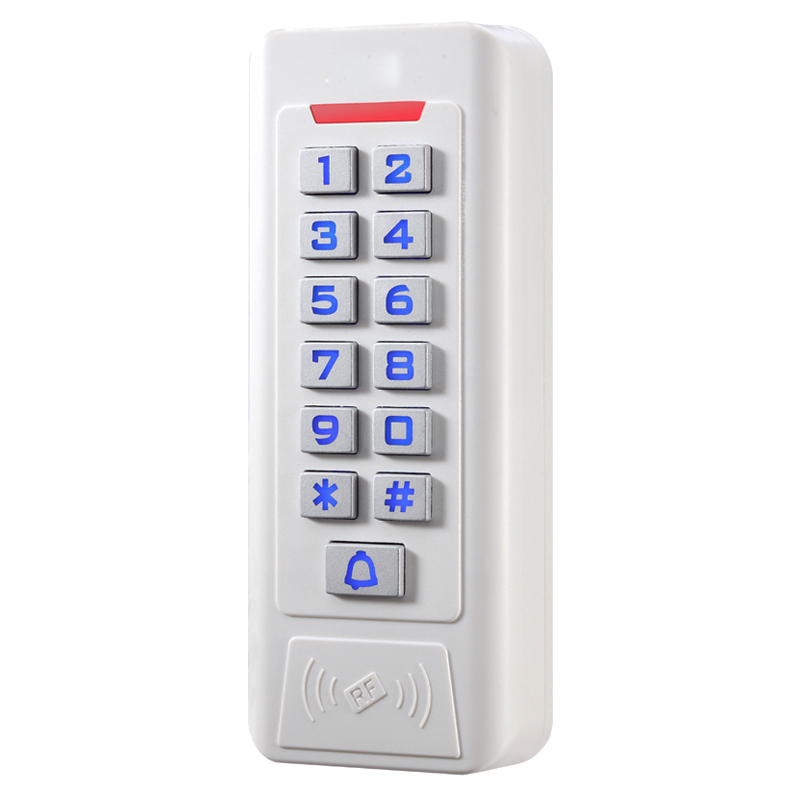

CC1ASWhile color and black color fashional access controller
Model No.: CC1AS EM+HID, MF+CPU
1. Two relays, supports up to 2000 users in total for two zones
2. Can add consecutive user cards quickly in one time
3. Digital backlit keypad
4. Have 7 working modes
> Wiegand reader
> Standalone for single door
> Standalone for two doors
> With external reader for two doors
> Two units interlocked for two doors
> Anti-passback for single door
> Anti-passback for two doors
Card type | EM&HID or MF&CPU |
Waterproof | IP68 |
Capacity | 2000 |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |
Dimension | 145*58*22mm |
While Color and Black Color Fashional Access Controller | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
CC1AS EM | 54pcs | 16.5KG | 55.5x39.9x40cm |
CC1AS EH | 54pcs | 16.5KG | |
CC1AS MC | 54pcs | 16.5KG | |
S4A User Manual CC1_While Color and Black Color Fashional Access Controller
> Card type: EM, HID, MF, CPU Card> Wiegand Reader> Standalone for single door> Standalone for two doors> With external reader for two doors> Two units interlocked for two doors> Anti-passback for single door> Anti-passback for two doors
> Card type: EM, HID, MF, CPU Card> Wiegand Reader> Standalone for single door> Standalone for two doors> With external reader for two doors> Two units interlocked for two doors> Anti-passback for single door> Anti-passback for two doors
> Card type: EM, HID, MF, CPU Card> Wiegand Reader> Standalone for single door> Standalone for two doors> With external reader for two doors> Two units interlocked for two doors> Anti-passback for single door> Anti-passback for two doors
> Card type: EM+HID or MF+CPU Card > Two relays support up to 2000 users in total for two zones > Can add consecutive user cards quickly in one time > Digital backlit keypad > Have 7 working modes

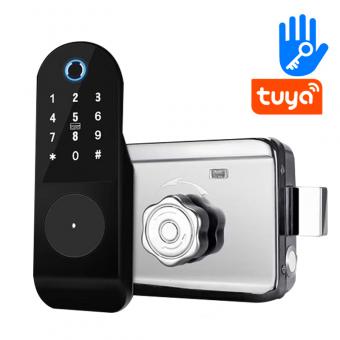

>Fingerprint sensor: Semiconductor >LCD: 2.4 inch TFT colour screen >Power Supply: DC4.0~6.0V (4*1.5V AA Battery) >Door thickness: 10-12mm
