Electromagnetic Lock

/

180KG-350LBS

/180KG Electromagnetic Locks for Fire Doors

New Products

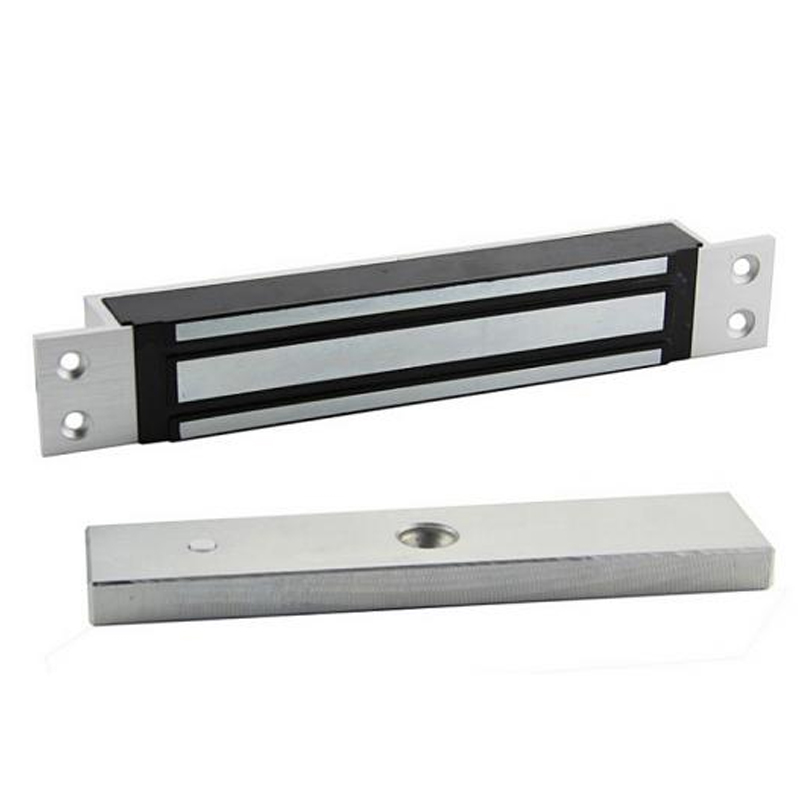

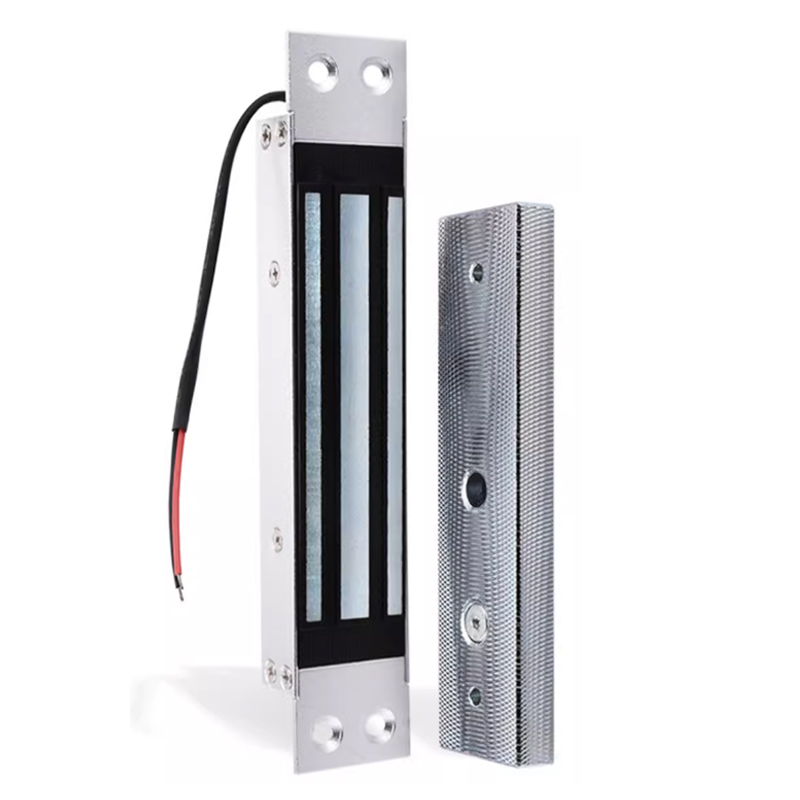

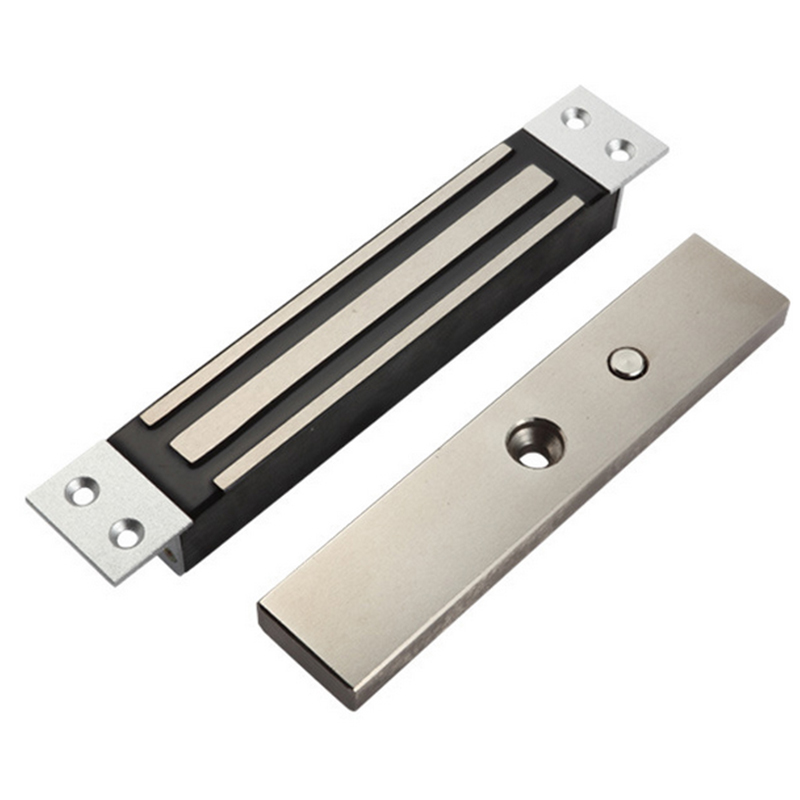

180KG Electromagnetic Locks for Fire Doors

> Without door position detection output

> Voltage: DC12V or DC24V

> Holding Force: 180kg(350Lbs)

> Current Draw: 12V/480mA 24V/240mA

  • Brand:

    S4A
  • Item NO.:

    EM-350T
  • Specifications

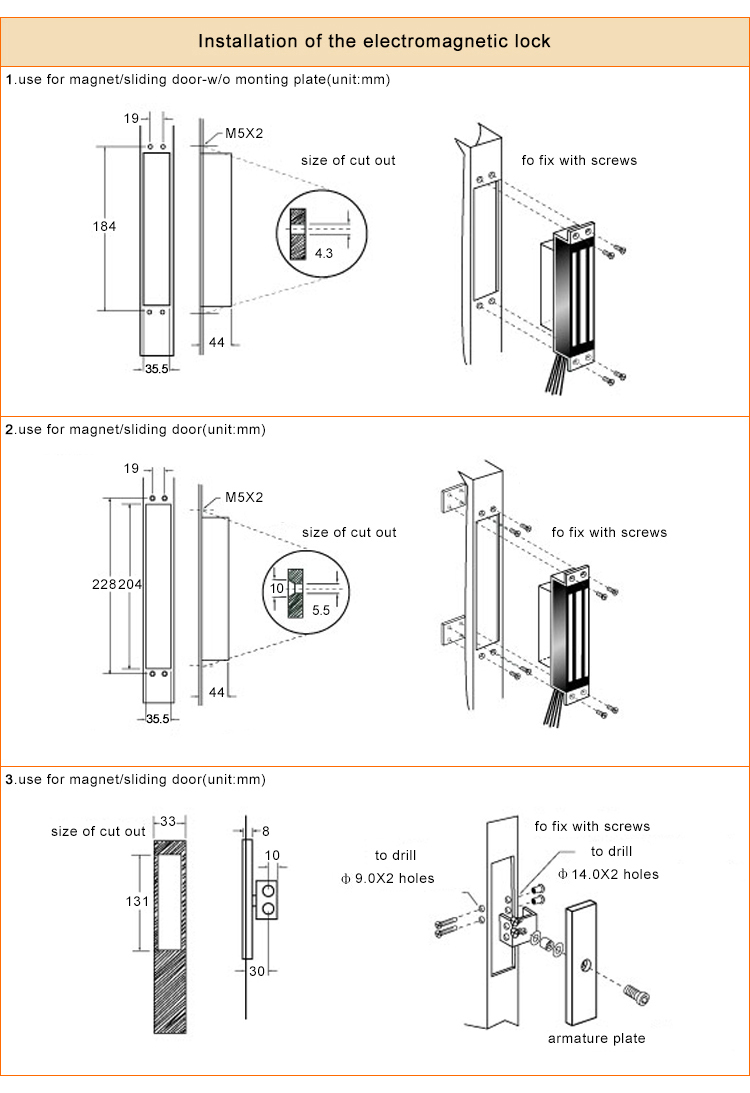

  • Wiring Diagram

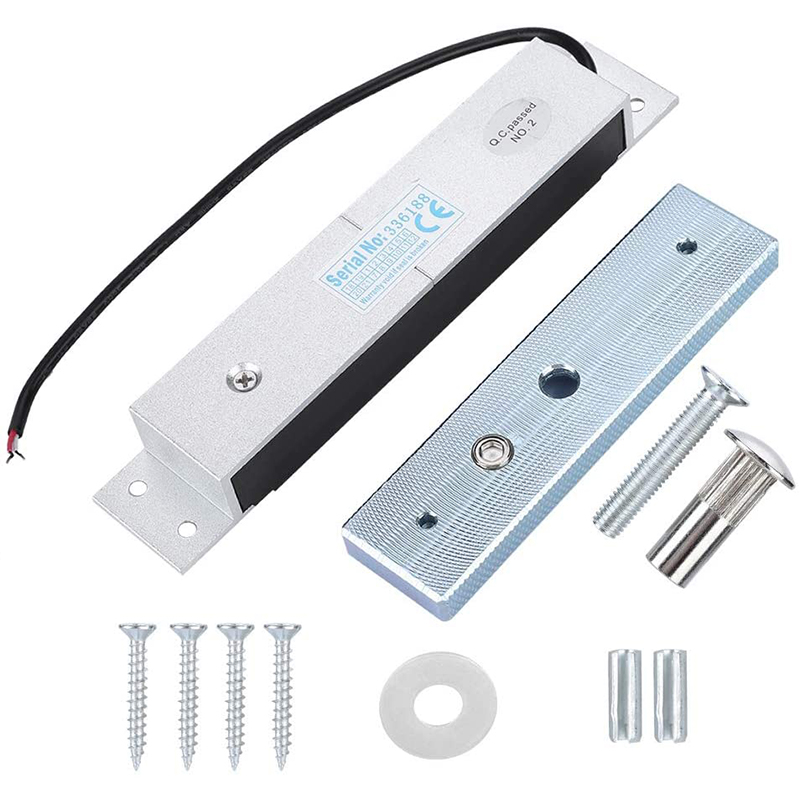

  • Package
  • Download

Mortise Mount Lock 180KG (350Lbs)

Model No.: EM-350T


What is Electromagnetic Lock?


Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


EM-350T

Without door position detection output

EM-350TS

With Signal output

Lock size

194LX34Wx23H(mm)

Armature Plate

132LX34Wx12H(mm)

Working voltage

DC12V or DC24V

Current Draw

12V/480mA 24V/240mA

Surface Temp

≤20℃

Operating Temp

-10℃ ~ 55℃(14°F-131°F)

Finishes for shell

Anodized Aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

1.5KG


Electromagnetic Locks for fire doorsElectromagnetic Locks for fire doors




180KG Electromagnetic Locks for fire doors

180KG Electromagnetic Locks for Fire Doors

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

EM-350T

194x34x23mm

10pcs

15.56KG

34x29x15cm

EM-350TS

10pcs

15.56KG

Electromagnetic Locks for fire doors

S4A Instruction_EM-350T_180KG Electromagnetic Locks for Fire Doors
