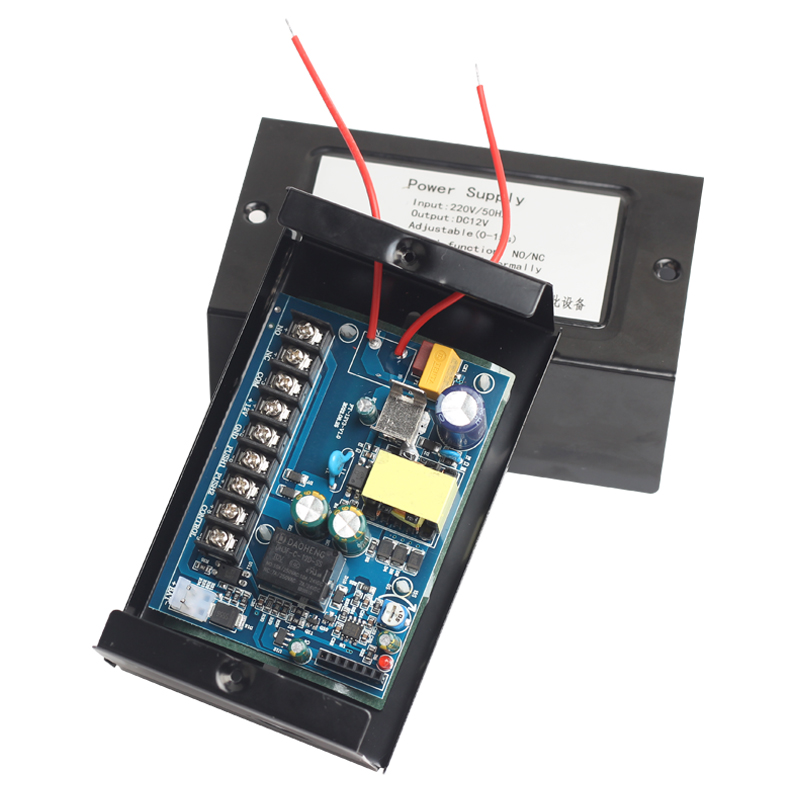

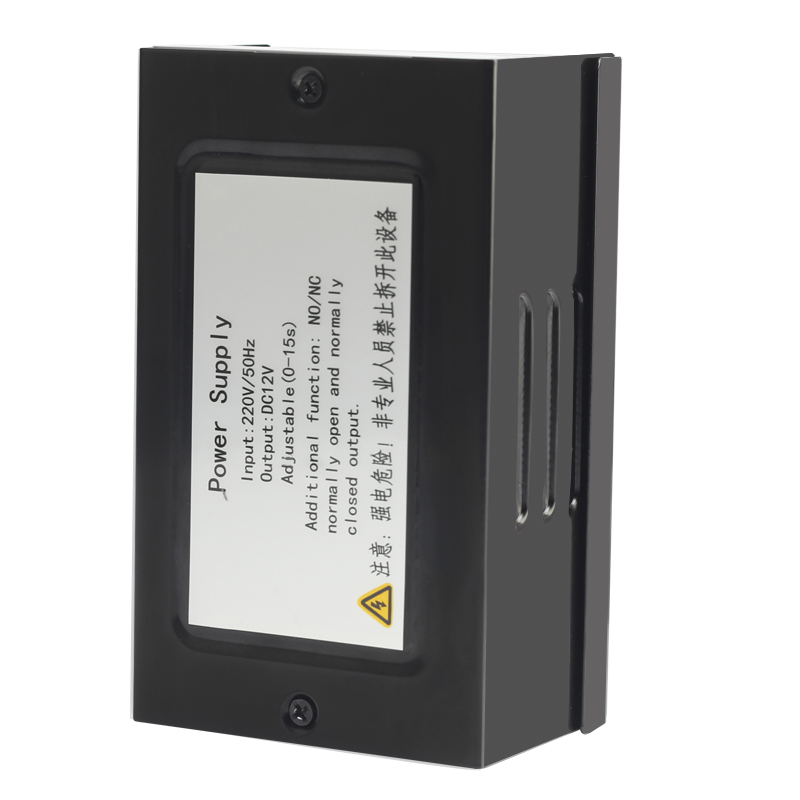

12V 3A Power Supply Control for Door Access Entry Systems

>Stable and secure with over load, over current, over voltage, short circuit protection.

>The door opening delay is adjustable from 0-15S.

>220V AC input voltage.

  • Brand:

    S4A
  • Item NO.:

    K60
  • Specifications

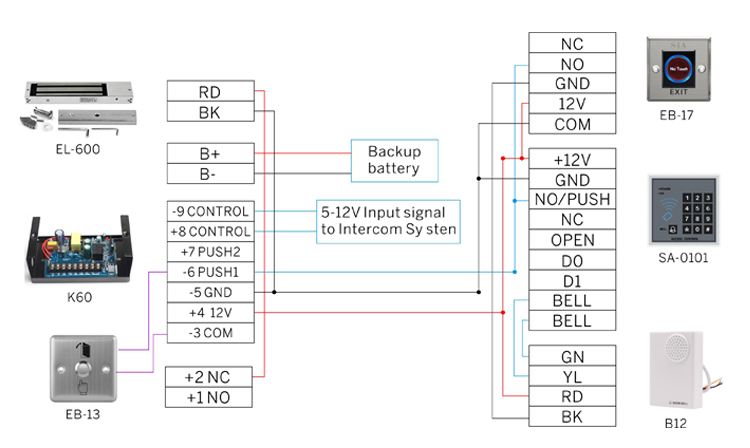

  • Wiring Diagram
  • Download

12V 3A Power Supply Control for Door Access Entry Systems

Model No.: K60


>Stable and secure with over load, over current, over voltage, short circuit protection.

>The noise ripple is low and does not affect the access control card reader.

>Sufficient instantaneous current to drive most locks on the market without pressure.

>Support backup battery when power cut.

>The door opening delay is adjustable from 0-15S.

>Onboard remote control interface (optional)

>High efficiency, built-in filter, low output noise

>220V AC input voltage.


Input characteristics


Input voltage

220V AC

Frequency range

50Hz~60HZ

Power factor

>0.5

Efficiency

84% @ 230V AC

Impulse current

20A @230V AC

Ripple noise

120mVp-p

Safety and EMC Standards


Operating temperature

-20°C~50°C

Storage temperature

-20°C~85°C

Temperature Drift

±0.03%/°C(0°C~ 50°C)

Working humidity

10%~90%Rh, no dew

Storage humidity

10%~95%Rh

Vibration

10~500Hz, 2G 10min./1 cycle,PERIOD FOR 60min. EACH AXES

Protection features


Overload Protection

105%~200% auto protection, >5.1A auto protection


Wireless Access Control

Wireless Access Control

S4A Datesheet_12V 3A Power Supply Control for Door Access Entry Systems
