> Power supply: 12V 23A battery
> Working current: ≤3uA (static), ≤10mA (alarm)
> Magnetron distance: 10mm
> Transmit frequency: 433MHz
Brand:
S4AItem NO.:

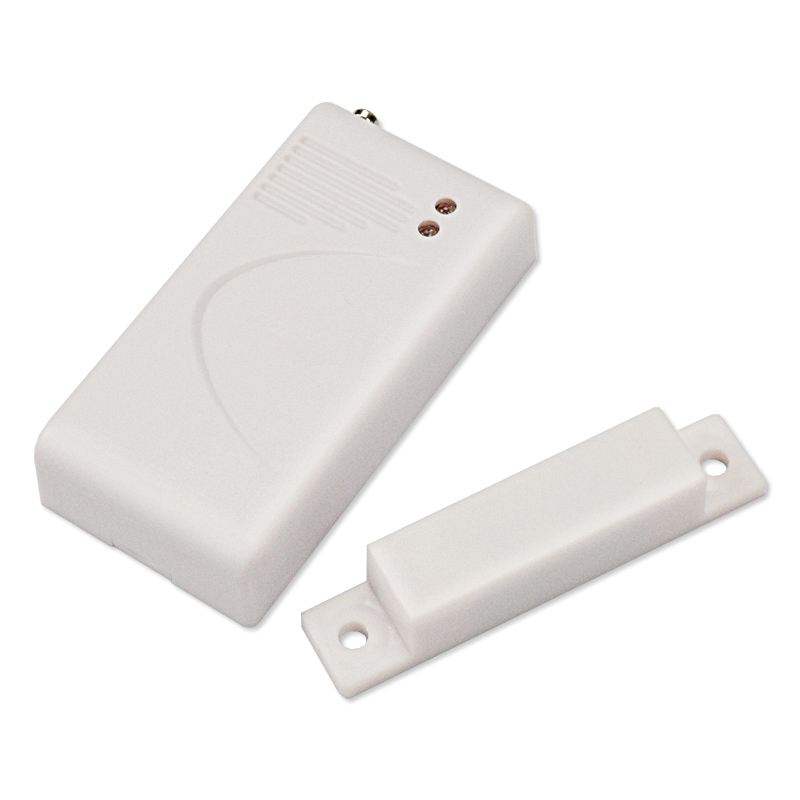

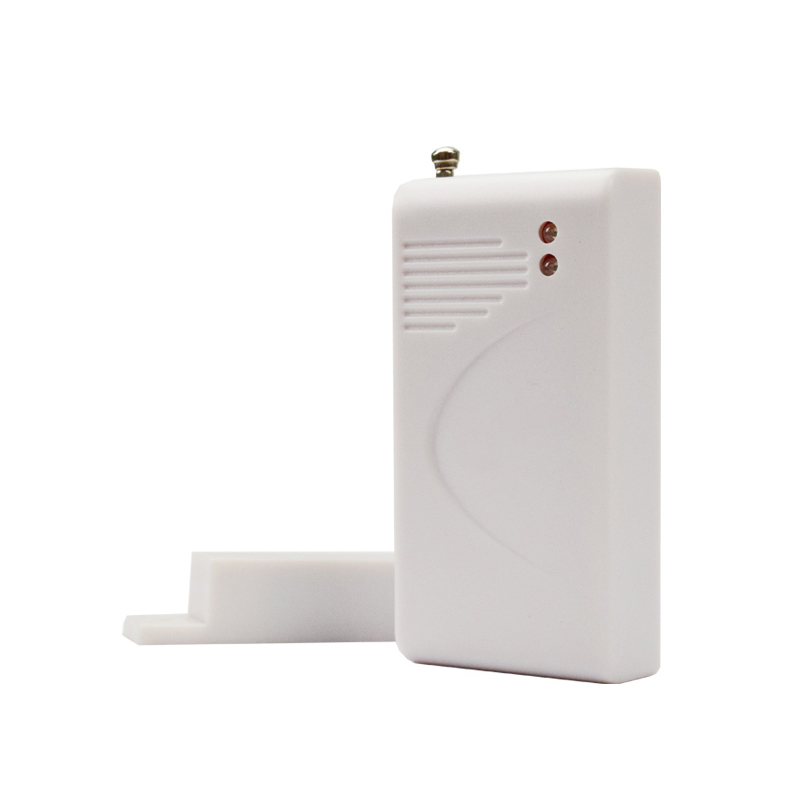

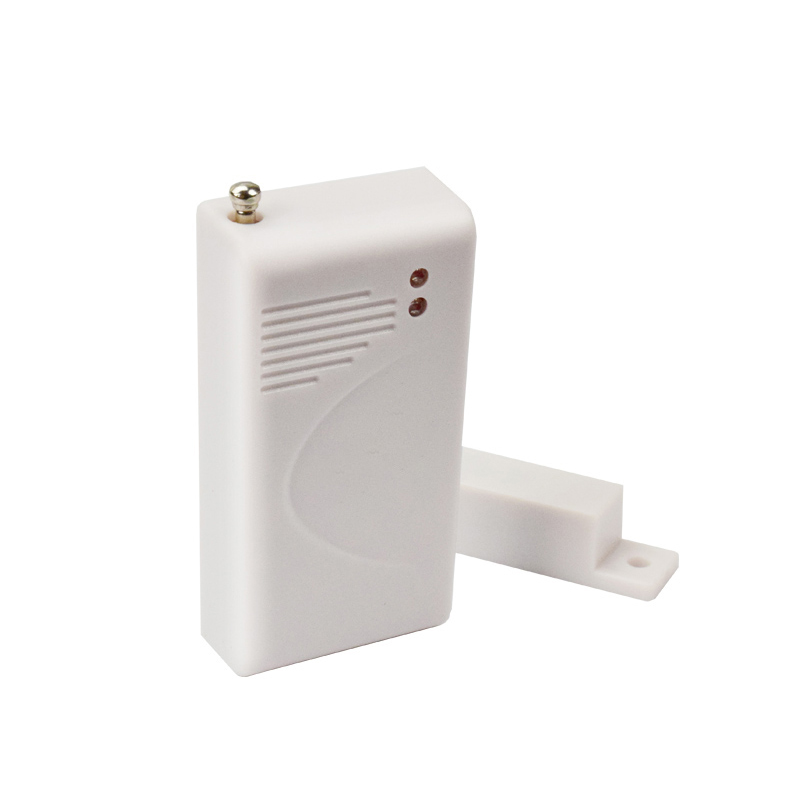

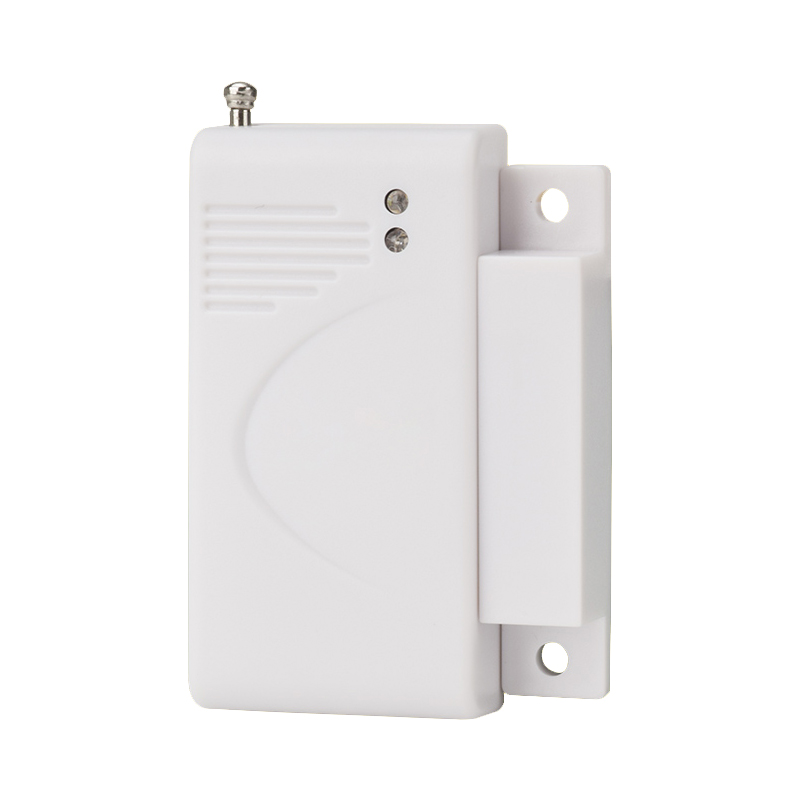

WDS-433Wireless Door Sensor 433MHz 1527
Model No.: WDS-433

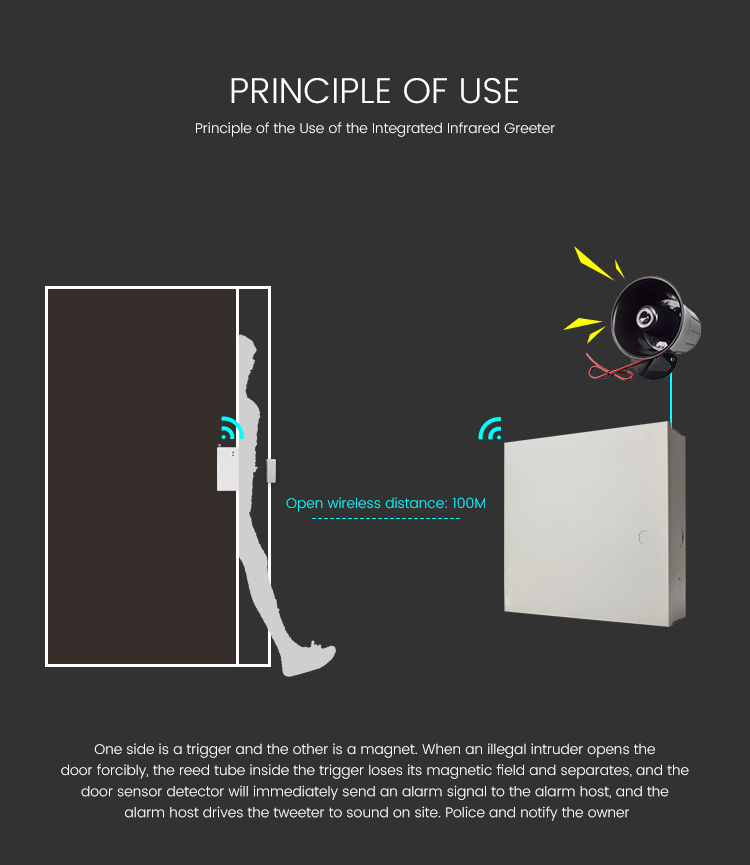

What is wireless door sensor?
A wireless sensor communicates with the security panel wirelessly using RF signals. ... The RF signal that the door and window contact uses must be compatible with your alarm system. Depending on your alarm system, there may be encrypted door and window sensors that you can use for an added layer of protection.
Power supply | 12V 23A battery |
Working current | ≤3uA (static), ≤10mA (alarm) |
Magnetron distance | 10mm |
Transmit frequency | 433MHz |
Wireless distance | Open distance 100m |
Operating temperature | -10℃~50℃ |
Factory standard | Wireless door sensor, double-sided tape, 12V 23A battery |

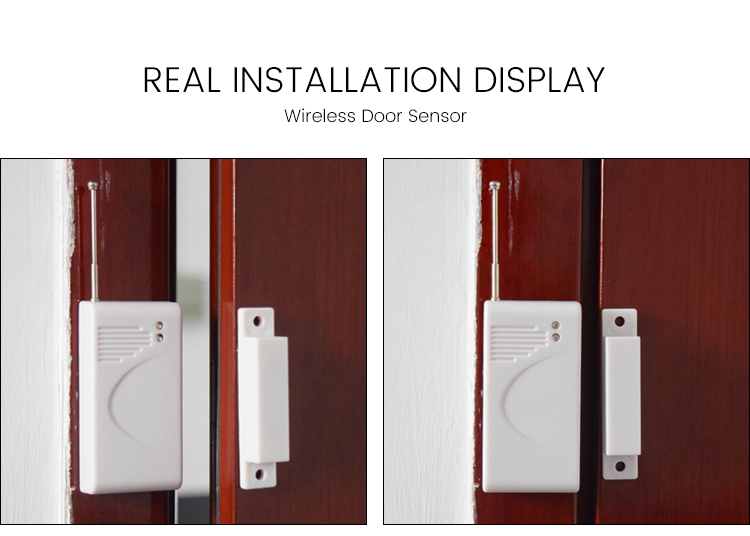

Precautions | The door sensor can be installed on wooden doors, aluminum alloy doors, windows and other non-ferrous doors and windows |
S4A Datesheet_Wireless Door Sensor 433MHz 1527
NO (normally open)NC (normally close)NO, NC, COM (NO&NC adjustable)
> DC12V> Support 1channel> OEM & ODM are available
> Frequency: 433MHz> Channels: 8> Code: Learning code> Model: Momentary/Toggle/Latching> Voltage: 12V DC> Distance: 50-100m> Include: 1pcs receiver + 1pcs transmitter
> Frequency: 433 or 315MHz> DC12V> Support 4channel> OEM & ODM are available
> Frequency: 433 or 315MHz> DC12V> Support 2channel> OEM & ODM are available
Switch form:NO (normally open)NC (normally close)NO, NC, COM (NO&NC adjustable)
EM-22: ID Thin CardsEM-23: ID Thick CardsMF-26: IC Thin CardsMF-27: Philips IC Thin cardUC-1: Ultralight CardsFor Printing Purpose: ID Card with Coating ID Card without Coating
> HID-1: HID Thin Cards> HID-2: HID Thick Cards> 125KHz> Format: 26bit(H10301) 37bit(10302)> Dimensions: 86x54x1.8mm> Material Standard PVC
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
