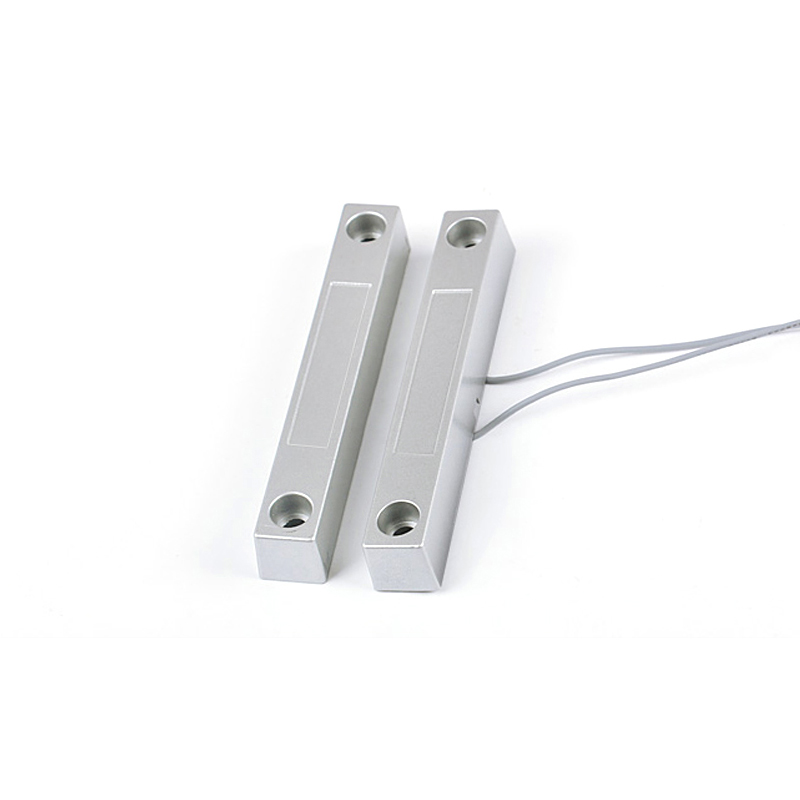

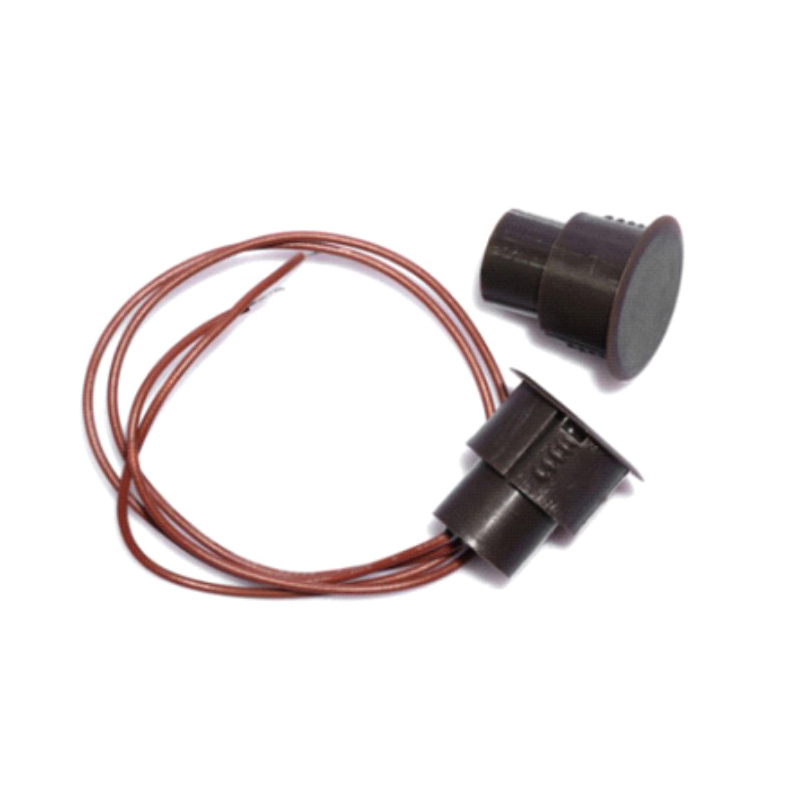

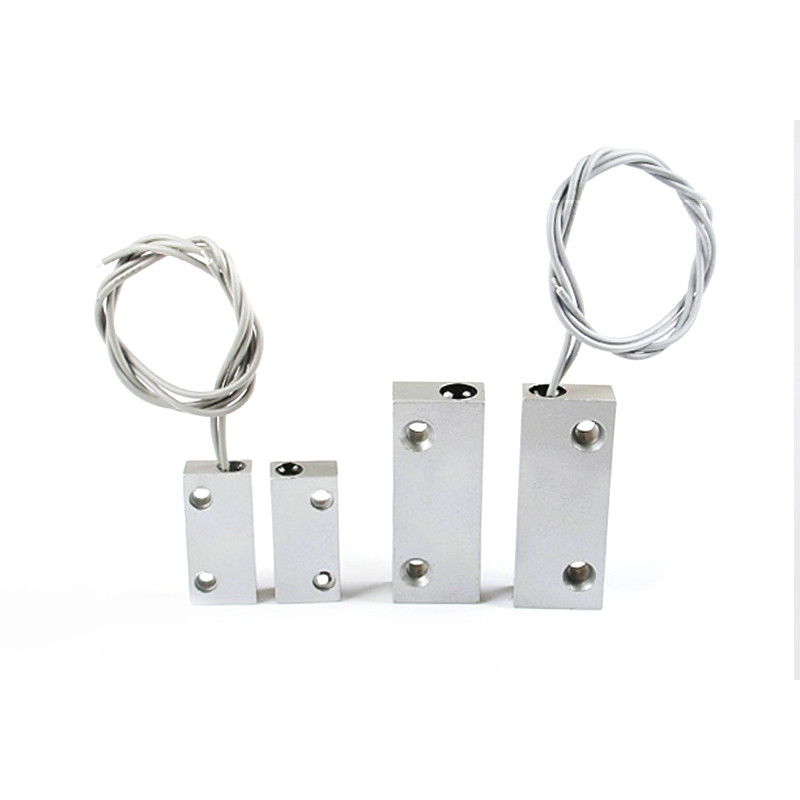

Magnetic door Sensor

Switch form: NO (normally open) / NC (normally close) / NO,NC,COM (NO&NC adjustable)

  • Brand:

    S4A
  • Item NO.:

    MS-03
  • Specifications
  • Package

Item Name: Magnetic door Sensor

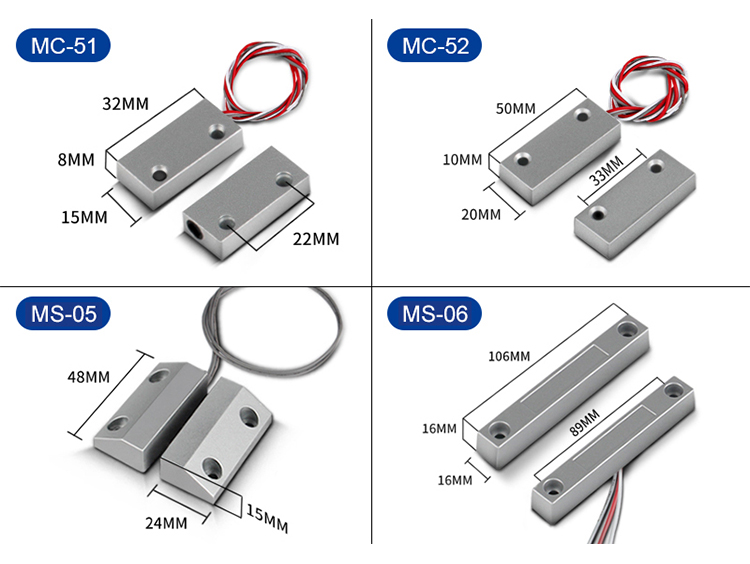

Model

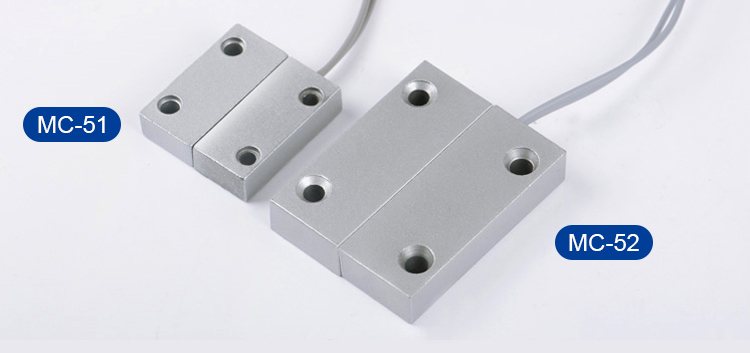

MC-51

MC-52

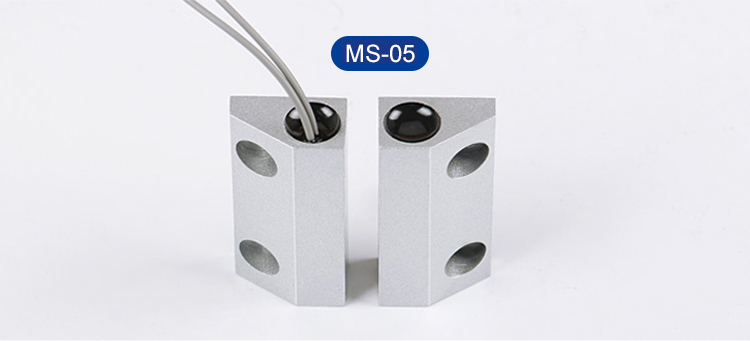

MS-05

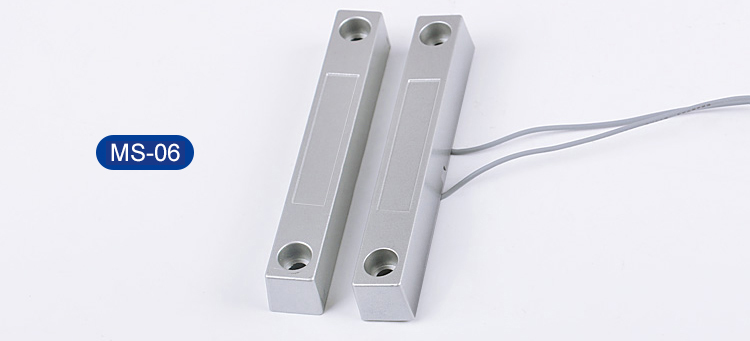

MS-06

Sensing distance

20-30mm

25-35mm

25-35mm

25-35mm

Hole distance

15mm

25mm

25mm

25mm

Switch form

NO (normally open) / NC (normally close) / NO,NC,COM (NO&NC adjustable)

Max rating

10W

Max voltage

100V

Max current

0.5A

Material

Zinc Alloy,Silver gray plating

Lead

1007UL#22AWG 260mm


Model

MS-03; MS-04

Dimension

106×38×10(mm)

Code mode

Factory default :NO NC (optional)

Gap

60±10(mm)

Max voltage

≤100V DC

Max current

≤500mA

Max rating

≤10W

Color

Grey,Dark,White

Suit for

shutter door

Material

ABS,Plastic,zinc Alloy,metal

Net weight

150G

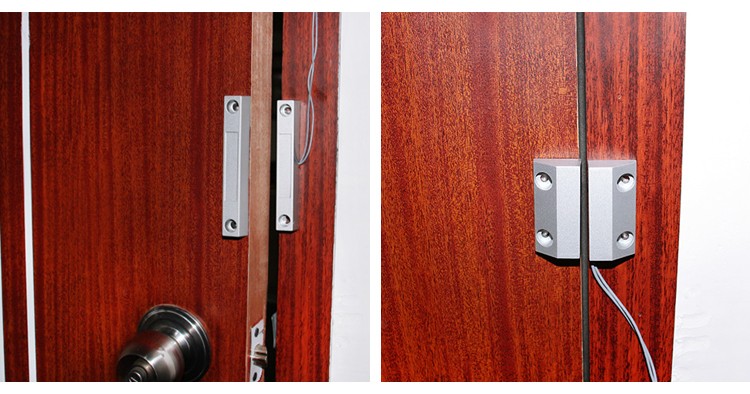

Magnetic door Sensor.jpg

Magnetic door Sensor.jpg

Magnetic door Sensor.jpg



Quantity

100pcs/carton

Carton Size

45X40X35CM

Weight

15KG(Plastic version only)
