Wireless Door Lock-No Wiring and No Maintenance

> All wireless, no need wires any more

> 433MHz Rolling Code technology

> With two remote transmitters

> 100 PIN/card users

> 4~6 digits PIN, 125KHz EM or 13.56MHz Mifare card optional

> Open the lock by keypad, wireless exit button and remote transmitters

  • Brand:

    S4A
  • Item NO.:

    WS1
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Wireless Door Lock-No Wiring and No Maintenance

Model No: WS1

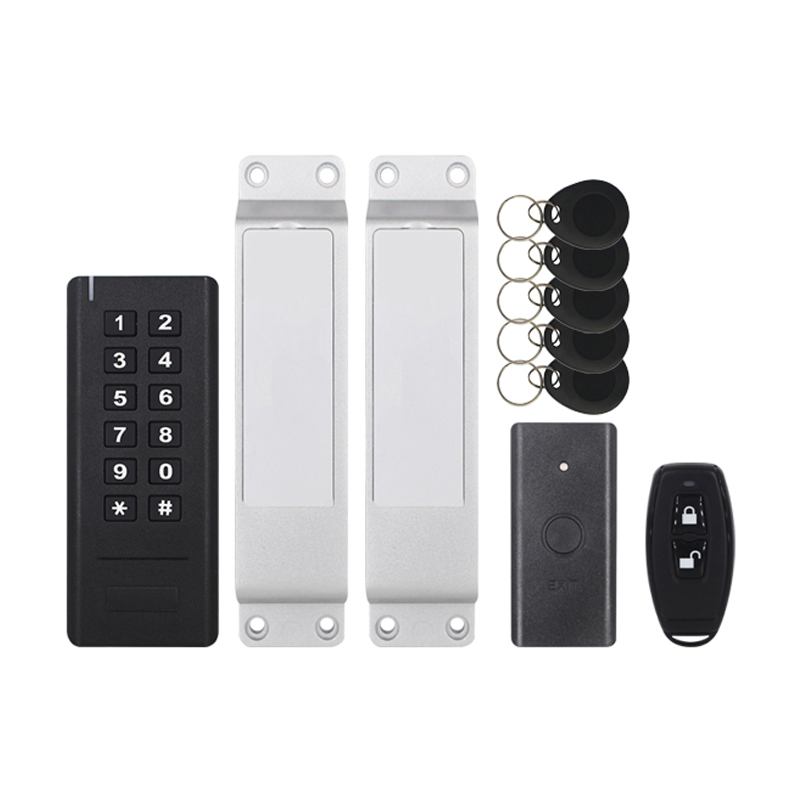

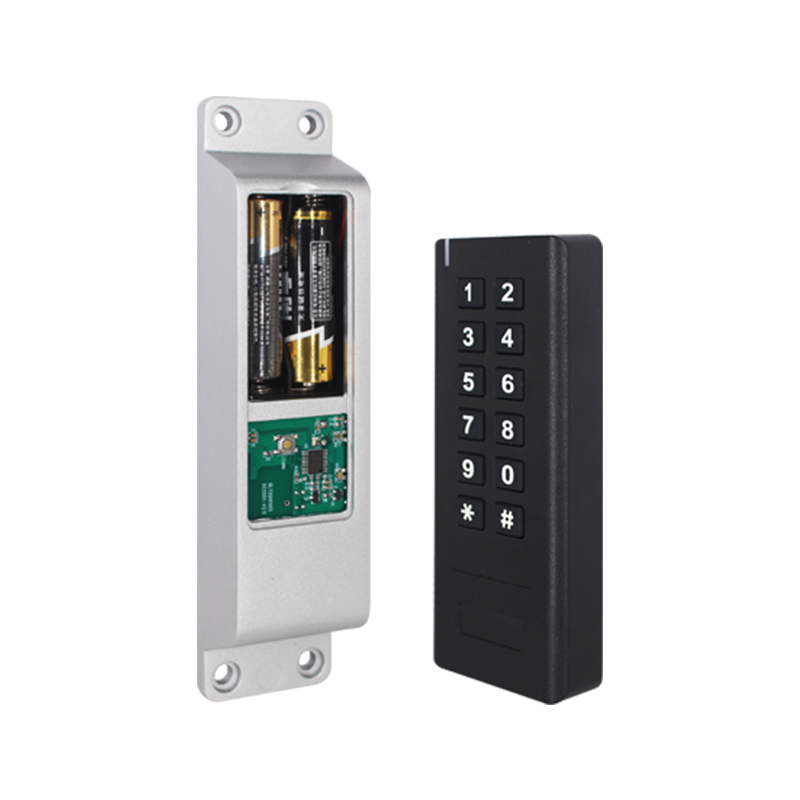

The WS1 is a Wireless Kit for home/office use, it includes a Wireless Keypad+ a Wireless Bolt Lock + a Wireless Exit Button + 1pcs Remote Transmitters + 5pcs Keyfobs. 433MHz Rolling Code of the encryption algorithm and the split design guarantee higher-secure.


> All wireless, no need wires anymore

> Easy for installation and operation

> Open times: 16,000 times for lock, 10,000 times for keypad

> 433MHz Rolling Code technology

> Ultra-low power consumption

> With two remote transmitters

> 100 PIN/card users

> 4~6 digits PIN, 125KHz EM or 13.56MHz Mifare card optional

> Communication distance: 30M max

> Open the lock by keypad, wireless exit button, and remote transmitters

> Battery life: more than 12 months


User Capacity

100

PIN Length

4-6 digits

Card Type

125KHz EM / 13.56MHz Mifare card (optional)

Operating Voltage

Wireless Lock

2 units of AA batteries

Wireless Keypad

3 units of AAA batteries

Wireless Exit Button

1 unit of 2032 Lithium battery

Remote Transmitter

1 unit of 2032 Lithium battery

Idle Current

All items < 10uA

Working Current

Wireless Keypad

< 50mA

Wireless Lock

< 42mA

Wireless Exit Button

< 3mA

Remote Transmitter

< 3mA

Communication Frequency

433MHz

Communication Distance

30m Maximum

Operating Temperature

Wireless Lock

-20℃~60℃ (-4°F~140°F)

Wireless Keypad

-40℃~60℃ (-40°F~140°F)

Operating Humidity

0%~86%RH

Physical

Wireless Lock

Zinc-Alloy

Others

ABS Shell

Dimensions

Wireless Keypad

L135 x W54 x D19(mm)

Wireless Lock

L169 x W40 x D25(mm)

Wireless Exit Button

L83 x W40 x D16(mm)

Remote Transmitter

L62 x W30 x D11.5(mm)

Unit Weight

570g

Wireless Keypad

90g

Wireless Lock

400g

Wireless Exit Button

30g

Remote Transmitter

25g/pc


Wireless Access Control Kits-WS1





Wireless Access Control Kits-WS1

Wireless Access Control Kits-WS1

S4A User Manual WS1_Wireless Door Lock-No Wiring and No Maintenance
