>Unlocking mode:Password,fingerprint,IC card,remote
Brand:
S4AItem NO.:

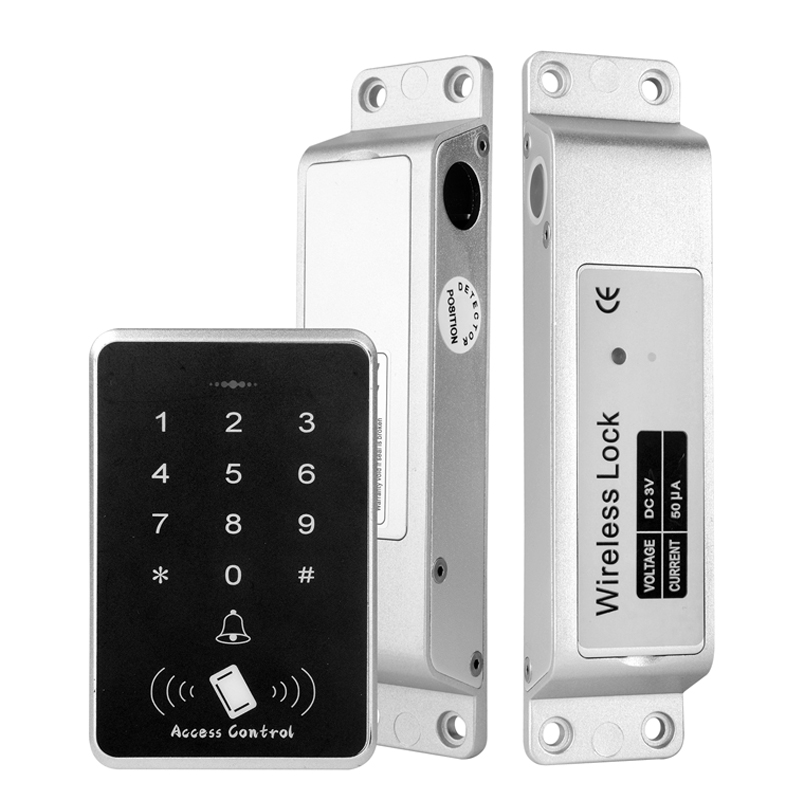

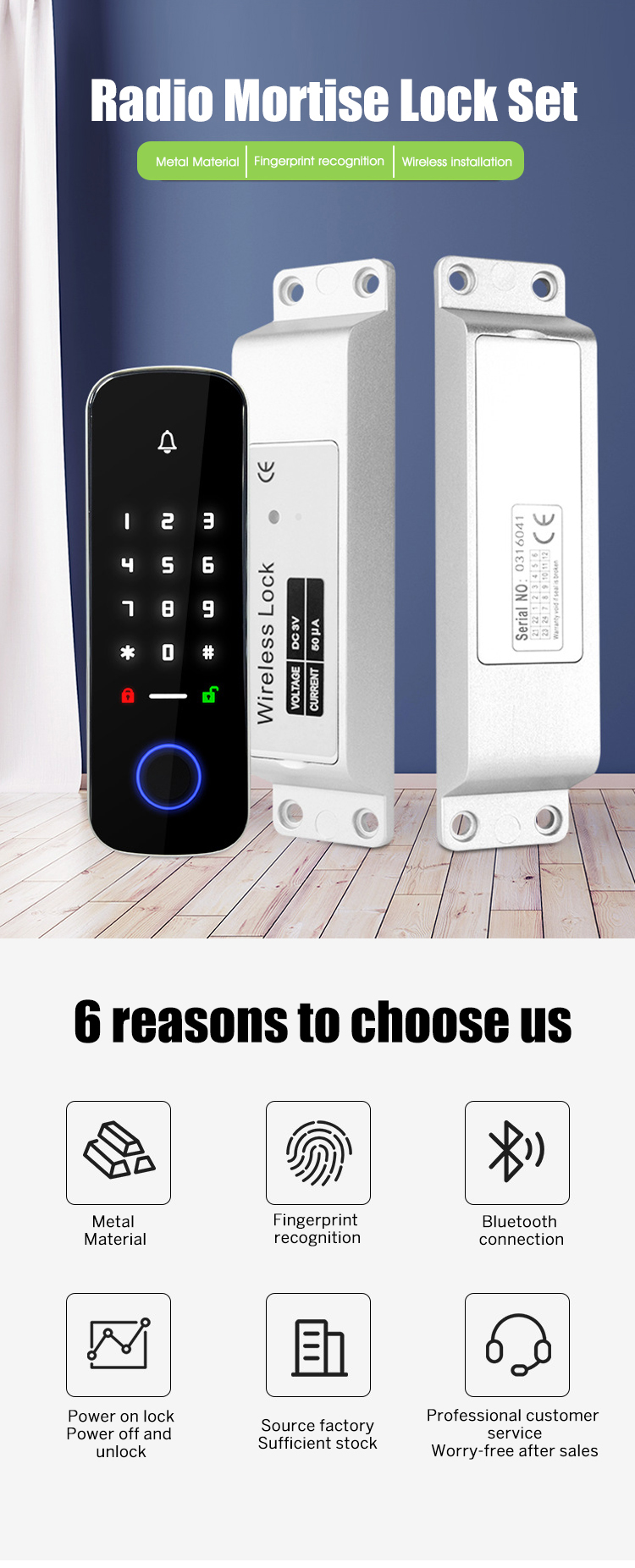

D3Keyless Entry & Battery Power Door Lock Kits
Model No: D3
| Product Parameter | Parameter Descr1ption | |
| S4A Model | D3 | |
| Product Name | Wireless Access Control Door Lock | |
| Parameters | Access Control | Lock |
| Power supply | AA1. 5Vx2 | AA1. 5Vx2 |
| Working current | 30mA | 200mA |
| Static current | 10uA | 150uA |
| Unlocking mode | Password,fingerprint,IC card,remote | N/A |
| Working temperature | -20℃-60℃ | -20℃-60℃ |
| Working humidity | 20%-85% | 20%-85% |
| Remote distance | N/A | 10m |

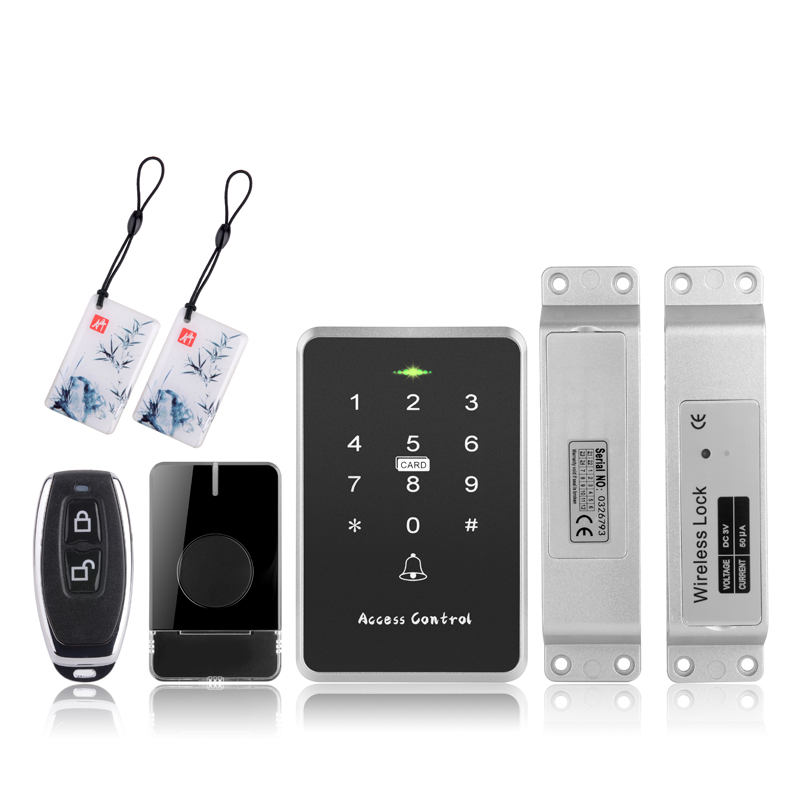

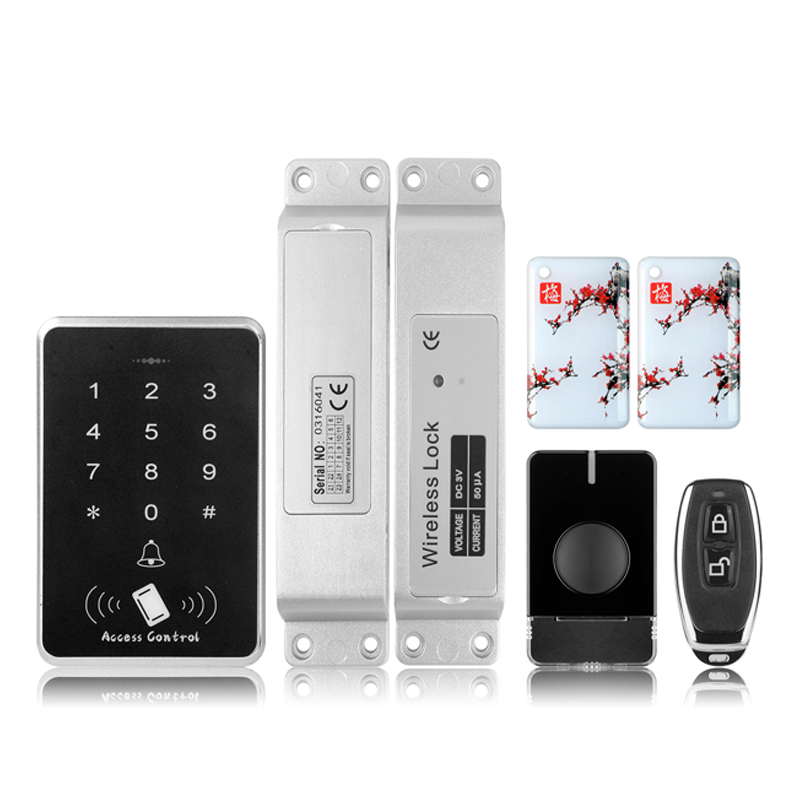

> All wireless, no need wires any more > 433MHz Rolling Code technology > With two remote transmitters > 100 PIN/card users > 4~6 digits PIN, 125KHz EM or 13.56MHz Mifare card optional > Open the lock by keypad, wireless exit button and remote transmitters
>Power supply: 4.5V-6V>Quiescent current:<50-65mA>Working current: >250mA (strong driving ability)
>Power supply: 4.5V-6V>Quiescent current:<50-65mA>Working current: >250mA (strong driving ability)
Fingerprint storage capacity:200 (pieces)Unlock times :>100,000 (times)Scan time:<0.5(s)
Fingerprint storage capacity:100 (pieces)Unlock times :>100,000 (times)Scan time:<0.5(s)
Fingerprint storage capacity:100 (pieces)Unlock times :>100,000 (times)Scan time:<0.5(s)

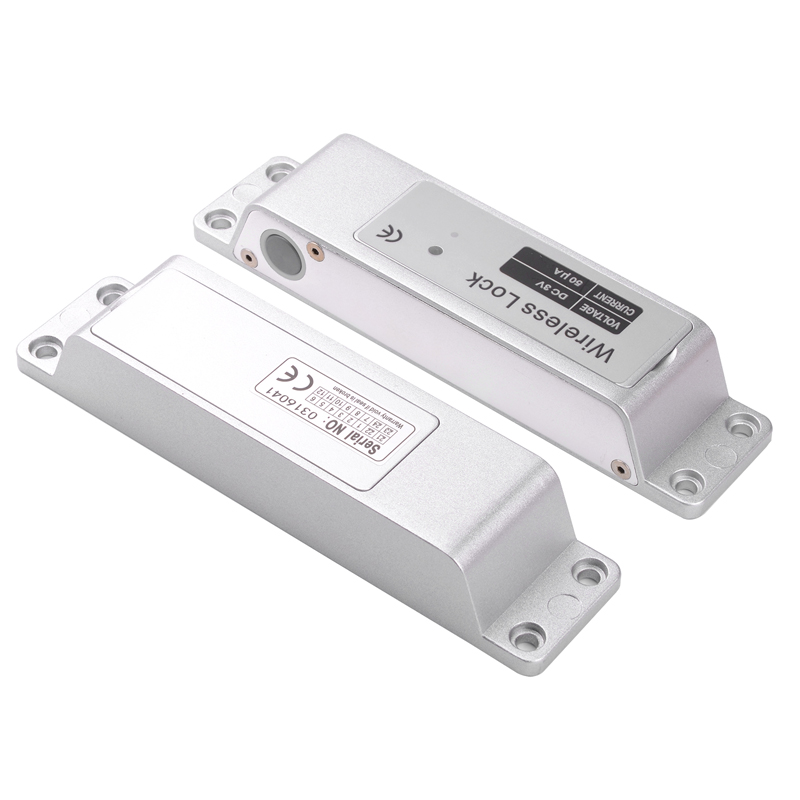

Size>Electric Bolt Lock:163x140x43.5mm >Wireless access control system:146.5x50x16mm
>Password: 200 group>Fingerprint:100 group>IC card: 200 group
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
