/WiFi Wireless Smart Switch Inching Self-Locking Relay Module,be Applied to Access Control,WiFi Garage Door Opener

New Products

WiFi Wireless Smart Switch Inching Self-Locking Relay Module,be Applied to Access Control,WiFi Garage Door Opener

> Support APP+2G+3G+4G

> Voltage: 5~24V

> 10A relay

> Installation Environment: With WiFi

> Support iOS and Android phon


  • Brand:

    S4A
  • Item NO.:

    G1
  • Specifications

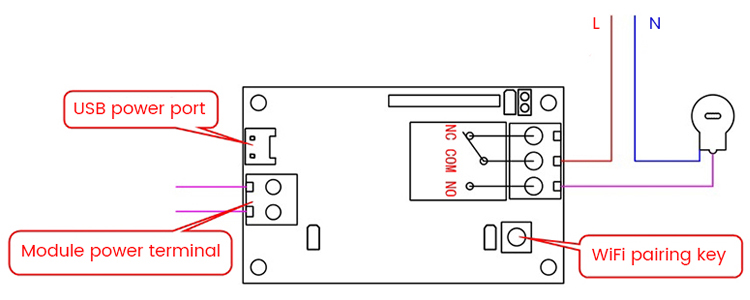

  • Wiring Diagram
  • Download

WiFi Access Control Module Support APP/2G/3G/4G to Unlock

Model No.: G1


This module is powered by DC 5V, and can be powered by a mobile phone 5V charger USB cable.

Equipped with an additional RF receiver module on the remote control circuit board. When there is no network, the remote control can directly control the switch, and the remote control distance is 20-100 meters.


> Support APP+2G+3G+4G

> Voltage: 5~24V

> 10A relay

> Installation Environment: With WiFi

> Support iOS and Android phon

Voltage

DC 5~24V

Power consumption

<1W

Quiescent Current

0.08A

Working current

0.15A

Relay

10A

Relay life

1,000,000 times or more

Electrical insulation resistance

100M

Electric shock withstand voltage

1000V

Relay maximum pull-in time

15mS

Maximum release time of relay

15mS

Operating temperature

-40℃~70℃

Working humidity

40%~80%RH

Installation Environment

With WiFi

Dimension

64x40x18mm

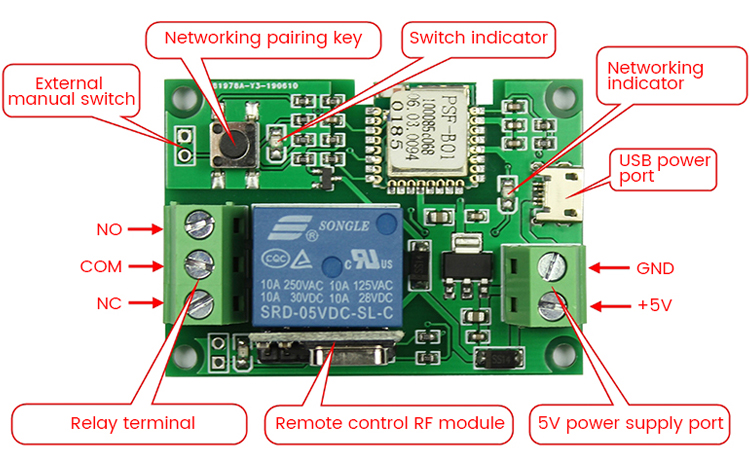

WIFI Access Control Module


WIFI Access Control Module

S4A Datesheet_WiFi Access Control Module Support APP/2G/3G/4G To Unlock
