>Card type:EM
>Operating Voltage:DC 12-24V
>Card Reading Distance:2～5cm
Brand:
S4AItem NO.:
K33WiFi Access Control System With APP Door Lock Keypad
Model No.: K33 WIFI EM
Feature
> Ultra-low power consumption: Standby current is less than 30mA
> Protocol: Wiegand26 Input/Output
> Searching time: Less than 0.1s after reading card
> Backlight keypad: Easy to operate at night
> Doorbell interface: Support external wired doorbell
> Access ways: Card, code, card + code, Mobile APP
Card type | EM |
User Capacity | 10,000 users |
Operating Voltage | DC 12-24V |
Card Reading Distance | 2～5cm |
Standby Current | ≤30mA |
Lock Output Load | ≤3A |
Alarm Output Load | ≤20A |
Door Relay Time | 0 ~ 300s |
Short-circuit Protection Output Time | ≤100μS |
Operating Temperature | -40℃～60℃ |
Operating Humidity | 10%～90% |

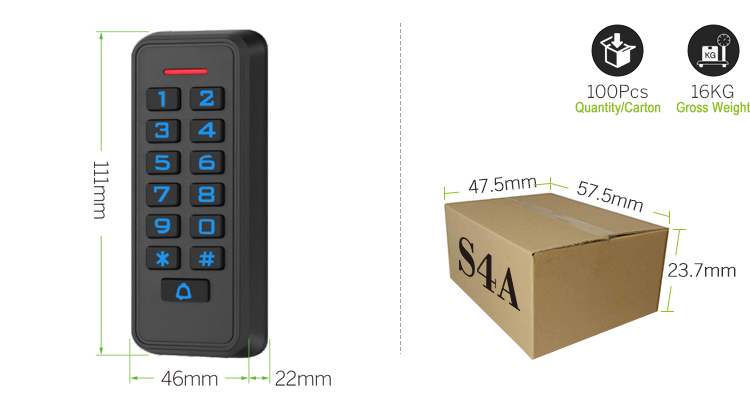

Dimensions | 111x46x22mm |
S4A Datasheet_WiFi Access Control System With APP Door Lock Keypad
