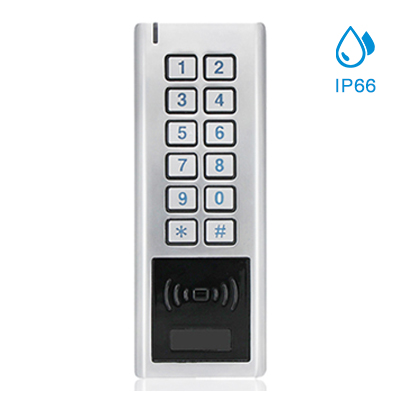

Waterproof Standalone Access Controller 125KHz reader

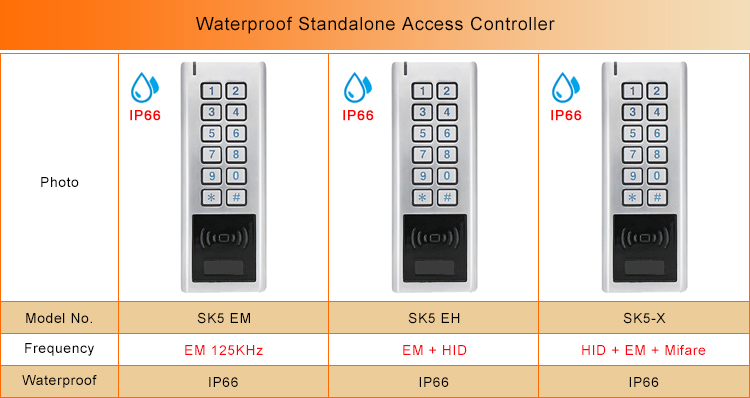

> Card type: EM and HID Card

> Metal case, anti-vandal

> Waterproof, conforms to IP66

> One relay, 1000 users

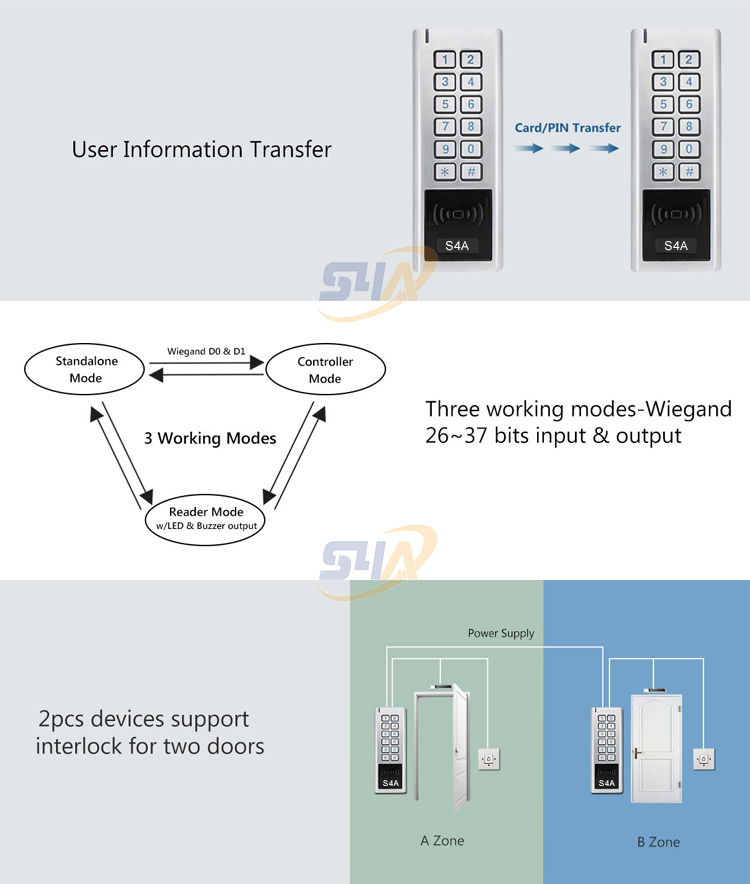

> Wiegand 26~37 bits input & output

  • Brand:

    S4A
  • Item NO.:

    SK5
  • Specifications

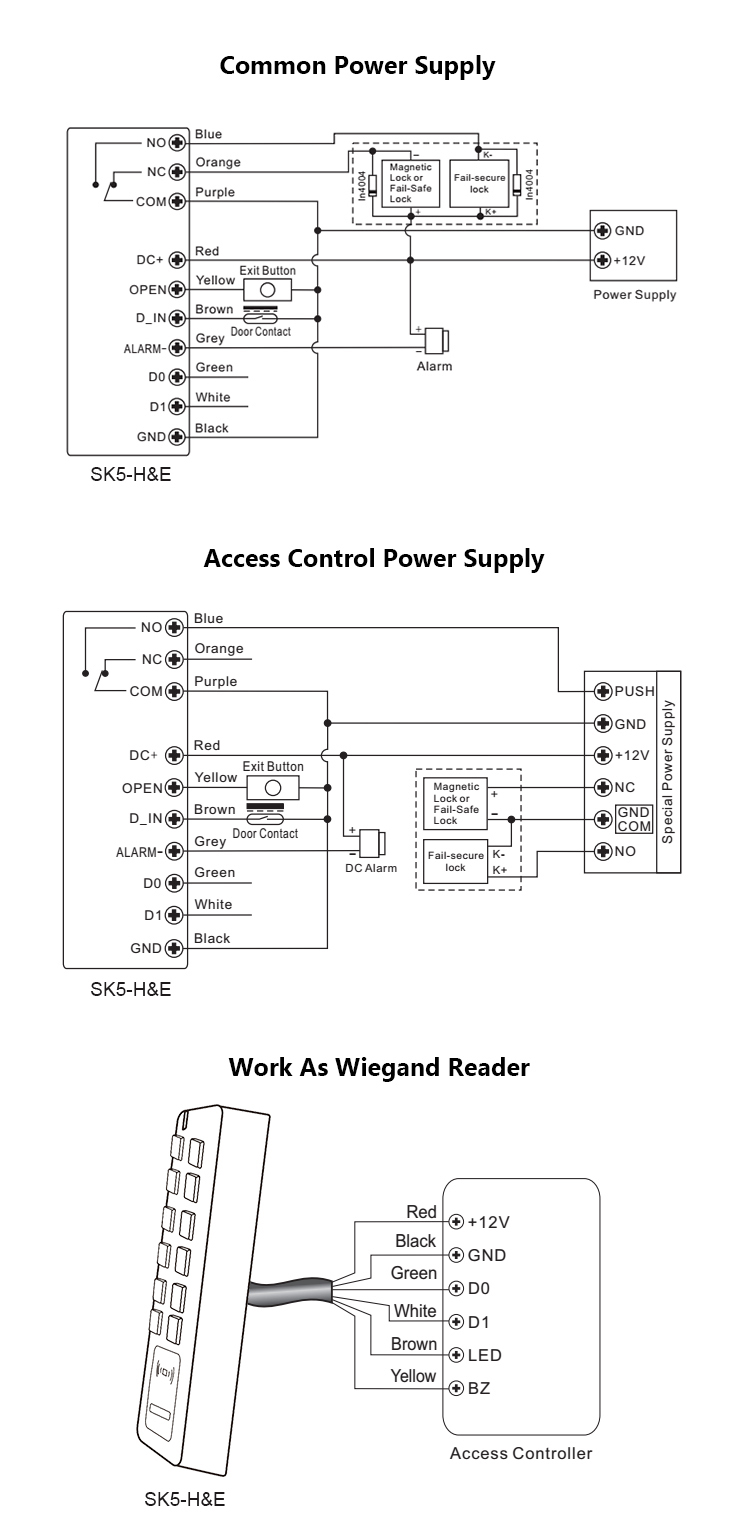

  • Wiring Diagram
  • Package

Waterproof Standalone Access Controller

Model No.: SK5 EM+HID


Waterproof Standalone Access Controller


User Capacity

1000

Common User

998

Panic User

2

Operating Voltage

9~18V DC

Idle Current

< 35mA

Proximity Card Reader

Hid & EM

Radio Technology

125KHz Proximity Card

Read Range

2~6 cm

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Wiegand Interface

Wiegand 26~37bits

Wiegand Input

26~37bits

Wiegand Output

26~37bits

PIN Output

4 bits, 8 bits(ASCII), 10 digits Virtual Number

Environment

Meets IP66

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Operating Humidity

0%RH ~ 98%RH

Physical

Zinc Alloy

Colour

Silver

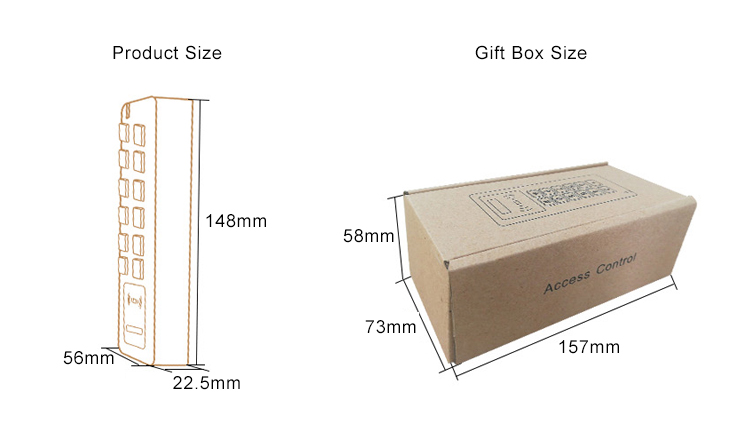

Dimensions

148L x 56W x 22.5H (mm)

Unit Weight

285g

Shipping Weight

350g


Waterproof Standalone Access Controller

Waterproof Standalone Access Controller

Waterproof Standalone Access Controller
