> 1000 face users, 3000 card users (including 10 administrators)
> Card type: EM Card or Mifare Card (Optional)
> Multiple Access: face or card, card + face, face only or card only
Brand:
S4AItem NO.:

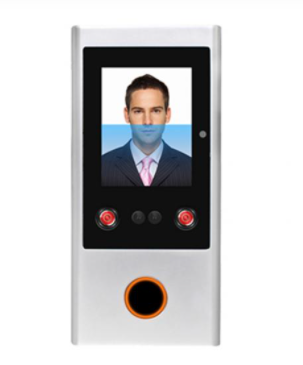

V1Metal Facial And RFID Card Access Control
Model No: V1
Its user capacity is 3000, can support a maximum of 1000 face users, and 3000 card users (including 10 administrators)
Feature
> Metal housing, anti-vandal
> Standalone with offline Time Attendance
> 1000 face users, 3000 card users (including 10 administrators)
> Card type: EM Card or Mifare Card (Optional)
> Multiple Access: face or card, card + face, face only or card only
> With Wiegand 26 or 34 bits input & output
> With 200000 log capacity
Product Parameter | Parameter Description |
S4A Model | V1 |
Product Name | Metal Facial Recognition Access Control |
User Capacity | 3,000 |
Face | 1,000 |
Card | 3,000 |
Log Capacity | 200,000 |
Operating Voltage | 12V DC |
Idle Current | ≤140mA |
Active Current | ≤230mA |
Display | 2.4 TFT Color Screen LCD |
Camera | Dual HD cameras |
Infrared Light | Dual IR |
Identification Speed | ＜0.6s |
Identification Way | Face / Card, Card + Face, Face, Card |
Face FAR | ＜0.001% |
Face FRR | ＜1% |
Proximity Card Reader | EM or Mifare |
Radio Technology | 125KHz 13.56MHz |
Read Range | 25px |

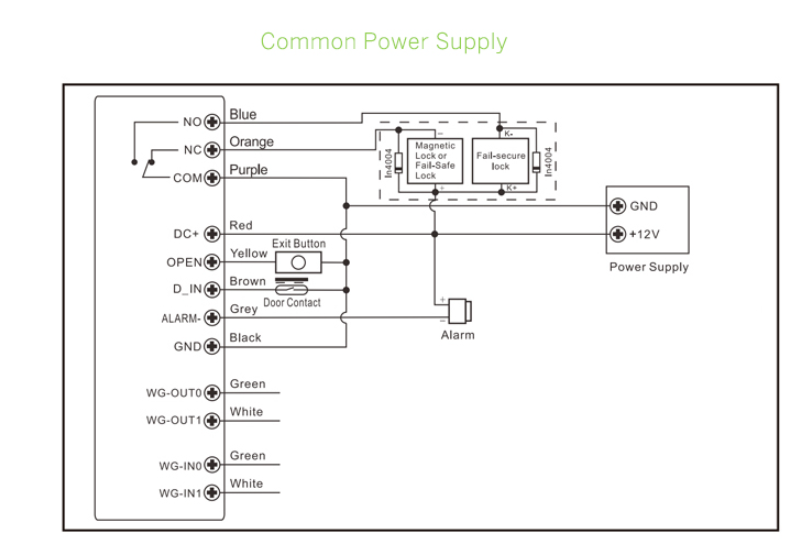

Wiring Connections | Relay Output, Exit Button, DOTL, Alarm, Wiegand Input, Wiegand Output |
Wiegand Interface | Wiegand 26 or 34 bits Input & Output (default: 26bits) |
Environment | Indoor |
Operating Temperature | -20°C ~50°C ( -4°F~122°F) |
Operating Humidity | 20%RH-80%RH |
Physical | Zinc-Ally Enclosure |
Surface Finish | Power Coat |

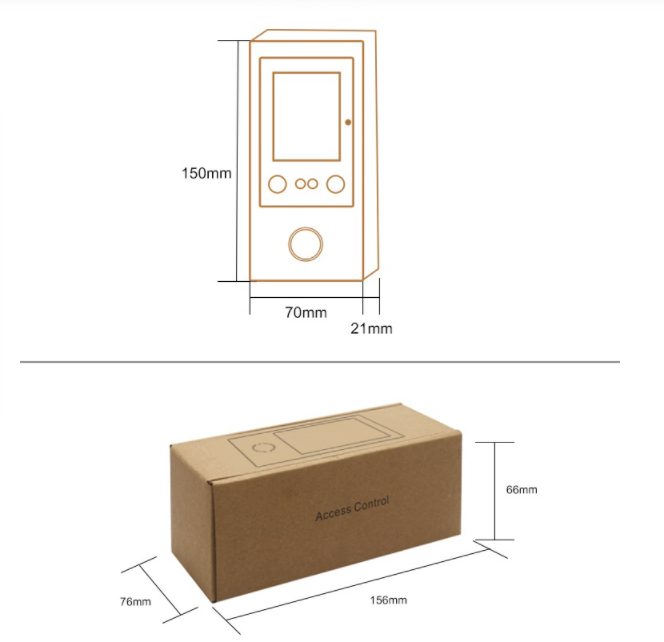

Dimensions | L145 × W68 × D25 (mm) |
Unit Weight | 450g |
Shipping Weight | 550g |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
