> 1000 face users, 3000 card users (including 10 administrators)
> Card type:EM Card or Mifare Card (Optional)
> Multiple Access: face or card, card + face, face only or card only
Brand:
S4AItem NO.:

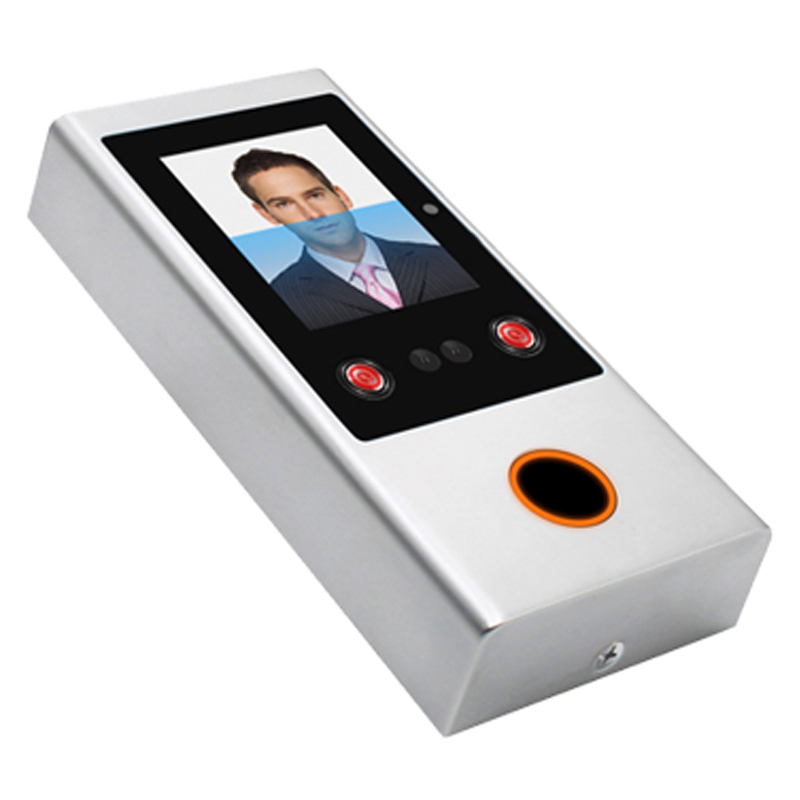

V1Metal Facial And RFID Card Access Control
Model No: V1
Its user capacity is 3000, can support maximum 1000 face users, 3000 card users (including 10 administrators)
Feature
> Metal housing, anti-vandal
> Standalone with offline Time Attendance
> 1000 face users, 3000 card users (including 10 administrators)
> Card type: EM Card or Mifare Card (Optional)
> Multiple Access: face or card, card + face, face only or card only
> With Wiegand 26 or 34 bits input & output
> With 200000 log capacity
| Product Parameter | Parameter Description |
| S4A Model | V1 |
| Product Name | Metal Facial Recognition Access Control |
| User Capacity | 3,000 |
| Face | 1,000 |
| Card | 3,000 |
| Log Capacity | 200,000 |
| Operating Voltage | 12V DC |
| Idle Current | ≤140mA |
| Active Current | ≤230mA |
| Display | 2.4 TFT Color Screen LCD |
| Camera | Dual HD cameras |
| Infrared Light | Dual IR |
| Identification Speed | ＜0.6s |
| Identification Way | Face / Card, Card + Face, Face, Card |
| Face FAR | ＜0.001% |
| Face FRR | ＜1% |
| Proximity Card Reader | EM or Mifare |
| Radio Technology | 125KHz 13.56MHz |
| Read Range | 25px |

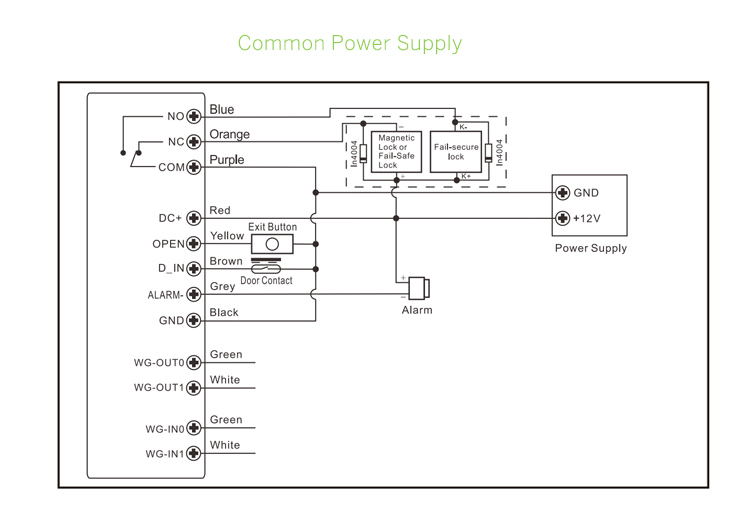

| Wiring Connections | Relay Output, Exit Button, DOTL, Alarm, Wiegand Input, Wiegand Output |
| Wiegand Interface | Wiegand 26 or 34 bits Input & Output (default: 26bits) |
| Environment | Indoor |
| Operating Temperature | -20°C ~50°C ( -4°F~122°F) |
| Operating Humidity | 20%RH-80%RH |
| Physical | Zinc-Ally Enclosure |
| Surface Finish | Power Coat |

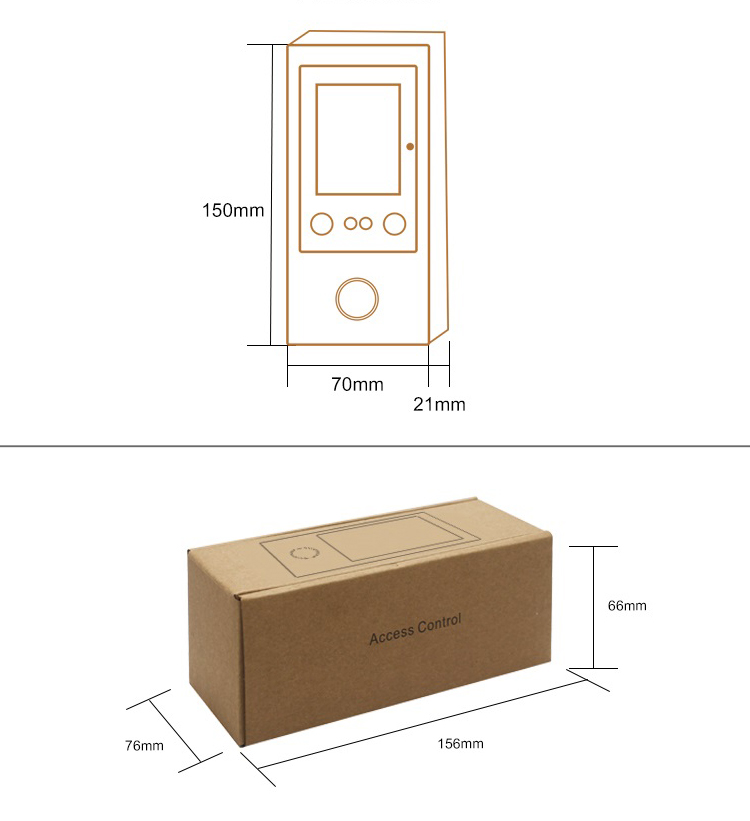

| Dimensions | L145 × W68 × D25 (mm) |
| Unit Weight | 450g |
| Shipping Weight | 550g |
S4A Datesheet_V1 Metal Facial And RFID Card Access Control
