> Waterproof, IP65
> Free demo and SDK
> Stable reading distance: 1~5m
> Frequency: 902~928MHz or customize other frequency
Brand:
S4AItem NO.:

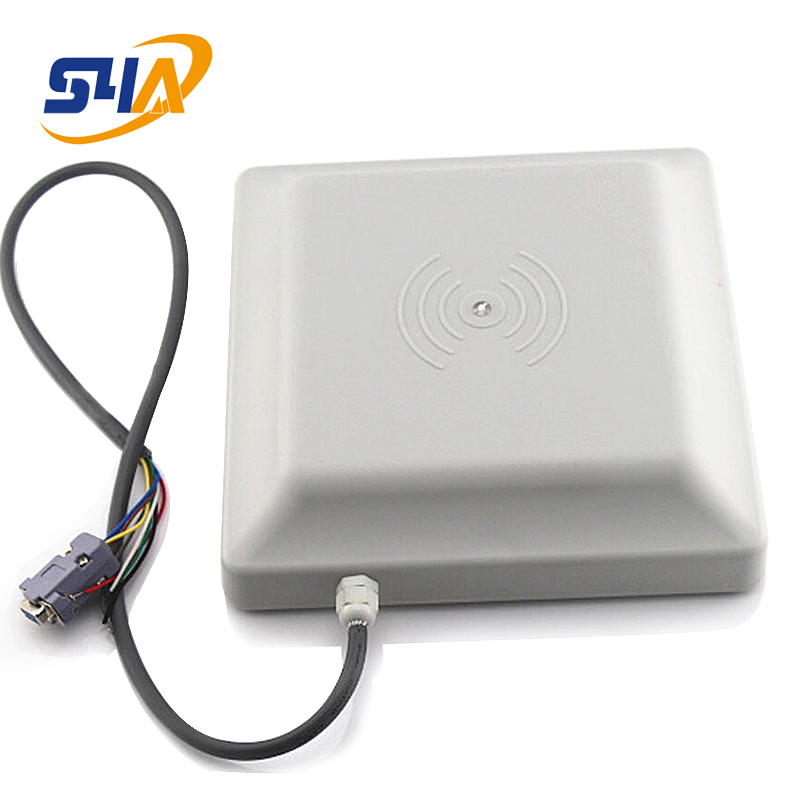

UHF-105UHF RFID Reader 1-5m Long Range Outdoor IP67 8dbi Antenna RS232/RS485/Wiegand Output Uhf Rfid Reader
Model No.: UHF-105
Introduction
The UHF RFID reader has many advantages: protocol support, fast reading, label identification, circular polarization antenna, and compact design. This reader is widely used in all kinds of RFID systems.
Application:
Logistics and Warehouse management;

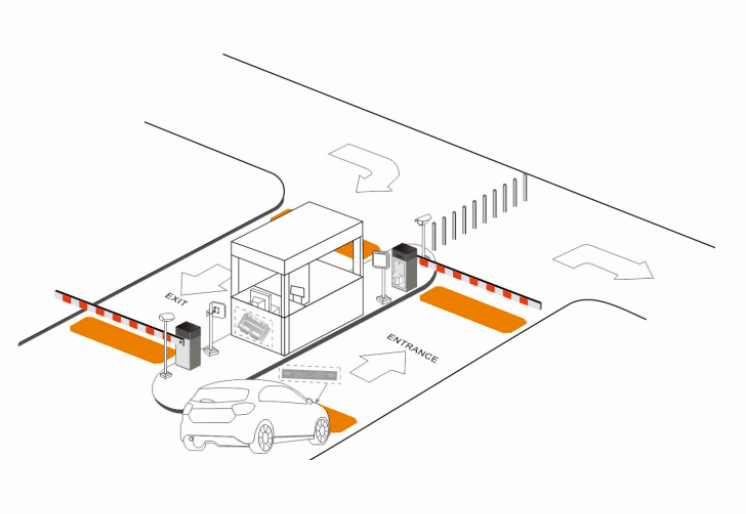

Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other fields: club management, library, student school rolls, attendance management and swimming pool system， etc.
Specification
Working Frequency | National standard (920~925MHz), America standard (902~928MHz), or customize other frequency |
Support Protocol | ISO18000-6B, ISO18000-6C(EPC GEN2) |
Frequency Hopping | FHSS or fixed frequency set by software |
Working Way | automatically reading card at a regular time, can set reading card way |
Frequency Power | 0~30dBi, be adjusted by software |
Reading Distance | 1-5M |
Reading Sensitivity | dual-polarization reading |
Reading Speed | one label 64-bit ID number < 6ms |
Antenna | build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna, gain 12dBi |
Interface | RS485, RS232, Wiegand26, Wiegand34, RJ45 |
Working Voltage | DC12V |
Working Status Indication | buzzer |
Power | 1W |
Working Temperature | -20℃ ～ 80℃ |
Storage Temperature | -40℃ ～ 125℃ |
Working Humidity | 20％ ~ 95％ (no condensing) |

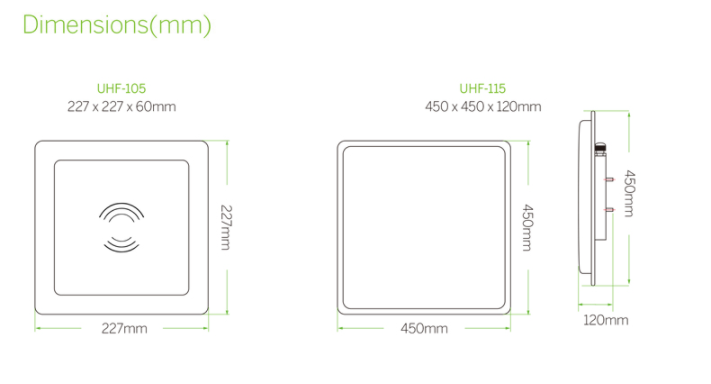

Dimension | 227 × 227 × 60mm |

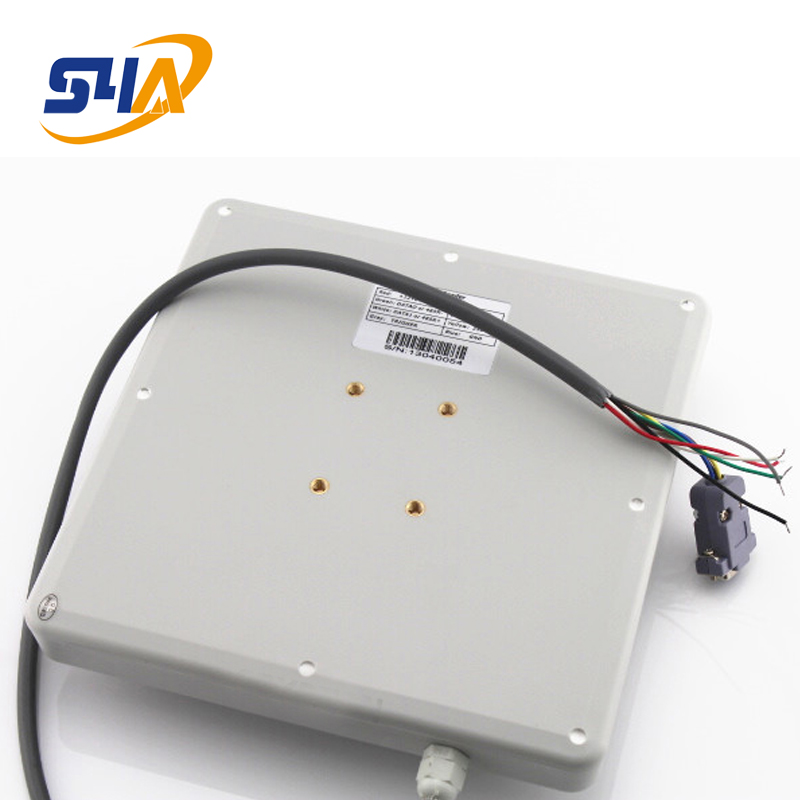

Signal Definition:
Name | Cable Color | Function |
DC+12V | Red | +9V～15V positive |
GND | black | Negative |
TXD | brown | RS232 signal output (PIN2) |
RDX | Yellow | RS232 signal input (PIN3) |
GND | Blue | RS232 grounding (PIN5) |
Trigger | Gray | Trig pin |
DATA0/485A＋ | Green | Wiegand data 0 or 485 interface positive port |
DATA1/485B－ | White | Wiegand data 1 or 485 interface negative port |
UHF RFID Reader 6m Long Range Outdoor RS232/RS485/Wiegand Output UHF Integrated Reader | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
UHF-105 | 10PCS | 13KGS | 38X50X42 |
S4A HUF-105 Use Manual_Uhf Rfid Reader 1-5m Long Range Outdoor Ip67 8dbi Antenna Rs232/rs485/wiegand Output Uhf Rfid Reader
