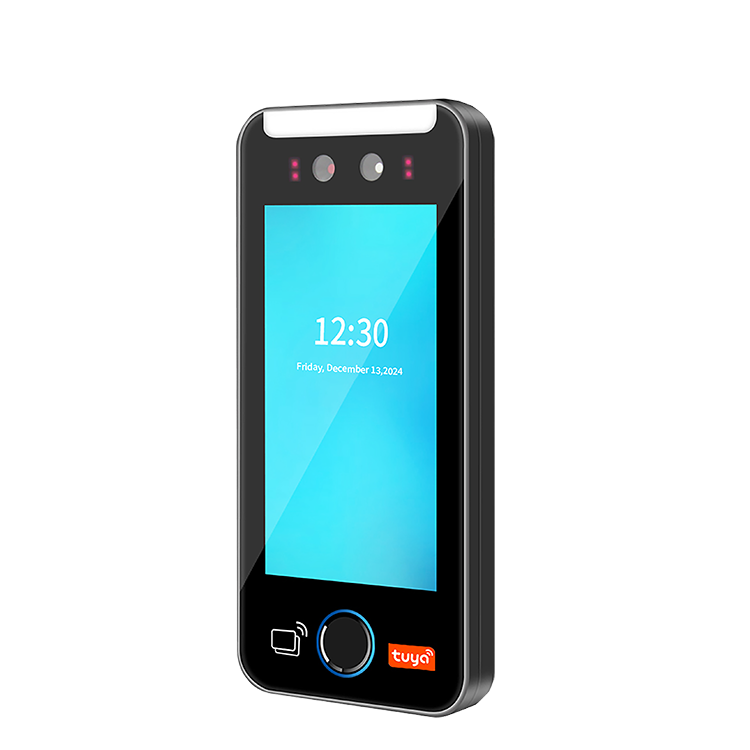

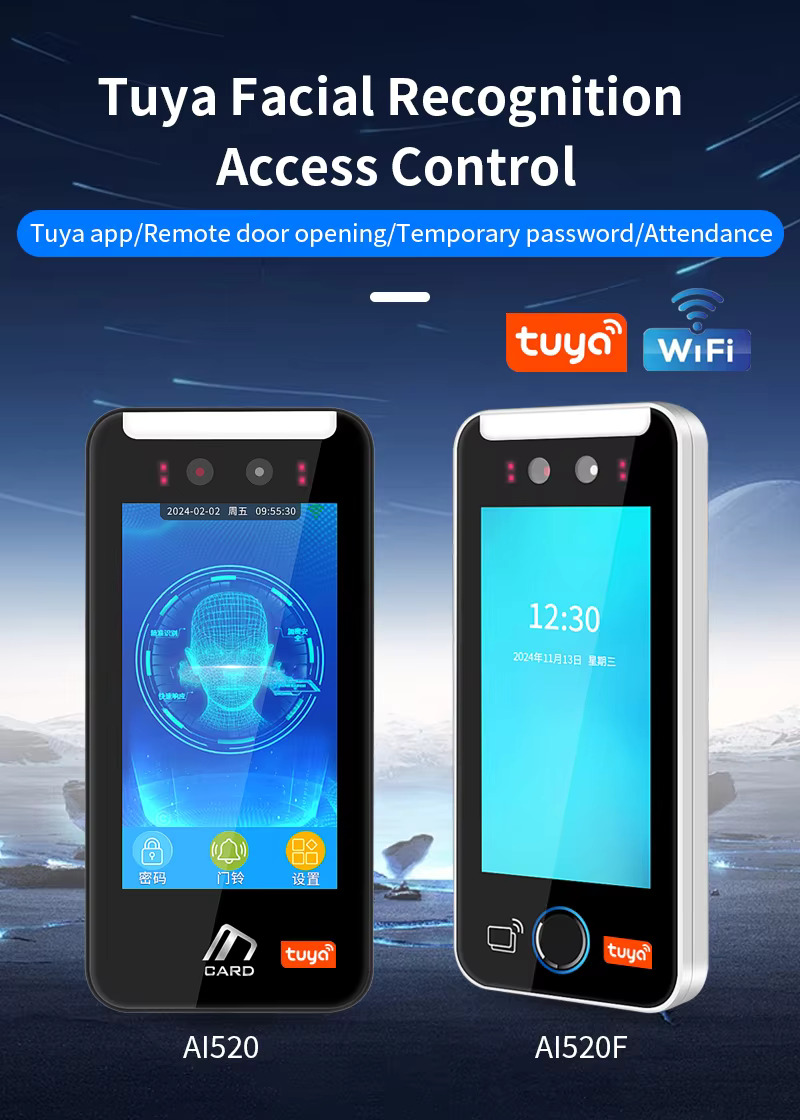

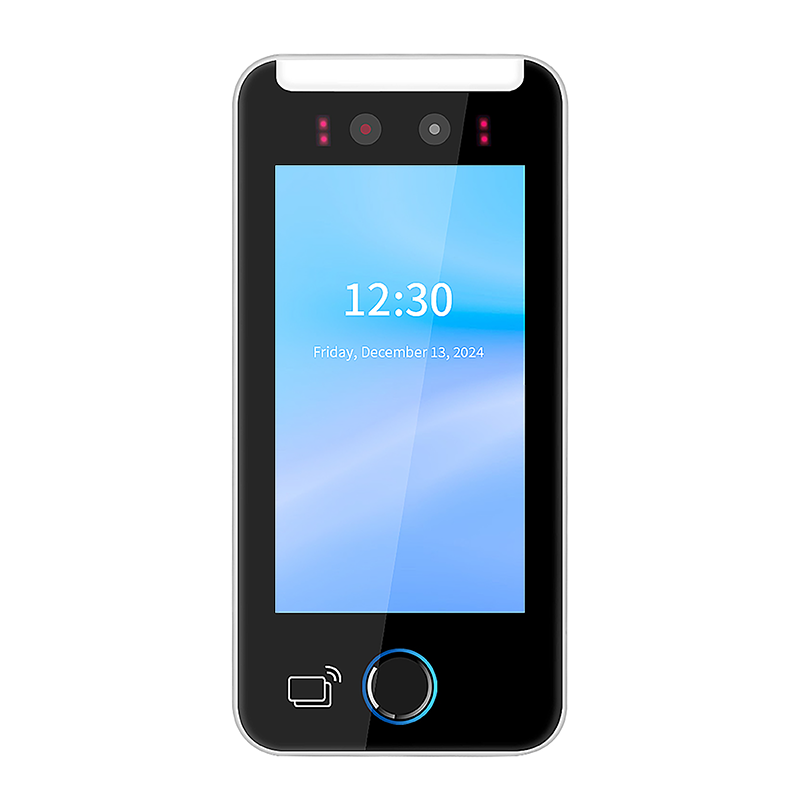

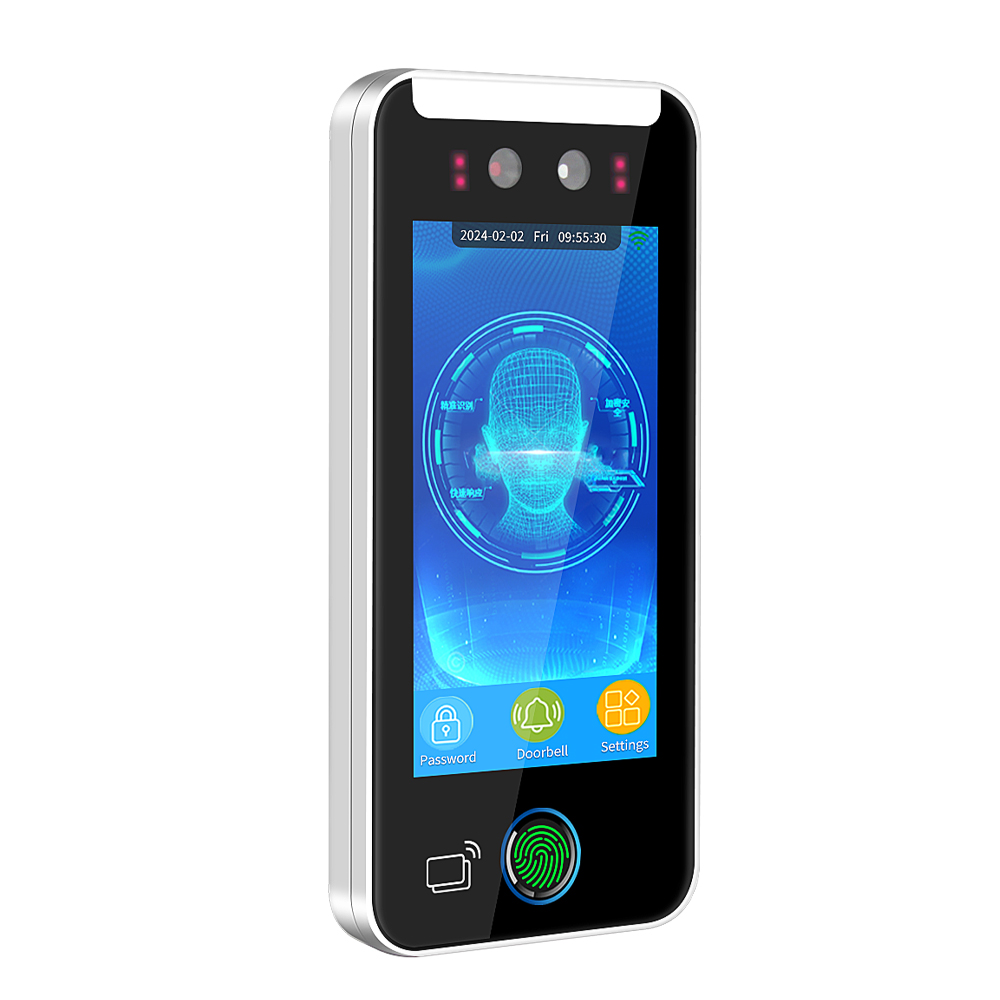

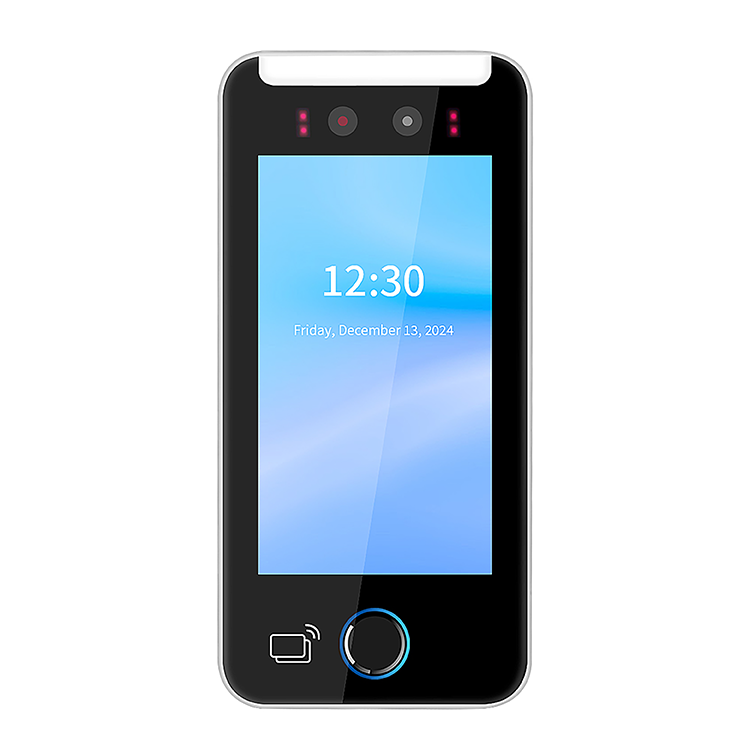

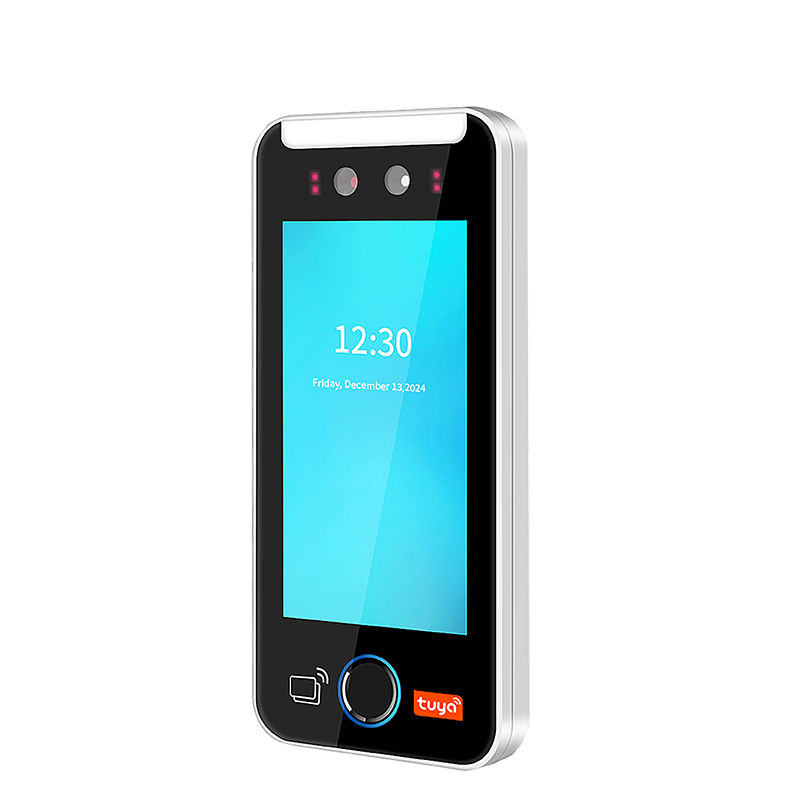

Tuya Wifi Fingerprint Attendance Face Recognition Access Control Time 5inch

Display screen: 5-inch IPS 480*854

CPU: ARM Cortex-A7 800M

User capacity: 5000

Facial database:5000

  • Brand:

    S4A
  • Item NO.:

    AI520F
  • Order(MOQ):

    1
  • Market Price:

    $50.5
  • Price:

    $50.5
  • Specifications

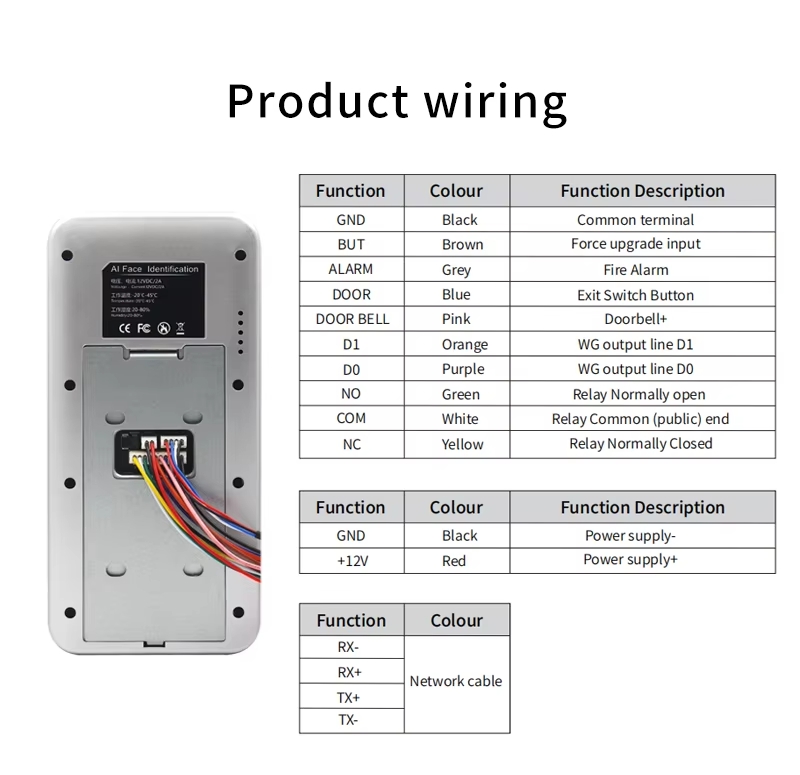

  • Wiring Diagram

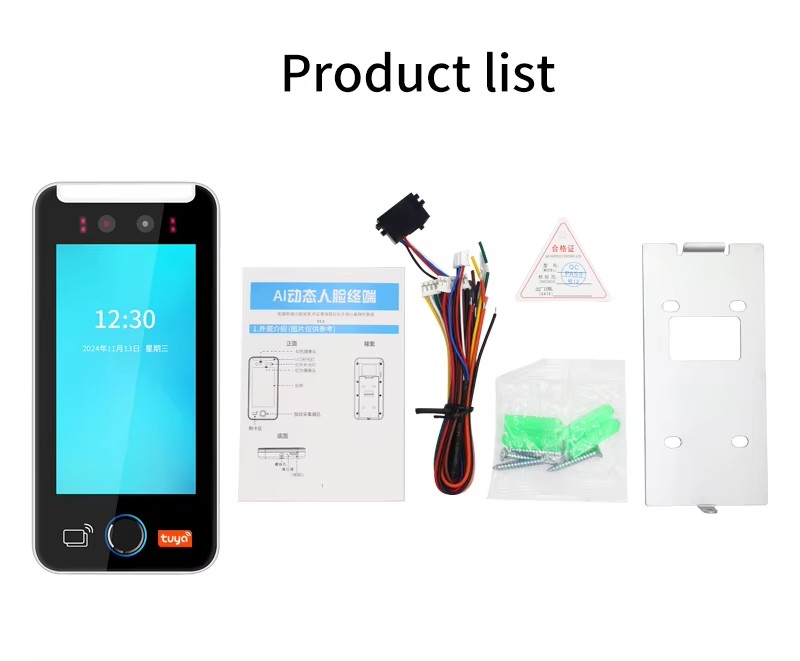

  • Package
Tuya Wifi Fingerprint Attendance Face Recognition Access Control Time 5inch



Product Parameter Parameter Descr1ption
S4A Model Ai520F
Product Name Dynamic Facial Recognition Terminal
Operating system LINUX Intelligent OperatingSystem
Display screen 5-inch IPs 480*854
CPU ARM Cortex-A7 800M
User capacity 5000
Facial database 5000
Card capacity 5000 cards (default ID card)
Fingerprint capacity 200,880,1760 optional(Fingerprint version only)
Code capacity 5000
User records 100000
Camera Binocular 2 million pixels
Recognition distance 0.5-2 meters
Rejection rate <= 0.1%
Misidentification rate <=0.001%
Power supply DC 12V/2A
Communication methods TCP、USB、WIF1、4G(0ptional)
Language display English
Access control interface One set of switch signals, one set of Wiegand
Verification method Face, card, password, temporary password, visitor QR code, defingerprint (optional), card+Facial, and other combinations for verification
Working temperature -20°C~60°C

What are the advantages of Tuya wifi face recognition machine?

Tuya wifi face recognition machine has the advantages of accurate and fast recognition, rich and diverse functions, and convenient installation and use, as follows:

1. High recognition accuracy: using advanced face recognition algorithm, face verification accuracy > 99%, false recognition rate < 0.1%, can accurately distinguish the identities of different people, and effectively prevent misidentification and misjudgment.

2.Fast recognition speed: face comparison speed ≤ 0.2s / person, can quickly complete the face recognition process, without users waiting for a long time, improve traffic efficiency.

3.Support multiple recognition functions: in addition to basic face recognition, it also supports mask recognition, name recognition, work number recognition, etc., which can adapt to different scene requirements, such as normal recognition during the epidemic.

4.Possessing liveness detection function: can completely solve various photo deception problems, can effectively prevent others from using photos, videos and other means to forge faces for illegal passage, and enhance security.

5. Flexible communication mode: supports 4G, wifi, wired and other transmission modes, can choose the appropriate transmission mode according to the actual installation environment and needs, not limited by network wiring, convenient installation and deployment.

6. Convenient video intercom: Usually equipped with a high-definition screen, such as an 8-inch high-definition IPS full-viewing angle display, etc., which can realize the video intercom function.

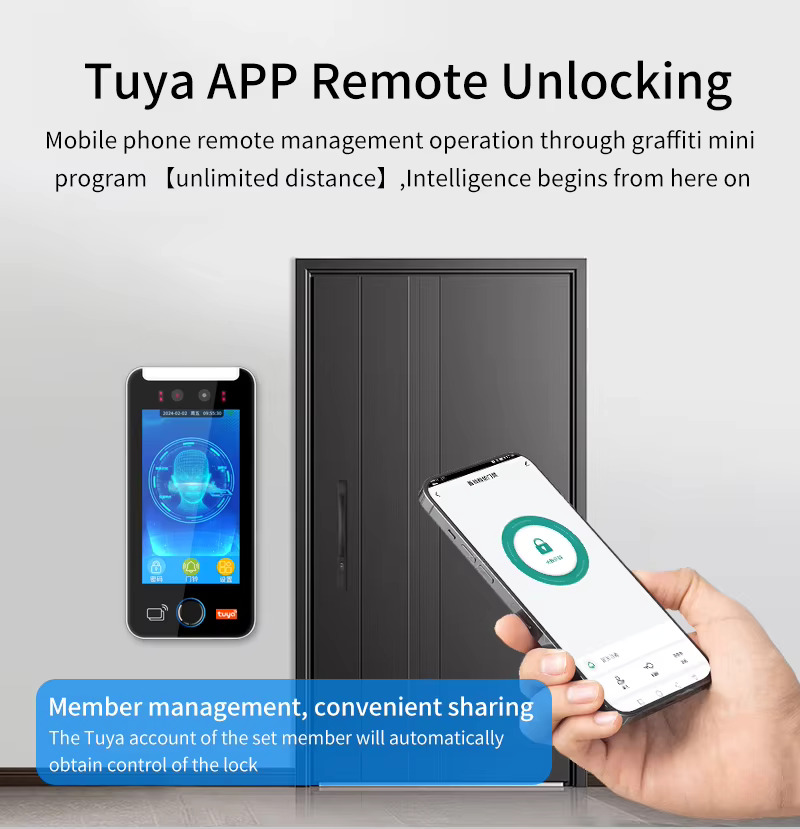

Visitors can make a video call with the user's mobile phone APP by pressing the call button, and the owner can unlock the door remotely, which is convenient for communication and access control.
