> Card type: EM Card or Mifare Card
> iOS and Android available

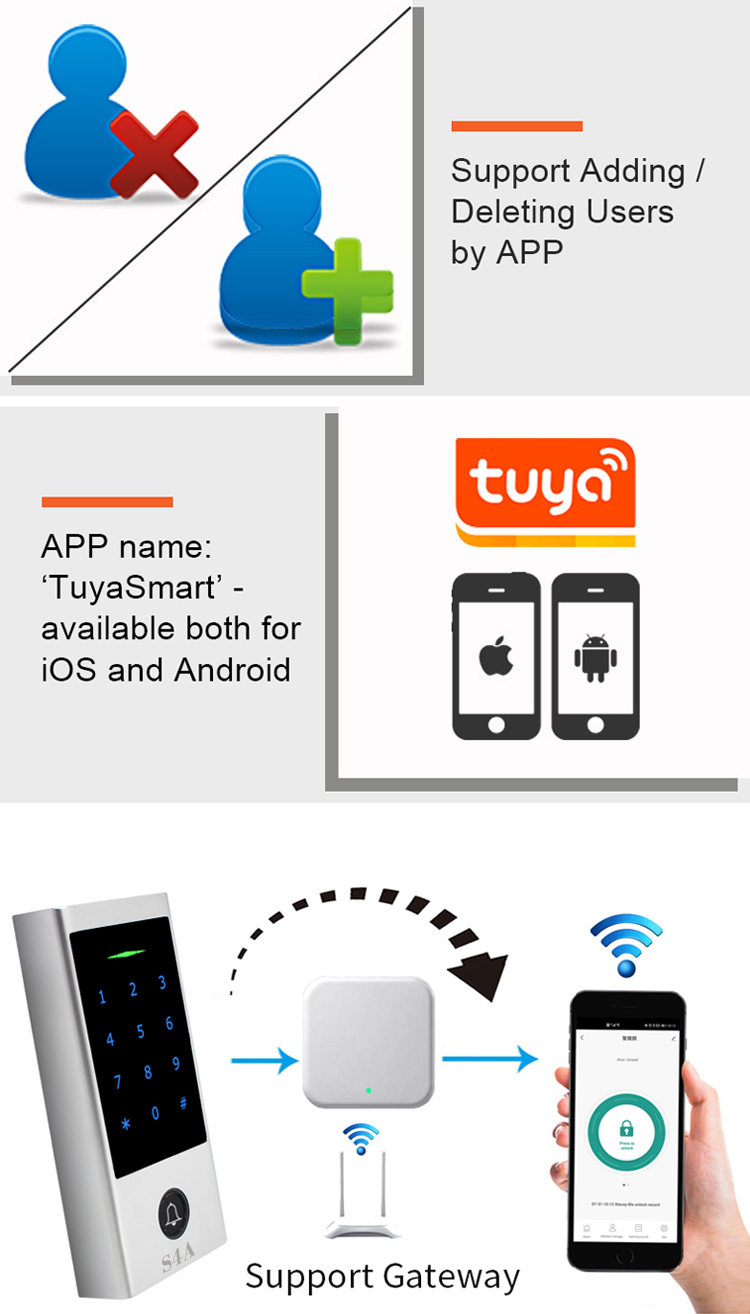

> Add / Delete users by APP
> Waterproof, conforms to IP66
Brand:
S4AItem NO.:

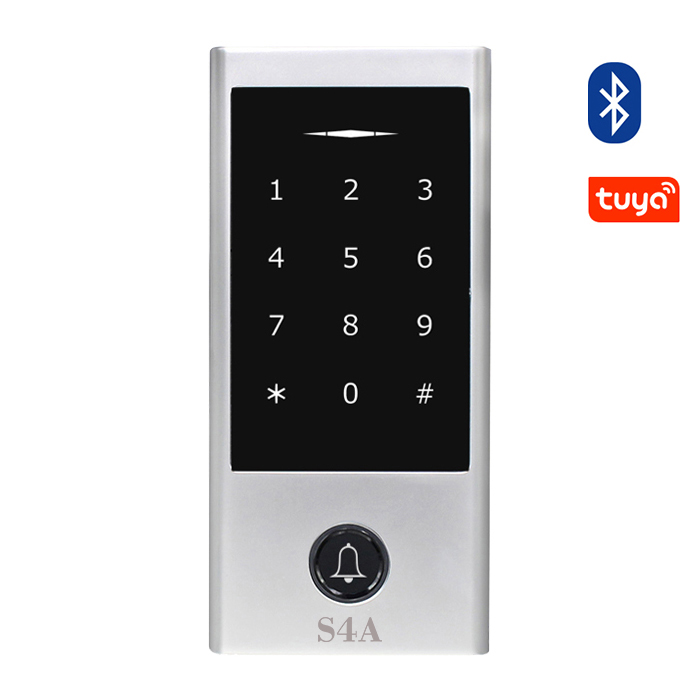

H1-BTTuya Bluetooth Door Access Control System Standalone Access Controller
Model No.: H1-BT EM, MF

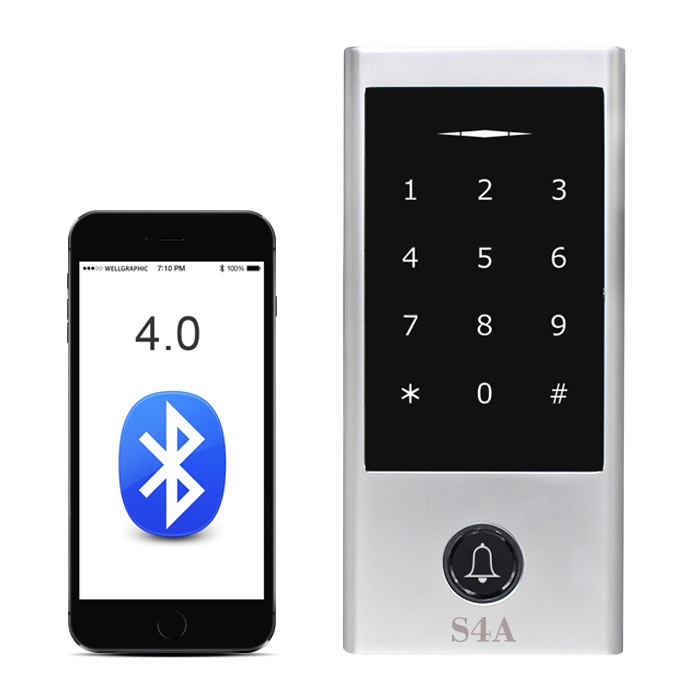

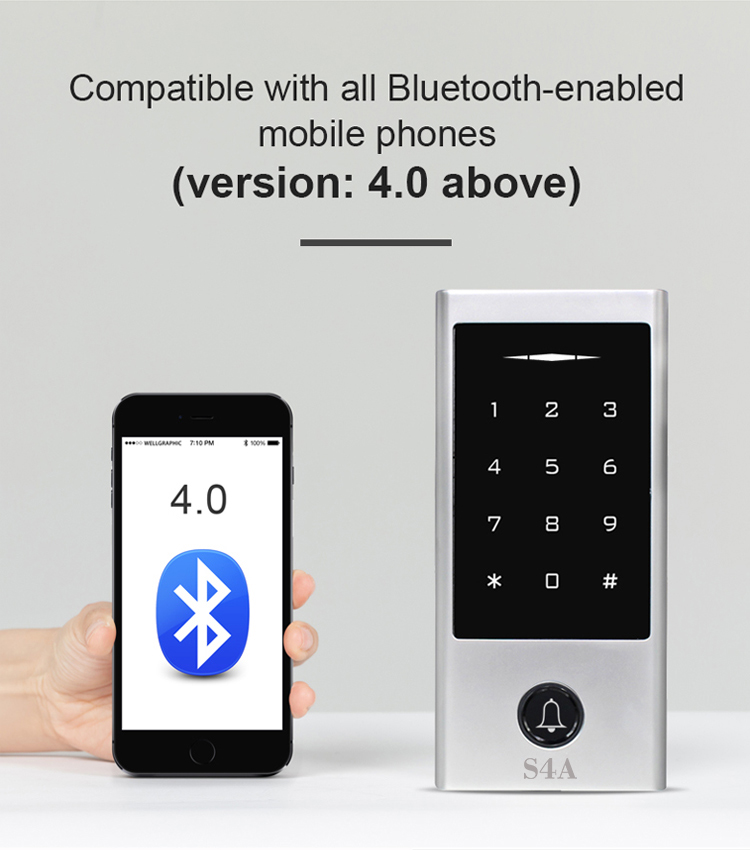

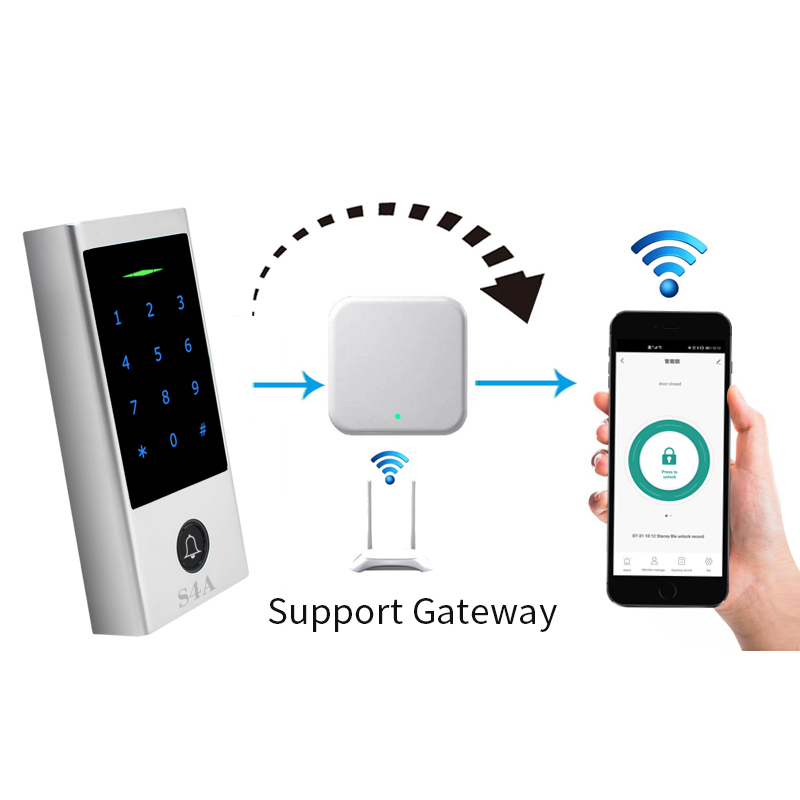

Bluetooth transmission can realize long-distance reading of the device at a distance of 10 meters, which means that the owner only needs to sense the device within the range to automatically authorize the door opening system, which is smart and fast.
User Capacity | Hardware User: 1000, APP User: 100 (including 255 card/PIN users) |
Common User | 988 |
Visitor User | 10 |
Panic User | 2 |
PIN Length | 4~6 digits |
Operating Voltage | 12~18V DC |
Idle Current | ≤ 60mA |
Active Current | ≤ 150mA |
Proximity Card Reader | EM or Mifare |
Radio Technlogy | 125KHz/13.56MHz |
Read Range | 2~6cm |
Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Wiegand Interface | EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) |
Mifare card version: Wiegand 26~44 bits, 56bits, 58bits input & output (Factory default: Wiegand 34bits) | |
PIN Output | 4 bits, 8bits (ASCII), 10 digits Virtual Number(Factory default: 4bits) |
Environment | Meets IP66 |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Operating Humidity | 0%RH ~ 98%RH |
Physical | Zinc-Alloy |
Color | Sliver & Black |

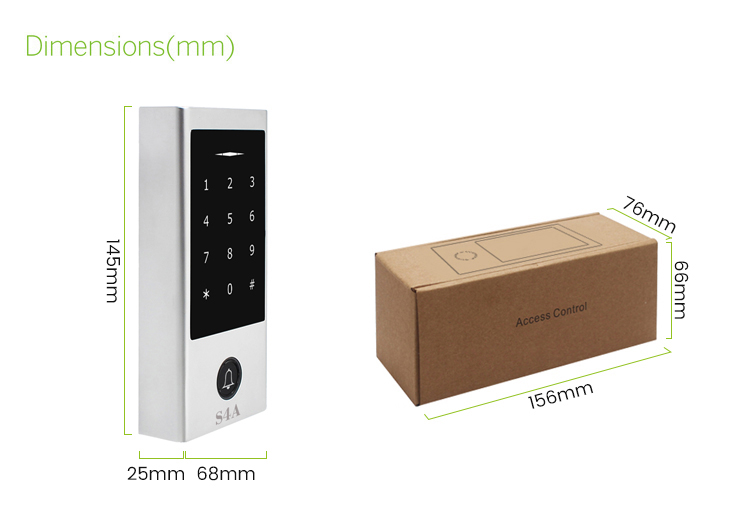

Dimensions | L145 x W68 x H25 (mm) |
Unit Weight | 500g |
Shipping Weight | 615g |
S4A Datasheet_Tuya Bluetooth Door Access Control System Standalone Access Controller
