>Operating Voltage: DC 12V±10%
>User Capacity:2000
>Card Reading Distance:3-6 cm
Brand:
S4AItem NO.:

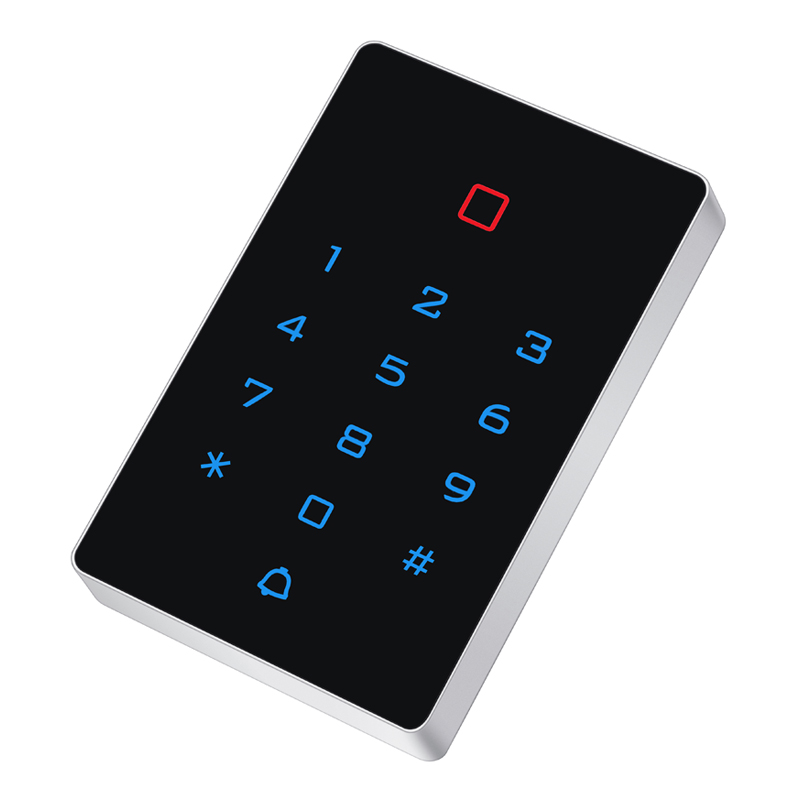

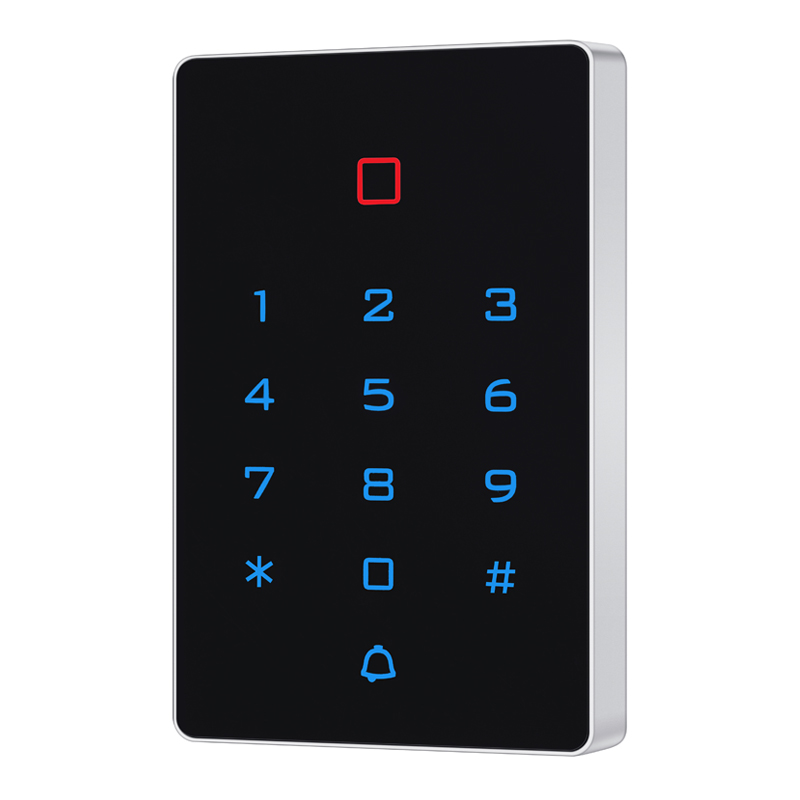

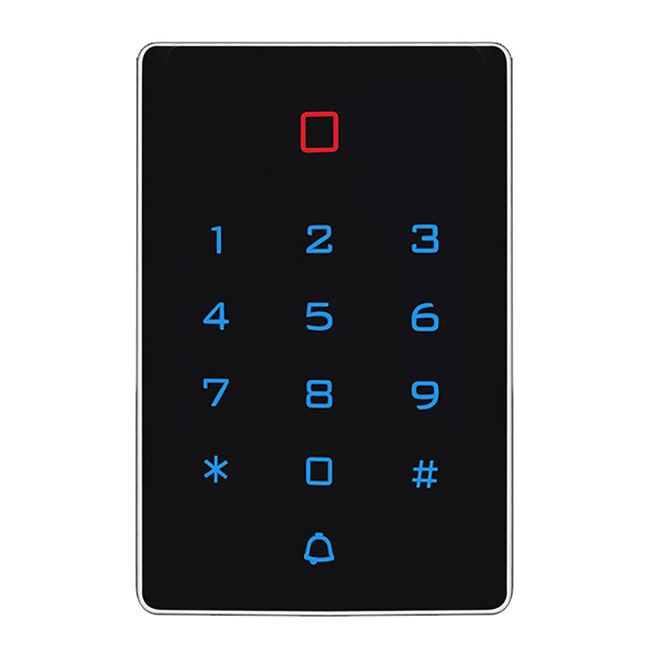

T12Touch Screen Standalone RFID Card Reader And Keypad Access Control
Model No.: T12 EM
The unit is a single door multifunction touch standalone access controller or a Wiegand output keypad or card reader. It is a plastic touch keypad access control. The inbuilt card reader supports 125KHZ EM cards. This unit has the inbuilt upscale microprocessor which makes the unit very jam-proof, safe, and reliable. It is suitable for mounting either indoor or outdoor. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The unit has many extra features including lock output current short circuit protection, Wiegand output, and a backlit keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks, and prisons.
> Touch keypad, numbers backlight
> 2000 uses, supports Card, PIN, Card + PIN
> Can be used as a standalone keypad for PIN users
> Adjustable Door Output time, Alarm time, Door Open time
> Lock output current short circuit protection
> Built-in a light-dependent resistor (LDR) for anti-tamper
> Built-in buzzer
> Red, Orange and Green LEDs display the working status
Operating Voltage | DC 12V±10% |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Adjustable Door Relay time | 0 - 99 seconds |
Adjustable Alarm Time | 0 - 3 minutes |
Wiegand Interface | Wiegand 26 bit |

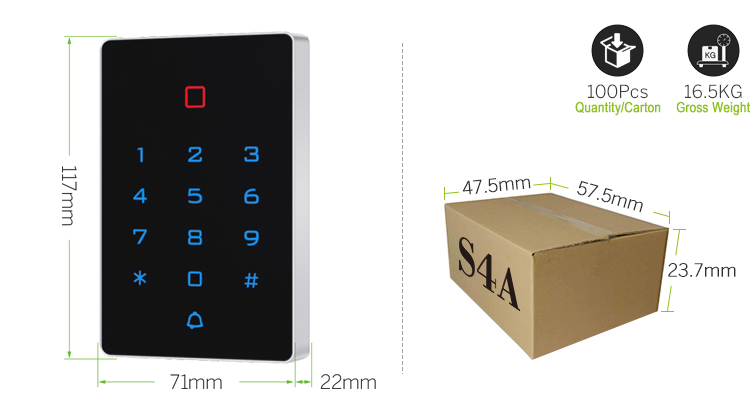

Size | 117*71*22MM |

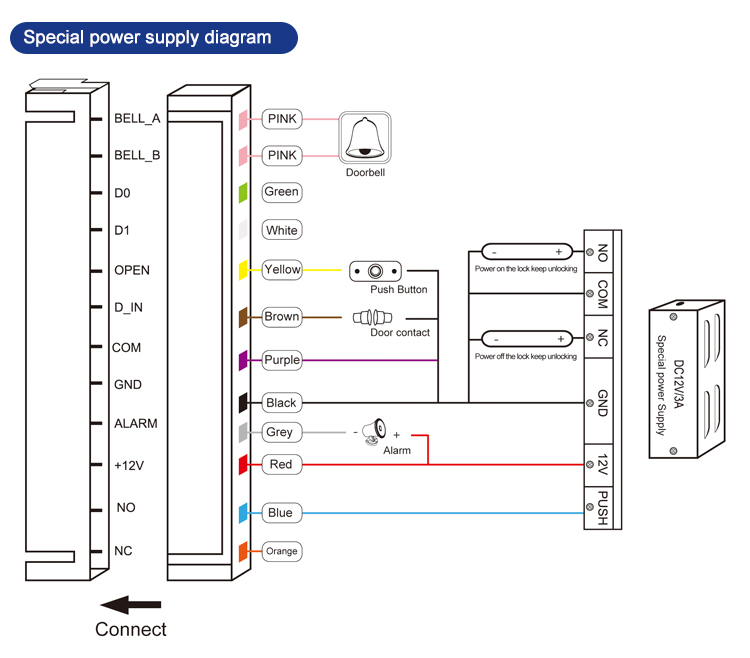

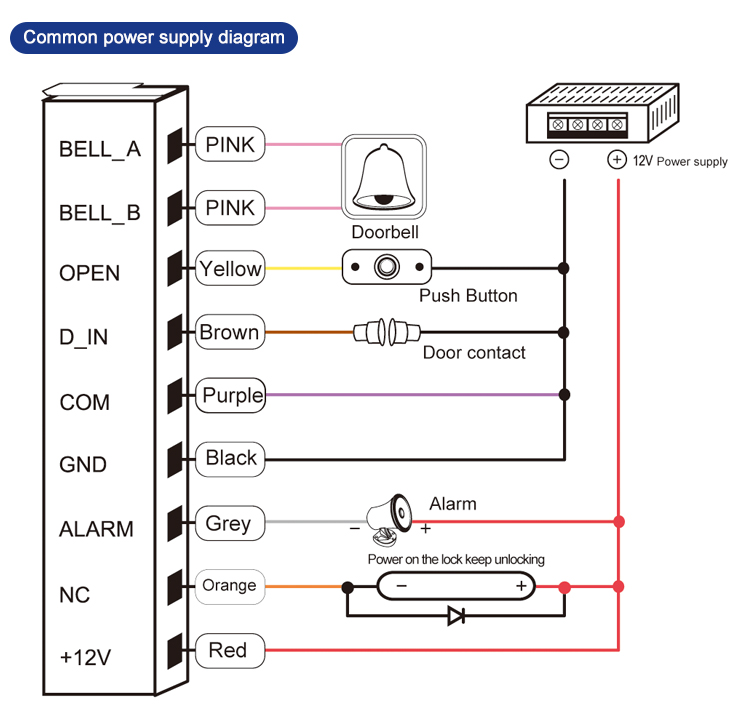

Wiring Connections | Electric Lock, Exit Button, External Alarm, External reader |
S4A Datasheet_Touch Screen Standalone RFID Card Reader And Keypad Access Control
