S4A Automatic Flat door systems with Pull arm or Push arm, support 110V or 220V with a brushed motor
> Power supply: 110V or 220V
> Opening time: 3~7s / 90°
> Opening and holding time: 1-30s
> Protection level: IP12D
Brand:
S4AItem NO.:

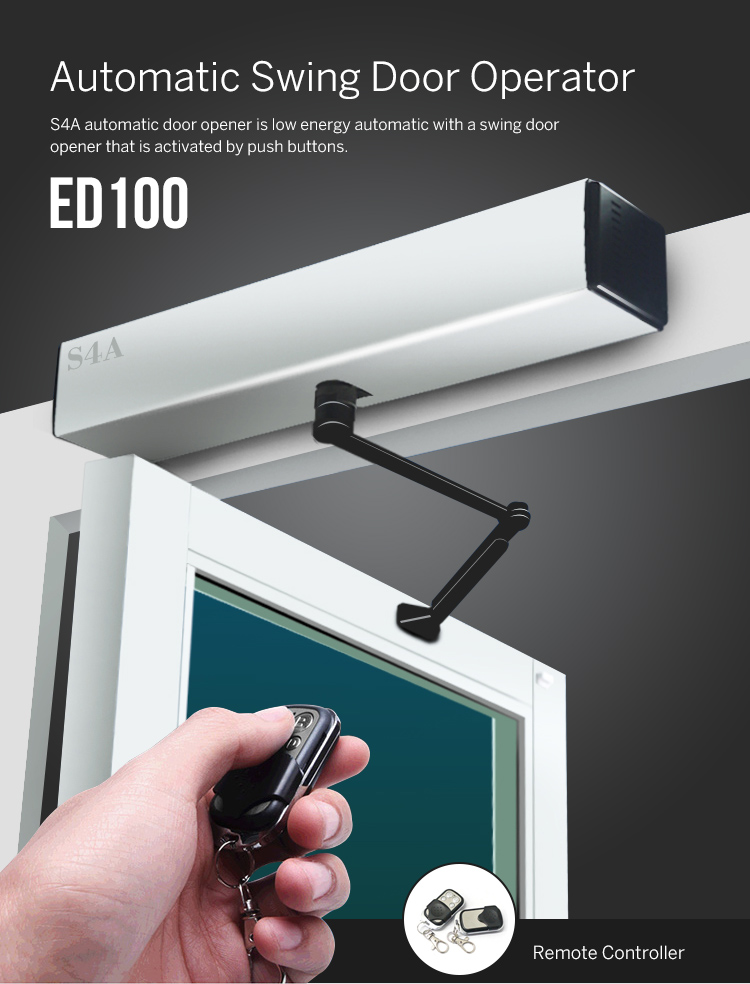

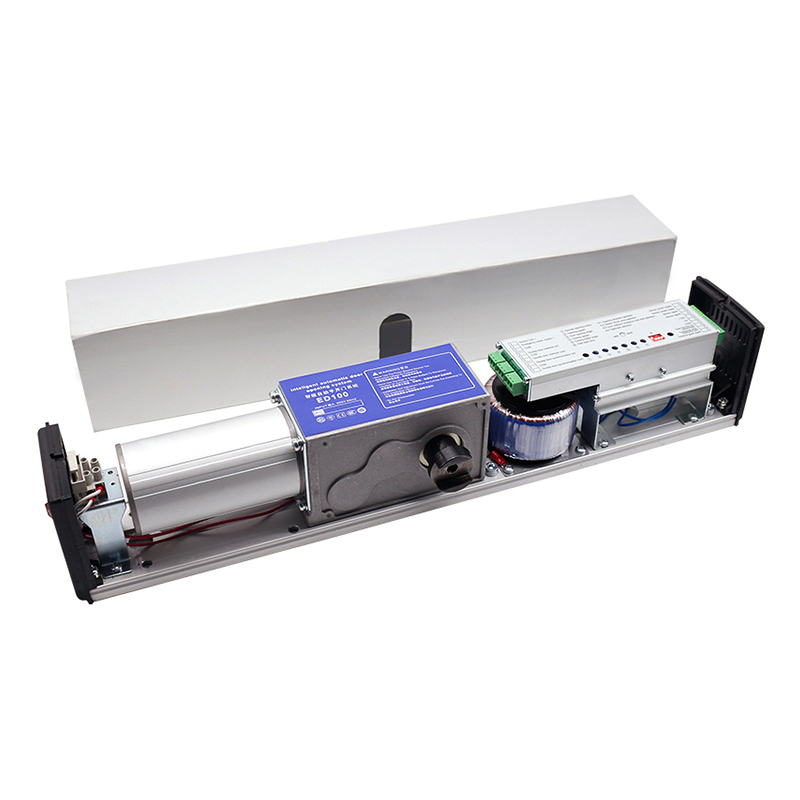

ED100 (A)Adjustable Electric Gate Opener Swing Automatic Door Operator with interlock function
Model No.: ED100
Model No. | ED100 (A) | ED100 (B) | ED100 (C) | ED100 (D) |

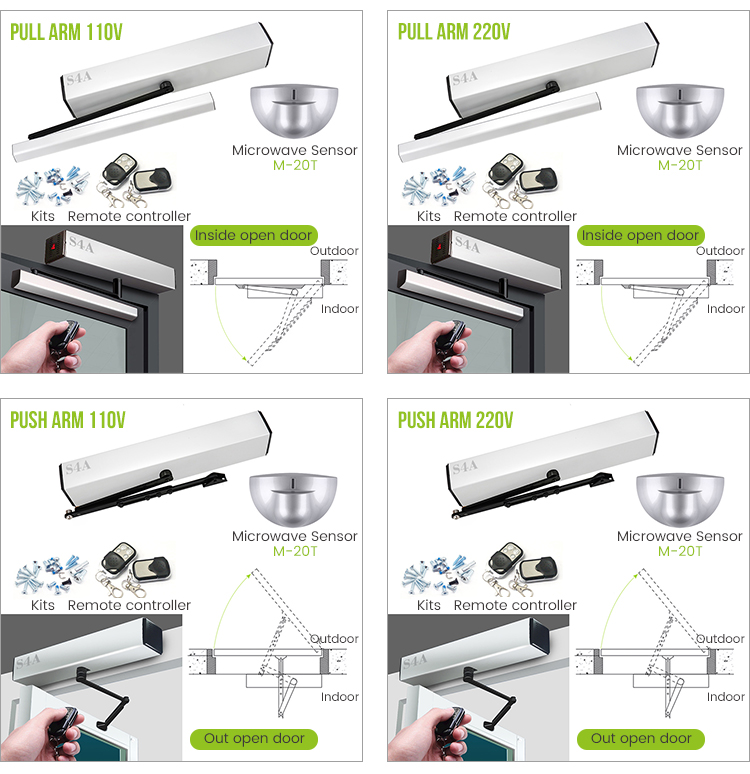

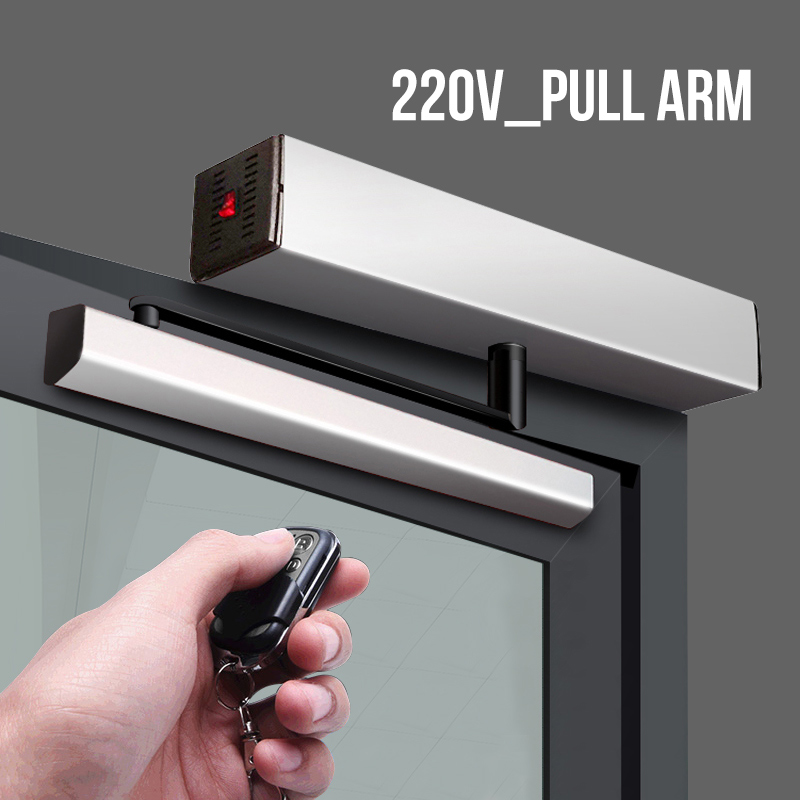

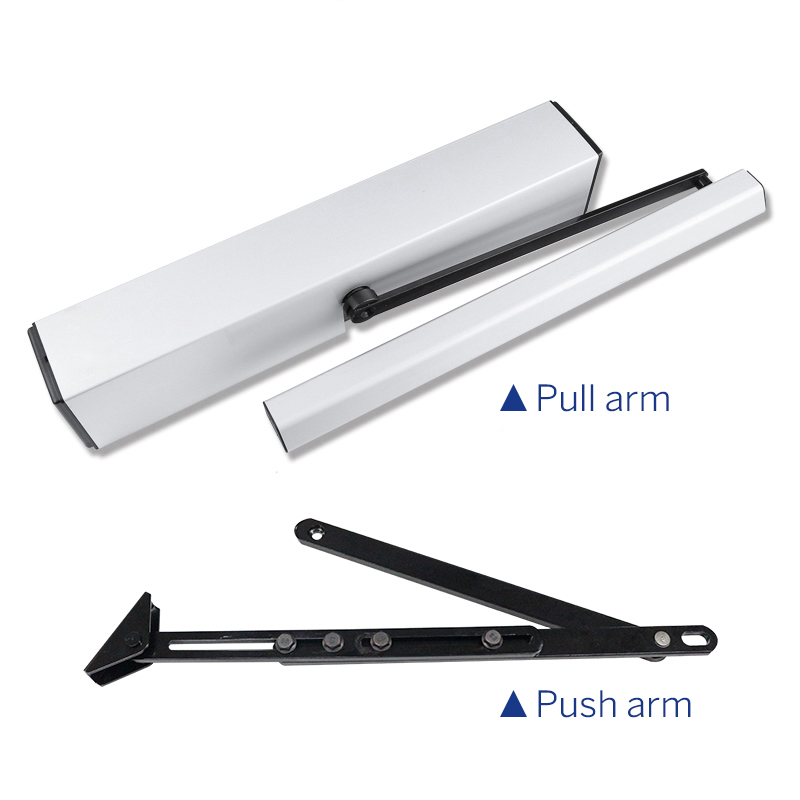

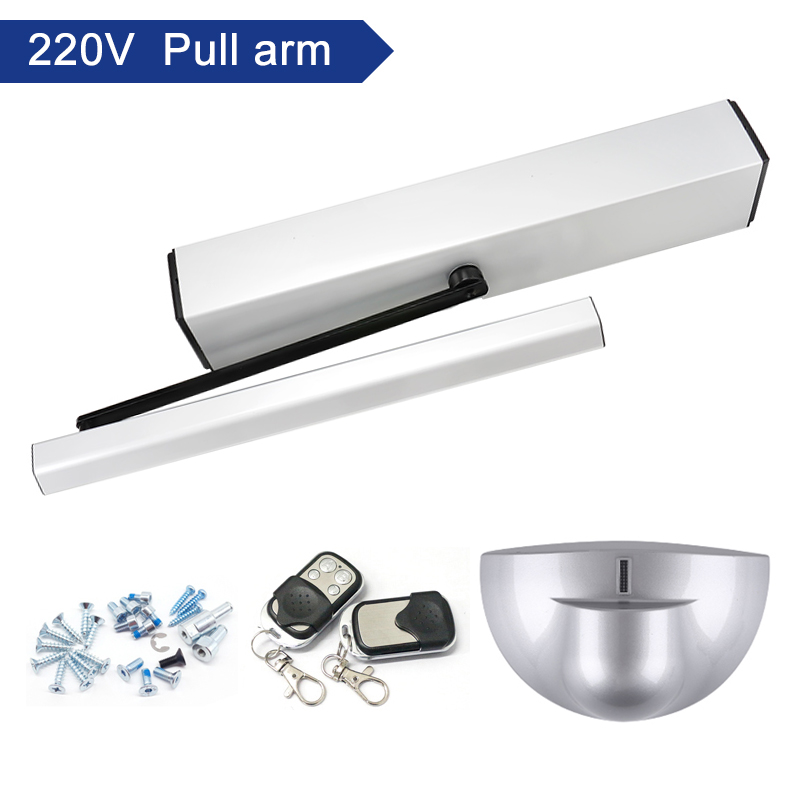

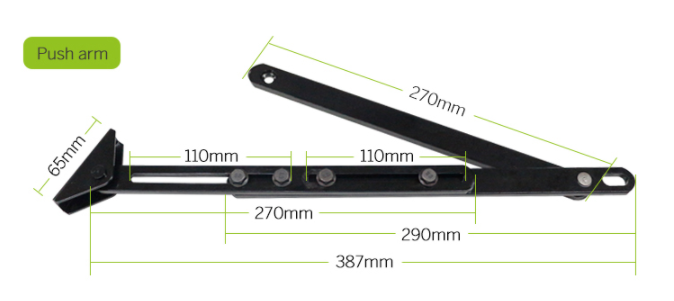

An operator with arm | Pull arm | Push arm | Pull arm | Push arm |
Power supply | 220V | 220V | 110V | 110V |
Opening time | 3~7s / 90° | |||
Opening and holding time | 1-30s | |||
Temperature | -20℃~55℃ | |||
Protection level | IP12D | |||

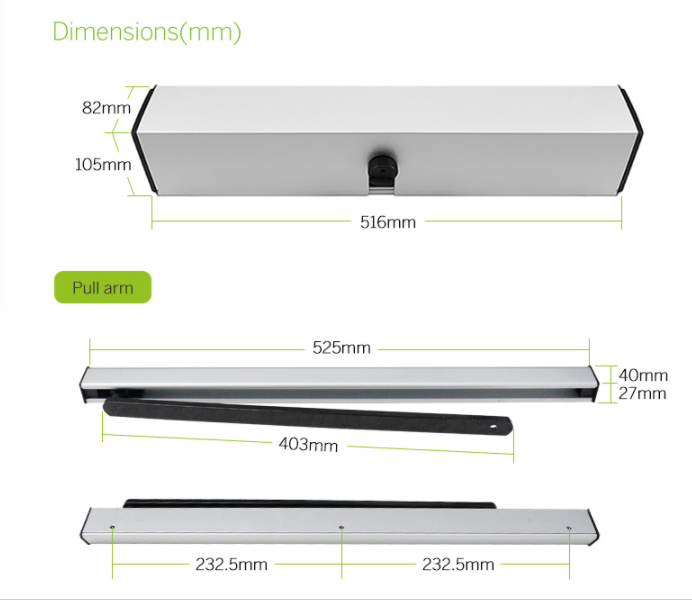

Dimensions | 516x105x82mm | |||
Packing box | 626x197x152mm | |||
Weight | 8.5kg | |||
It supports 2ways working mode:
1. standalone access controller, connect it to power, power on, then we could open it by remote control and close it automatically

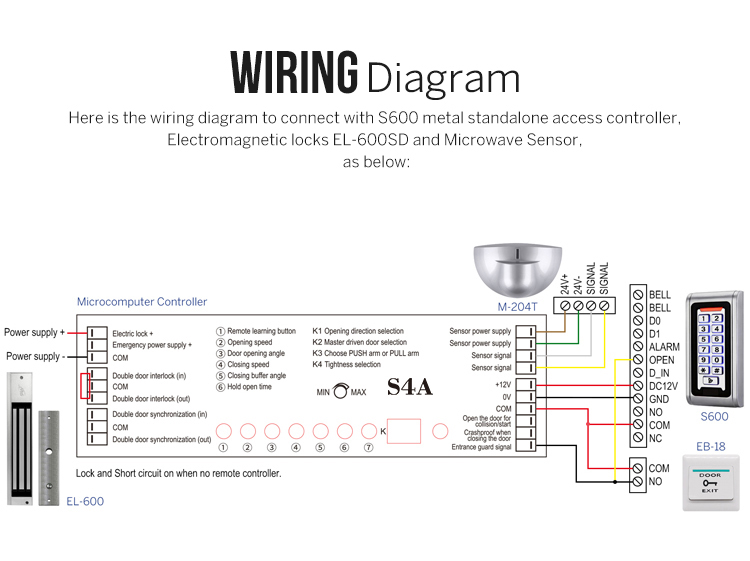

2. Connect it with RFID door access control systems, Enter by Face, RFID, Pincode or Finger and exit by EB-16 or EB-17 Non-touch button or M-204T Microwave Sensor.
Touch Free Automatic Door Opener For Commercial Exterior Swing Door 110v Or 220v With 12v Door Access Control | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ED100 | 2pcs | 16KG | 65x33x23cm |
S4A ED100 User Manual_Adjustable Electric Gate Opener Swing Automatic Door Operator with Interlock Function
