T20D Standalone Access Control Keypad RFID Touch Keypad Door Entry Terminal

Sleek Touch Keypad: Designed with a premium, responsive touch-sensitive interface that ensures wear-resistant longevity and effortless cleaning.
High 4,000 User Capacity: Built-in internal memory comfortably accommodates up to 4,000 distinct user credentials for robust access management.
Versatile Wiegand Input & Output: Built-in WG26/WG34 communication protocols permit seamless integration with dual-direction entry layouts or third-party controllers.
Flexible Card Options: Supports standard 125KHz ID cards out of the box, with high-security 13.56MHz IC card options available as a custom order.
External Reader Compatibility: Features auxiliary inputs that support connecting an external card reader to secure both entry and exit paths simultaneously.

Brand:
S4A
Item NO.:
T20D

Inquire Now

Specifications

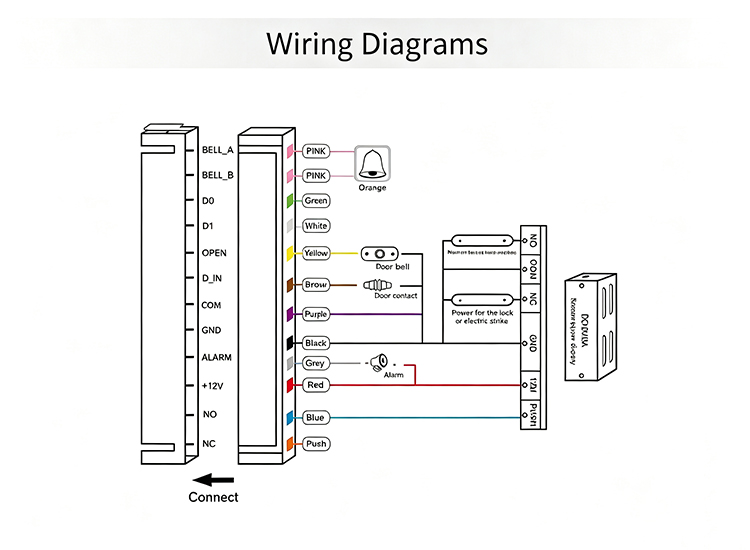

Wiring Diagram
Package

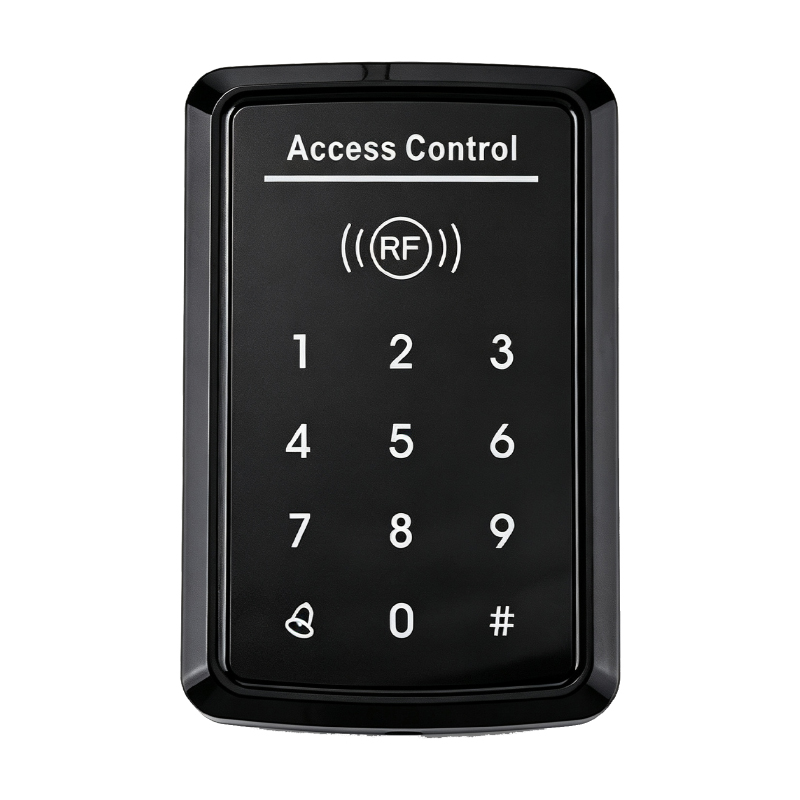

T20D Standalone RFID Access Control Touch Keypad

The T20D is a high-performance standalone access control terminal featuring a modern, sleek touch keypad interface. Designed to offer secure and efficient entry management, it delivers a substantial capacity of up to 4,000 users. The unit comes standard with 125KHz ID card reading functionality, with customizable 13.56MHz IC card support available upon request. Equipped with comprehensive Wiegand WG26/WG34 input and output capabilities, the T20D easily integrates with external readers or larger network systems, making it an ideal security asset for modern workspaces, residential estates, and commercial facilities.

Product Parameter	Parameter Descr1ption
Model	T20D
Working Voltage	DC 12V ± 10%
Working Current	< 100mA
Operating Temperature	-20°C to 60°C
Keypad Type	Touch Keypad
User Capacity	4,000 Users
Card Types	Standard ID Card (IC Customizable
Wiegand Interface	WG26 / WG34 Input & Output
External Connectivity	Supports External Card Reader
Reading Distance	1cm - 10cm

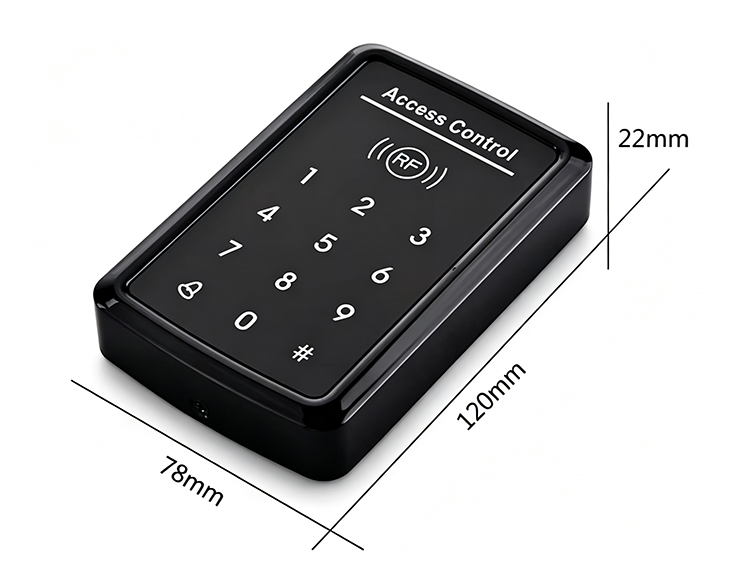

Dimensions	120mm * 78mm * 22mm

Related Tags : T20D Access Control RFID Touch Keypad WG26 WG34 Access Terminal 4000 Users Door Keypad Standalone RFID Reader
