Standard-type Electric Strike Lock

ES-100A: Fail-secure type (Power to unlock)

ES-100B: Fail-safe type (Power to lock)

> Lock Size: 150Lx39.5Wx28H(mm)

> Bolt structure: Stainless Steel

> Holding Stength: 800kg

> Voltage: 12VDC

> Current: 450mA(ES-100A)

                  200mA(ES-100B)

  • Brand:

    S4A
  • Item NO.:

    ES-100
  • Specifications

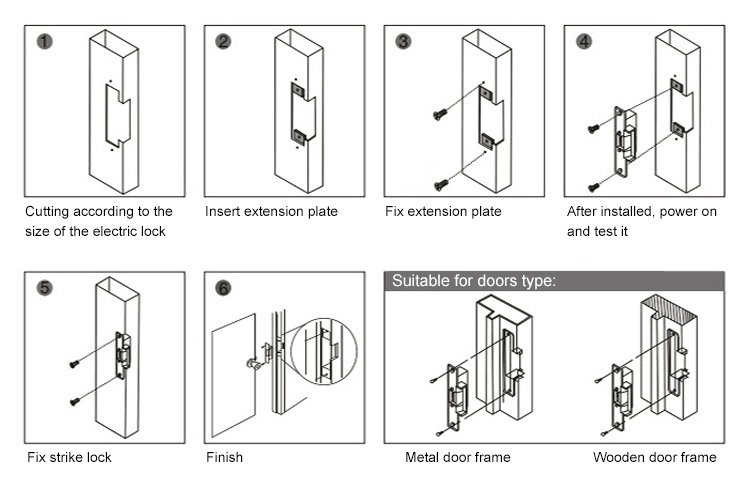

  • Wiring Diagram

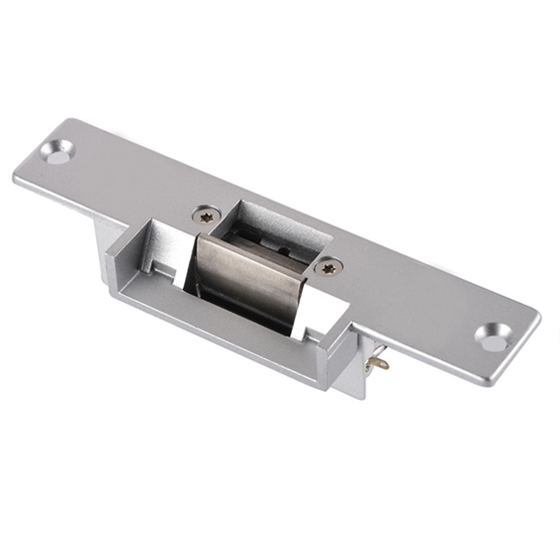

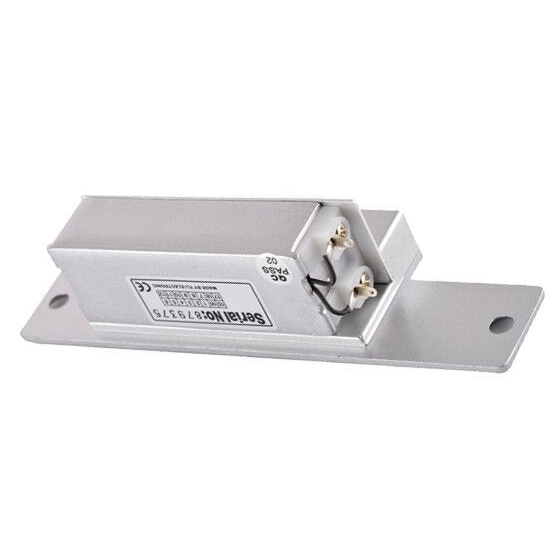

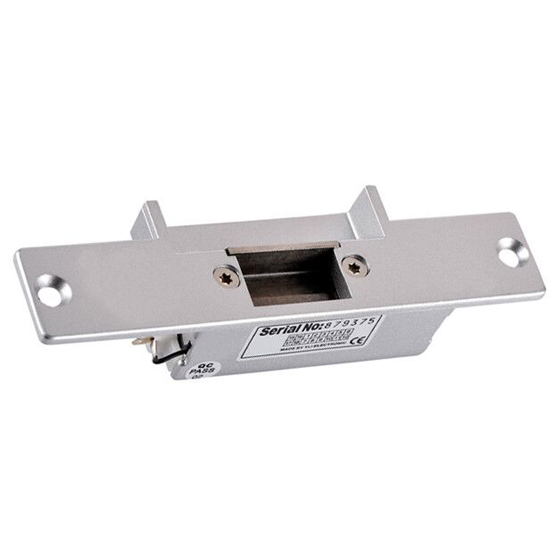

Standard-type Electric Strike lock

Model No.: ES-100A, 100B


Electric Strike lock with 800kg holding force

Electric strike lock series:

ES-100A: Fail-secure type (Power to unlock)

ES-100B: Fail-safe type (Power to lock)


Lock Size

150x39.5x28mm

Holding Strength

800kg

Bolt structure

Stainless Steel

Voltage

12VDC

Current

450mA(ES-100A ) / 200mA(ES-100B)

Surface Temperature

Within +20°C

Suitable Temperature

-10°C~25°C(14°F-131°F)

Bolt Housing

Stainless steel, Draw the Polishing of silk

Function

Built-out MOV

Suitable For

Wooden Door, Metal Door, PVC Door

Opening Mode

90 Degree Swinging Door

Weight

0.3kg

Standard Packing

60pcs/box

Electric Strike lock

Electric Strike lock

Standard-type Electric Strike lock
