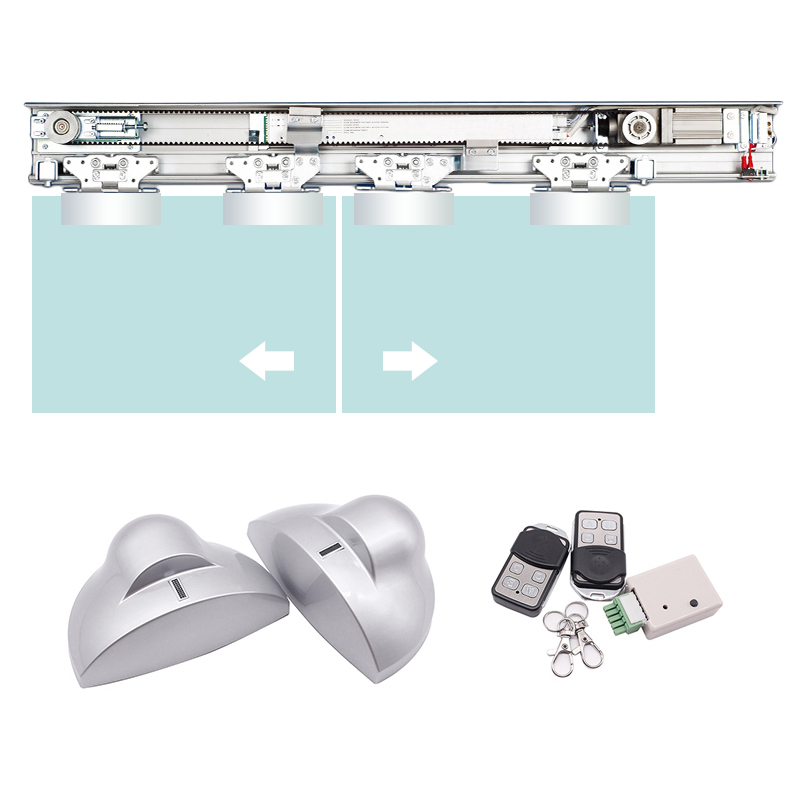

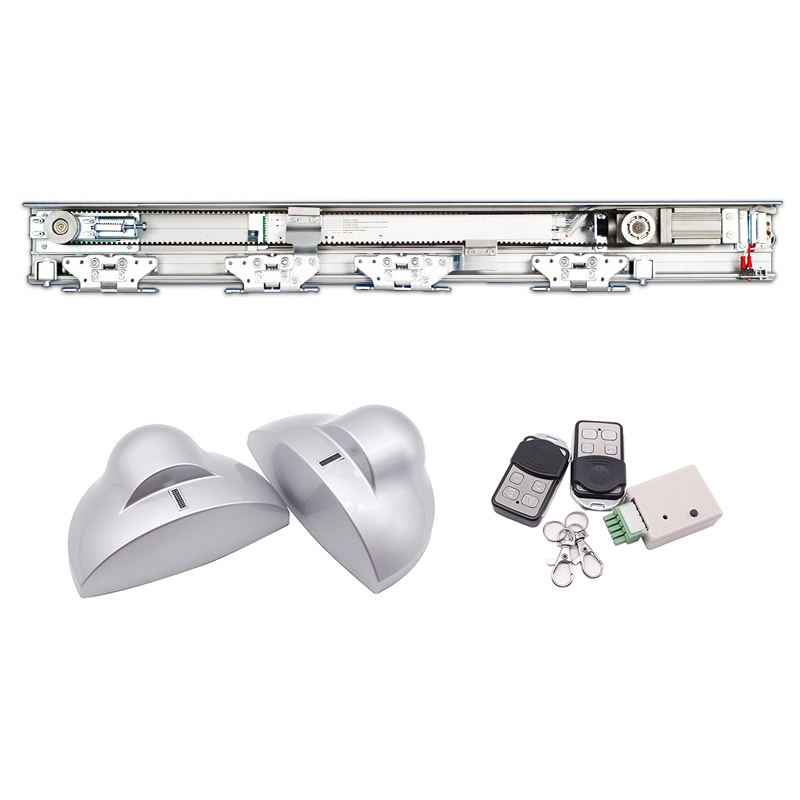

Categories
> Aluminum shell
> Security anti-leakage switch
> Remote control x2
> Microwave Sensor
Brand:
S4AItem NO.:

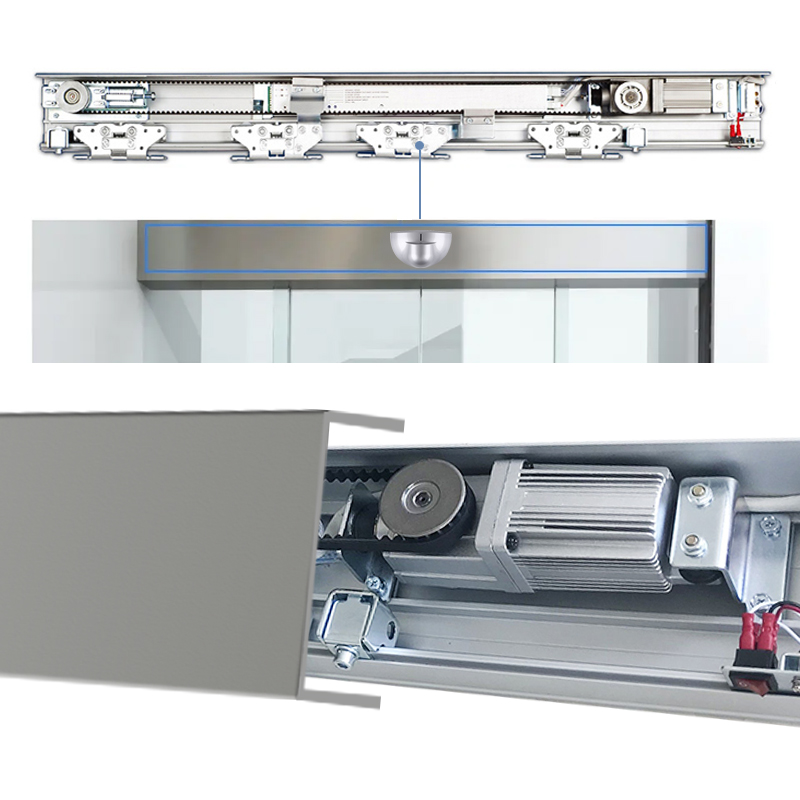

SM150What is Automatic Sliding Door Operator?

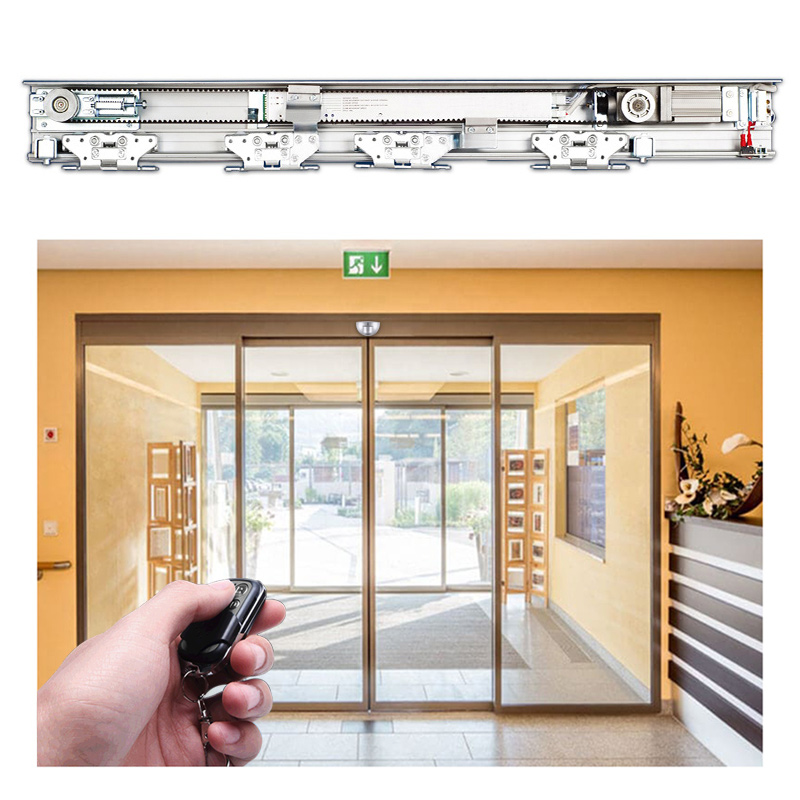

A sliding door operator (or sliding door opener or automatic sliding door operator) is a device that operates a sliding door for pedestrian use. It opens the door automatically, waits, then closes it.
Specification | Series | |
Door-leaf Type | Single-leaf | Double-leaf |
Door-leaf Weight | Max.150Kg | Max.150Kg*2 |
Door-leaf Width | DW=750-1600mm | DW=650-1250mm |
Total Width | W=1500-3200mm | W=2600-5000mm |
Mounting Type | Surface Mounting | |
Power | AC90~240V, 50HZ | |
Opening Speed | 15~46cm/s (adjustable) | |
Closing Speed | 13~46cm/s (adjustable) | |
Hold-Open Time | 0~8S (adjustable) | |
Manual Push Force | <40N | <50N |

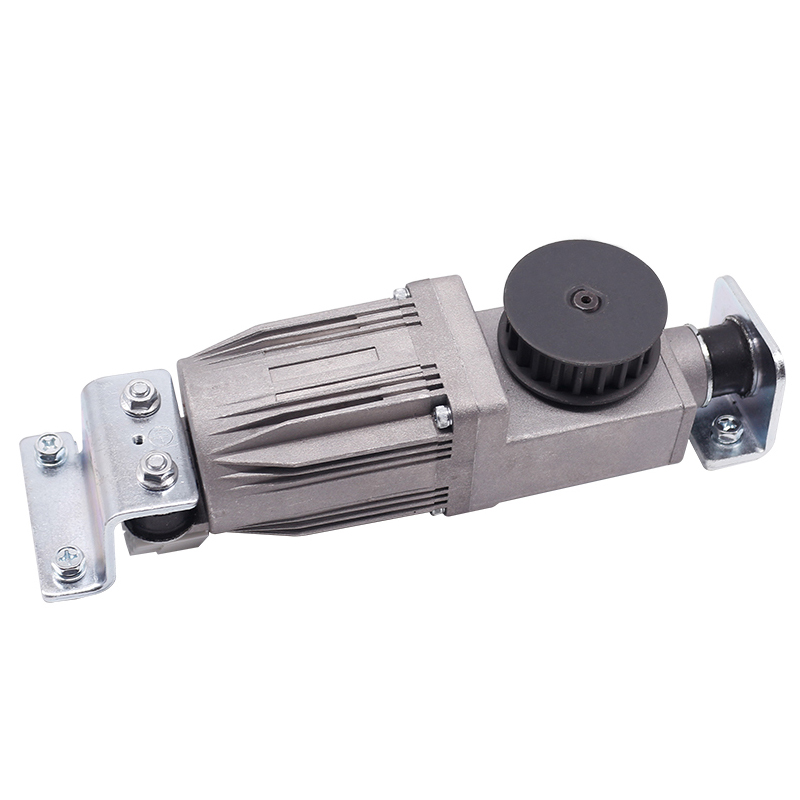

Motor | DC24V Brushless Servo Motor | |
Ambient Temperature | -20℃~50℃ | |

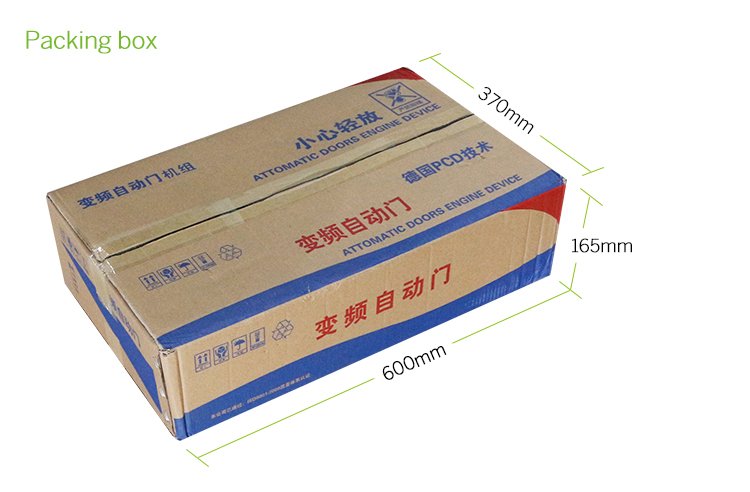

Packing box | 62x33x13mm | |
Weight | 10.58kg | |

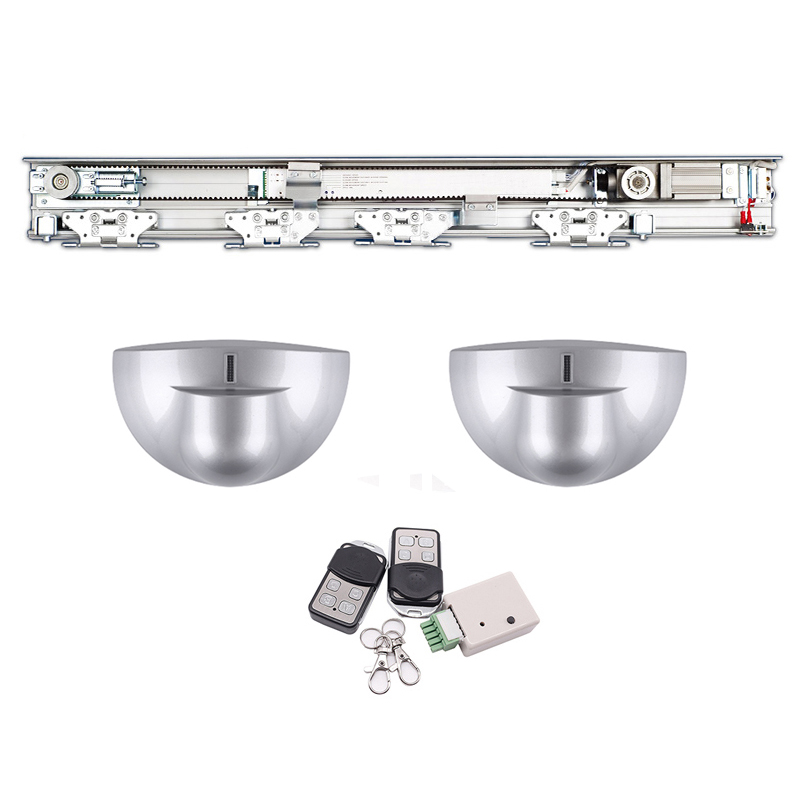

Standard Automatic Sliding Door Glass Sensor Door Operator | |||||
Item Number | Description | Quantity | Cartons | N/W | CARTON SIZE |
pcs | (Total) | (kg/carton) | (CM) | ||
SM-150 | Automatic Sliding Door Operator-Major motor | 1 | 1 | 11 | 37x17x61cm |
With Sliding Door track | 1 | 1 | 9.2 | 14x41x213cm | |
Total Weight: | 20.2KG | ||||
S4A SM150 User Manual_Automatic Sliding Door Operator
>Scope of application:Various side-hung doors with a >width of <=2000mm and a weight of less than 200Kg>Power input voltage:DC24V>Motor Power:45W>Door lock control voltage output:DC12V>Light control voltage output:DC24V

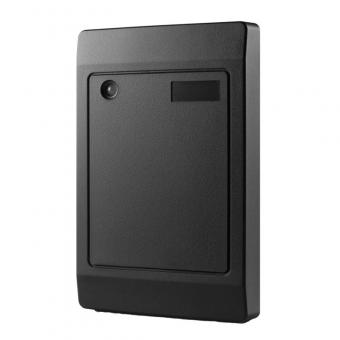

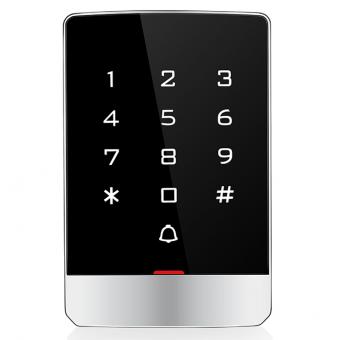

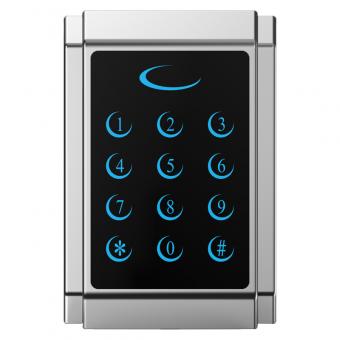

> 433MHz Rolling Code technology > 500PIN/card users > 4~8 digits PIN, 125KHz EM card > Communication distance: 50m Max > Open/Close by Keypad, transmitter, or touch the lock
>Power supply: AC220V/50Hz 4.5W>Reaction time: 35ms>Output method: Relay>Probe lead: Within 10 meters
Dimensions: 86x86x38mm
> Material: Baking Finish> Dimension: 65x15.5x5cm 100x15.5x5cm
>Sensing distance: 15-25mm>Switch form: NC-Normally Close>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A
>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A>Switch form: NO-Normally Open / NC-Normally Close / NO+NC>Current/Voltage/power: 0.1A /100VDC/ 3W

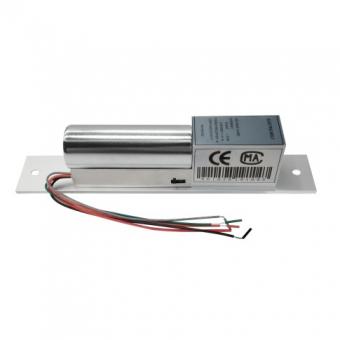

> Without indicator lights> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
