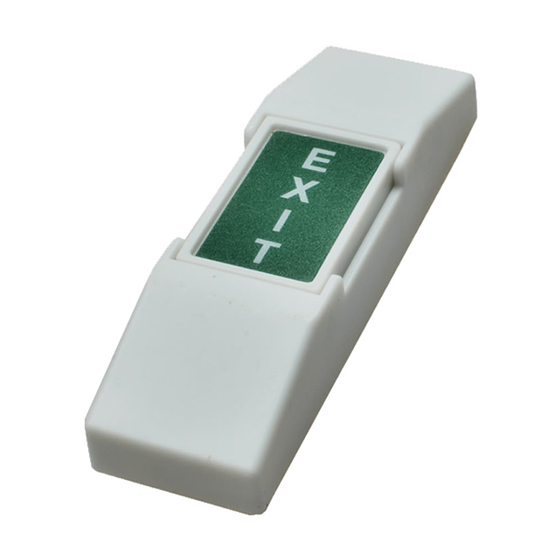

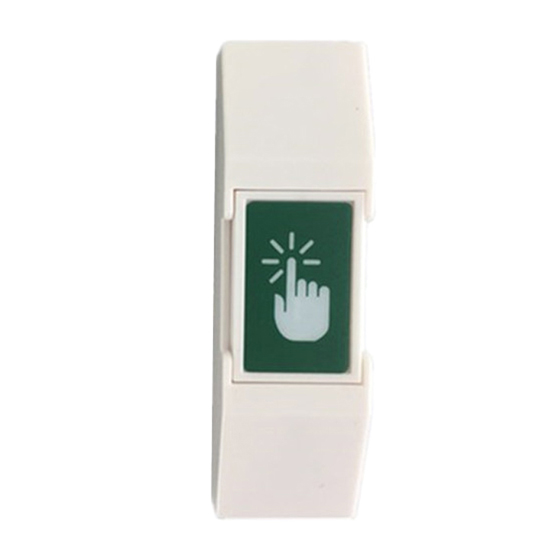

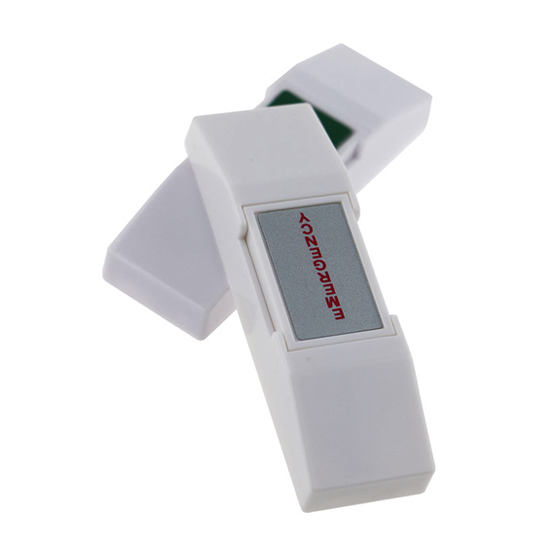

Mini Access Exit Button
Model No: EB-28
Dimension | 76Lx23Wx14H (mm) |
Standard Structure | Plastic |
Panel Material | Plastic Panel, Fireproof Material |
Current | 3A@36VDC Max |

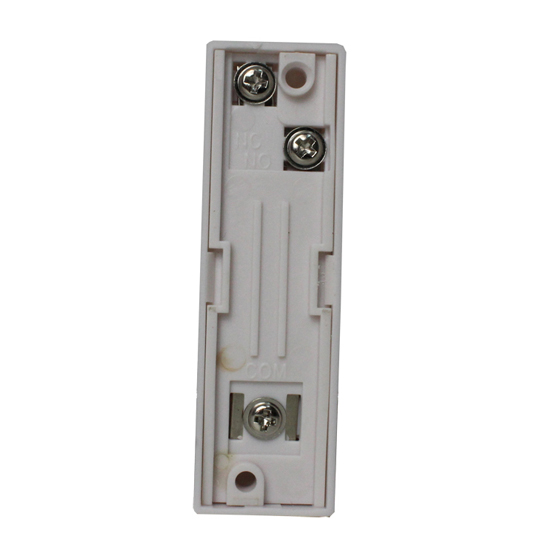

Output Contact | NO/NC/COM |
Mechanical Life | 100,000 tested |
Operating Temperature | -10℃ ~ 55°C (14°F-131°F) |
Operating Humidity | 0-95% (non-condensing) |
Weight | 0.02kg |
Packing Quantity (PCS/CTN) | 10pcs/bag |
EB-28 series button is cast by plastic with fireproof material. The dimension is 76(L)*23(W)*14(H)mm
It is suitable for hollow doors; RussianVersion and it comes with 20mm plastic material, it is an elegant style with longtime usage.
Mini Access Exit Button | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
EB-28 | 250 PCS | 6.8 KG | 4.95 KG | 34x20x50 cm |
500 PCS | 9.9 KG | 34x20x50 cm | ||
S4A_Datesheet_Mini Access Exit Button
Dimension: 86x86x35mm
Electrical card-operated switches> Rated Current: 40A> Power off: 20s delay
Dementions: 86x86x6mm
Dimension: 86x86x25mm
Dimensions: 86x86x24mmOutput:NO/COM
Dimensions: 86x86x25mm
Dimensions: 86x86x20mm
>Dimensions: 76Lx22Wx14H(mm)>Material: Fireproof>Installation Mode: Surface Mount>Input: DC12V>Contact Rating: 3A/125-250VAC
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
