> Card type: EM Card

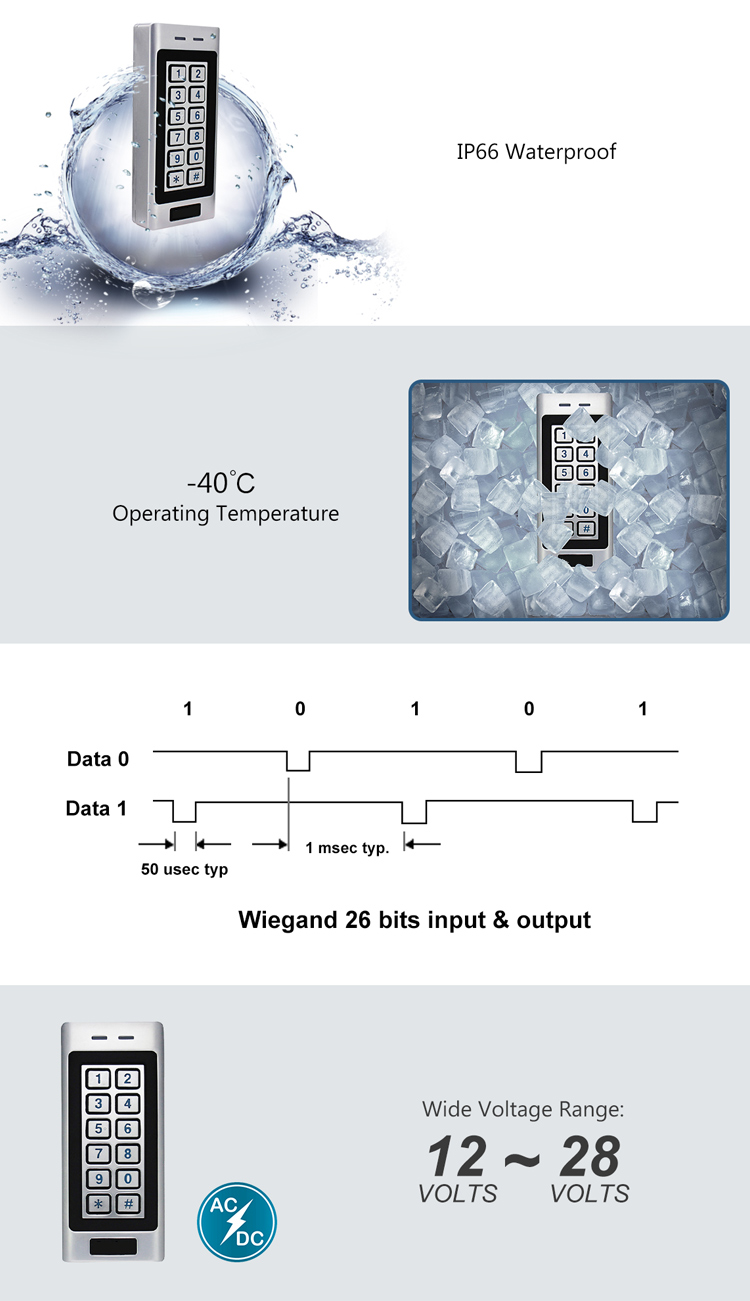

> Waterproof, conforms to IP66
> One relay, 1000 users
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHZ EM card
> PIN length: 4~6 digits
> Wiegand 26 bits input & output
> Facility code programmable
> Latch mode to hold door or gate open
Brand:
S4AItem NO.:

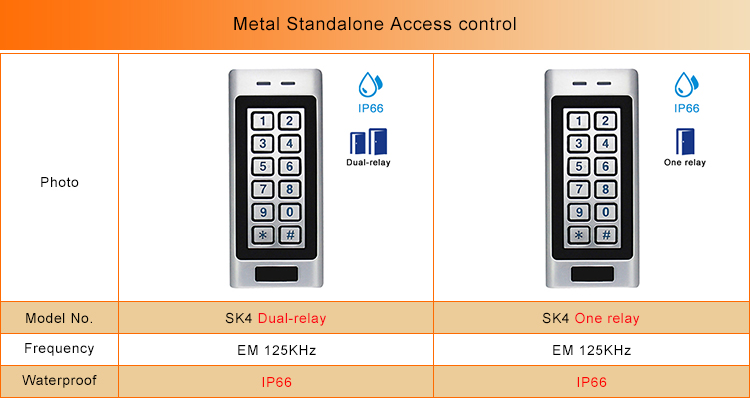

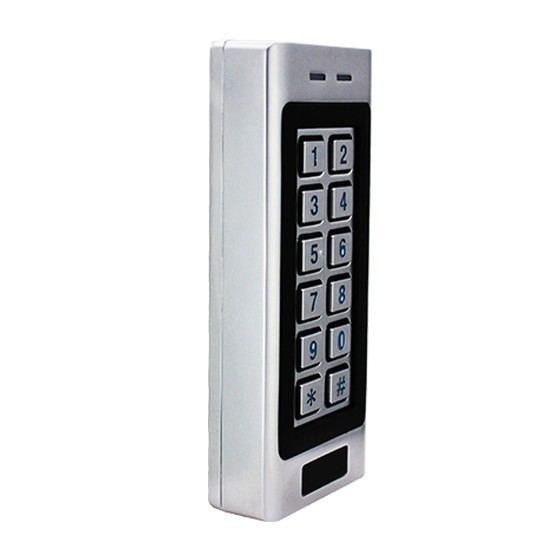

SK4 One relayOutdoor Keypad & EM Reader
Model No.: SK4 One relay EM

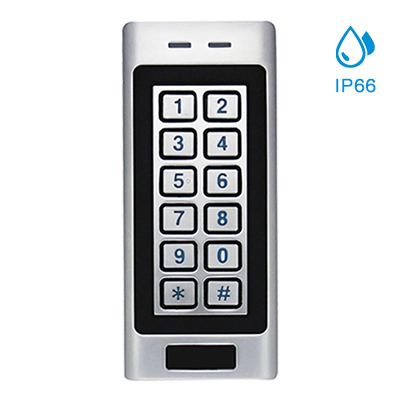

> Waterproof conforms to IP66
> One relay, 1000 users
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHZ EM card
> PIN length: 4~6 digits
> Wiegand 26 bits input & output
> Facility code programmable
> Latch mode to hold door or gate open
> Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
User Capacity | 1000 Card/PIN |
Operating Voltage | 12~28V AC/DC |
Idle Current | 55mA |
Active Current | 80mA |
Keypad | 12 Key (2*6) |
PIN length | 4 ~ 6 digits |
Proximity Card Reader | EM |
Radio Technology | 125KHz Industry Standard Proximity Card |
Read Range | 3 ~ 6 cm |

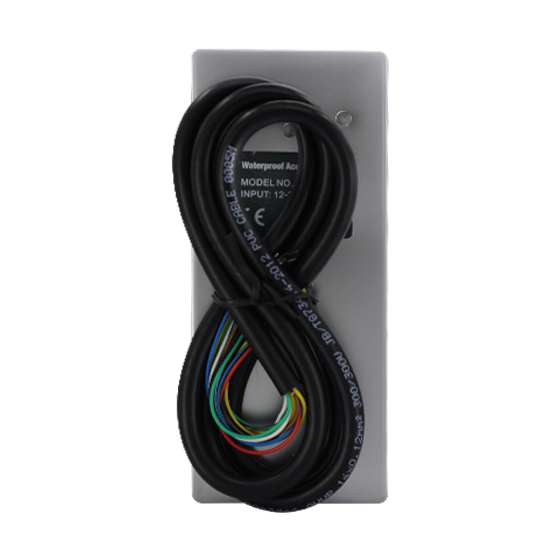

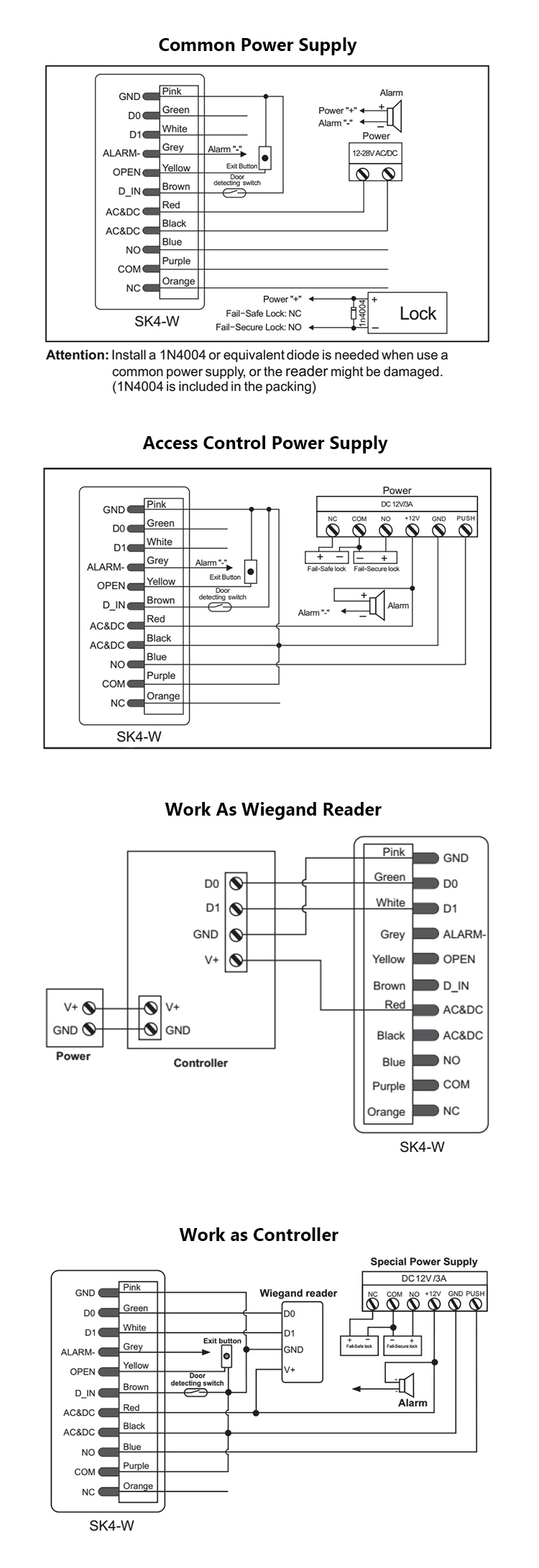

Wiring Connections | Electric lock, exit button, |
DOT, external alarm, Wiegand (in/out) | |
Relay | One (NO, NC, COM) |
Adjustable Relay Output Time | 1 ~ 99 Seconds (5 seconds default) |
Adjustable Alarm Output Time | 1 ~3 minutes (1-minute default) |
Lock Output Load | 3 Amp Maximum |
Alarm Output Load | 3 Amp Maximum |
Wiegand Interface | Wiegand 26 bit input/output |
Environment | Meets IP66 |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Operating Humidity | 10% ~ 90% Non-Condensing |
Physical | Zinc-Alloy Enclosure |
Surface Finish | Powder Coat |

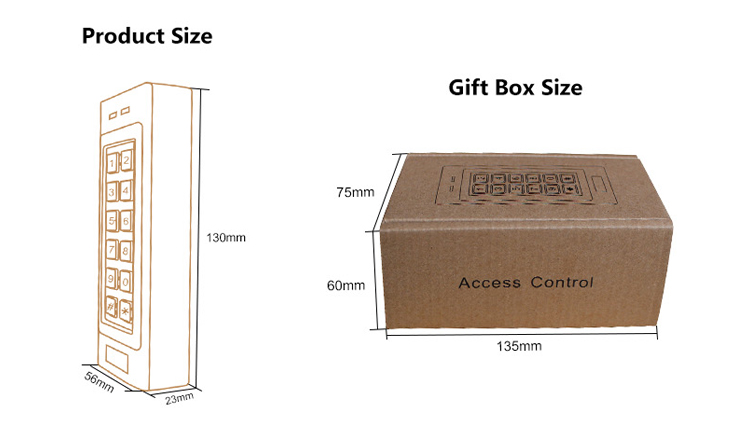

Dimensions | 13.0L x 5.6W x 2.3H (cm) |
Unit Weight | 500g |
Shipping Weight | 650g |
S4A User Manual SK4_Standalone Waterproof Rfid Card Reader Access Control
