Waterproof No Touch Exit Button

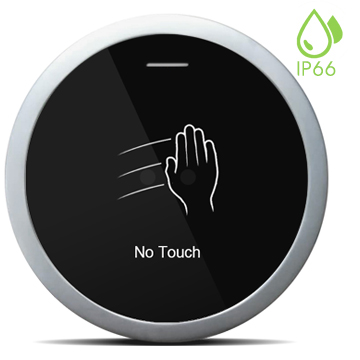

Sbutton-01W Waterproof No Touch Exit Button

Zinc-alloy Housing + Acrylic Panel; NO/NC/COM

  • Brand:

    S4A

  • Item NO.:

    Sbutton-01
Inquire Now
  • Specifications
  • Package

Sbutton-01W Waterproof No Touch Exit Button

Model No: Sbutton-01


> Waterproof, IP66

> Zinc-alloy housing

> 9~24V DC

> Output contact: NO/NC/COM

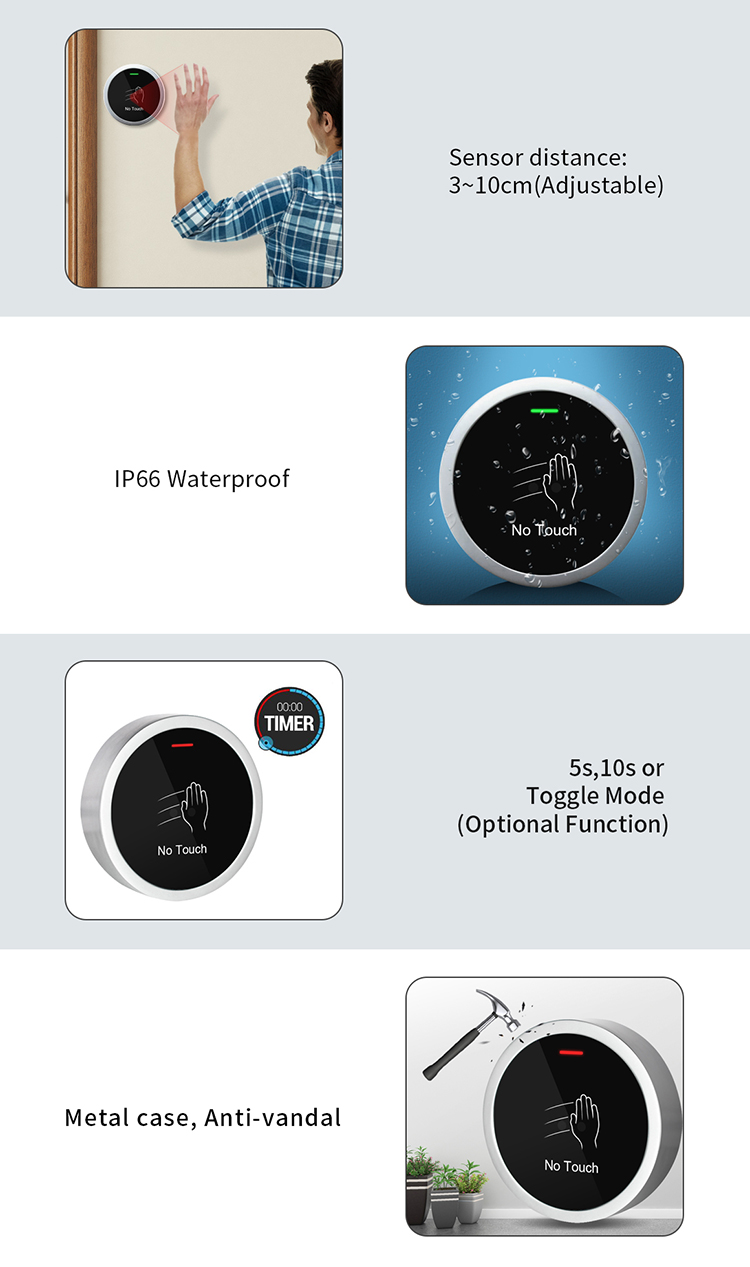

> Sensor Distance: 3~10cm (Adjustable)

> Red LED indicator: standby

> Green LED indicator: active

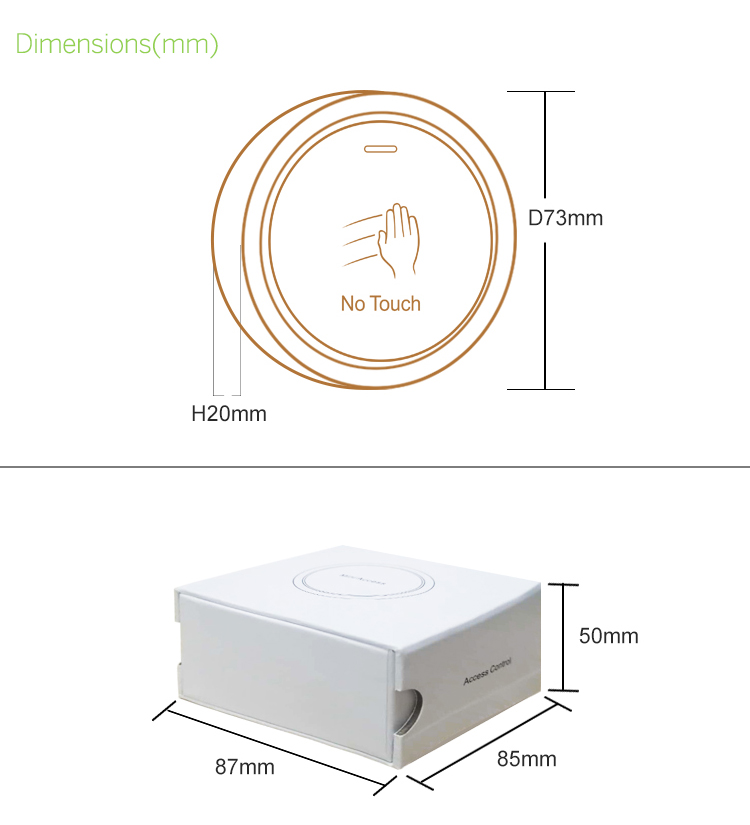

> Diameter: 73mm, Thickness: 20mm

> Optional version: with 5s or 10s time delay or Toggle Mode


Product ParameterParameter Description
S4A ModelSbutton-01
Product NameWaterproof Zinc Alloy Housing No Touch Exit Button

DimensionsDiameter: 73mm, Thickness: 20mm
Standard StructureZinc-alloy Housing + Acrylic Panel
Current Rating<50mA@9~24V DC MAX
Output ContactNO/NC/COM
Mechanical Life100000 tested
Sensitive Distance3-250px adjustable
Operating Temperature-20 ℃ ~ 55 ℃ (-4 oF ~ 131 oF)
Operating Humidity0% ~ 95% ( relative humidity)
Working EnvironmentWaterproof, IP66
Panel MaterialAcrylic
Weight240g


Waterproof No Touch Exit Button

Waterproof No Touch Exit Button

Related Tags : Waterproof No Touch Exit Button Release Exit Button Switch Exit Push Button Infrared Door Exit Push Button Ir Sensor exit button
