RS485 Relay board for one way Access Controller

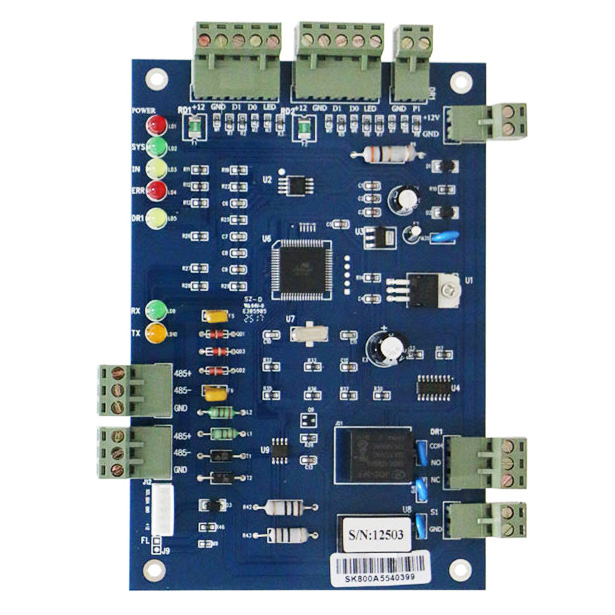

ACB-R01 RS485 Single door access Control Board with free software Control 1 door and 2pcs RFID reader

  • Brand:

    S4A
  • Item NO.:

    ACB-R01
  • Specifications

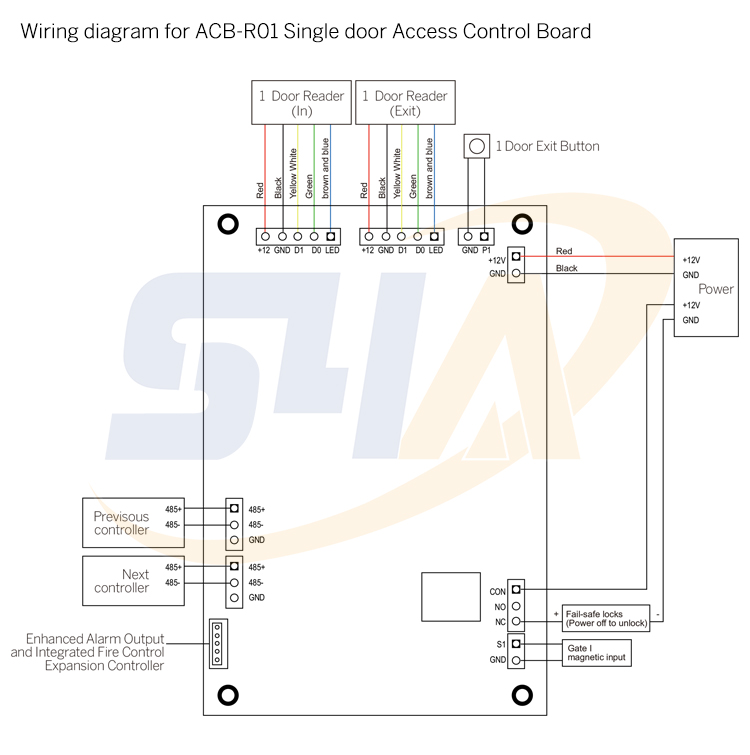

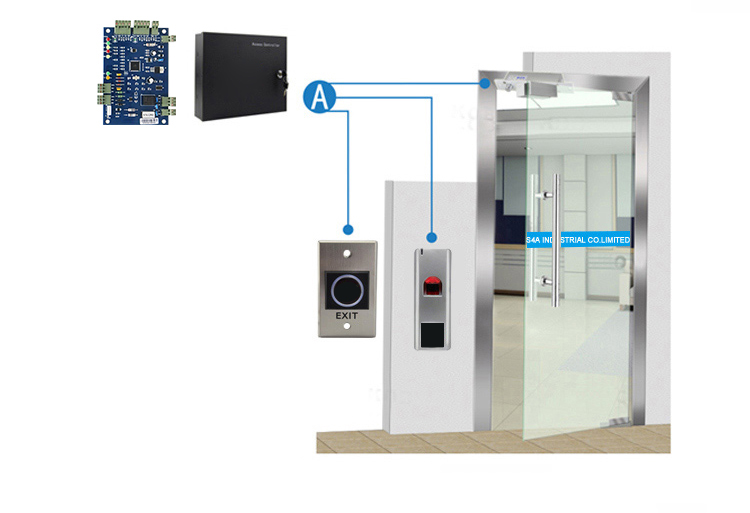

  • Wiring Diagram
  • Package
  • Download

RS485 Relay board for one way Access Controller

Model No.: ACB-R01


What is Access Control?

Access control is focussed on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.

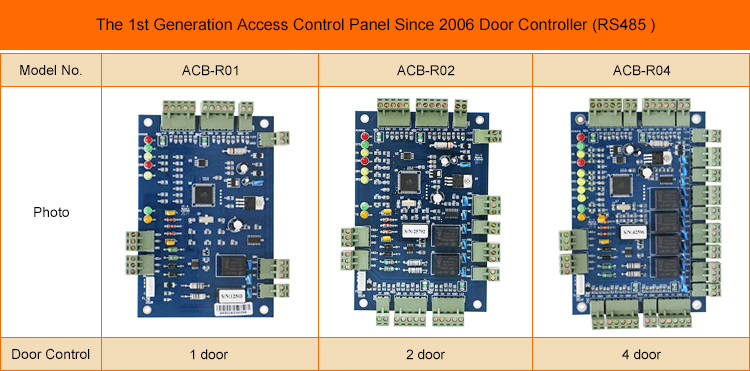

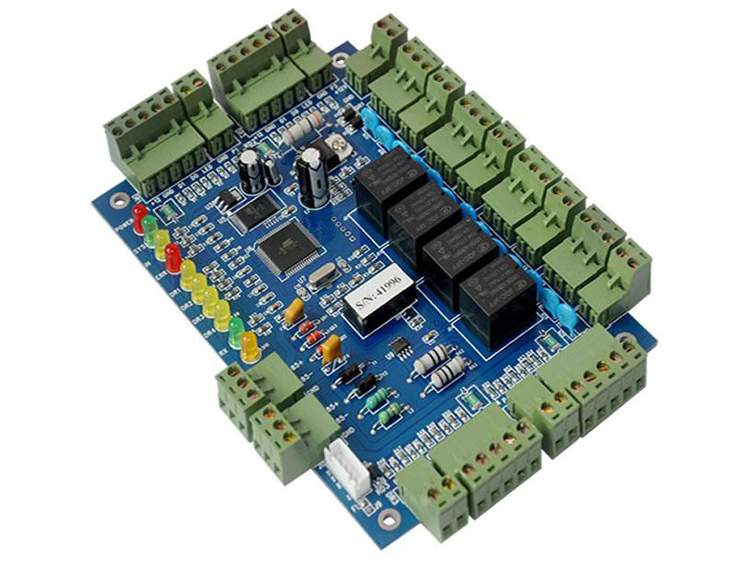

RS485 Relay board


Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-R01

ACB-R02

ACB-R04

Communication

RS485

RS485

RS485

Description

Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button

Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button

Control 4 doors, get in the door by swiping card, and get out door by button

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

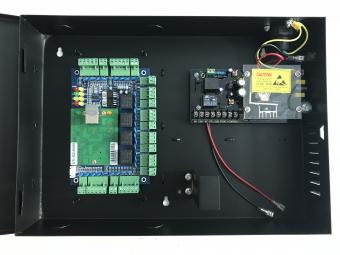

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID ,EM,Mifare one etc)

Quantity of Readers

2pcs

4pcs

4 pccs

Door Controlled

1door

2 Doors

4 Doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit


RS485 Relay boardRS485 Relay boardRS485 Relay board


Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-R01

ACB-R02

ACB-R04

Communication

RS485

RS485

RS485

Description

Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button

Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button

Control 4 doors, get in the door by swiping card, and get out door by button

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola ,HID,EM,Mifare one etc)

Quantity of Readers

2 pcs

4 pcs

4 pcs

Door Controled

1 door

2 doors

4 doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit

Operation Temperature

-40℃~70℃

Operation Humidity

10-90 % RH , No Condensation

Q ' ty of users

20,000 Users

Q ' ty of Event Buffers(offline)

100,000 event buffers

Power interruption protection measure

High Speed Memory, Records never lose

Max Distance from Reader to Controller

100m (suggestion distance 80m)

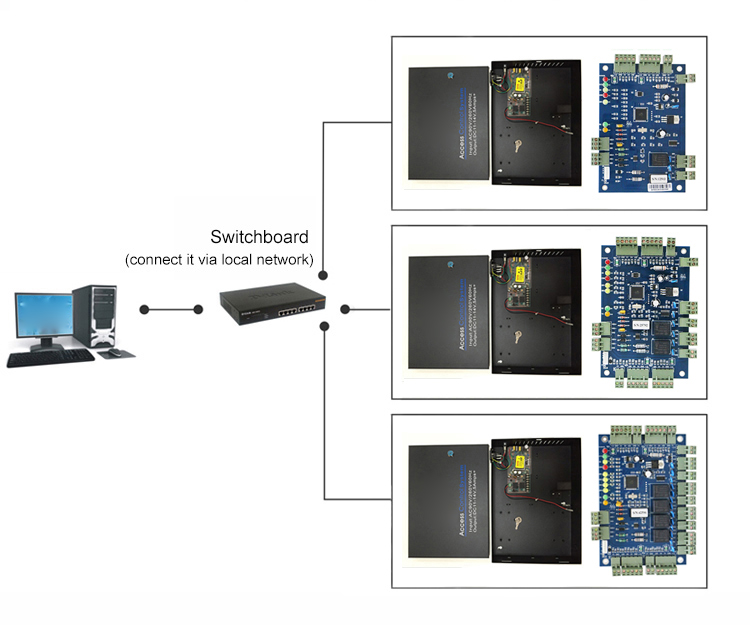

Max Distance between Controllers

TCP/IP: Depends on net coverage area

Package included:

PCB board, software, manual, certificate. carton

Alarm for long time door open, ilegal break in, intimidate

Yes

Fire and alarm linkage

If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm, Model is ACB-EA05

Complsive open and close door at long time

Yes

Open door in remote distance

Yes

Interlock

No

Yes

Yes

Anti pass back and tail

Yes

Yes

Yes

Multi-card open door

Yes

Open long time at specified time

Yes

Electronic map

Yes

Urgency locking

Yes

First card unlocking

Yes

Unlock based on internal and external validation

Yes

Keypad (card+passwor, supper password)

Yes

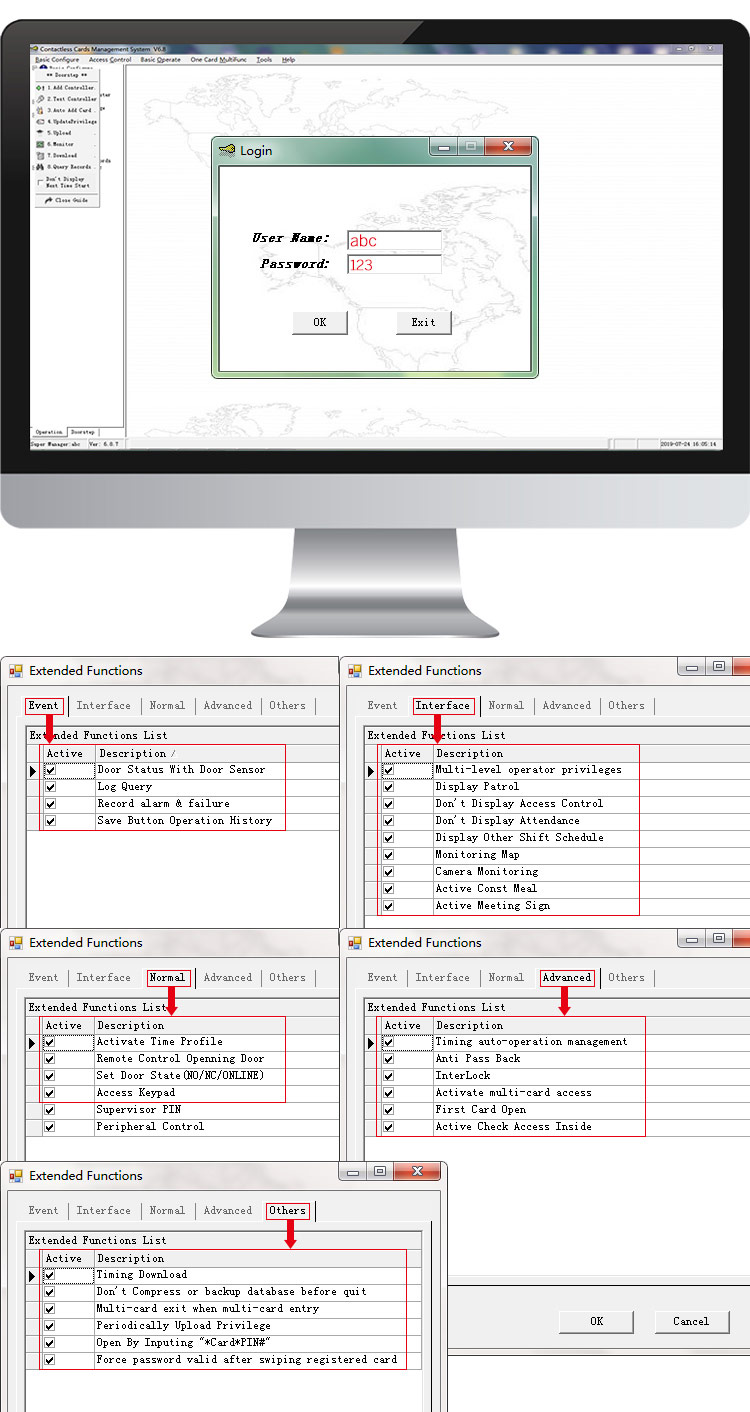

Here are all available powerful functions for our ACB-R01, ACB-R02 and ACB-R04

RS485 Relay board

RS485 Relay board

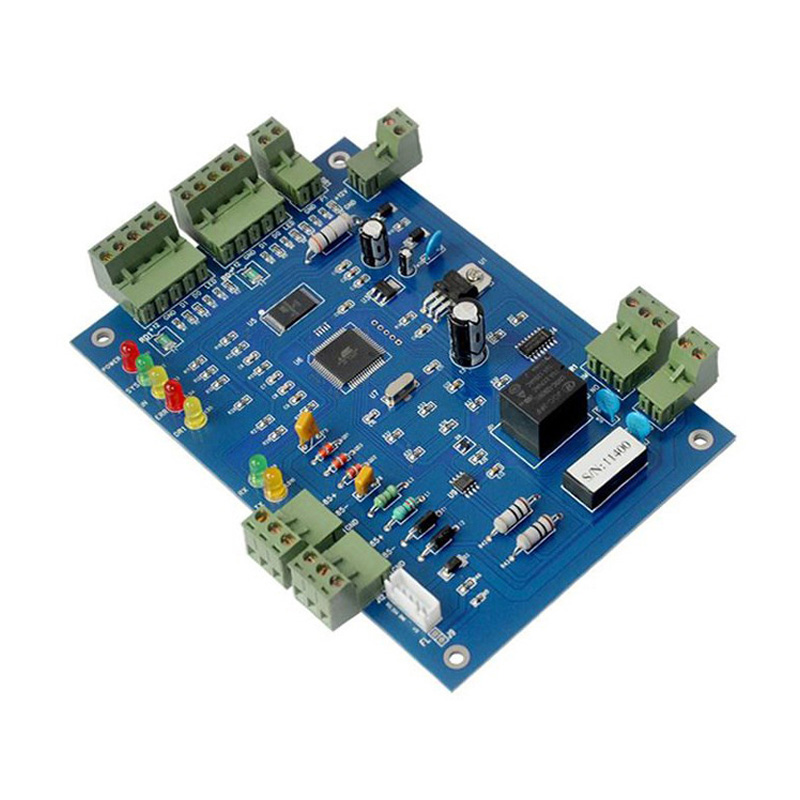

ACB-R01 Single door RS485 Control board

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

50pcs

160x106mm

0.2KG

12.5KG
