RFID Card Password Standalone Access Control Keypad For Door Entry Security System

>Working voltage: 12~30VDC

>Working current: 150mA


  • Brand:

    S4A
  • Item NO.:

    S4A-C03
  • Specifications

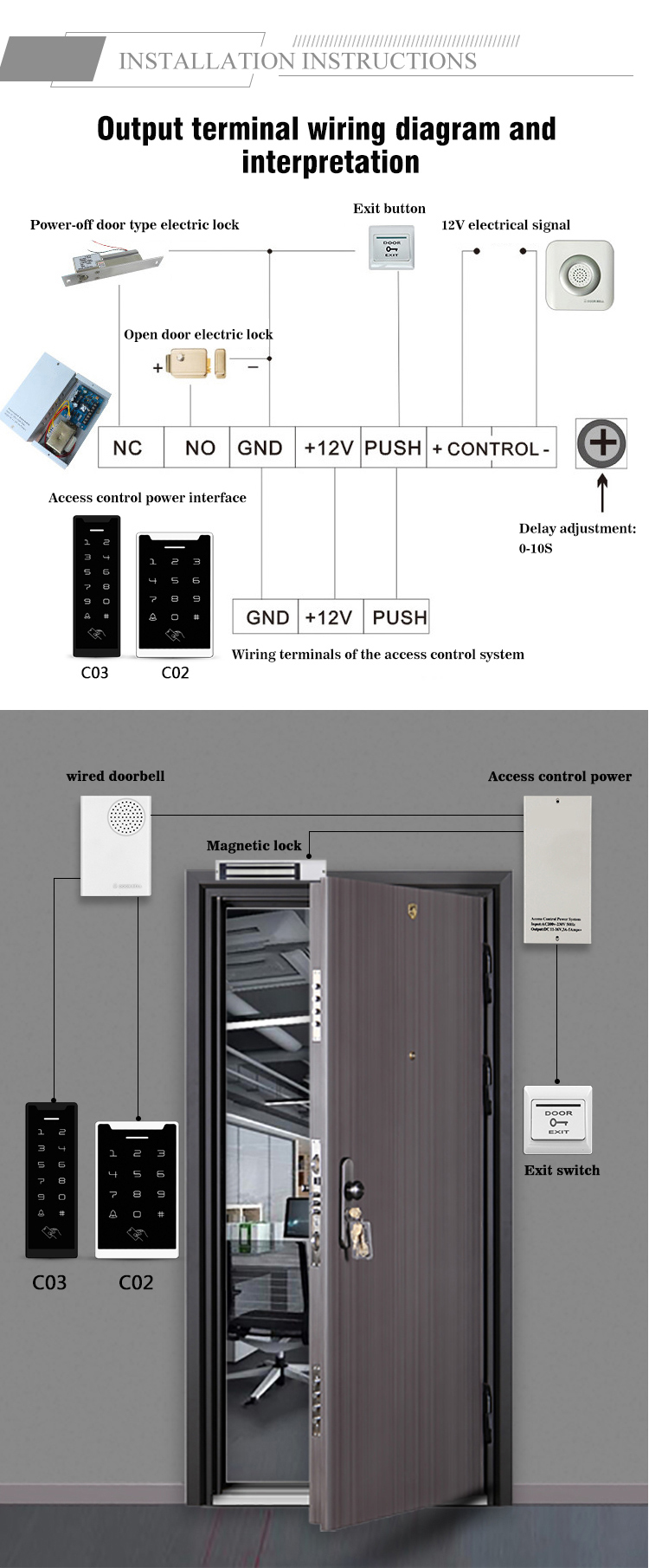

  • Wiring Diagram
  • Package
  • Download

RFID Card Password Standalone Access Control Keypad For Door Entry Security System

Model No.: S4A-C03


What is Standalone Access Control Keypad Access Controller?

For standalone access control systems, all electronics are installed in a keypad or reader - there are no additional components or peripherals, including extra wiring, routers, sensors and alarms.


What is standalone access control?

Standalone access control is usually one or two small units wired directly onto a door panel to control access to the door. There is no need for a PC network and you don't have to secure every single door within your building, only those you wish to.


Item model number

S4A-C03

Working voltage

12~30VDC

Working current

150mA

Working temperature

0℃~45℃ -10℃~55℃ (storage)

Relative humidity

40%RH~90%RH(working)


20%RH~90%RH(Storage)

Built-in card reader

IC type: 13.56M, MIFARE ONE or compatible card

Support users

no user limit, support 1000 groups of personal passwords

Add and subtract card method

computer add card, no user limit

External device port

electric lock (including relay output and level output)

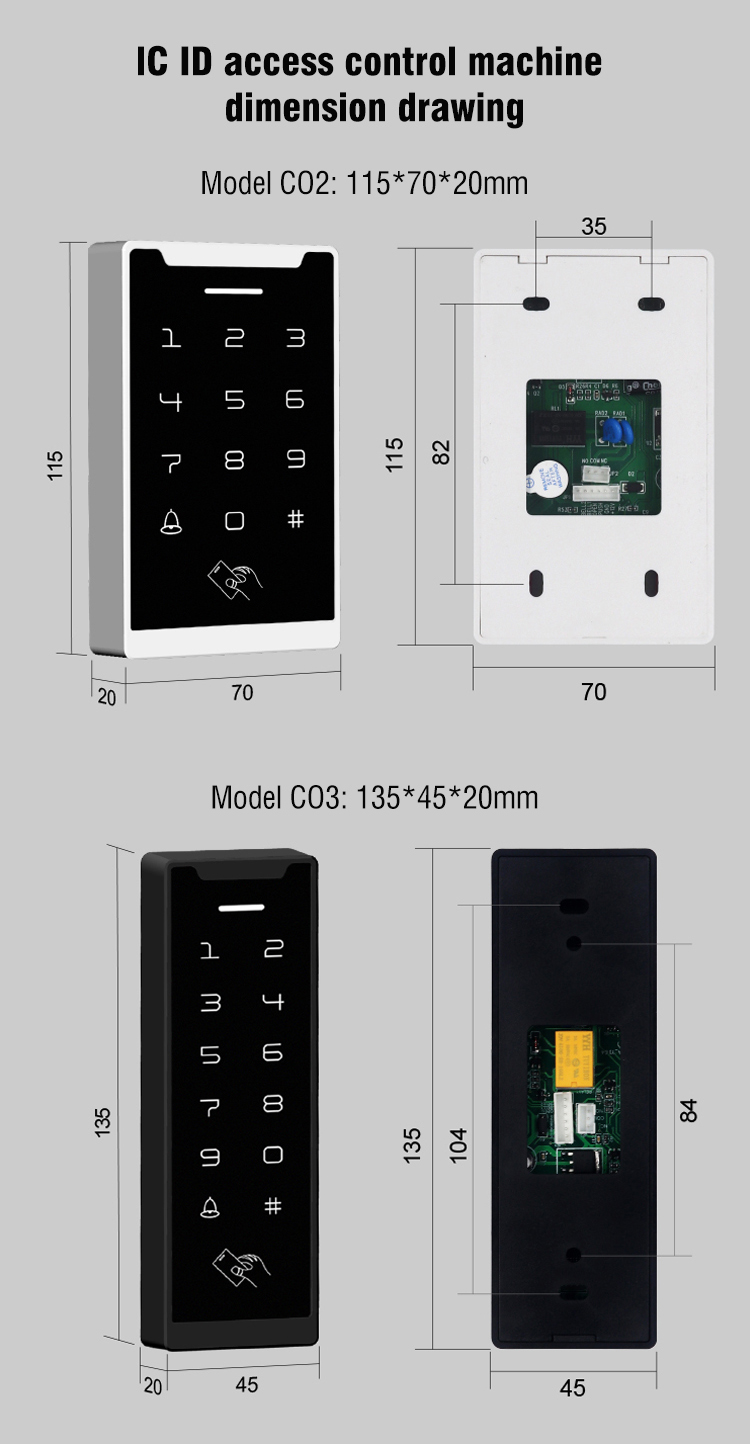

Dimensions

135*45*20mm


RFID Door Access Control System

RFID Door Access Control System


1671006324156RFID Door Access Control System155.jpg

RFID Door Access Control System

S4A Datasheet_RFID Card Password Standalone Access Control Keypad For Door Entry Security System
