> Card type: EM or MF Card
> Metal structure design, anti-vandal

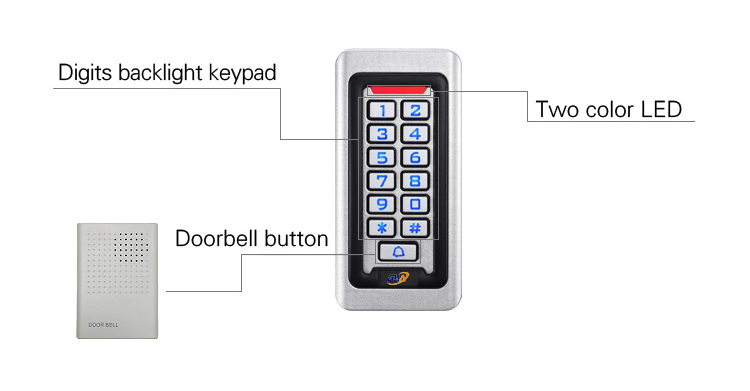

> Digital backlit keyboard
> All-in-one, WG26 output/input
> Three-way to open the door, card, password, card + password

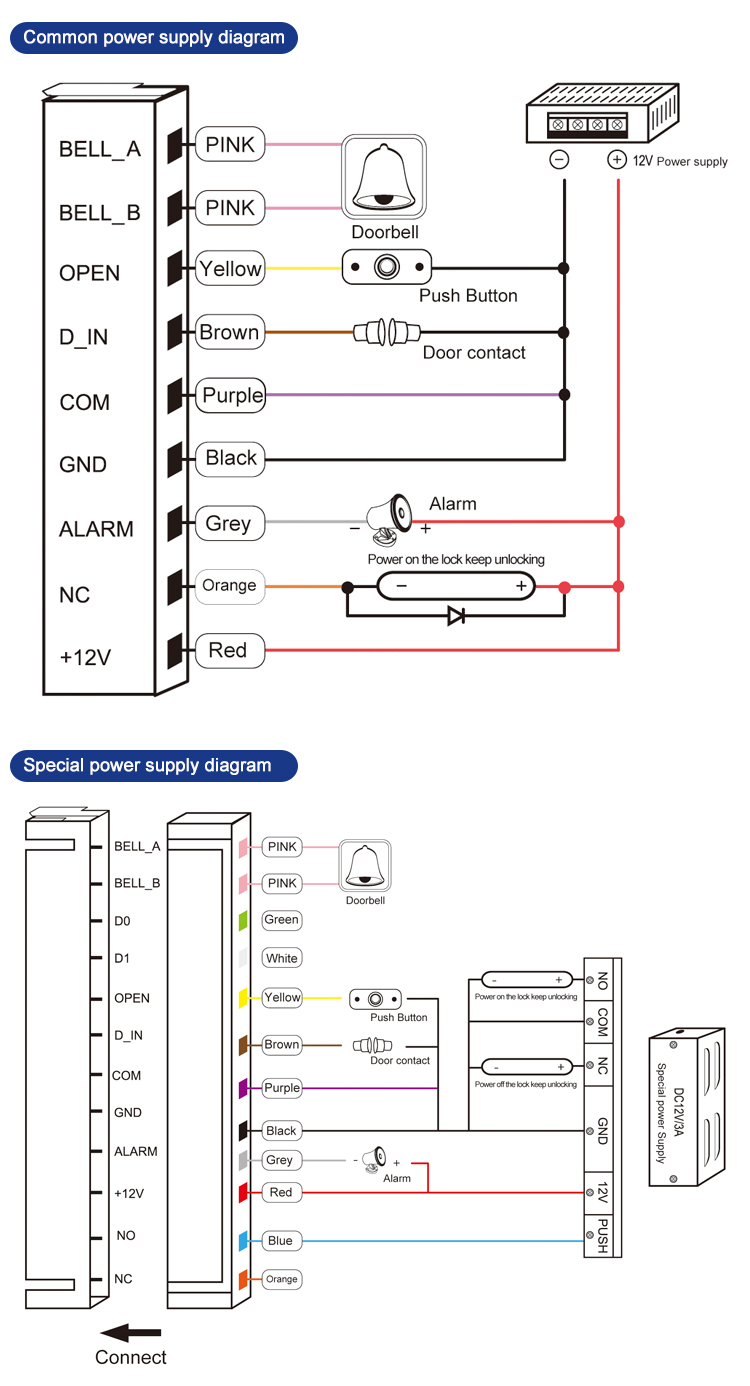

> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Brand:
S4AItem NO.:
S602Metal Standalone Access control
Model No.: S602 EM, MF
Card type | EM or MF |
Waterproof degree | Non-Waterproof(S602) / IP68(S602-W) |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

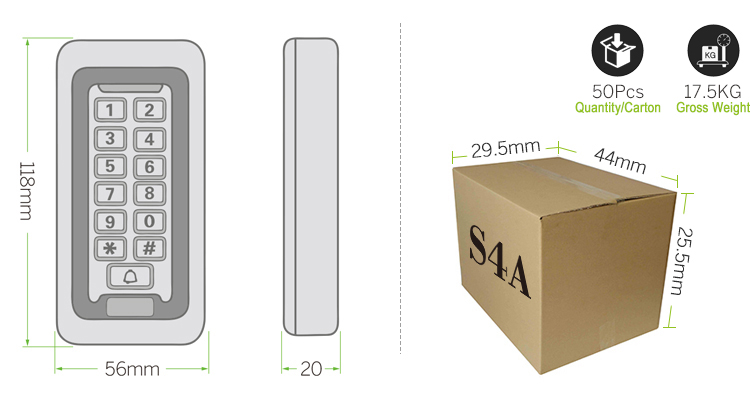

Dimension | 118*56*20mm |

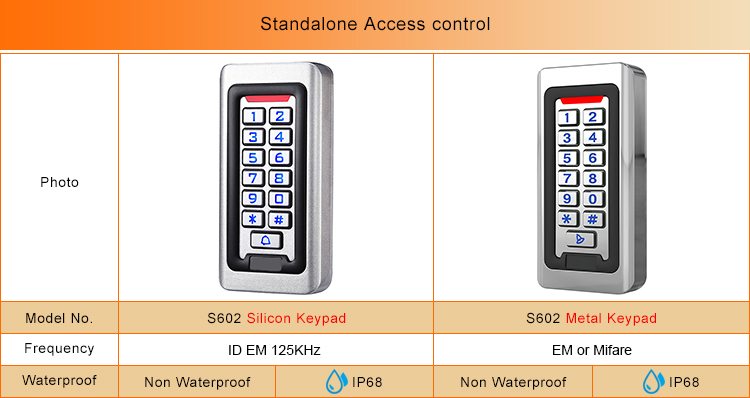

RFID 125KHz Standalone Access Control with Keypad | ||||
Model No. | Keypad | Quantity/Carton | Gross Weight | Carton Size |
S602EM | Metal Keypad | 50pcs | 17.5KG | 44x29.5x25.5cm |
S602MF | ||||
S602EM-W | Metal Keypad | 50pcs | 20KG | |
S602MF-W | ||||
S602EM | Silicon Keypad | 50pcs | 16.5KG | |
S602EM-W | Silicon Keypad | 50pcs | 20KG | |
S4A User Manual S602_Standalone RFID Access Control for Office
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
