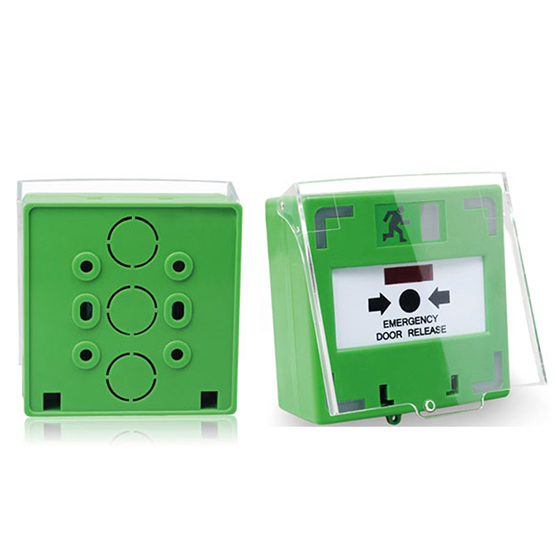

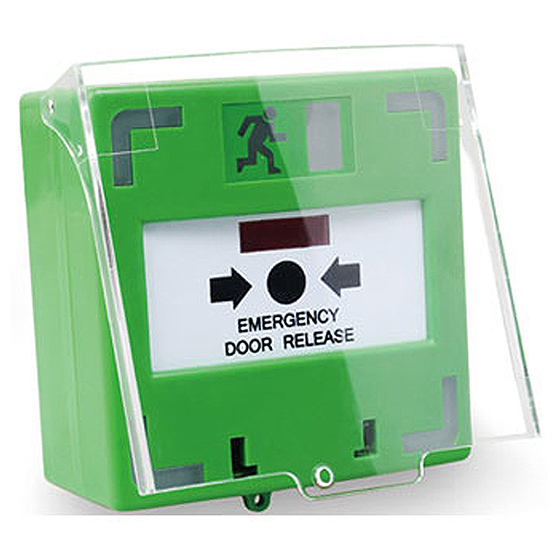

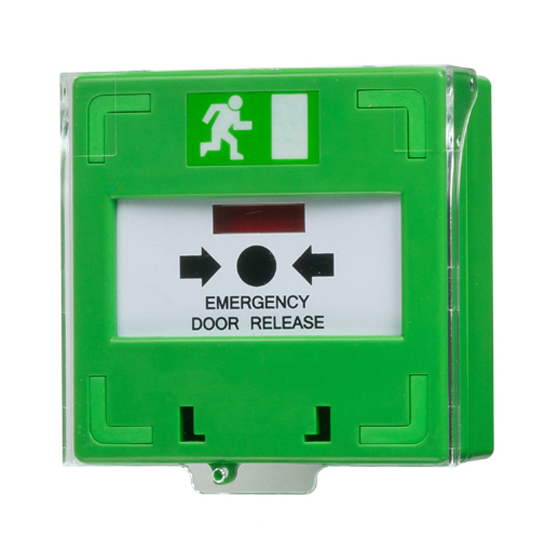

Resettable Switch Call Point
Model No: EB-20G

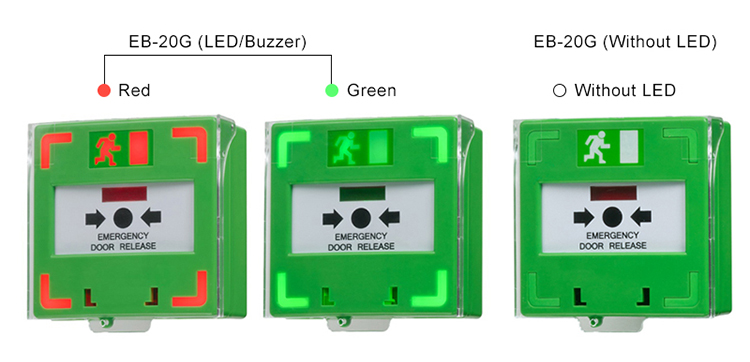

| Model No. | EB-20G (LED/Buzzer) | EB-20G (Without LED) |
Power Supply | DC 12V ~ DC 24V ±5% | X |
Operation current | DC 12V: 18mA(standby) / 75mA(operation) ±5% | X |
DC 24V: 11mA(standby) / 41mA(operation) ±5% | ||
Buzzer | Set as silent, interval buzzing, or continuous buzzing. | X |
Indicator | Dual-color (red and green). | X |
Red indicator to set blinking, off or on. | ||
Output | N.O. 、N.C & COM. Output (Maximum load of 125V/3A) | |
Material | ABS, PC | |
Dimensions | 90L x 93W x 45H (mm) | |
Weight | 208g | 192g |
Features
> Red or green case to select (it is suggested to select a red case for the fire alarm system and the green case for access control system).
> Resettable design, EB-20G obvious indicators around the edges of the unit.

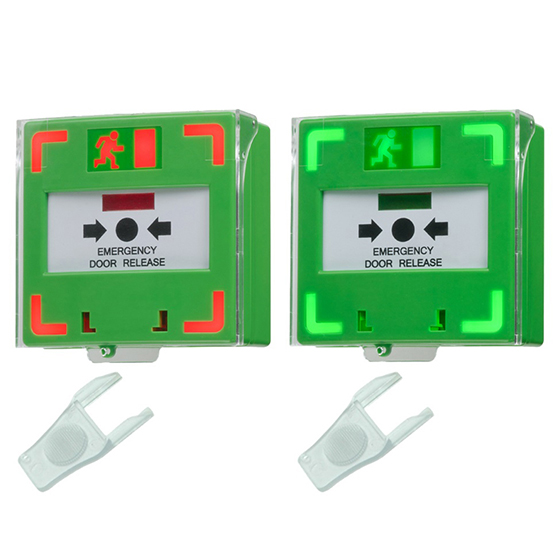

> Press the pressing plate to set the red indicator.
> Pressing plate with status (green and red) shown.

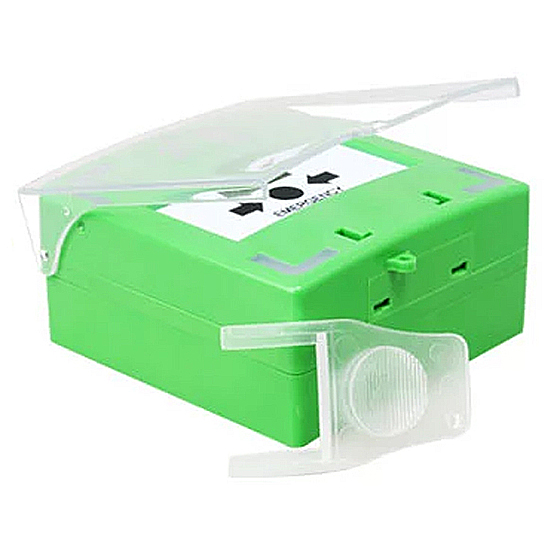

> Reversionary key with non-slip design.
> Input power range from DC12-24V to connect with all types of fire alarm systems.
> Built-in buzzer status to set as silent, interval wailing, or continuous wailing. The Volume is adjustable.
> Easy to assemble, the outer case without screws, 3 sets of output points to connect other equipment, embedded or surface installations to select.
Resettable Switch Call Point | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EB-20G | 48pcs | 9.6KG | 45x33x24cm |
