Categories
4mm Thick Aluminium Alloy (CNC), NO/NC/COM/+12/GND
Brand:
S4AItem NO.:
EB-NT86ARemote control support touchless door release push button
Model No: EB-NT86A
| Product Parameter | Parameter Description |
| S4A Model | EB-NT86A |

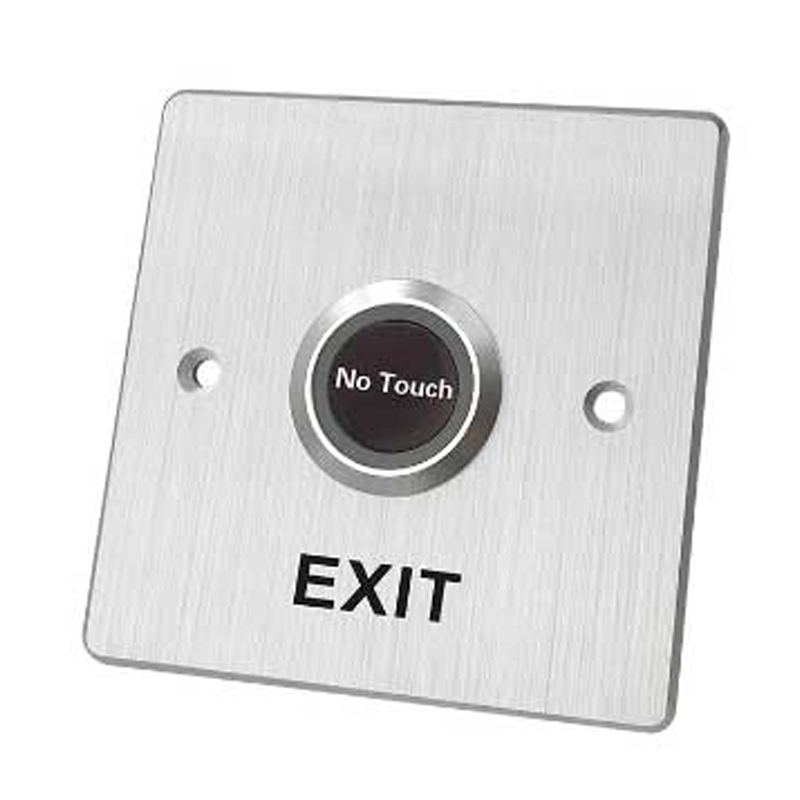

| Product Name | Infrared Sensor Exit Button |
| Material | 4mm Thick Aluminium Alloy (CNC) |

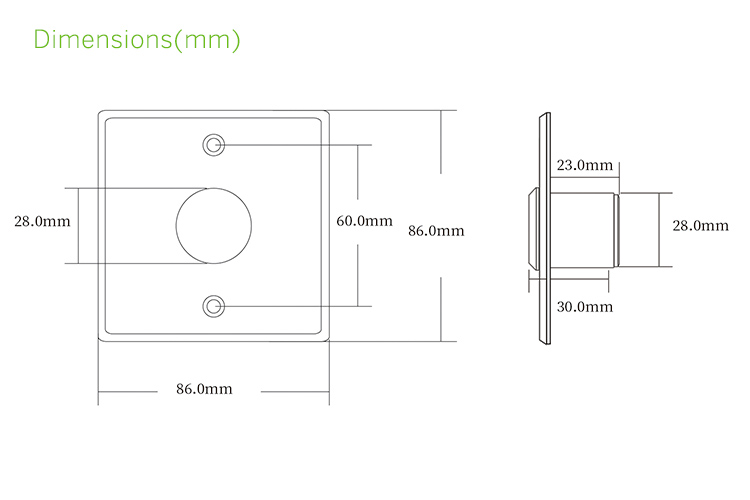

| Dimensions | 86Lx86Wx25H(mm) |
| Contact Rating | 12-24V,3A |
| Power | 12VDC & 24VDC |
| Sensor distance | 5-10CM |
| Output | NO/NC/COM/+12/GND |
| Mechanical Life | 500,000 Tested |
| Operating Temp | -20℃~+55℃(14-131F) |
| Operating Humidity | 0-95%(relative humidity) |
| LED Indicator | Blue LED Indicator (Standby) |
| Green LED Indicator (Sensation) | |
| Suitable for Door | Hollow Door |
| LOGO | S4A customizable |
| Unit Weight | 0.12KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 12.5KG |
| Carton Size | 51*45*24cm |
Dimensions: 80x80x28mm
Dimension: 115x40mm
Dimension: 115x40mm
Dimensions: 86x86x11.5mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
