> ID 125KHz Cards+QR code (Wiegand 26/34output)
> Built-in TCP/IP and USB port
> Material: PC and Tempered glass
> Voltage: 4~15V

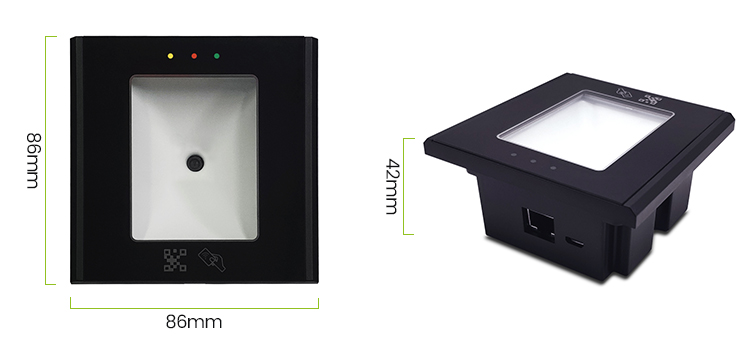

> Dimension: 86x86x42mm
Brand:
S4AItem NO.:

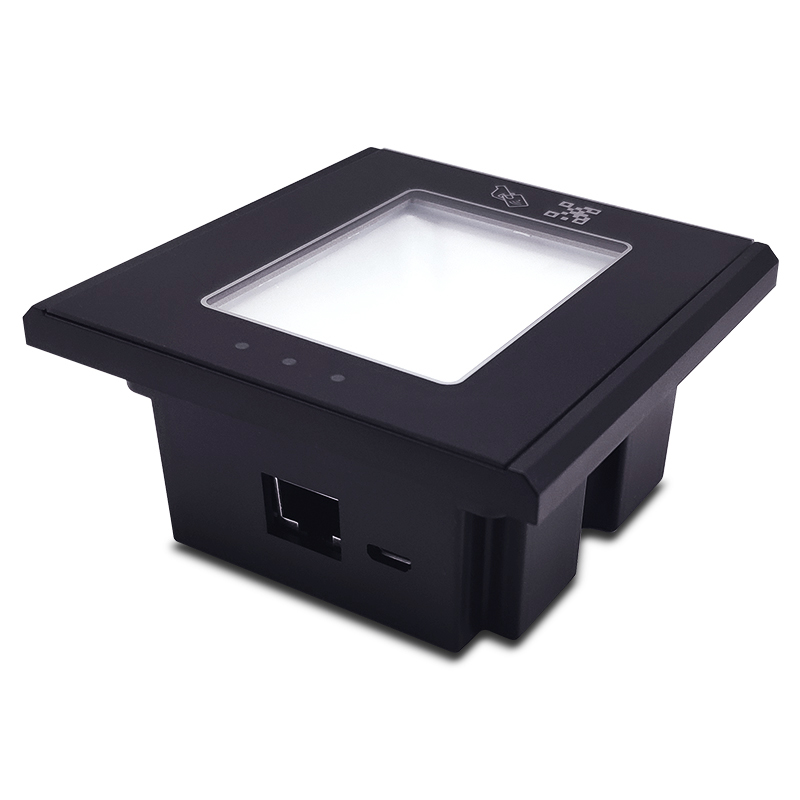

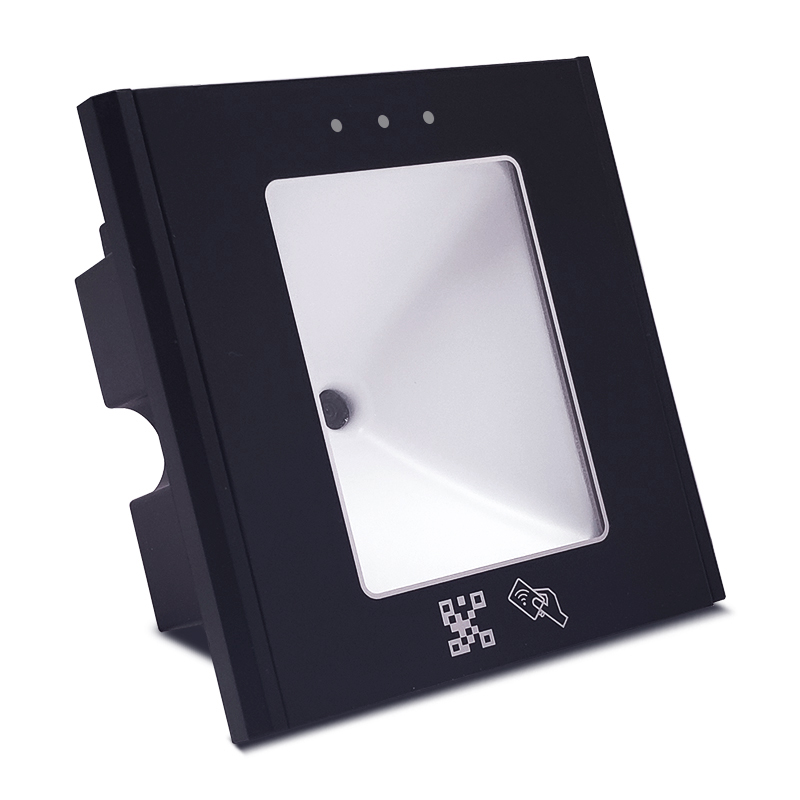

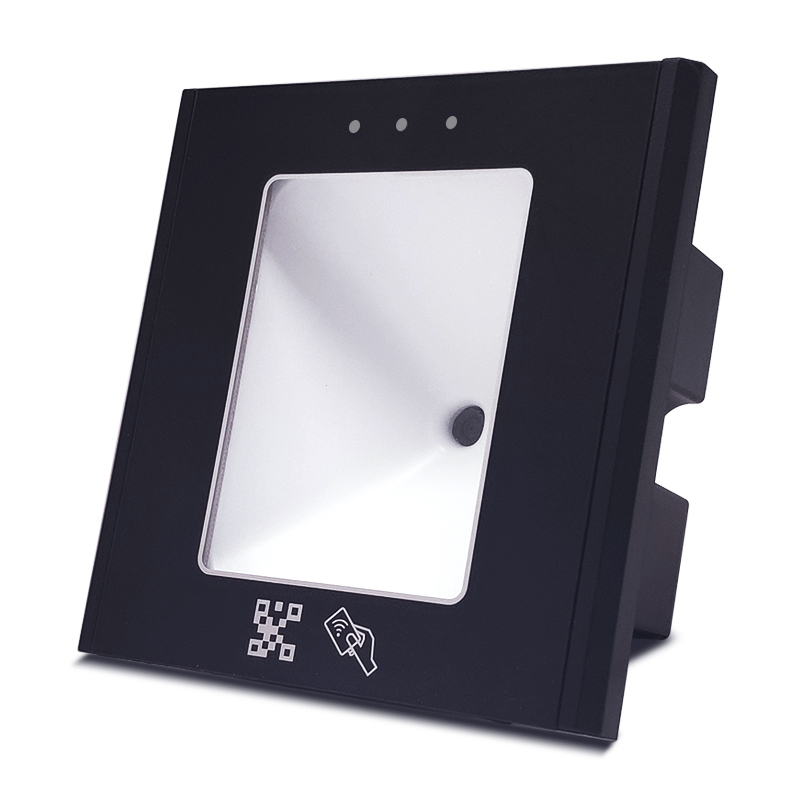

QR-86RS232/EM 125KHz QR Code Reader and QR Code Scanner
Model No.: QR-86 (ID+RS485)

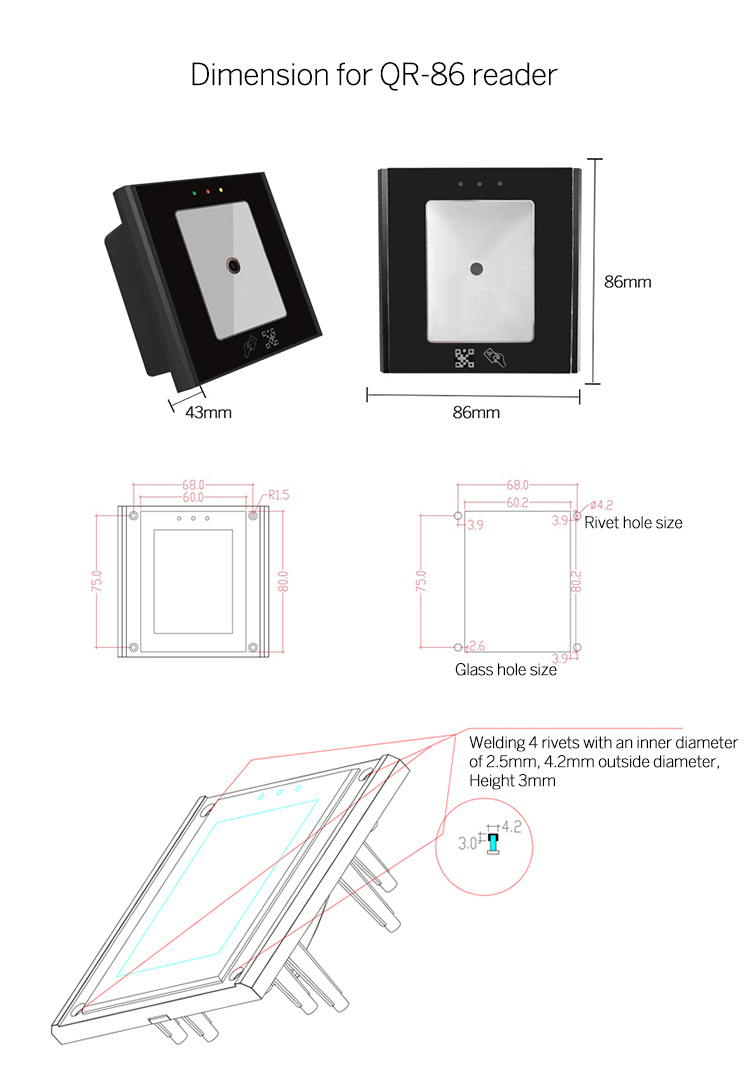

Dimension | 86L X 86W X42H (mm) |
Material | PC and Tempered glass |

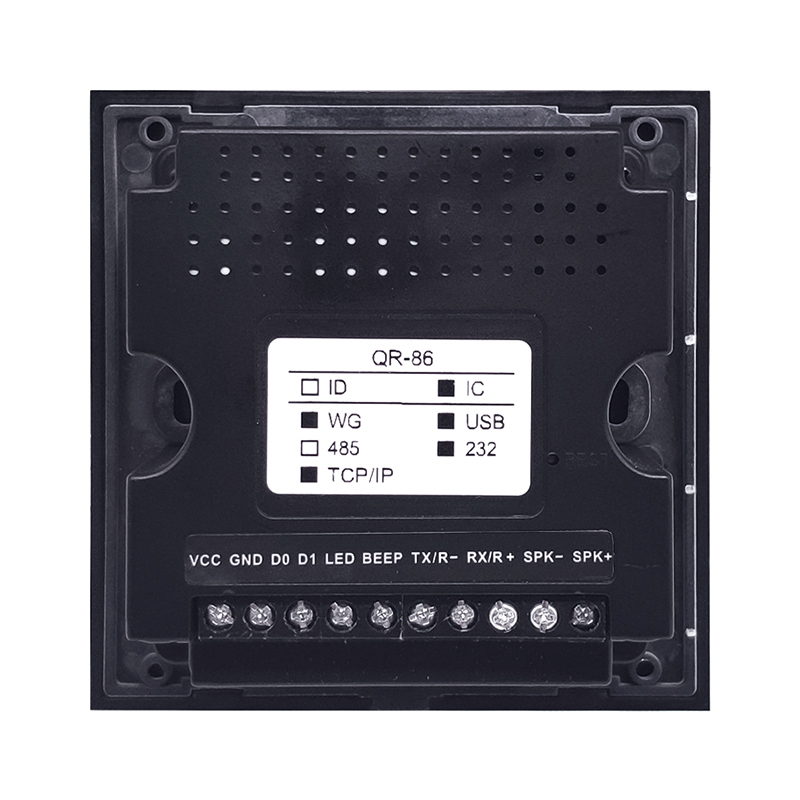

Interface | Wiegand26/34, RS485, RS232, USB, TCP/IP optional |
Decoding support | QR and One dimensional code |
Voltage support | 4~15V Wide voltage input |
Current | 800mA |
Reading directions | Camera centric slant 45° |
Reading speed | <200ms |
Reading range | 0~20CM |
Reading feature | Auto-induction, beep hint |
Light source | With LED light source itself, Anti-highlight interference |
Decode mode | Image decoding |
Application environment | Temperature: -20°C~70°C |
Humidity | 10%~90% |
Operate system | Windows(XP7, 8, 10), Linux |
Indicating status light | Red-Work, Green- Feedback, Light Green-Internet |
Reading range | 3~6CM |
Reading card type | EM or Mifare card |
QR Code Scanner Barcode Access Control Reader | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
QR-86 | 50 PC | 8.3 KG | 50x21x39 CM |
100 PC | 16 KG | 59x49x24 CM | |
