Push button for gate door entry system

>Material: Fireproof

>Installation Mode: Surface Mount

>Input: DC12V

>Contact Rating: 3A/125-250VAC

>Output Contact: NO/COM

>Mechanical Life: 500000 tests

  • Brand:

    S4A
  • Item NO.:

    EB-PV8
  • Specifications
  • Package
  • Download

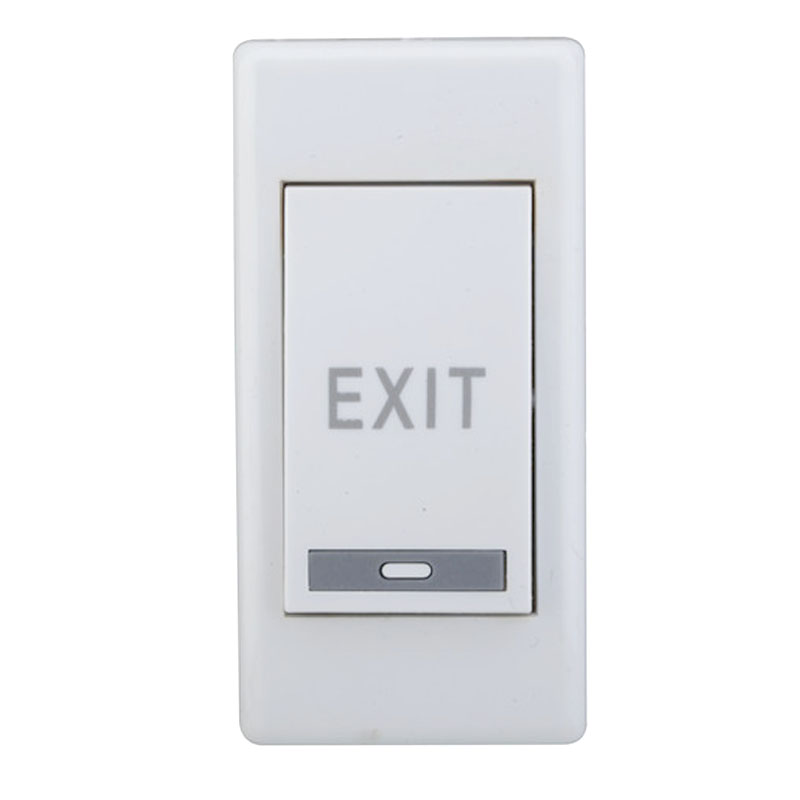

Push button for gate door entry system

Model No: EB-PV8


What is Door Release Button ?

Exit buttons are used when an internal handle is not suitable or the user cannot physically use the handle. Simple press the exit button and the door will release allowing free exit. Ideal for use on fire doors or any electronic locking solution that needs to offer a free exit option on the door.


How does emergency door release work?

The Emergency Door Release is designed to override the electrical locking/release devices, in the case of a loss of power to the emergency exits. It features a double pole that changes the contacts from normally closed (N/C) to normally open (N/O) so that the exits can function without power.


Product Parameter

Parameter Description

S4A Model

EB-PV8

Product Name

Mini Plastic Exit Button

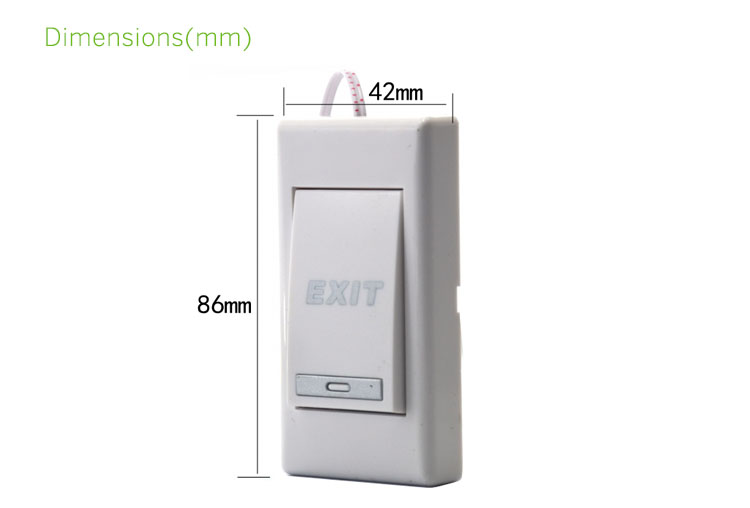

Dimensions

86Lx43Wx13H(mm)

Material

Fireproof

Installation Mode

Surface Mount

Input

DC12V

Contact Rating

3A/125-250VAC

Output Contact

NO/COM

Mechanical Life

500000 tests

Suitable for Door

Hollow Door

Operating temp

-20℃~+55℃(14-131F)

Suitable Humidity

0-95% (relative humidity)

Unit Weight

0.016KG

Standard Package

10PCS/Bags

Carton Weight

0.2KG


Push button

S4A_Datesheet_Push button for gate door entry system
