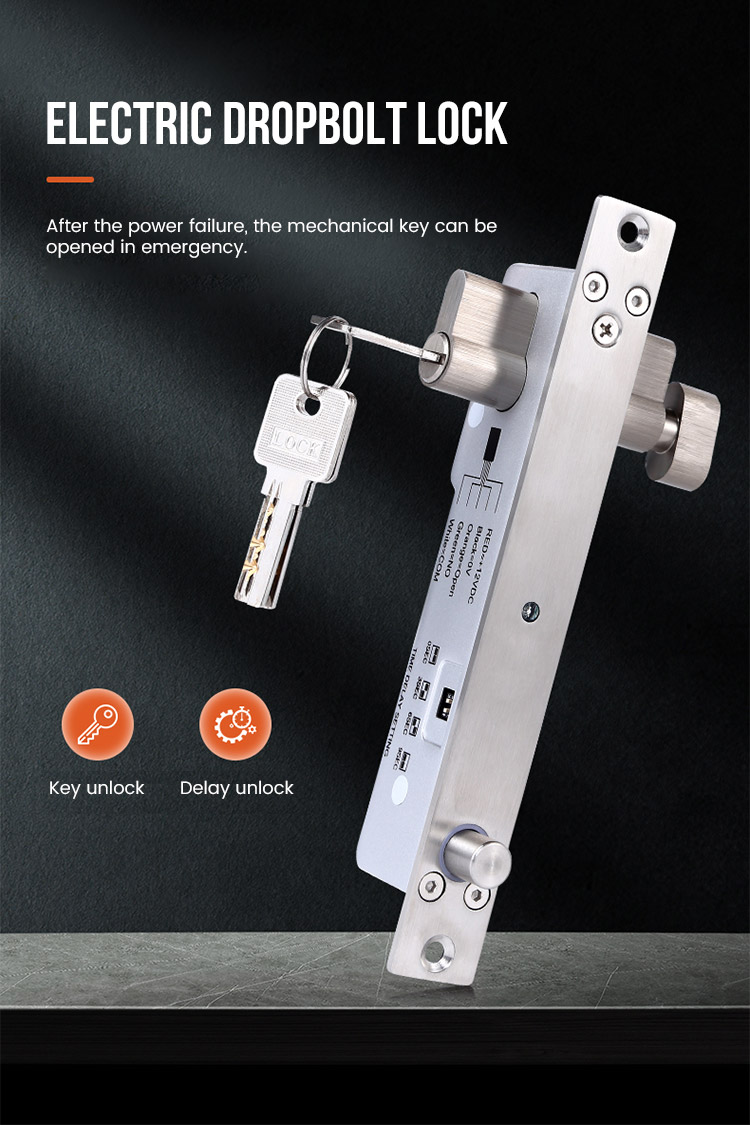

After the power failure, the mechanical key can be opened in emergency.
> Working voltage: DC12V ±10% (DC24V ±10%)

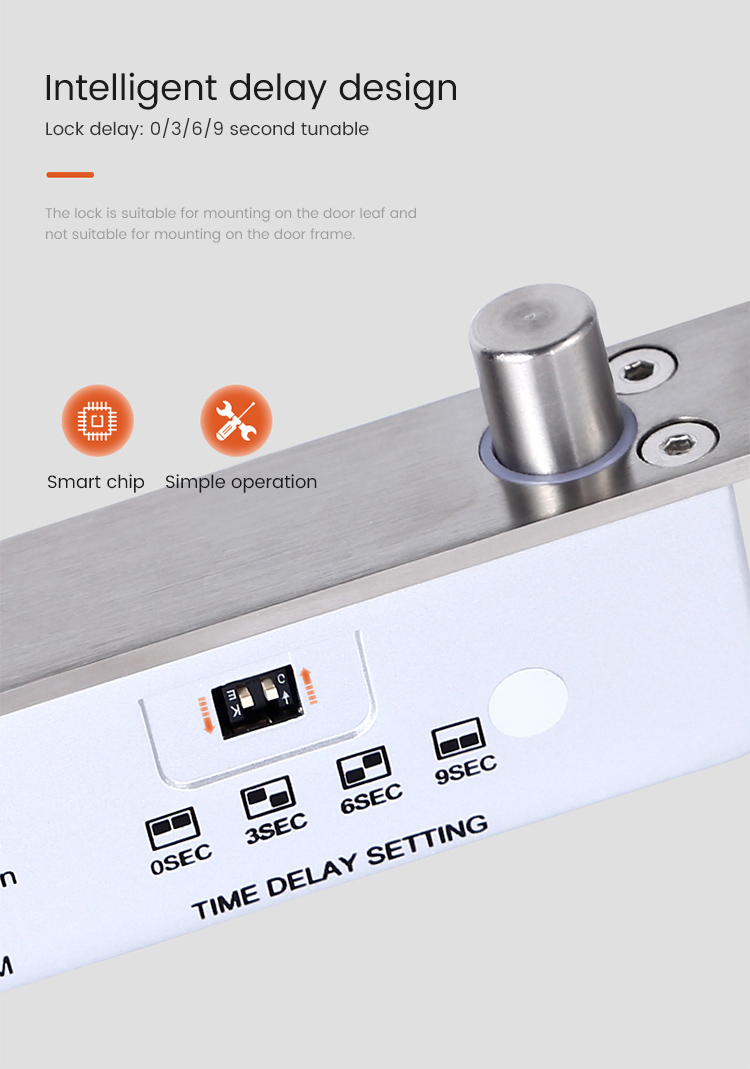

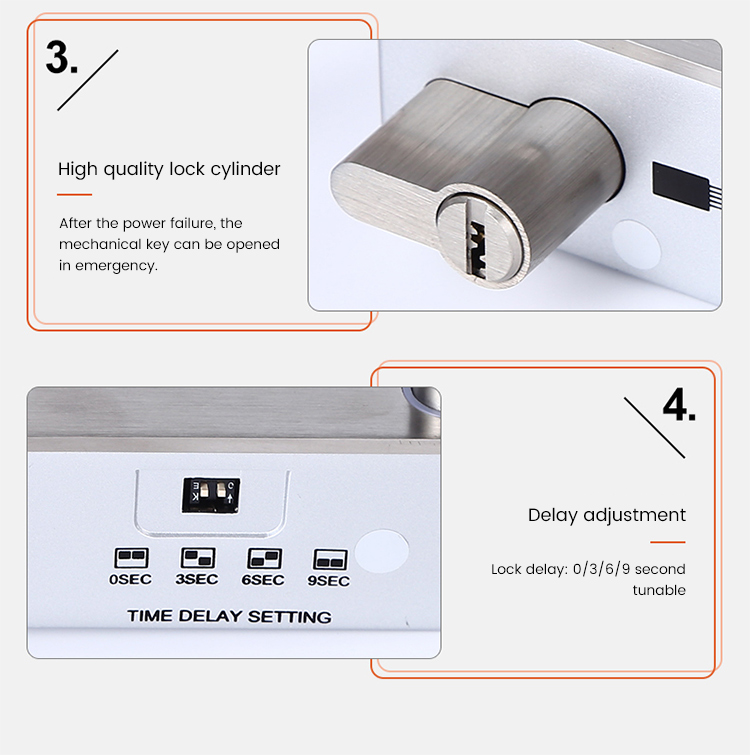

> Lock delay: 0/3/6/9 second tunable
> Working current: Starting current 1000mA working current 140mA
Brand:
S4AItem NO.:

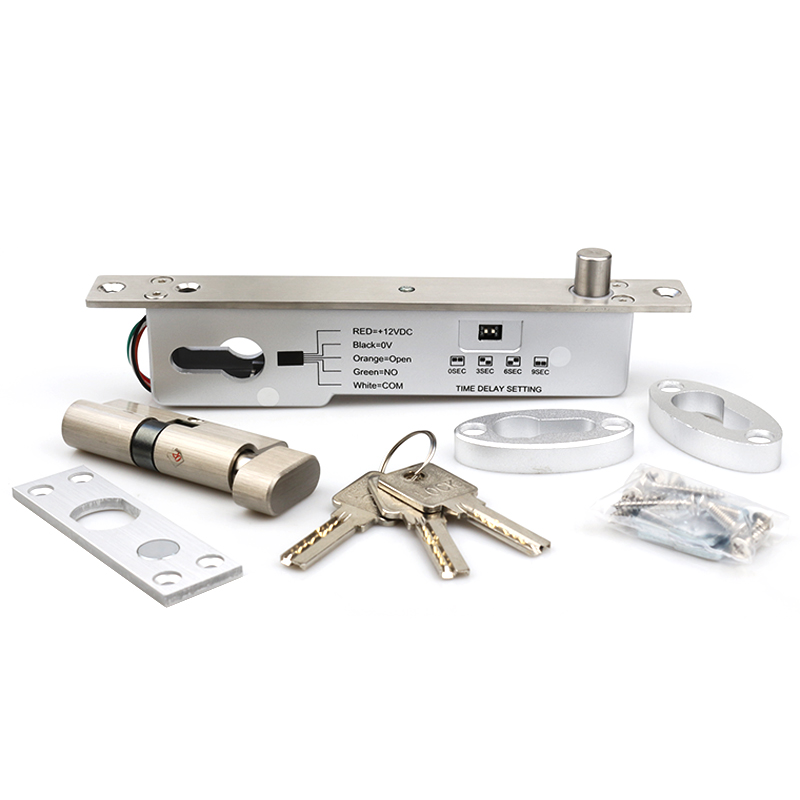

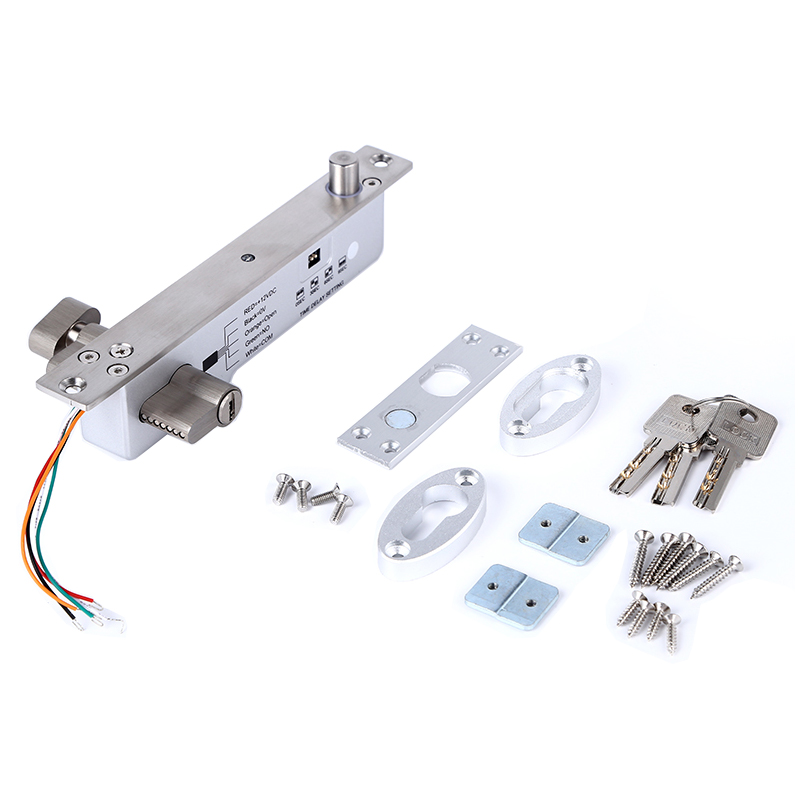

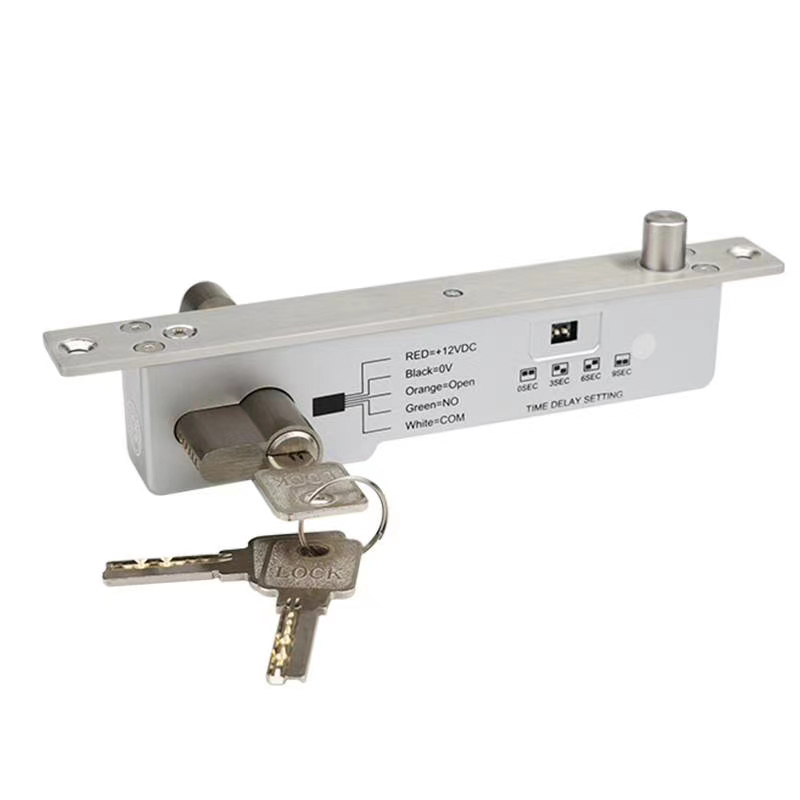

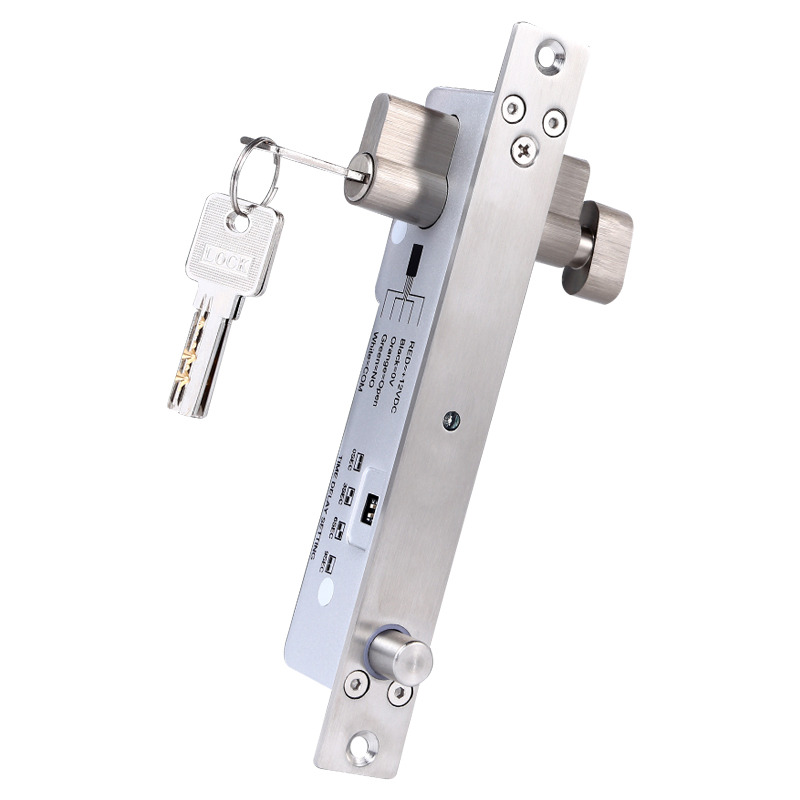

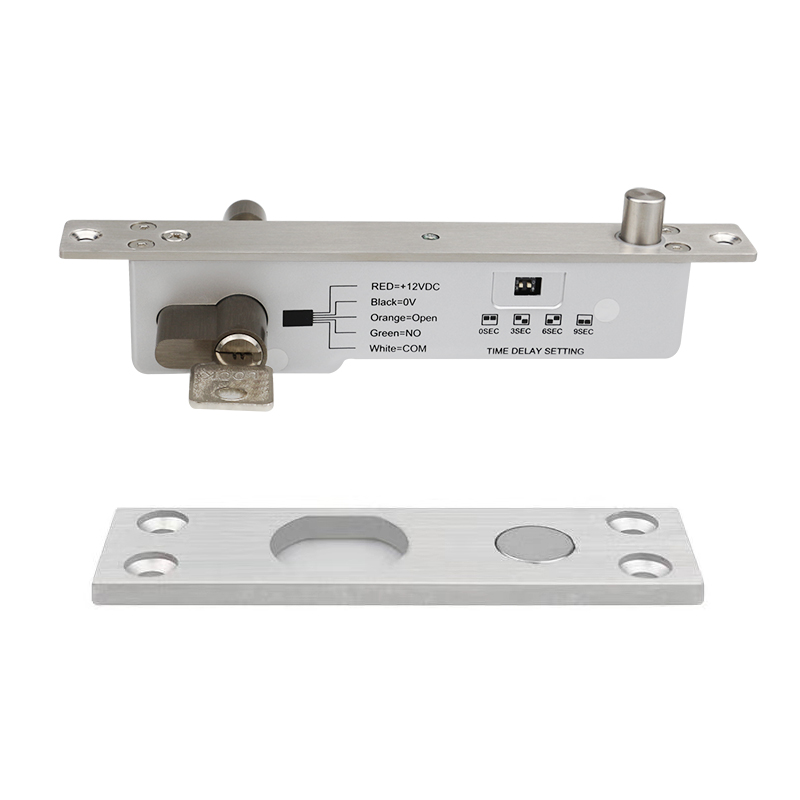

BL-160EPower on to Open the Key Electric Mortise Lock
Model No.: BL-160E

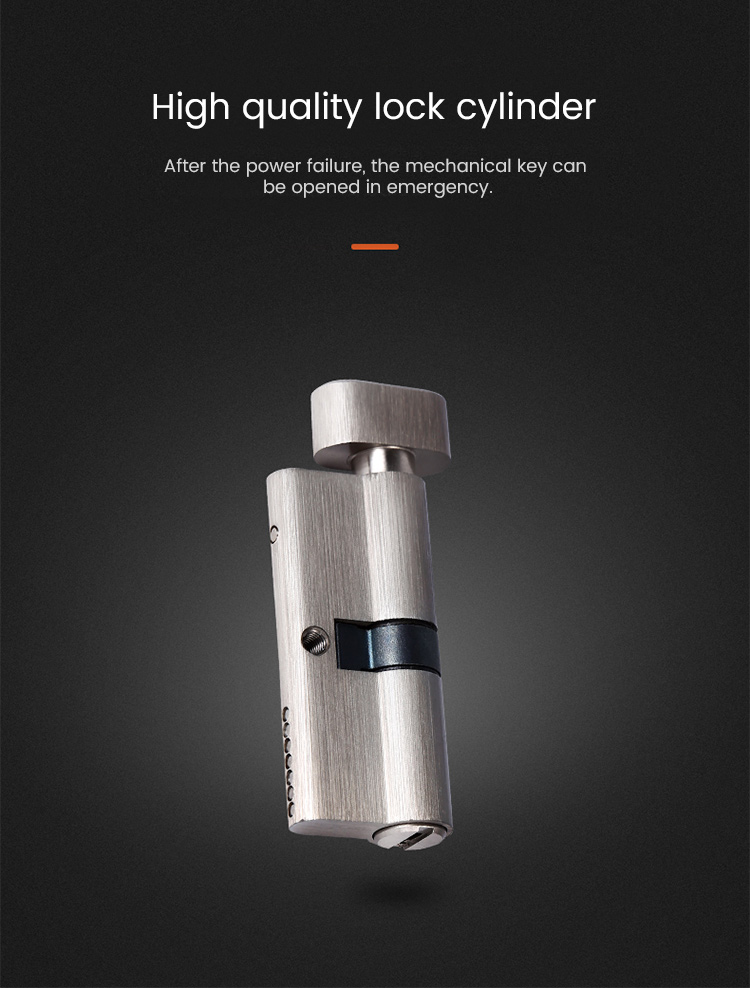

After the power failure, the mechanical key can be opened in emergency.
The operating voltage is 12VDC
Working voltage | DC12V ±10% (DC24V ±10%) |
Working current | Starting current 1000mA working current 140mA |
Lock delay | 0/3/6/9 second tunable |
Lock tongue size | 12.6mm stainless steel lock tongue with extension length of 15mm ±1 mm |

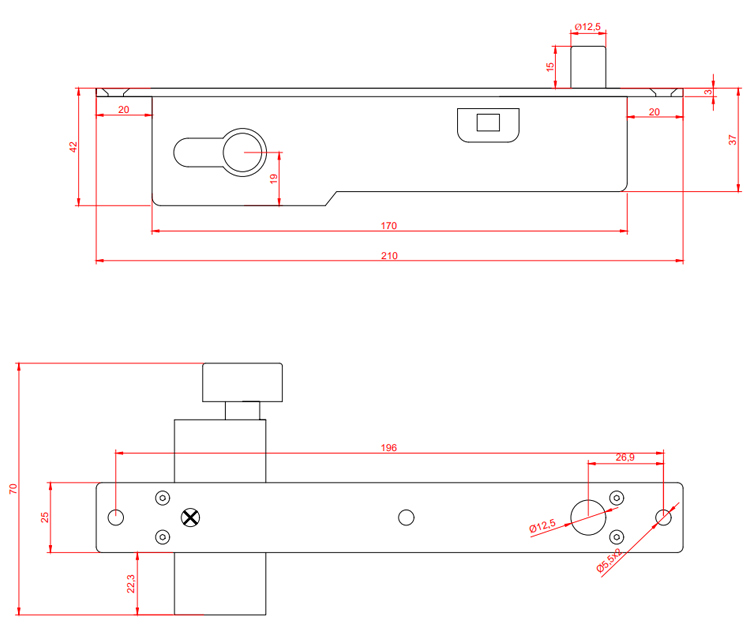

Panel size | 210L*25W*3H (mm) |
The size of the lock | 170L*24W*34H (mm) |
The size of the latch plate | 90L*25W*3H (mm) |

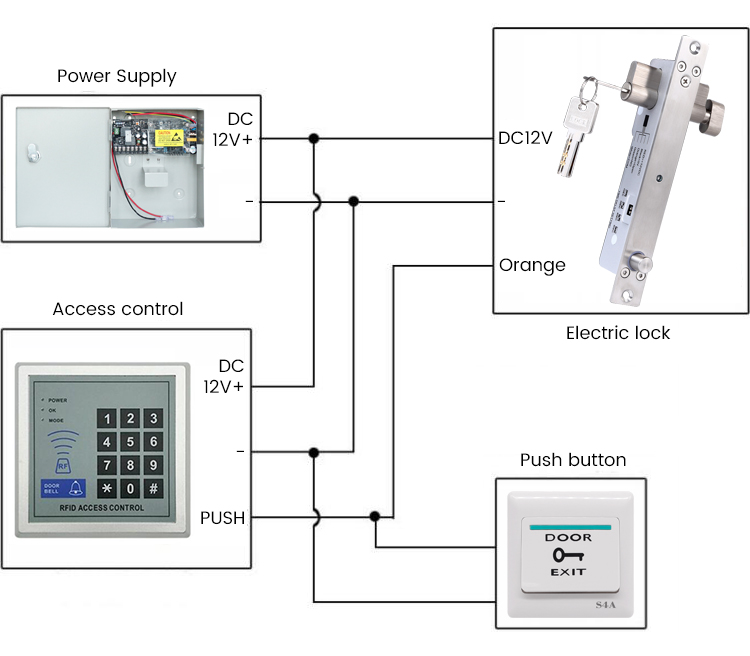

Unlocking mode | Black line (negative electrode) and orange line are short to open, lock, LED display, latch state display, lock tongue retraction is red, lock tongue is green when extended. |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
