>Working voltage: 12~30VDC
>Working current: 150mA
>Working temperature: 0℃~45℃ -10℃~55℃ (storage)
Brand:
S4AItem NO.:

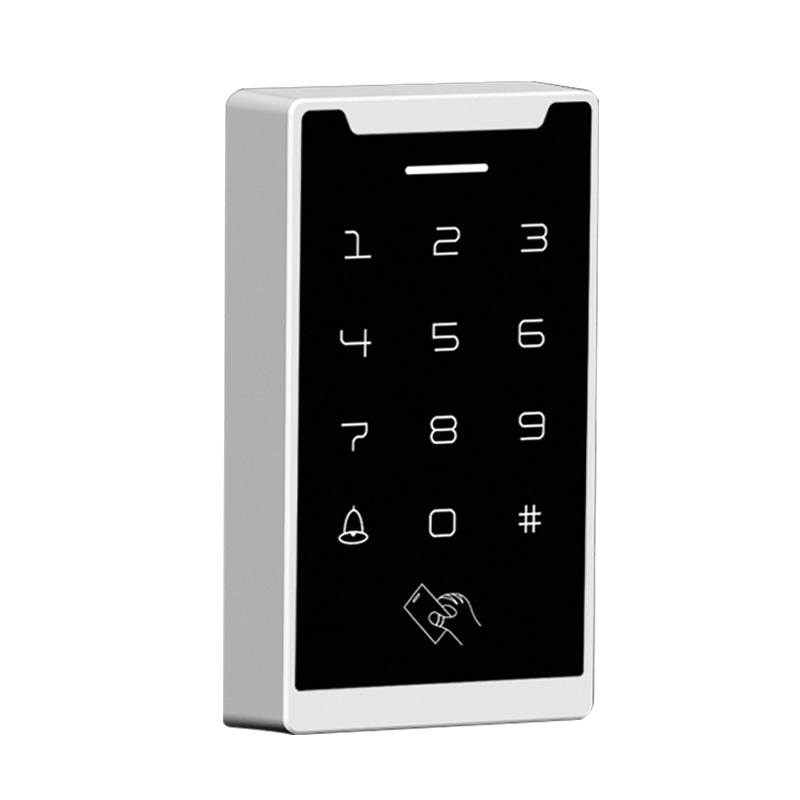

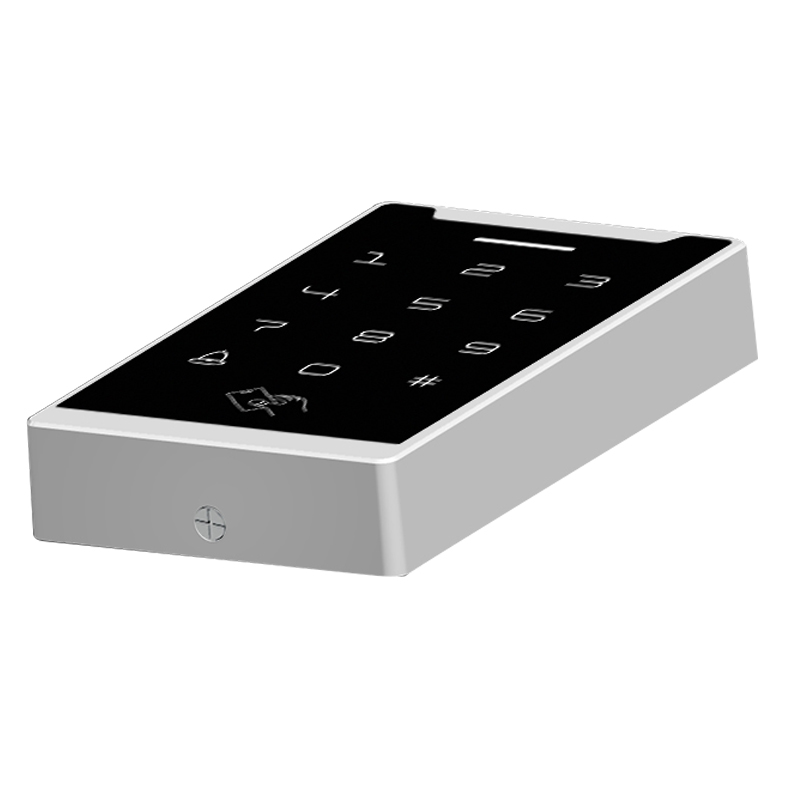

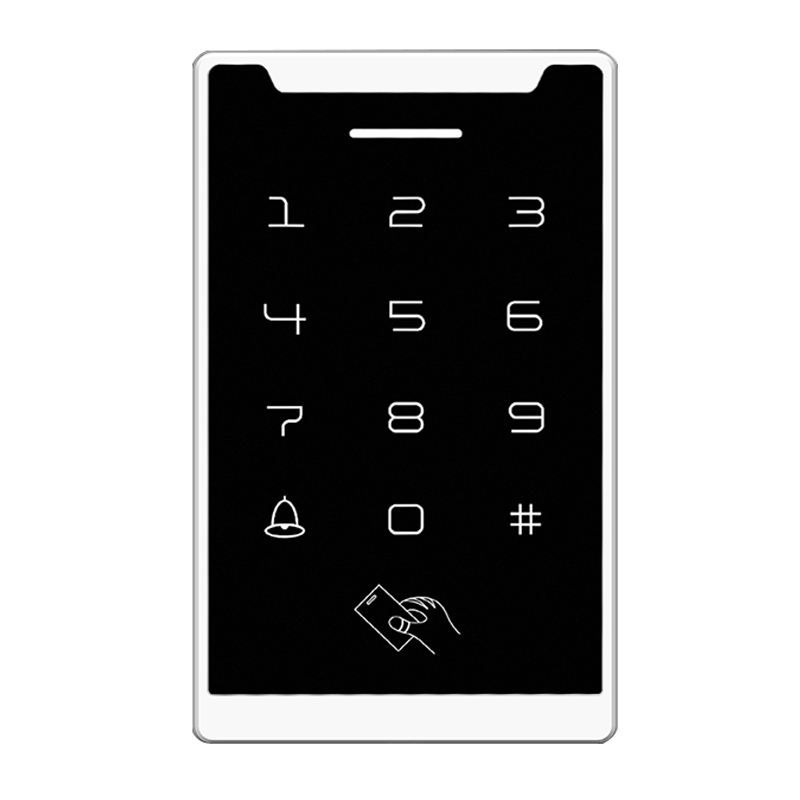

S4A-C02PIN & Prox Standalone Controller 12V and 1000users
Model No.: S4A-C02
What is Standalone Access Control Keypad Access Controller?
For standalone access control systems, all electronics are installed in a keypad or reader - there are no additional components or peripherals, including extra wiring, routers, sensors and alarms.
What is standalone access control?
Standalone access control is usually one or two small units wired directly onto a door panel to control access to the door. There is no need for a PC network and you don't have to secure every single door within your building, only those you wish to.
Item model number | S4A-C02 |
Working voltage | 12~30VDC |
Working current | 150mA |
Working temperature | 0℃~45℃ -10℃~55℃ (storage) |
Relative humidity | 40%RH~90%RH(working) |
20%RH~90%RH(Storage) | |
Built-in card reader | IC type: 13.56M, MIFARE ONE or compatible card |
Support users | no user limit, support 1000 groups of personal passwords |
Add and subtract card method | computer add card, no user limit |

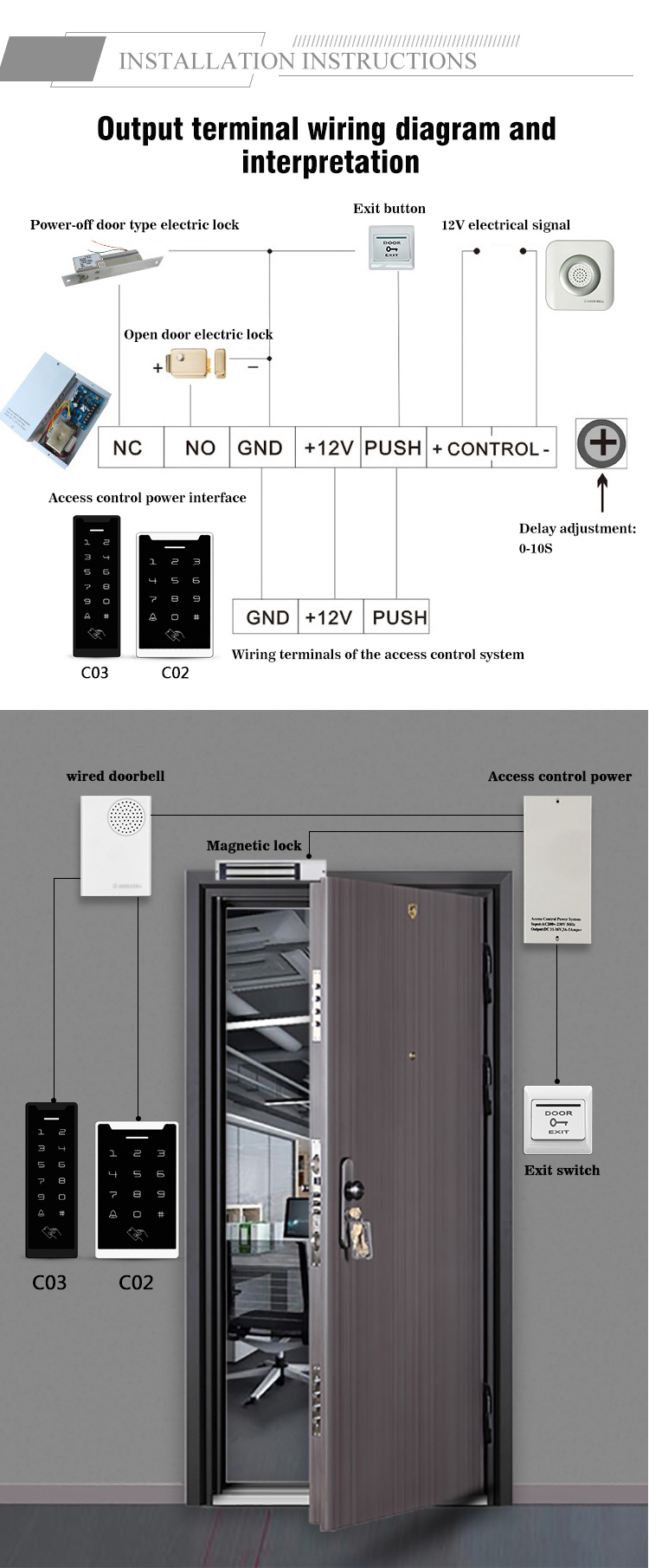

External device port | electric lock (including relay output and level output) |

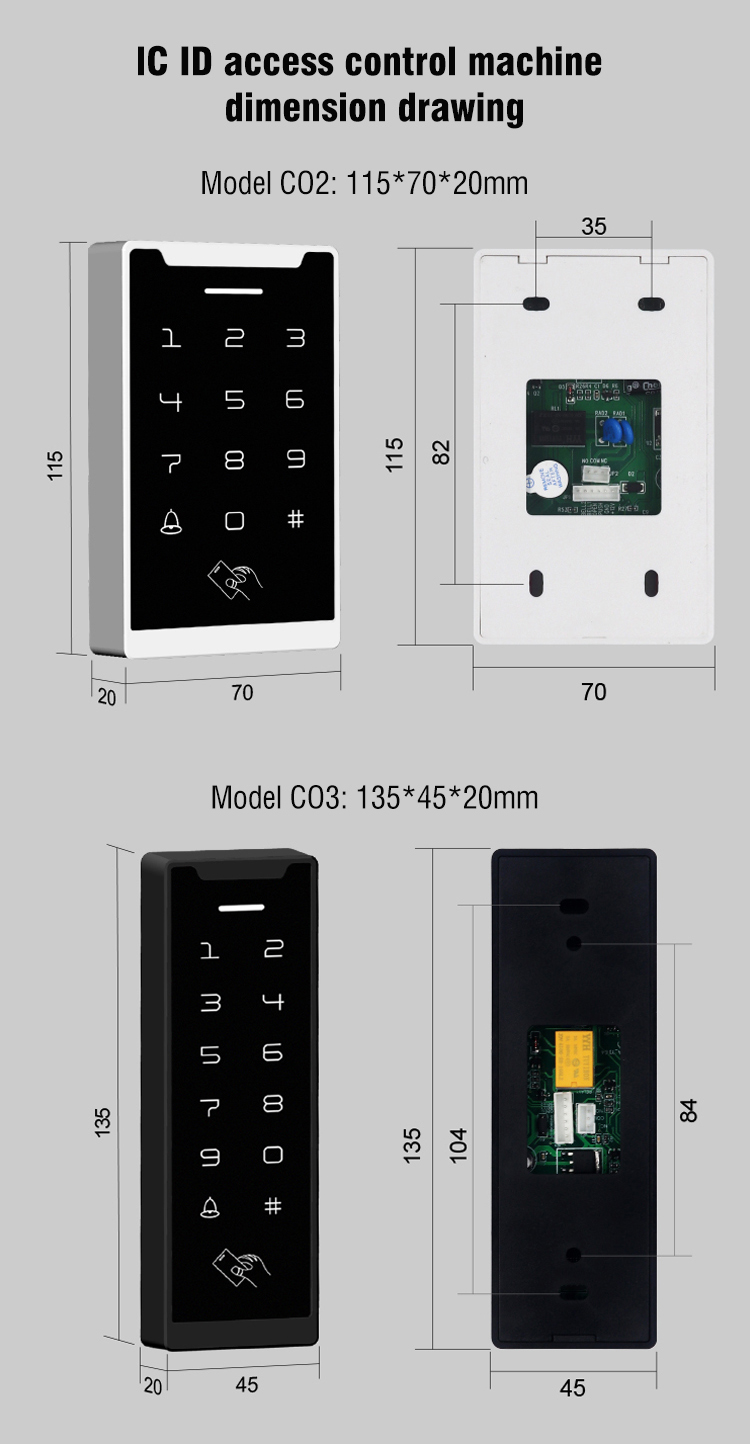

Dimensions | 115*70*20mm |
S4A Datesheet_PIN & Prox Standalone Controller 12V And 1000users
> Card Type: EM Card> Storage: 4000 users> Working frequency: 125KHz> Operating voltage: DC12V> Wiegand 26 Input and Output
> Card Type: EM Card> Storage: 4000 users> Working frequency: 125KHz> Operating voltage: DC12V> Wiegand 26 Input and Output
> Card Type: MF or MF Card> Waterproof degree: IP65> Capacity: 1000 user> Working frequency: 125KHz or 13.56MHz> Wiegand Input and Output
> Card Type: MF or MF Card> Waterproof degree: IP65> Capacity: 15,000 users> Working frequency: 125KHz or 13.56MHz
> Card Type: MF or MF Card> Operating voltage: DC12V±10% > Capacity: 1000users > Card Type: EM or MF> Wiegand input
> Card Type: MF or MF Card> Support RFID+Pincode> Built-in doorbell> Touch-screen keypad> With WG 26input
> Card Type: MF or MF Card> 1000user capacity (Support RFID+Pincode)> Voltage: DC12V> Touch-screen keypad
> Card Type: MF or MF Card> Voltage: DC12V> User Capacity: 1000users> Wiegand input
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
