> Display: 2.0 inches
> Fingerprint Capacity: 3000
> Communication: USB, R485, TCP/IP, (Optional WIFI)
> Dimension: 185*64*47mm
Brand:
S4AItem NO.:

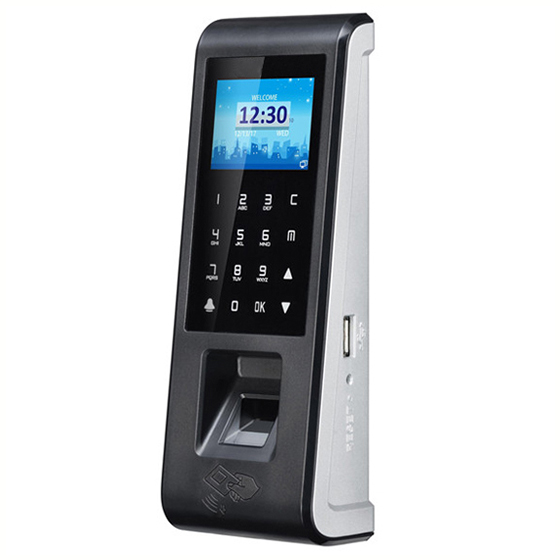

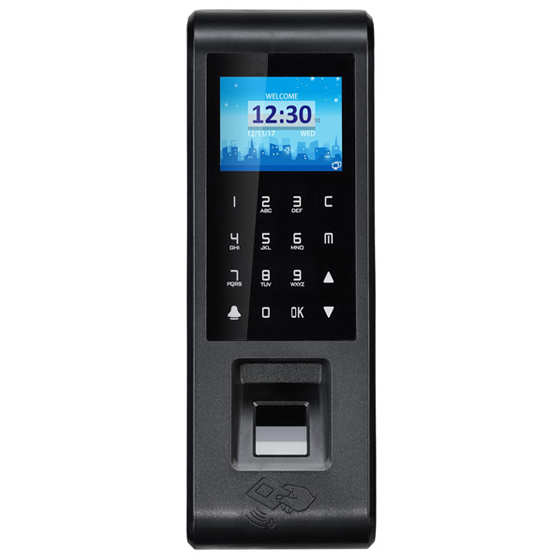

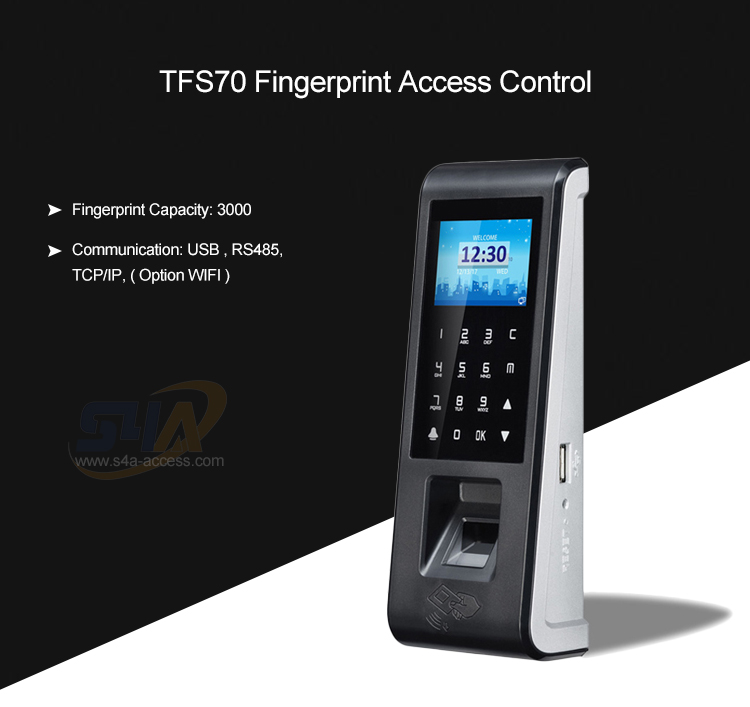

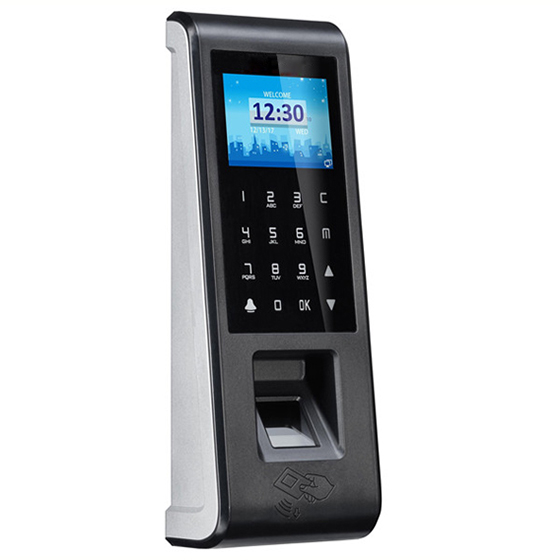

TFS70Password fingerprint access control all-in-one machine
Model No: TFS70
Product Advantages:
S4A Manufacturer TFS70 Biometric Access Control Cloud. with high steady and strong access control functions together. With the top algorithm to make sure the identification speed and rates, suits all company and buildings.
Products Features:
> Multiple identifications: fingerprint and card.

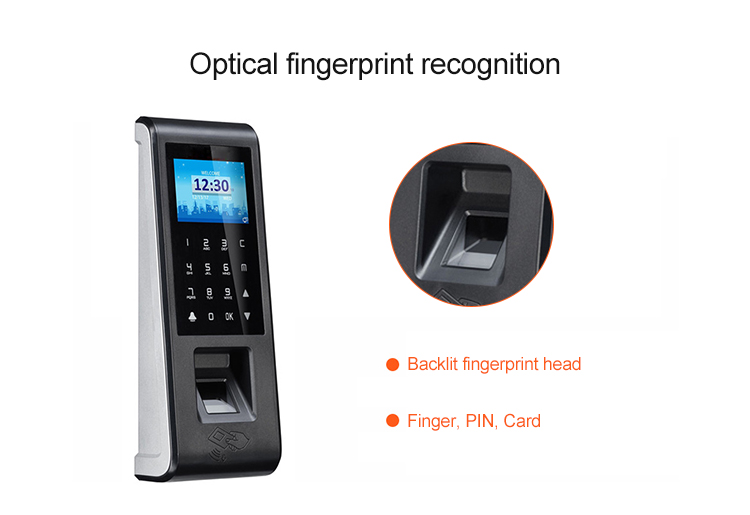

> 500 Dip hidden fingerprint sensor for dry fingerprint and strong sunshine.
> Wiegand in&out to combine with an access controller such as ACB-001, 002, 004, and RFID readers.
> Standard TCP/IP, RS485, USB for communication with computers and servers together.

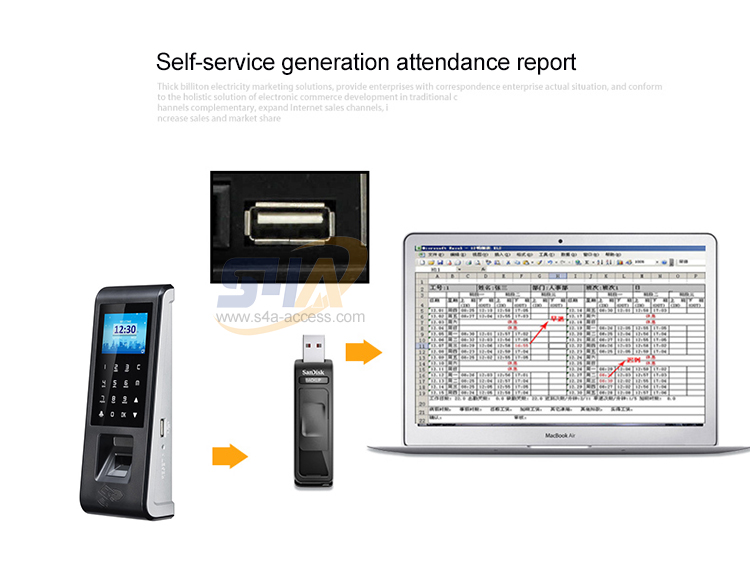

> With software management together for time attendance and access control.
> Lighted keypad for easier operation and use at night.
> Free SDK and Free software
> Two doors interlock function: A door opens, B door closed.
Card | ID (IC Optional) |
Fingerprint Capacity | 3,000 |
Card Capacity | 3,000 |
Record Capacity | 100,000 |
Display | 2.0 inches |
Identification Style | Fingerprint, PIN, Card |
Identification Speed | ≤1.0s |
Identification Mode | 1:N, 1:1 |
Power supply | DC12V 1A |
Communication | USB, R485, TCP/IP, (Optional WIFI) |

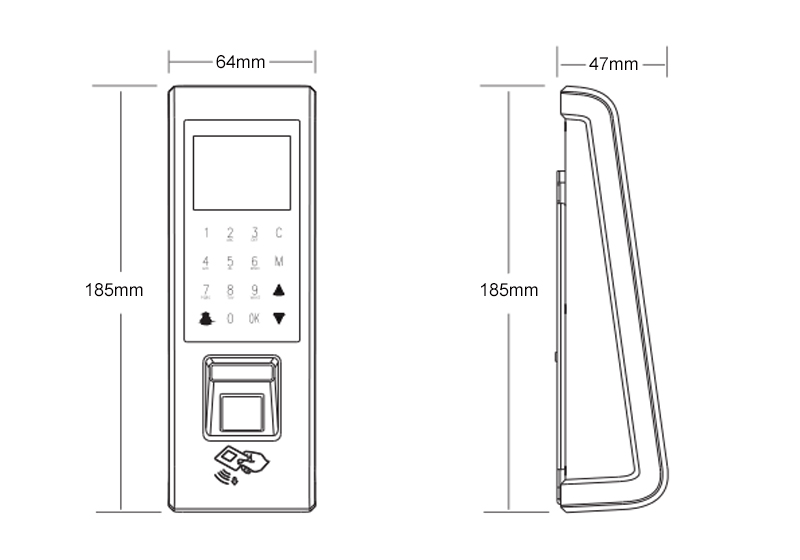

Dimension | 185*64*47mm |
Language | English, Spanish, Turkish, Arabic, Thai, Korean, and so on |
S4A User Manual TFS70_Password Fingerprint Access Control All-in-one Machine
