>Recognition time:<0.5S
>Charging current:5V/180MA
>Battery:Lithium battery 180mAh 3.7V
Brand:
S4AItem NO.:
S4A-L1Padlock with Fingerprint
Model No.:S4A-L1
| Product Parameter | Parameter Descr1ption |
| S4A Model | S4A-L1 |

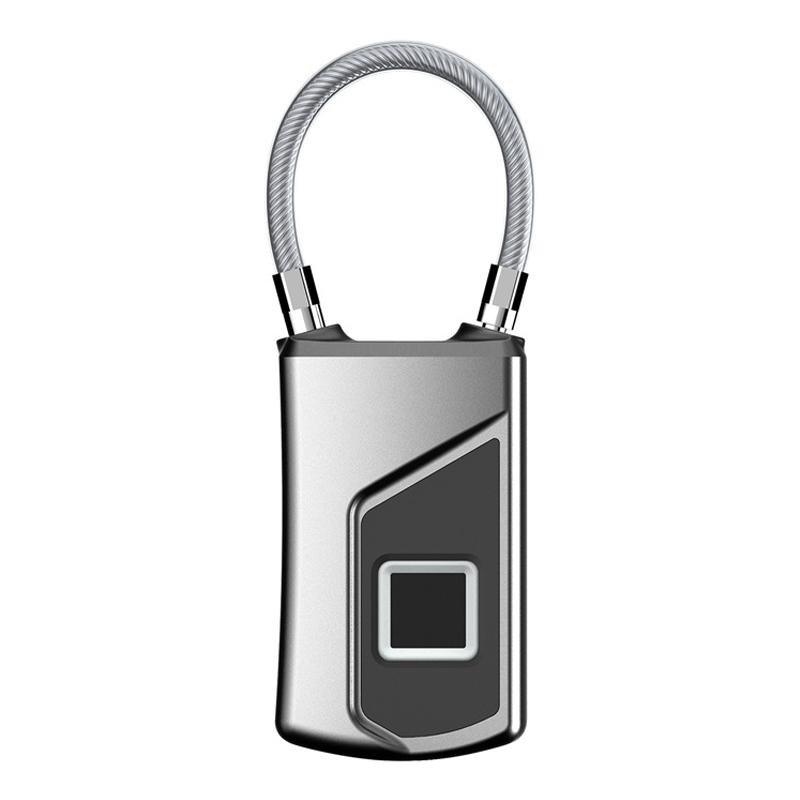

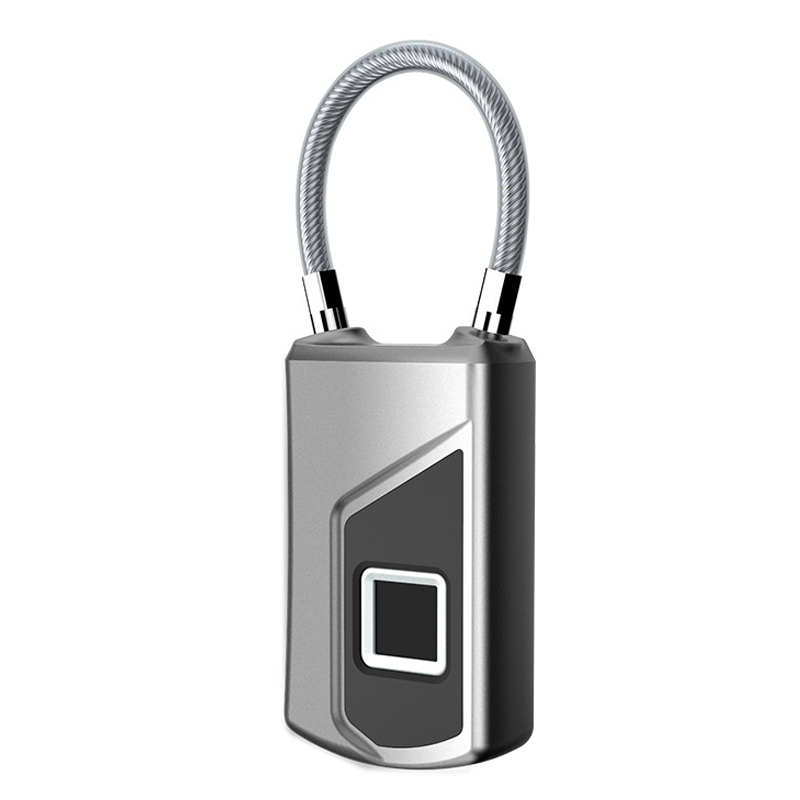

| Product Name | Semiconductor Fingerprint Padlock |
| Fingerprint sensor | Semiconductor fingerprint sensing technology 72*64 |
| Fingerprint Head Shape | Square 10.4*10.4mm |
| FRR | <1% |
| FAR | <0.002% |
| Recognition time | <0.5S |
| Featured functions | The battery can be unlocked in an emergency. After connecting the charger, you can directly press the fingerprint to unlock. The longest standby time can reach 1 year, and the maximum number of unlocking times can reach 1000 times. |
| Fingerprint capacity | 10 groups of fingerprints (the first two groups are administrator fingerprints) |
| Charging current | 5V/180MA |
| Battery | Lithium battery 180mAh 3.7V |
| Working temperaturer | -20℃~+70℃ |
| Waterproof level | IP66 |
| USB interface | Micro USB 5V 0.5A (emergency + charging) |
S4A Datesheet_Padlock With Fingerprint
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
