> Card type: 125KHz or 13.56MHz Card
> KR602EM: 125KHz (WG26 output)
> KR602Mifare: 13.56MHz (WG34 output)
Brand:
S4AItem NO.:

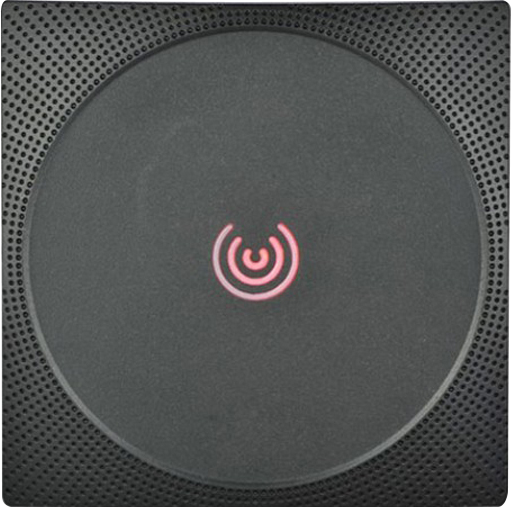

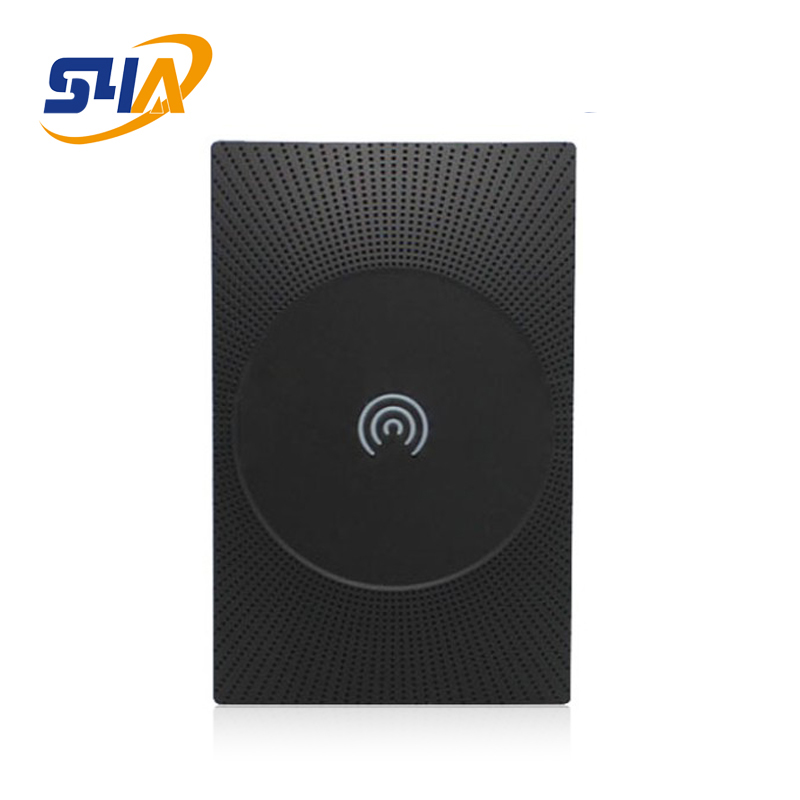

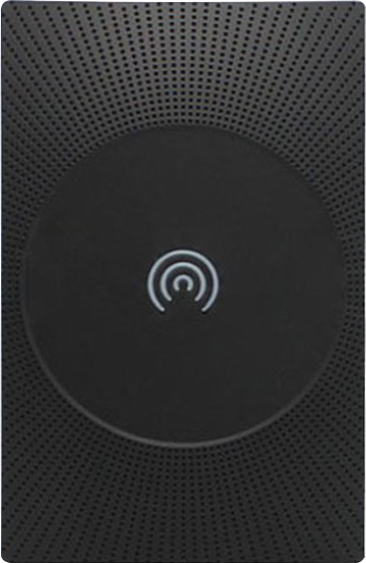

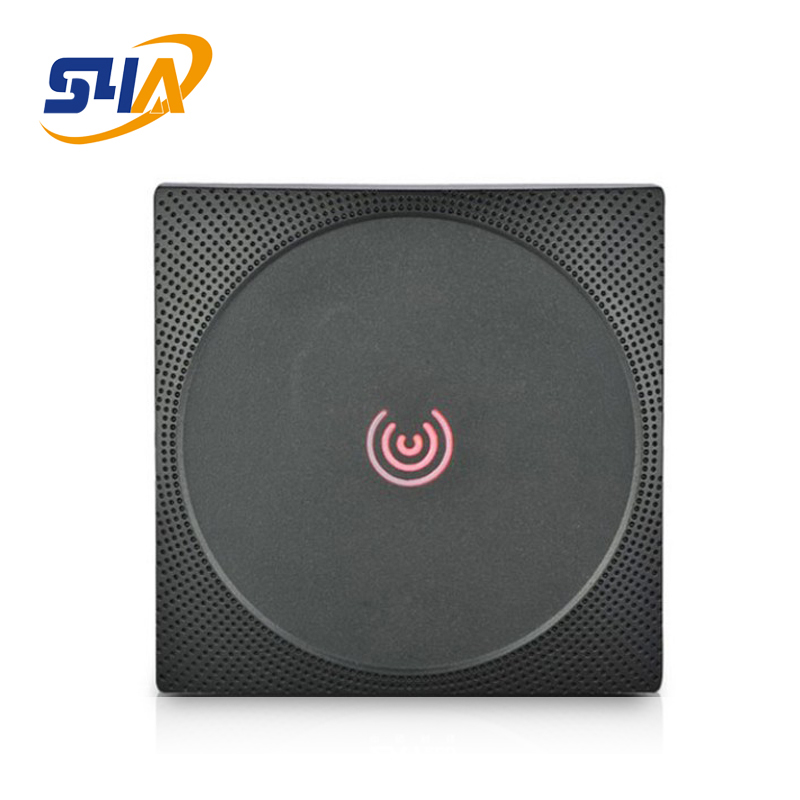

KR602RFID Access Card reader for access control system kits
Model No.: KR602 EM, MF
Introduction:
KR602E: 125KHz Proximity card reader
KR602M: 13.56MHz Mifare card reader
Features:
> 125KHz Proximity /13.56MHz Mifare Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
Model | KR602EM and KR602MF |
Read Range | KR602EM: Up to 10CM,KR602MF:Up to 5CM |
Reading Time (Card) | ≤300ms |
Power / Current | DC 6-14V / Max.70mA |
Input Port | 2ea (External LED Control, External Buzzer Control) |
Output Format | 26bit/34bit Wiegand (default) |
LED Indicator | 2 Colour LED Indicators(Red and Green) |
Beeper | Yes |
Operating Temperature | -20° to +65°C |
Operating Humidity | 10% to 90% relative humidity non-condensing |
Colour | Black |
Material | ABS+PC with texture |
Dimension(W x H x T)mm | 86X86X20mm |
Weight | 50g |
Index of Protection | IP65 |
Package | 100pcs/Carton |
Unit weight | 0.12KG/pcs |
Carton Dimension: | 45X55X20(cm) |
Outdoor Door Access Control System Waterproof RFID Keypad Card Reader | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
KR602 | 50 PC | 9.75 KG | 49x23x31 cm |
S4A Datesheet_Rfid Access Card Reader for Access Control System Kits
